Fully Automatic Pipe Bending Machine Assembly

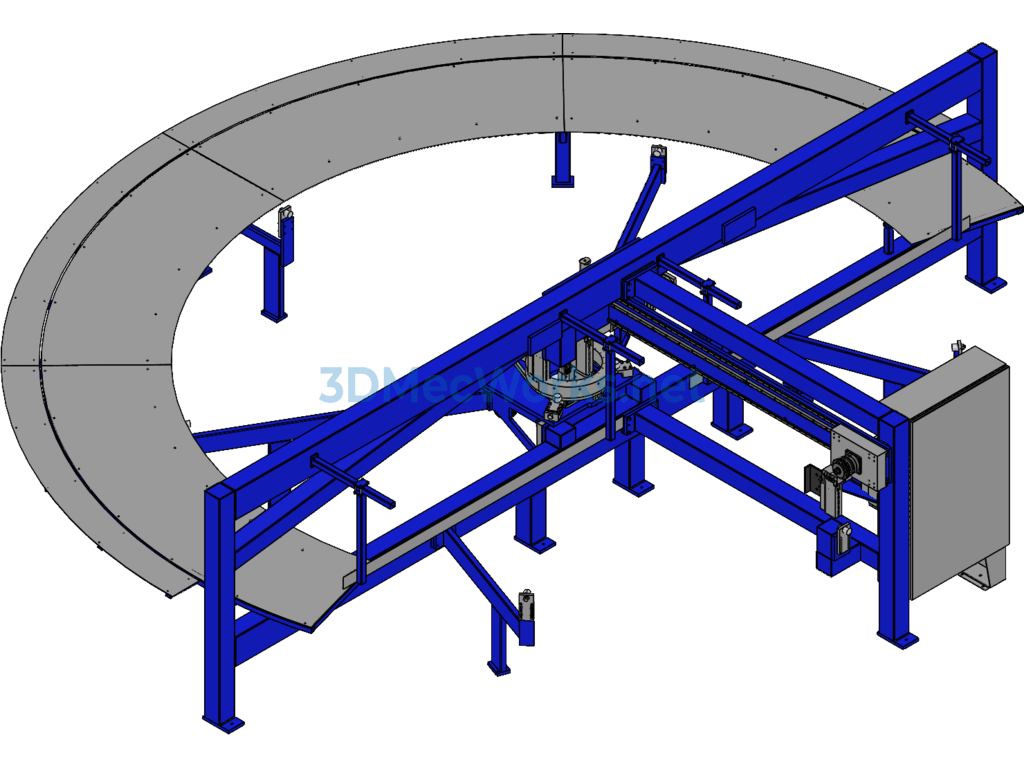

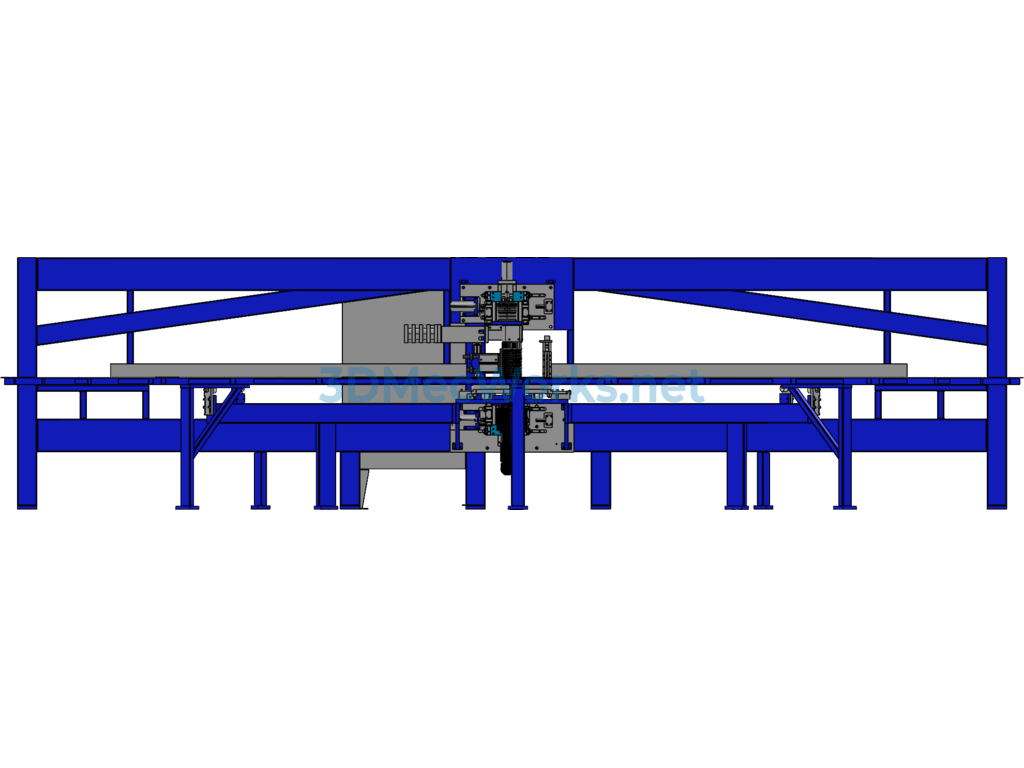

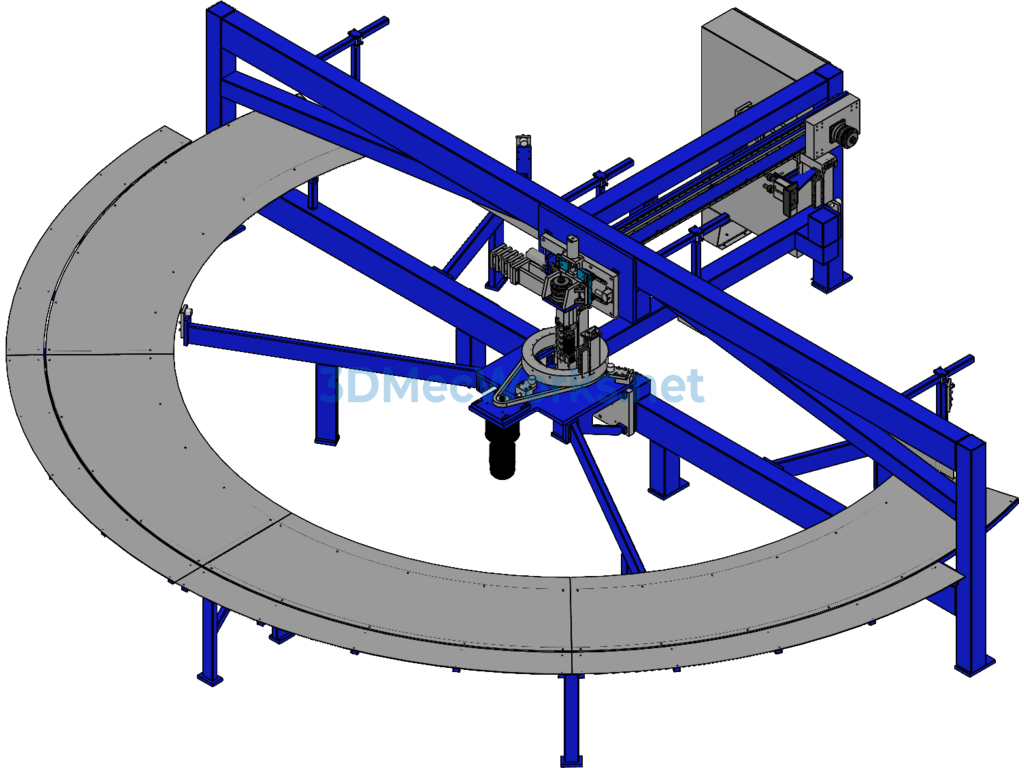

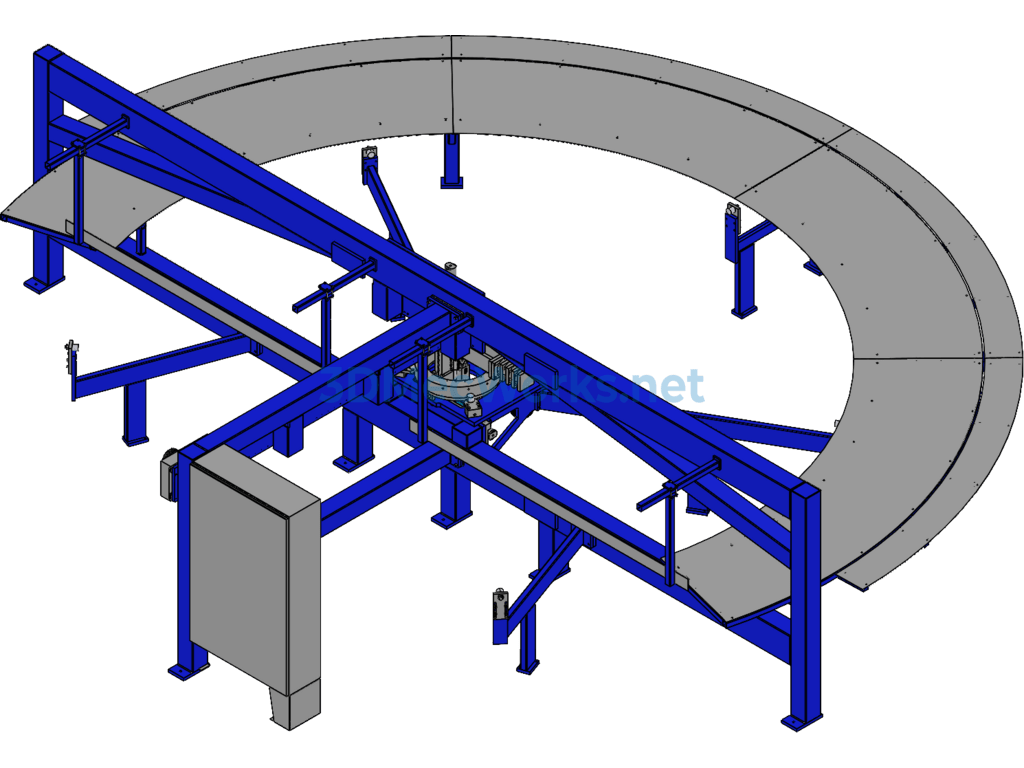

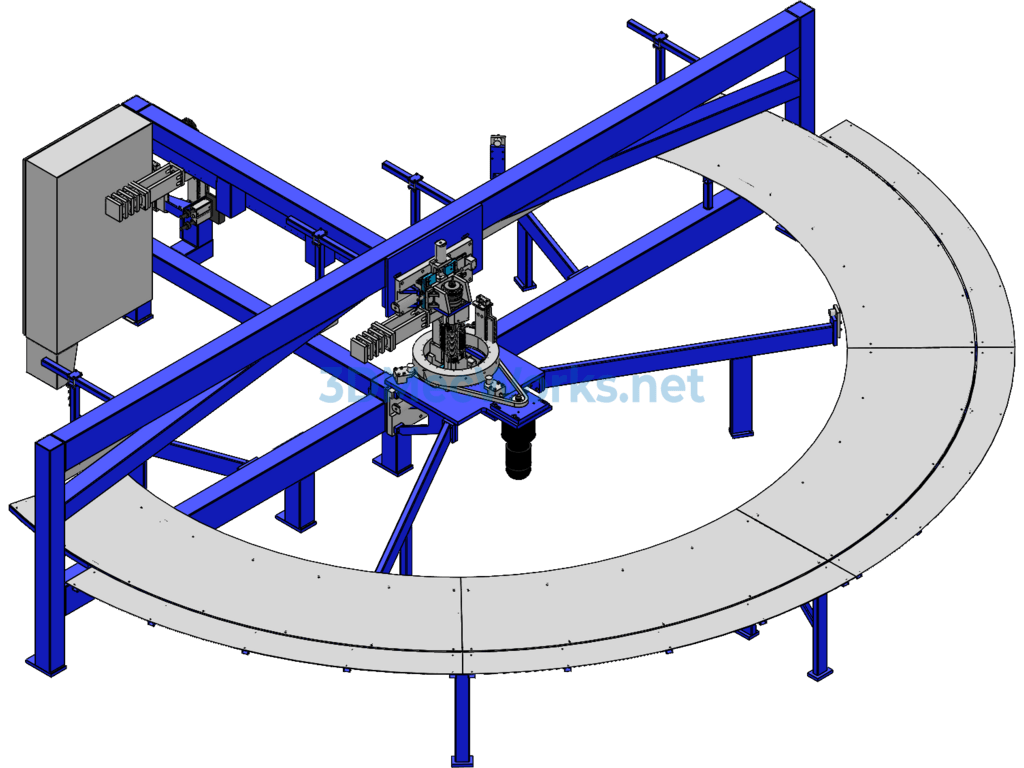

This is a pipe bending machine, primarily composed of a conveying pipeline, support frame, motor, clamp, and electrical components. The core working component of the machine is a clamp driven by a motor. The model features a simple and elegant appearance, with a moderate level of modeling difficulty, and serves as a valuable reference for non-standard design. The file format is the universally standard STP, which can be smoothly opened with Pro/E 5.0.
Specification: Fully Automatic Pipe Bending Machine Assembly
|
