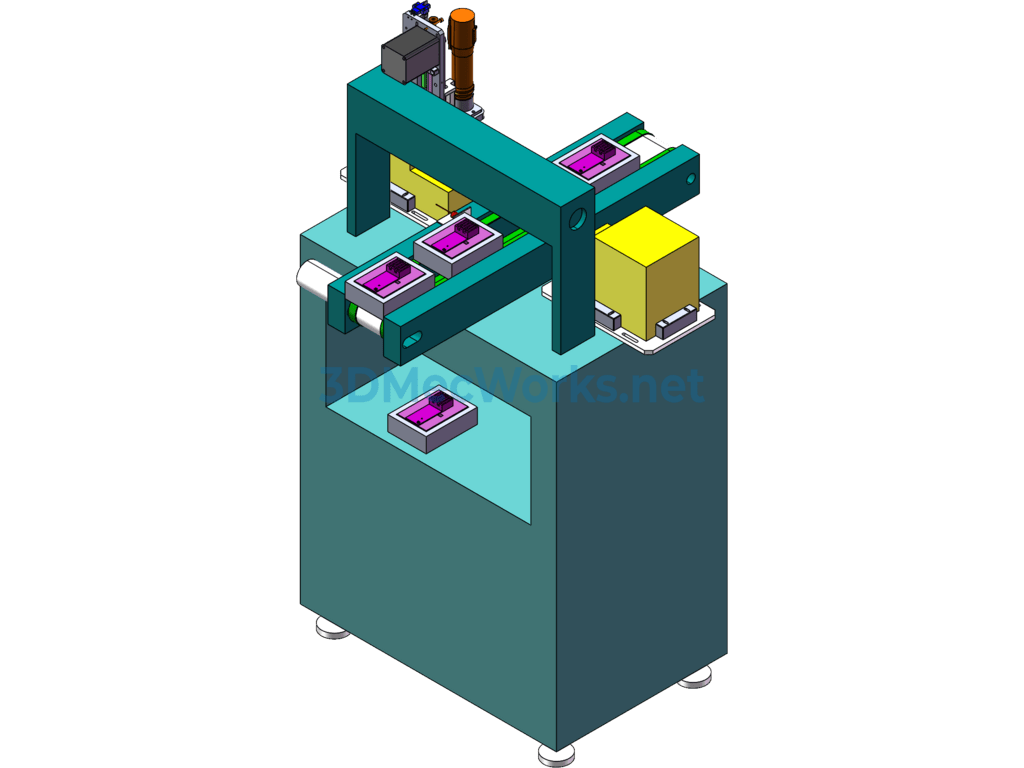

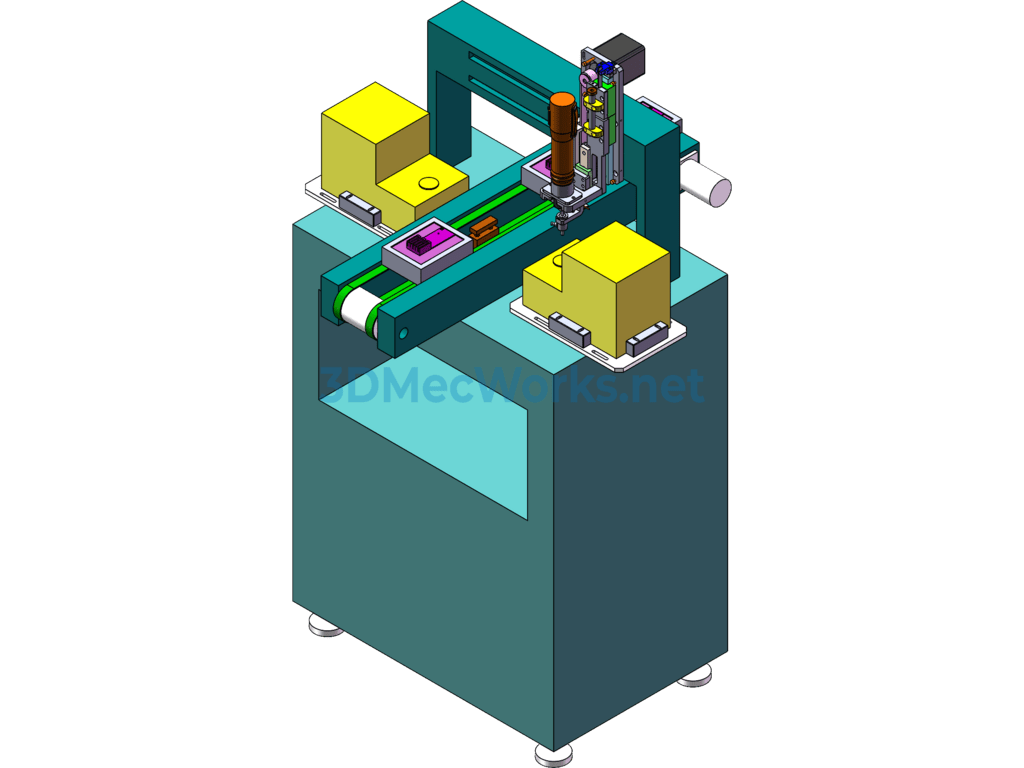

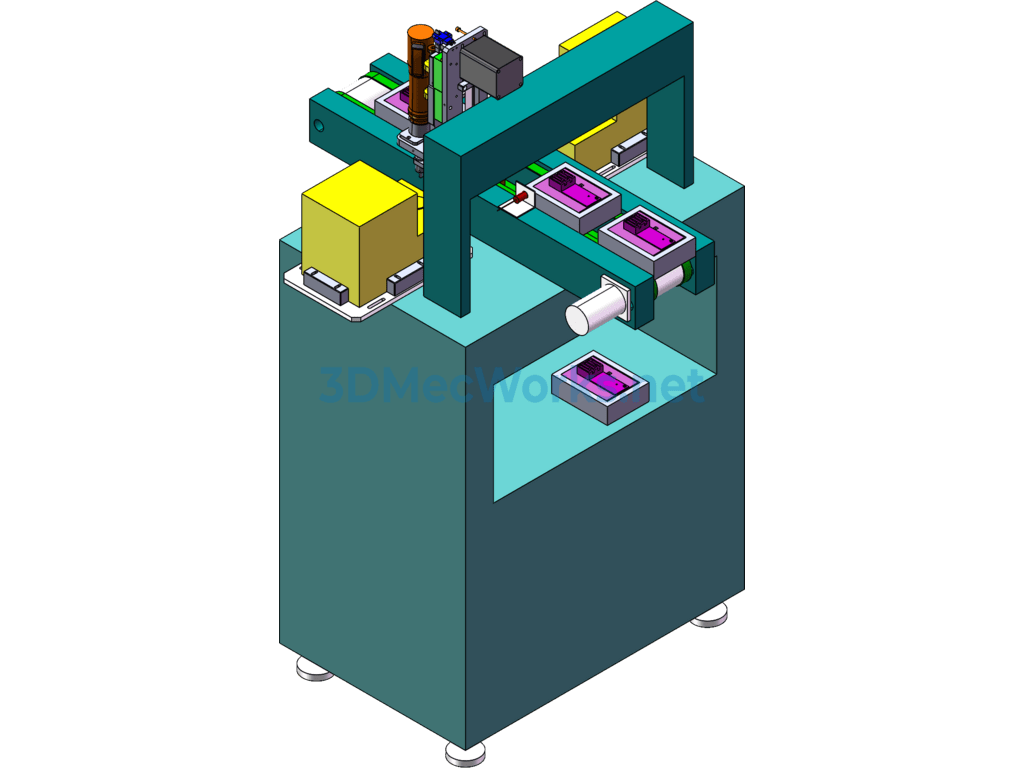

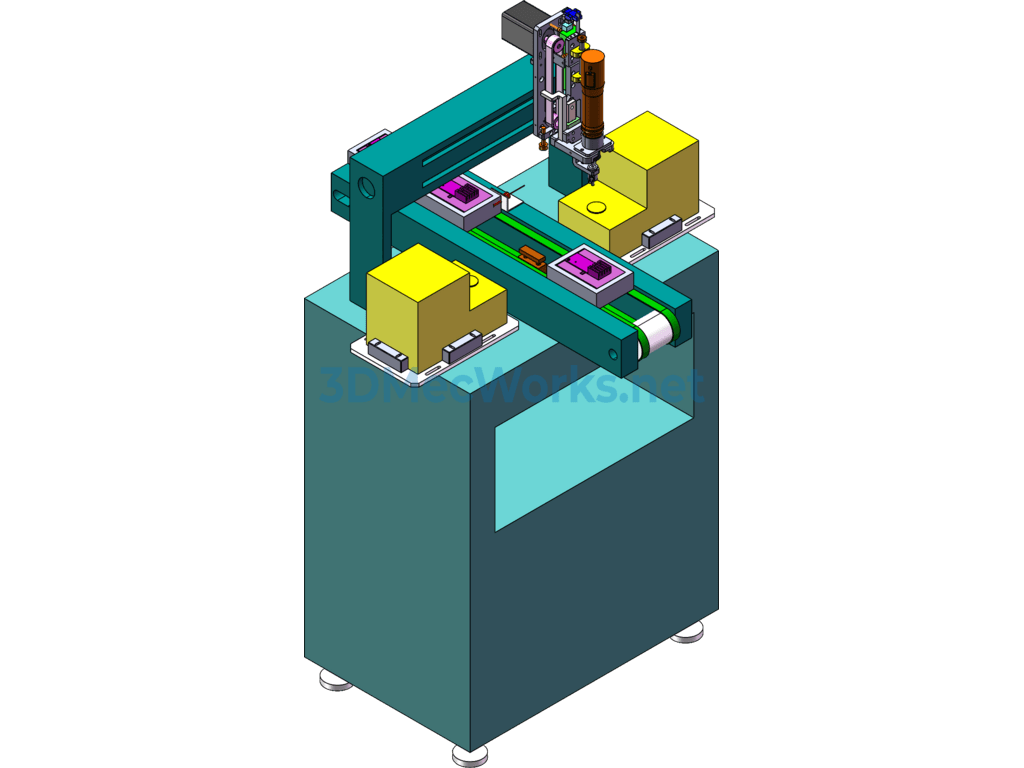

Fully Automatic PCBA Screw Locking Machine 3D Model. The inline screw locking machine is connected to the automatic feeding section of the production line. SolidWorks source files are editable with parameters.
1. Equipment Name: PCBA Automatic Screw Locking Machine
2. Design Premise: Reduce the input of human resources and labor intensity, minimize product quality issues caused by human factors, and improve production efficiency.
3. Design Requirements: The device requires either manual or robotic (existing) feeding, screw detection function, automatic locking of two types of screws, and automatic unloading to the next process equipment.
4. Action Process Description: Place the product on the production line—photoelectric detection of the product, initial positioning by cylinder—CCD positioning—automatic screw locking—automatic unloading.
