The workflow of the fully automatic palletizing winding packaging production line is: The robot performs palletizing of wooden pallets, supplies them to the pallet supplier, which automatically conveys pallets to the chain conveyor line as needed. The wooden pallets are automatically covered with top film by the film covering machine, and the fully automatic pallet wrapping machine performs the wrapping and packaging. The wrapped products are automatically conveyed.
This 3D model showcases household goods being fully automatically lifted from downstairs to upstairs. QR code scanning detects defective products, and the exclusion workstation detects and removes the defective products. The good products continue to flow to the top, waiting for the mechanical arm to pick them up onto the pallet. The pallet is automatically supplied, and the mechanical arm picks, packs neatly the cardboard boxes, and stack them on the pallet, followed by automatic wrapping. The equipment runs smoothly, has a very complex structure, and is worth learning and referencing.

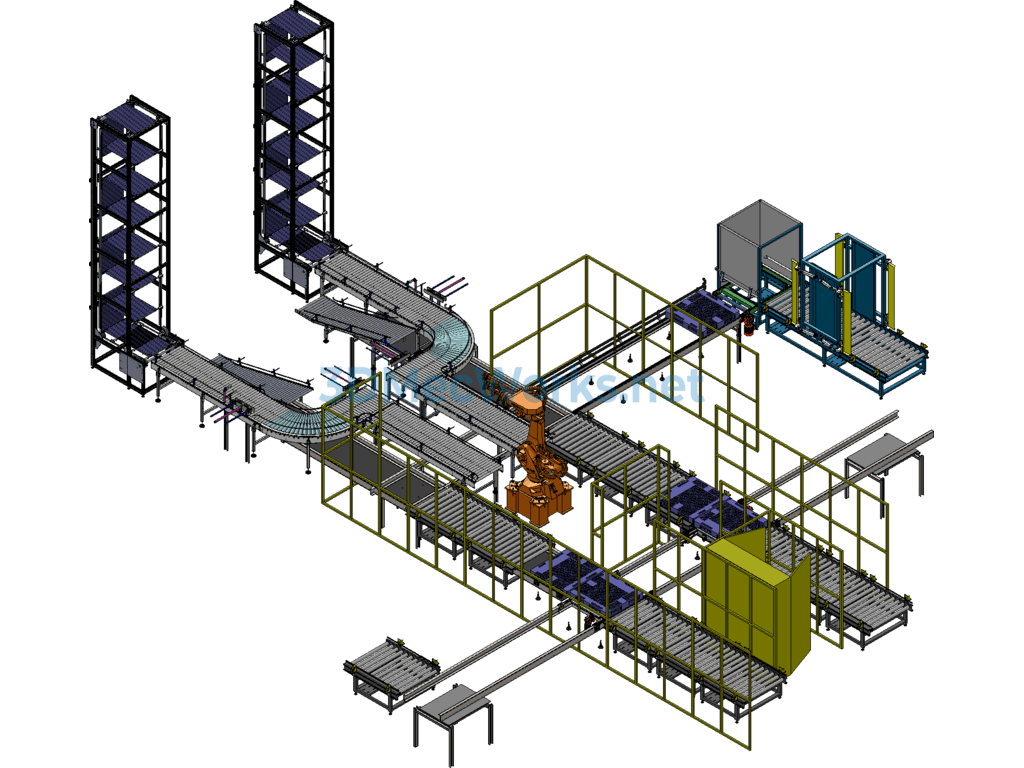

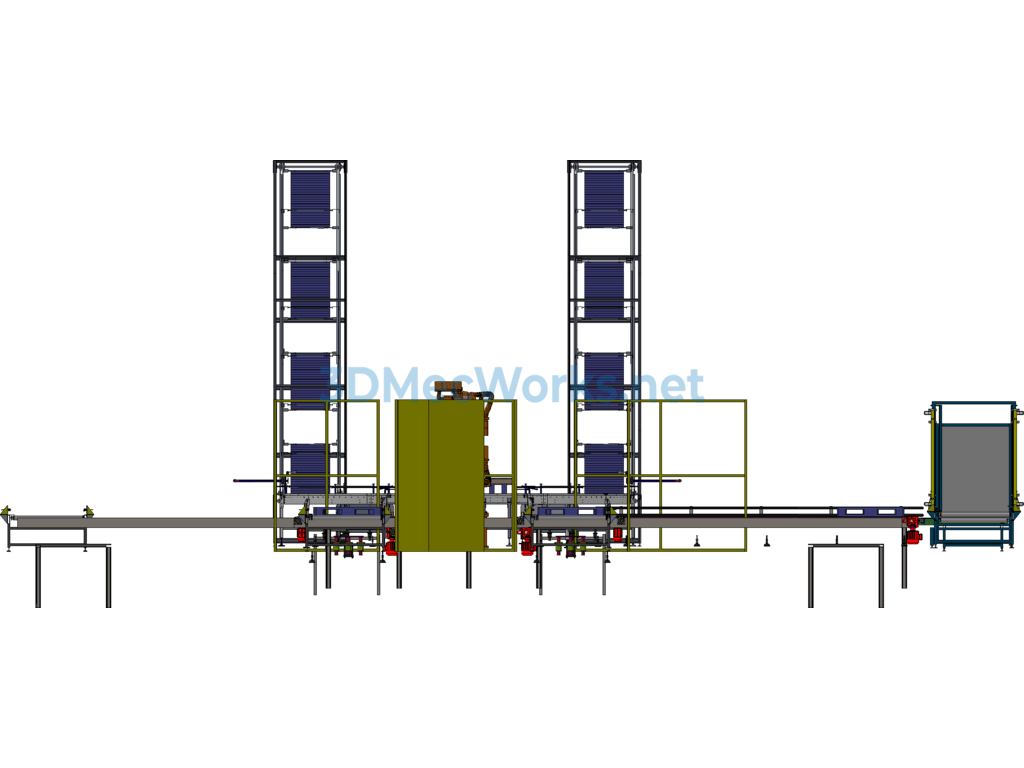

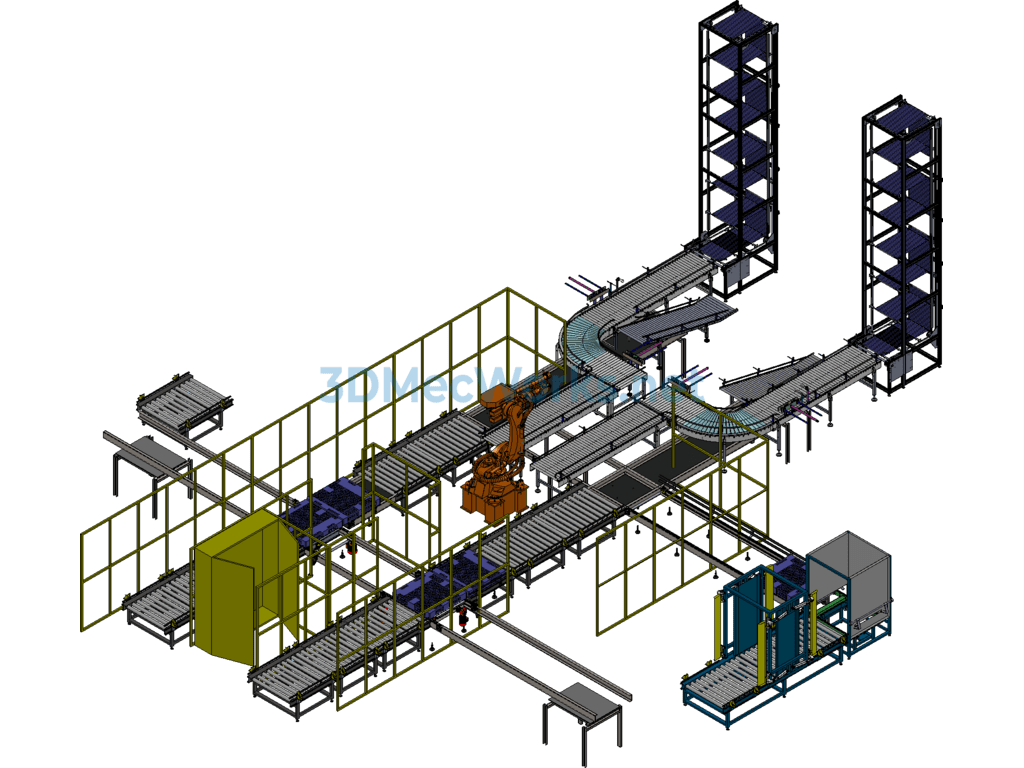

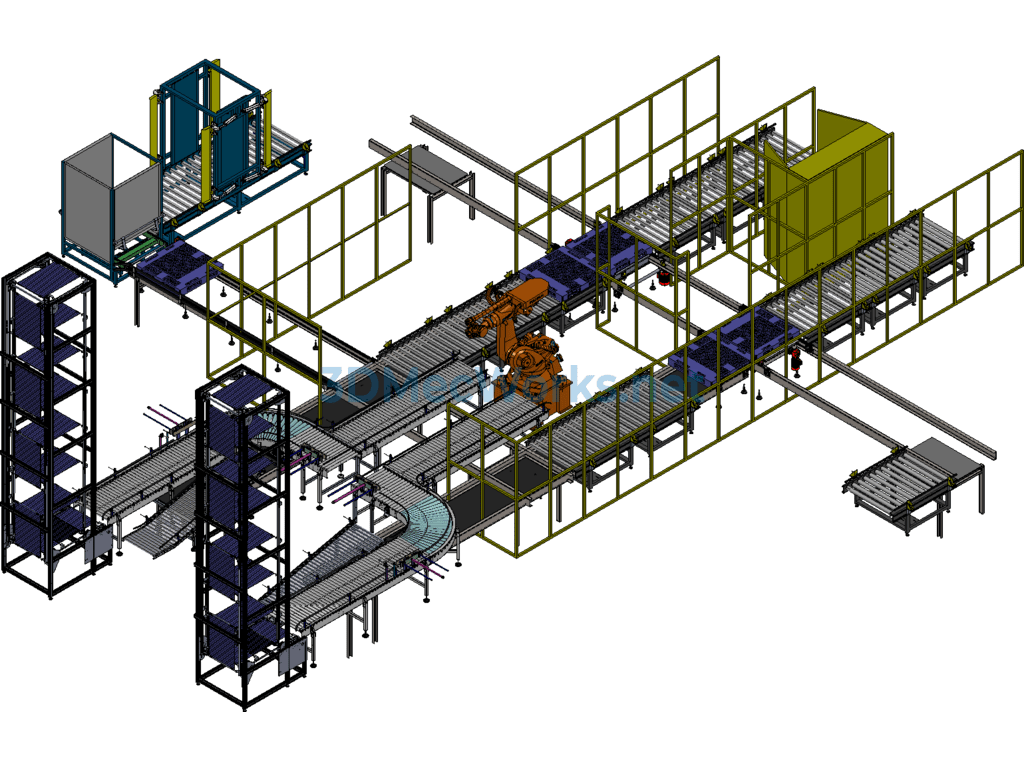

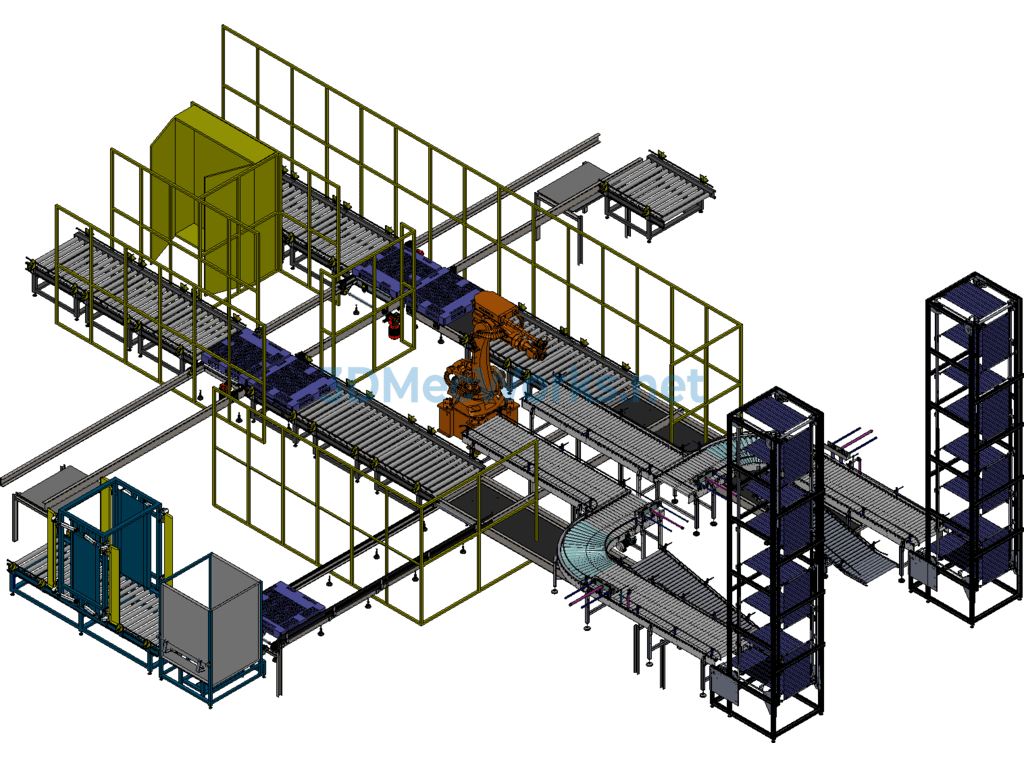

Fully automatic palletizing winding packaging production line 3D model designed with Solidworks. Source files are shared.
