Fully-Automatic Online Labeling Equipment

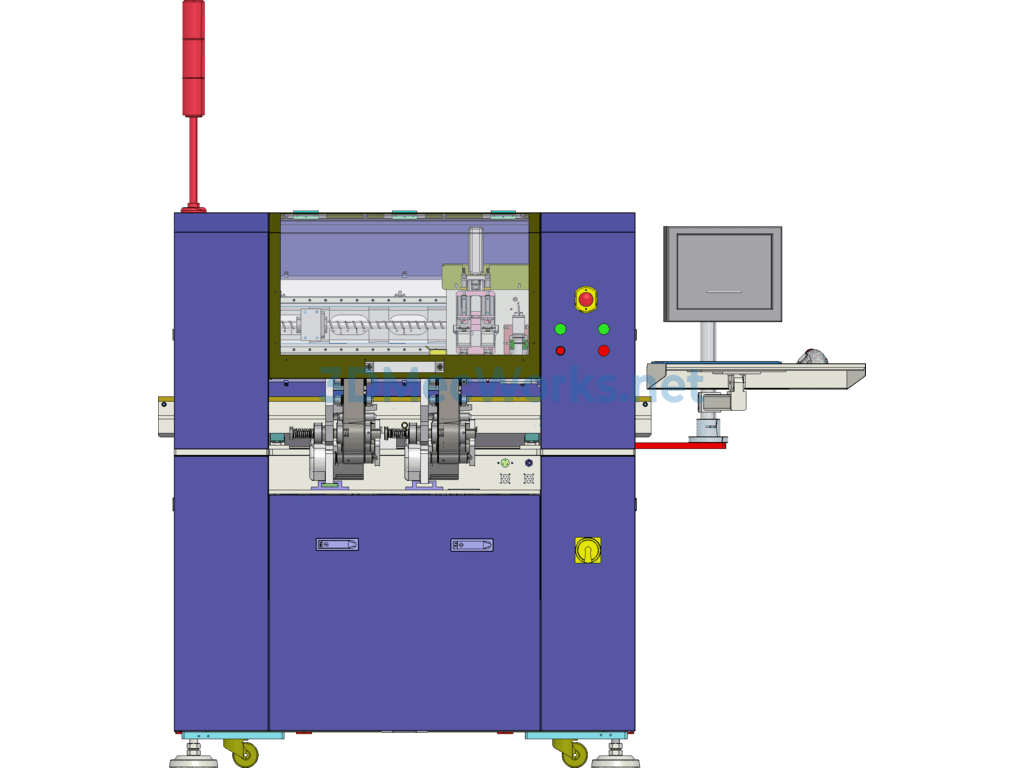

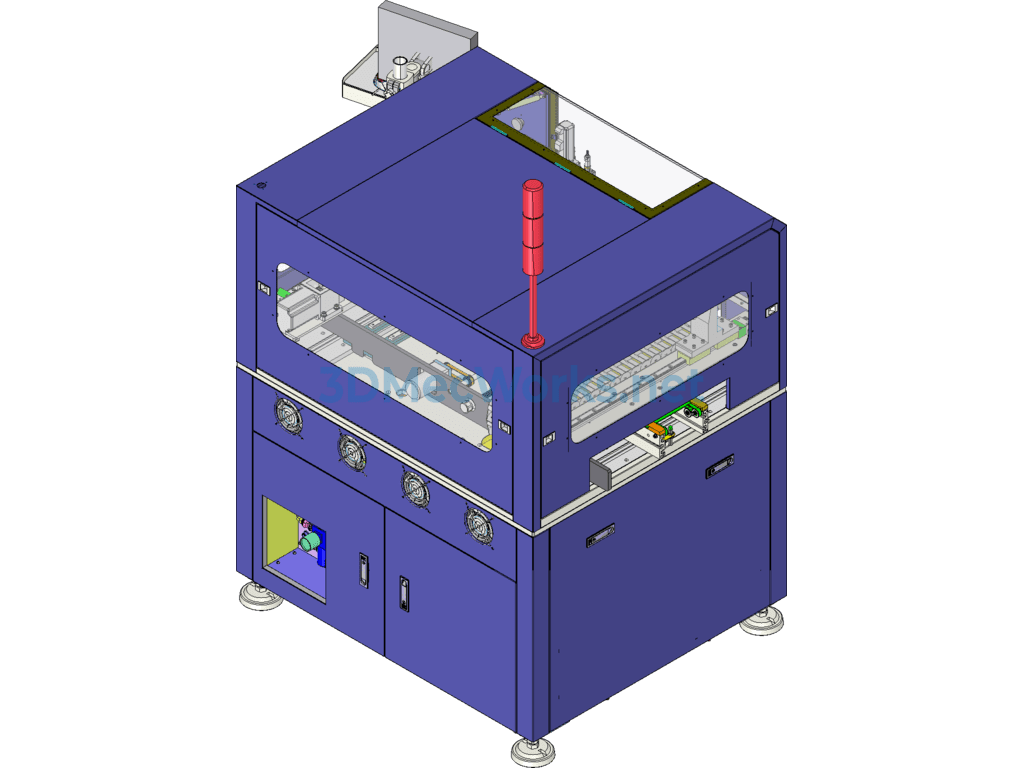

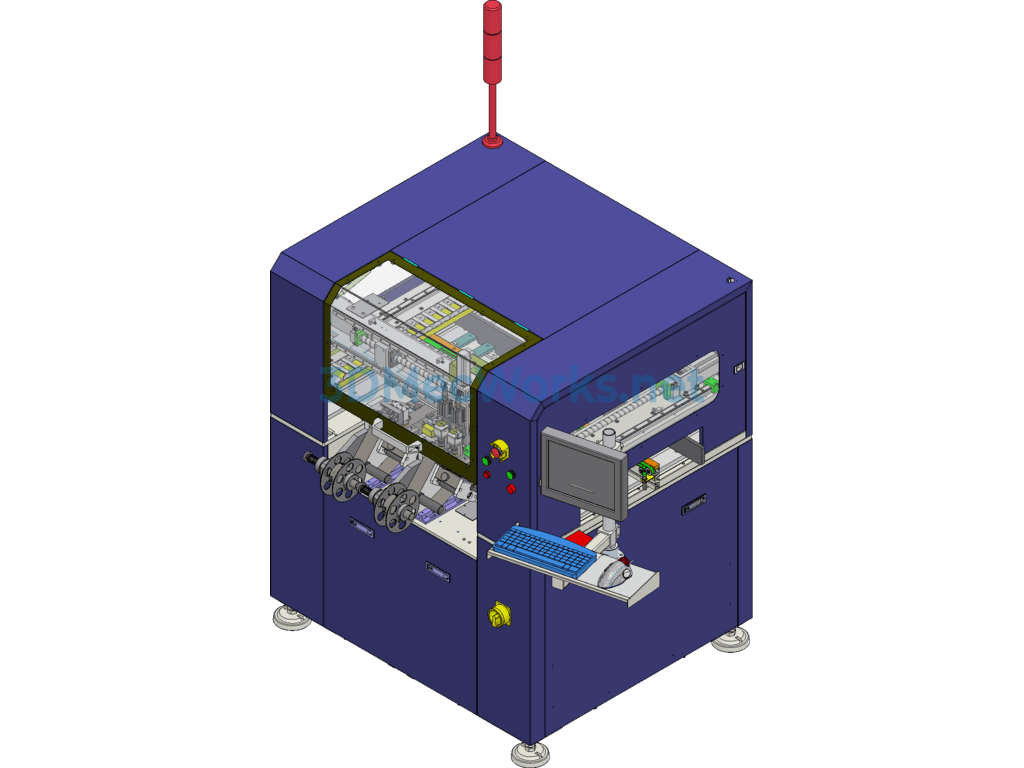

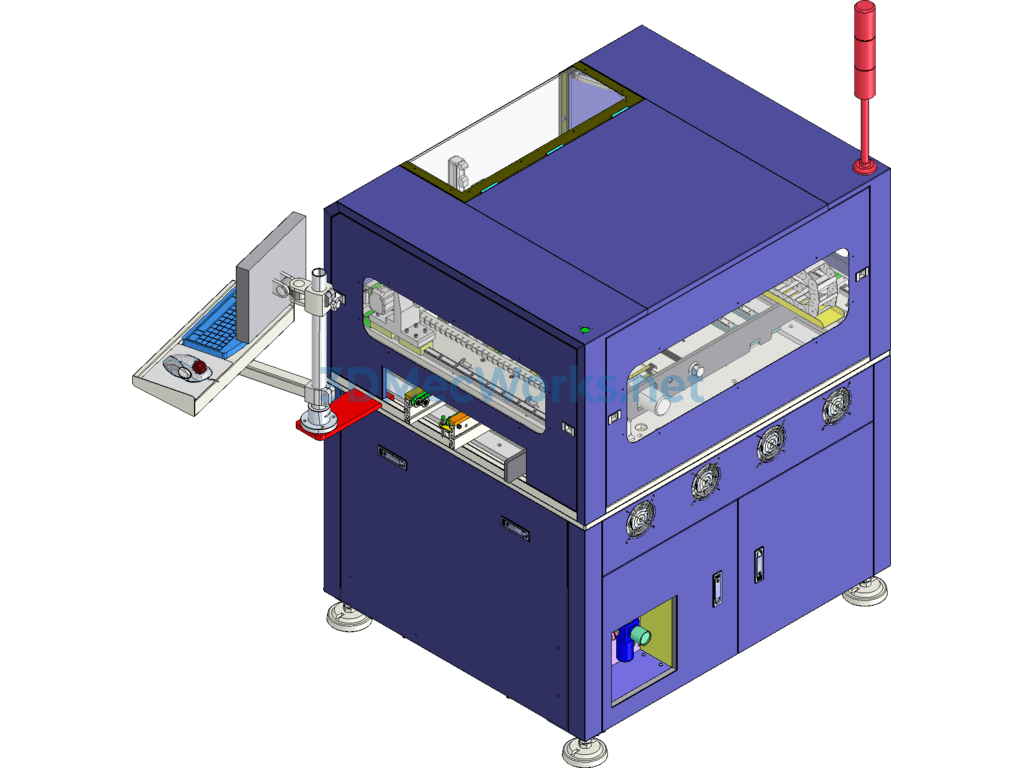

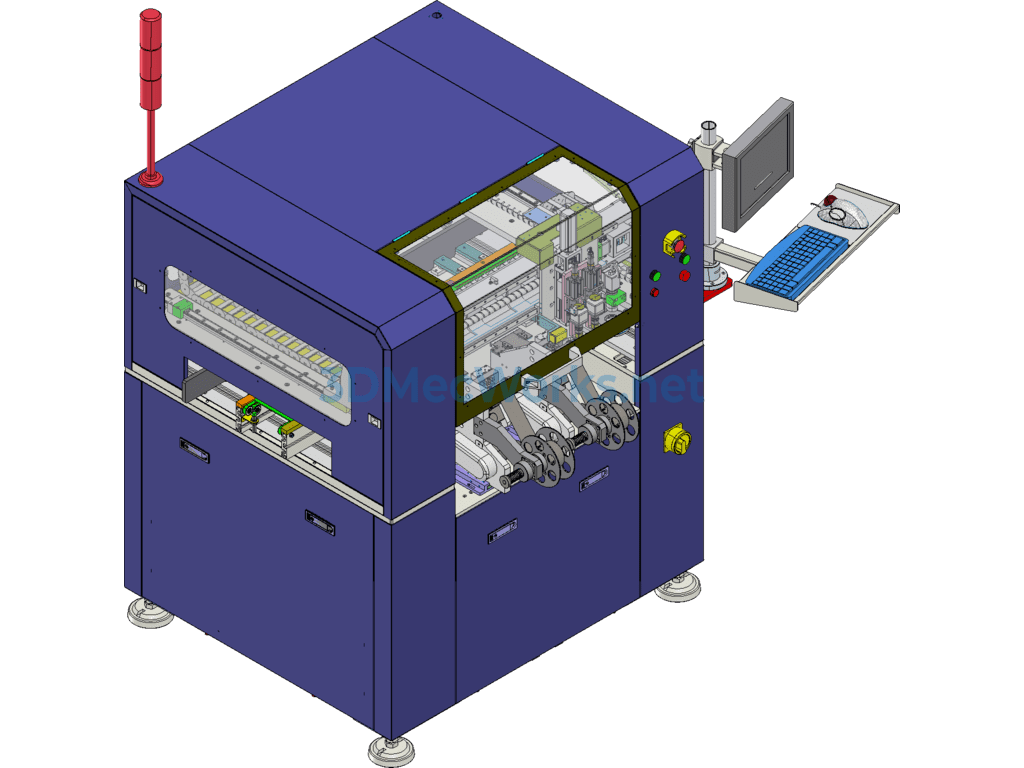

SMT High-Speed Barcode Labeling Machine, suitable for automatic barcode labeling on SMT lines, is a high-performance intelligent new type of automatic barcode labeling equipment that integrates automatic feeding, automatic barcode labeling, and automatic barcode reading. This SMT high-speed barcode labeling machine has a dual-suction head structure where the heads are replaceable, can rotate independently to pick labels, with the picking and labeling precision achieved using CCD vision camera positioning, resulting in high-speed, high-precision labeling with an accuracy of ±0.05MM. The width of the feeding conveyor belt is adjustable and can be modified according to the size of different boards. This drawing can be adapted to make a chip mounter, and now I am uploading these drawings for everyone to learn. Please do not misuse them for commercial purposes. For more drawings, please visit my homepage to download. Thank you, everyone. Main assembly name: smttbj-000001 Device Parameters Category Specified Parameters Whole Machine Dimensions 1200*1000*1900 Input Voltage AC 220V 50Hz Maximum Power 1.8KW 7A Machine Weight ≈400kg Input Air Pressure 0.5-0.7 Mpa Air Consumption ≈20L/min Production Efficiency (C/T) ≤2/PCS Equipment Utilization Rate ≥95% (includes loading/unloading, machine adjustment, etc.) Processing Mode Automatic feeding, automatic loading, automatic barcode labeling, automatic barcode reading, automatic unloading PCB Board Feeding Method Conveyor automatic feeding Maximum External Dimension of Linked PCB Board 250*250 XY-Axis Maximum Travel 400*330 Positioning Method High-precision photoelectric sensor (Panasonic servo motor drive, position adjustable at will) Suction Head Positioning CCD camera positioning Suction Head Rotation Angle 90° to 180° Rotation Method Stepper motor rotation Label Picking/Labeling Mechanism Label Picking Method XYZ-axis manipulator driven suction cup pickup Positioning Adjustment Method High-precision photoelectric sensor, travel adjustable at will Manipulator Arm Movement Speed Maximum 800mm/s Up and Down Adjustment Z-axis travel adjustment Barcode, QR Code Label Equipment SMT Online Barcode Labeling Equipment – with CCD Vision Positioning Chip Mounter Principle – Original Design Drawing
