Fully Automatic Linear Circulation Production Line (labeling/assembly/testing)

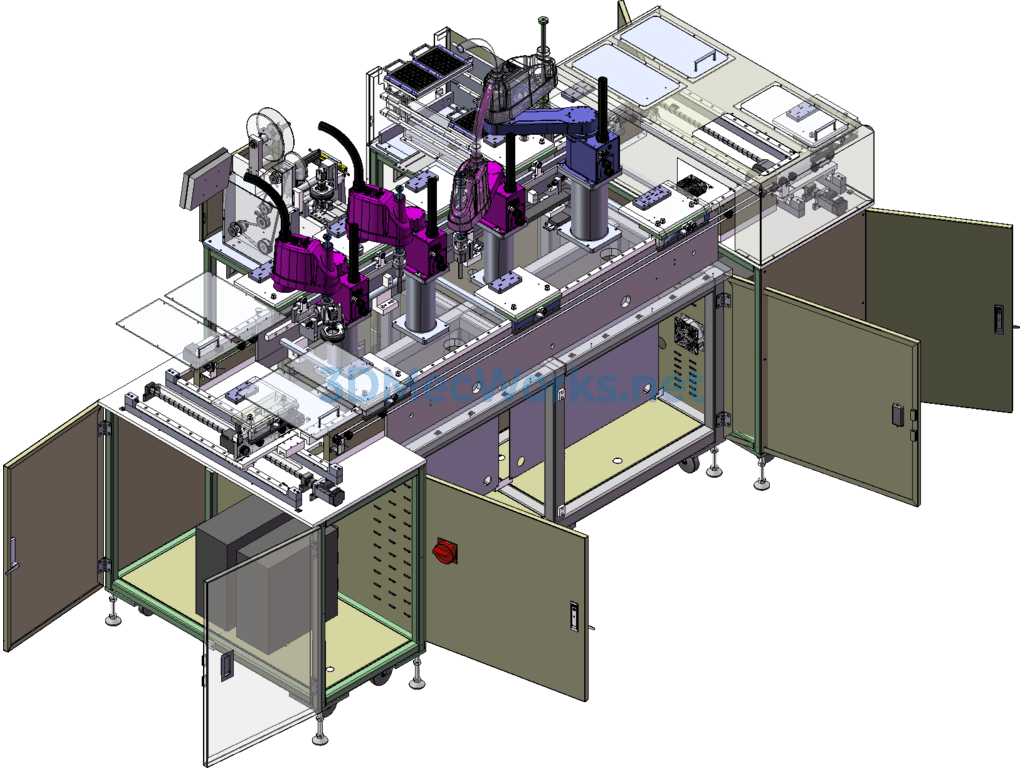

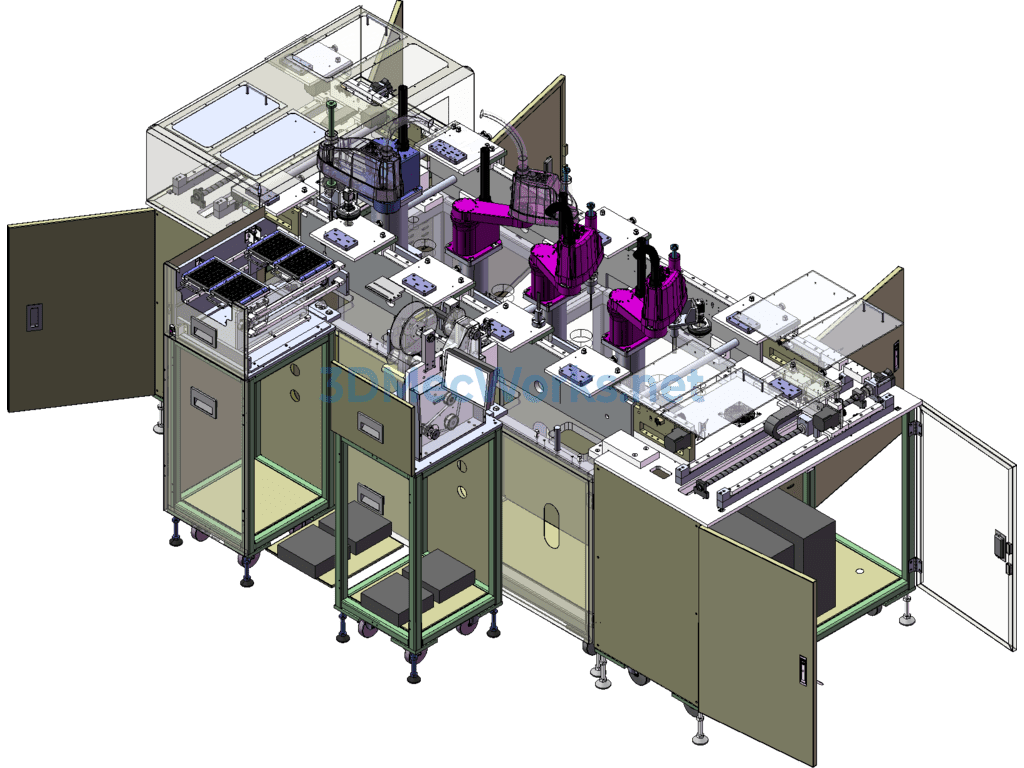

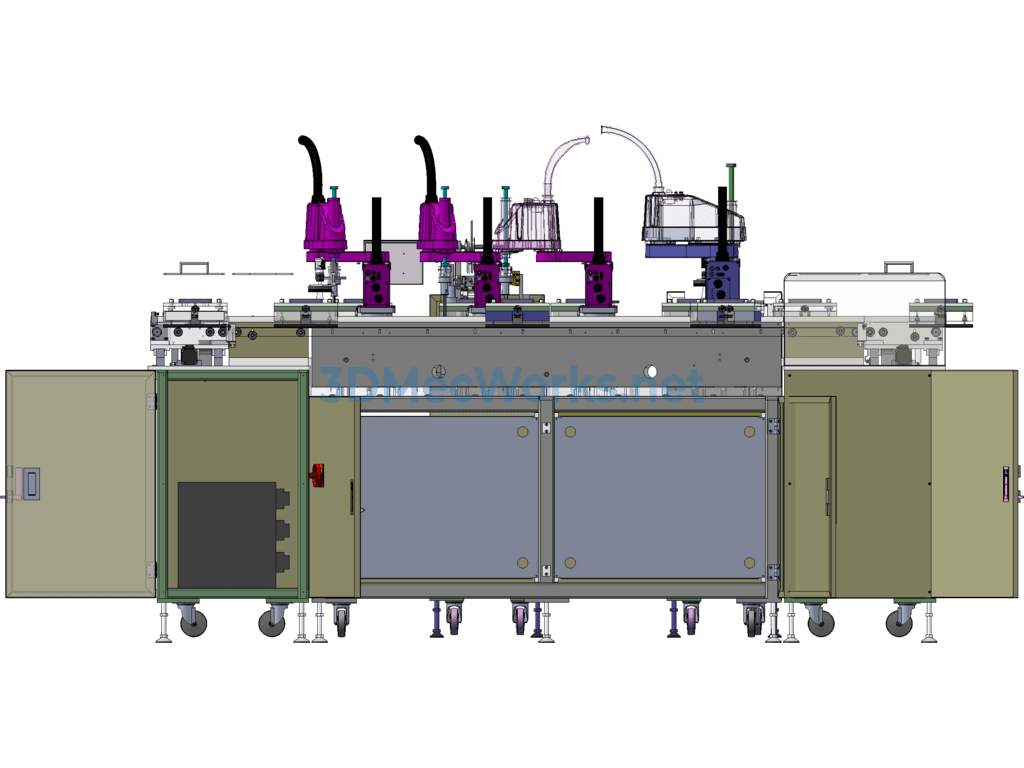

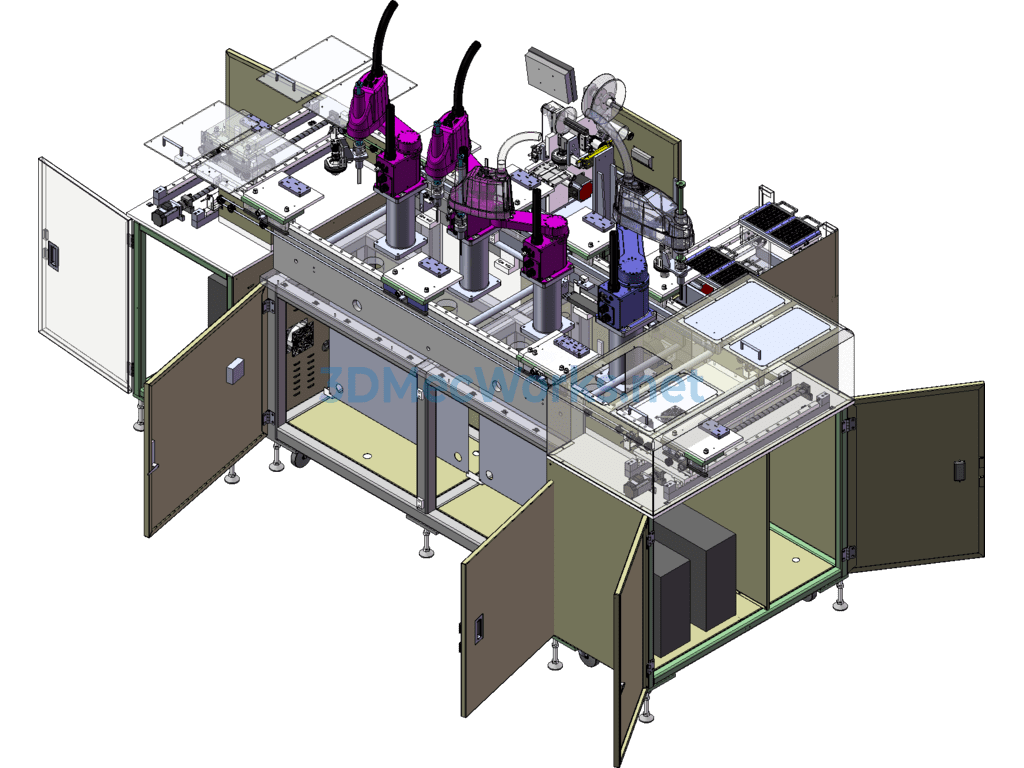

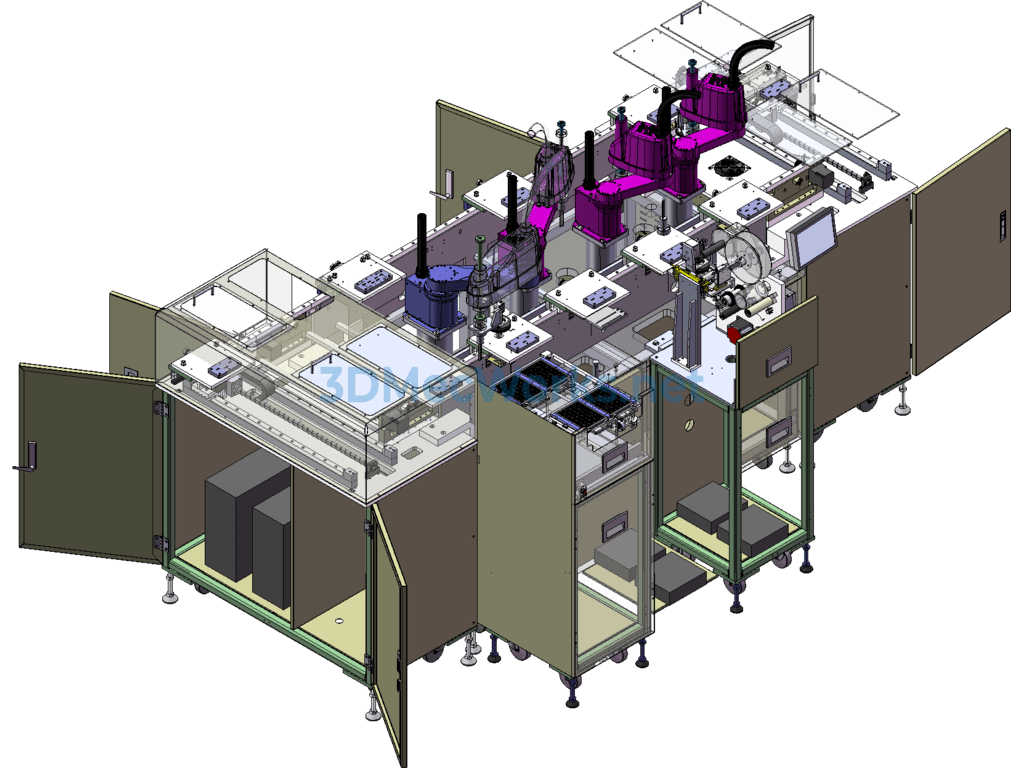

Fully automatic linear circulation line, fully automatic linear circulation chip mounter, this production line is a fully automatic production line. It uses linear rails to connect linear rails to achieve linear circulation. The main stations include labeling, assembly, and testing. Advanced modules such as CCD and EPSON four-axis robots are used. This automatic line is designed with SOLIDWORKS, and all parts of the source file have features, making it convenient for you to reference and modify. The overall structure is clear, the parts are complete, and it is an ideal teaching material for you to reference or learn from.

[After compression, it is over 235M, compressed into two packages, both of which must be downloaded and decompressed completely.]

The design of this automatic line is reasonable, with a complex and mature structure, and it is very worth referencing. Colleagues are welcome to refer to it! The 3D model SW design source file of this fully automatic linear circulation production line is shared. The document is relatively large, please be patient when downloading.
