Fully Automatic Flat Labeling Machine

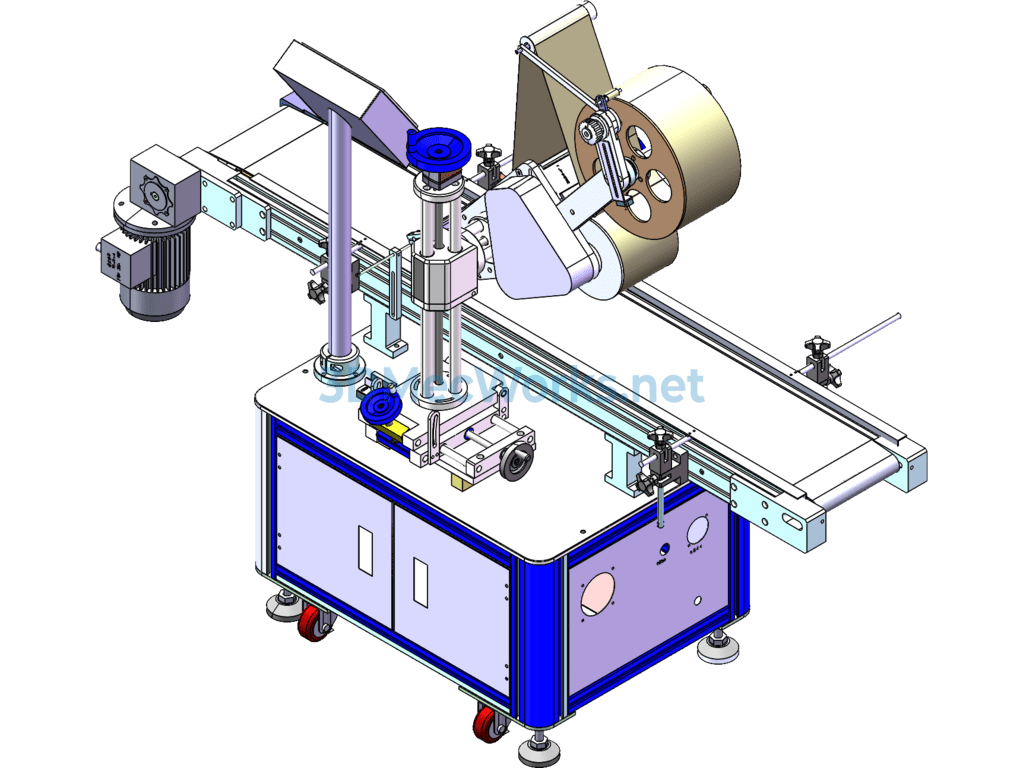

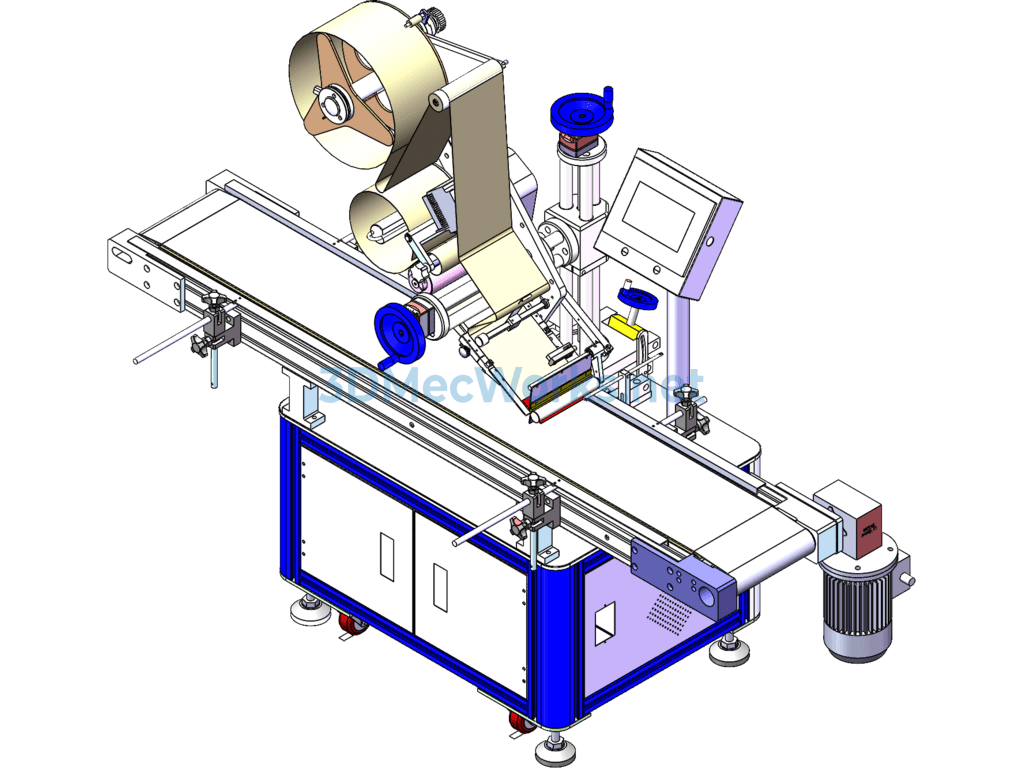

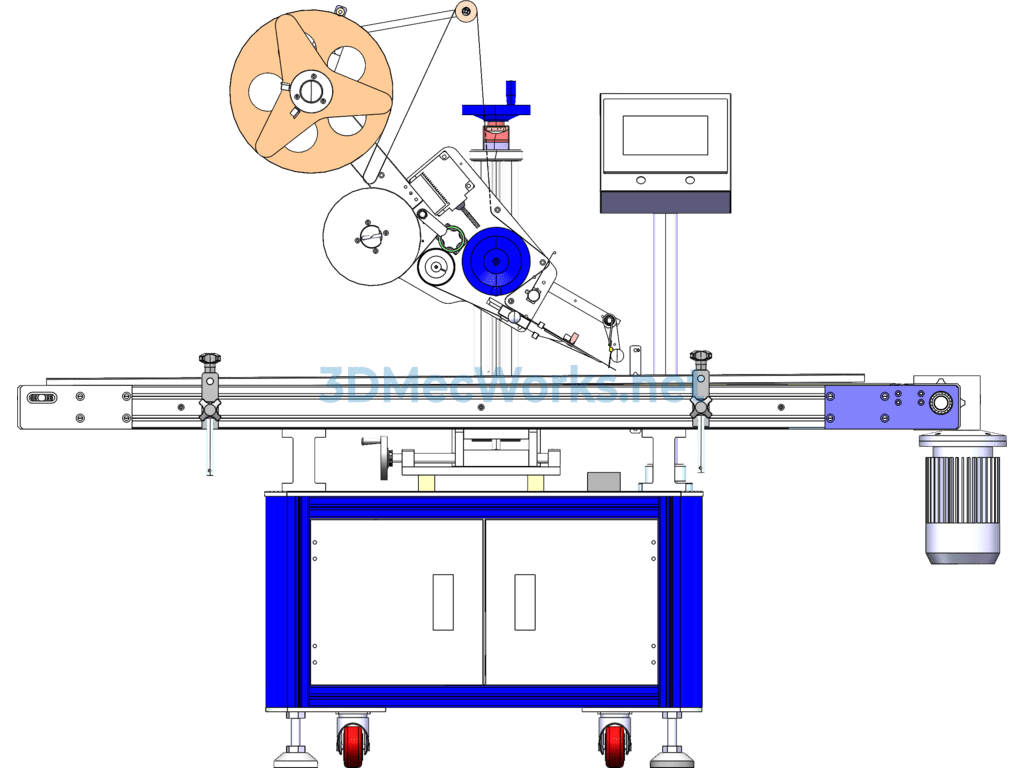

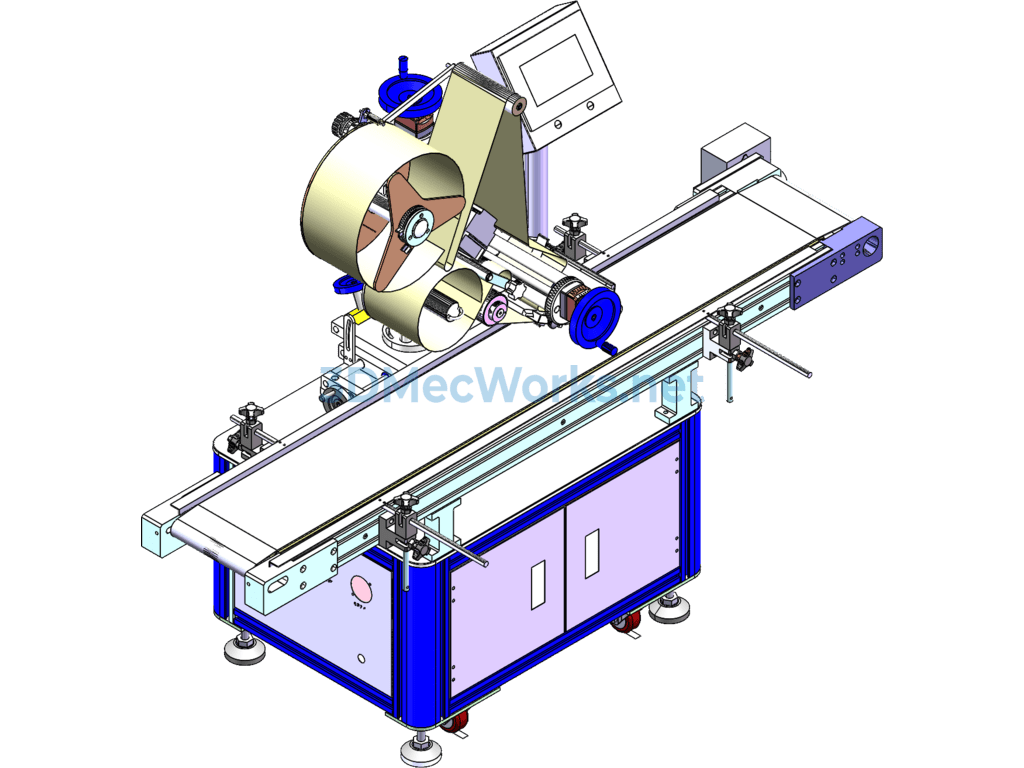

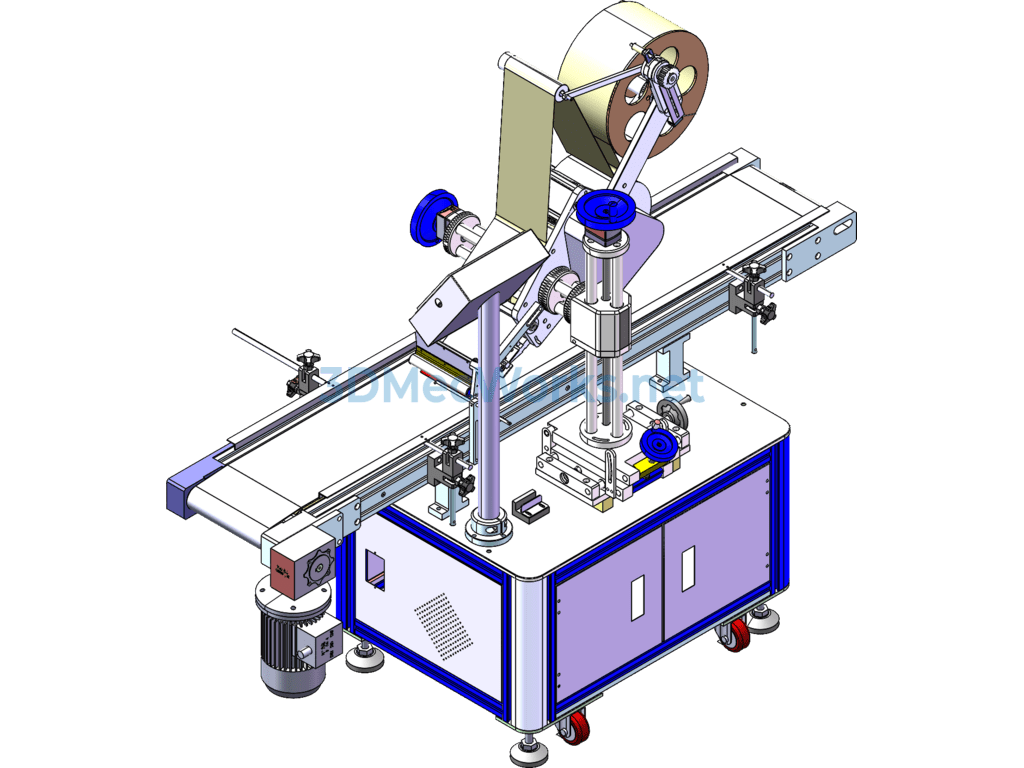

This drawing is for a fully automatic top plane labeling machine, with a conveyor height of 800mm from the ground. The equipment includes a conveying mechanism, labeling head mechanism, adjustment mechanism, and electrical box mechanism. The equipment features a mature structure and is suitable for mass production.

Production efficiency: 60 pcs/min (dependent on product size).

Compatible label backing paper size: 40~150mm.

Compatible product size: width 40~200mm, length 40~280mm.
