Fully Automatic Brick-Making Machinery, Complete Brick-Making Industrial Equipment

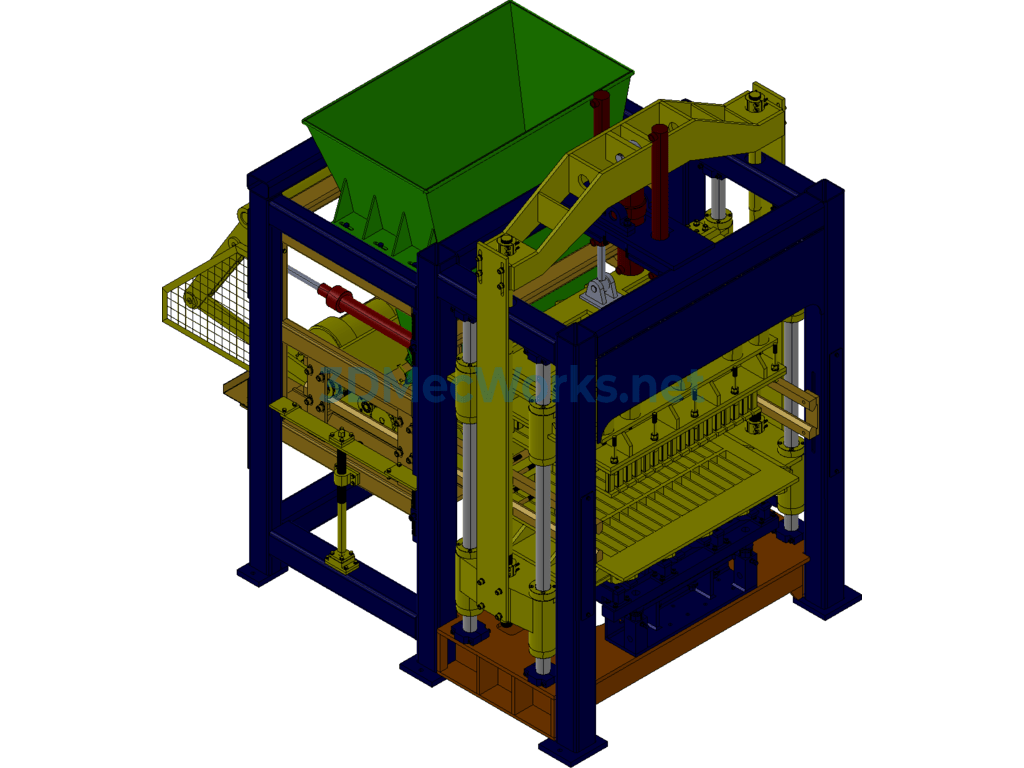

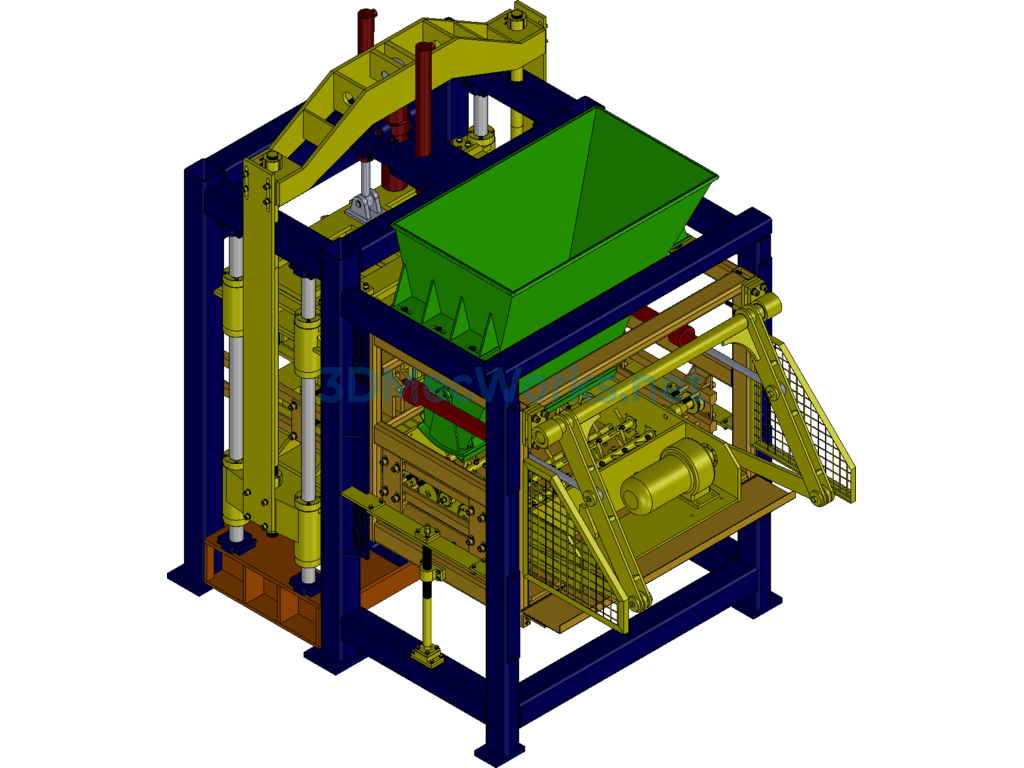

The fully automatic brick-making machinery drawings represent a complete set of brick-making industrial equipment. The fully automatic brick-making machinery drawings are in SolidWorks format, including general assembly drawings, component assembly drawings, part drawings, and standard part drawings. It is a complete set of mechanical drawings, which manufacturers can directly use for production, and the mechanical industry can also refer to the structures inside. Brick machines are a general term for brick-making machinery used in the building materials industry to manufacture products such as colored bricks and cement bricks.
1. Adopts advanced German block machine technology, with a heavy and steady structure, weighing 30% more than domestic machines of the same output, exhibiting significant shock absorption effect.
2. Utilizes a Mitsubishi computer control system from Japan, with an LCD touch screen to adjust parameters, equipped with data input and output devices to realize human-machine interaction.
3. The computer control system has a self-locking function, preventing the next action until the previous one is in place, avoiding incorrect actions that may damage the machine, and allows remote fault diagnosis via telephone line.
4. The machine body uses thick-wall square tubes and an extra-long guide sleeve to ensure the machine body is firm and vibration-resistant, with accurate pressing head movement.
5. The low center of gravity, with the vibrating platform 486MM above the ground, ensures 90% of residual vibration is transmitted to the ground, extending equipment life.
6. Excellent synchronism. The pressing head and demolding frame are fully equipped with adjustable synchronous swing arms, ensuring pressing head and demolding errors within +1MM.
7. Wide range of products. Equipped with a secondary feeding device, it can simultaneously produce hollow blocks, multi-row perforated bricks, hollow bricks, curbstone, split blocks, colored paving bricks, grass planting bricks, washed bricks, and other products.
8. Vibration and pressure separation technology. Equipped with a vibration support plate, and an auxiliary pressing head with shock-absorbing rubber pads to completely block vibration and pressure interference.
9. Employs hydraulic valves and coolers from Taiwan, ensuring reliable operation of the hydraulic system with low failure rates.
10. Uses a claw mandatory feeding device to completely solve the problem of feeding thin-walled products (wall thickness less than 20MM).
11. The vibration spindle uses universal joint drive shaft transmission mode, ensuring accurate transmission speed, long service life, and avoiding the hassle of frequently replacing belts often seen in belt transmission.
12. All models use inverters, completely achieving continuous rotation of the spindle motor, fundamentally solving the problem of spindle motor overheating.
13. The only manufacturer in the country to use a vibration force adjustment system, allowing each block main machine’s vibration force to be adjustable, thus reducing vibration time, improving product density, and saving cement.
14. Uses an overall framework sleeve-type adjustment method, which allows all parameters to be adjusted by simply rotating two screw jacks and adjusting proximity switch distances.
15. Strong exciting force, with an amplitude of 2mm and an exciting acceleration of 15g, allowing materials to form quickly in about 2 seconds, ensuring adequate liquefaction of cement, and increasing strength by one grade under ordinary weight proportion conditions.
