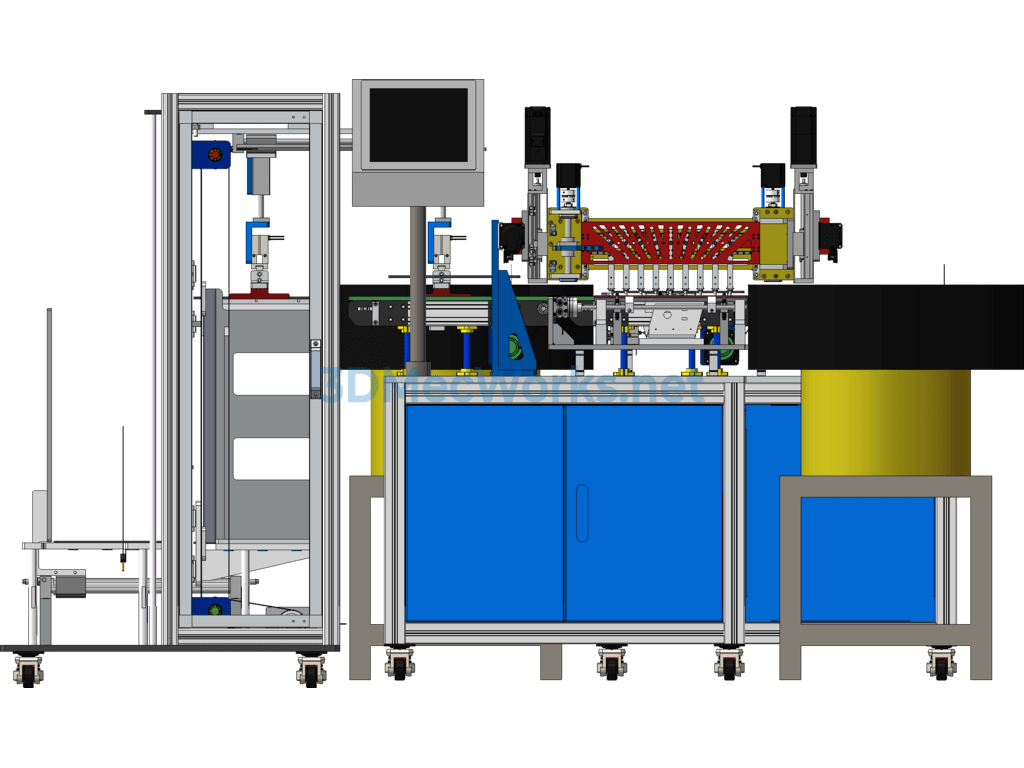

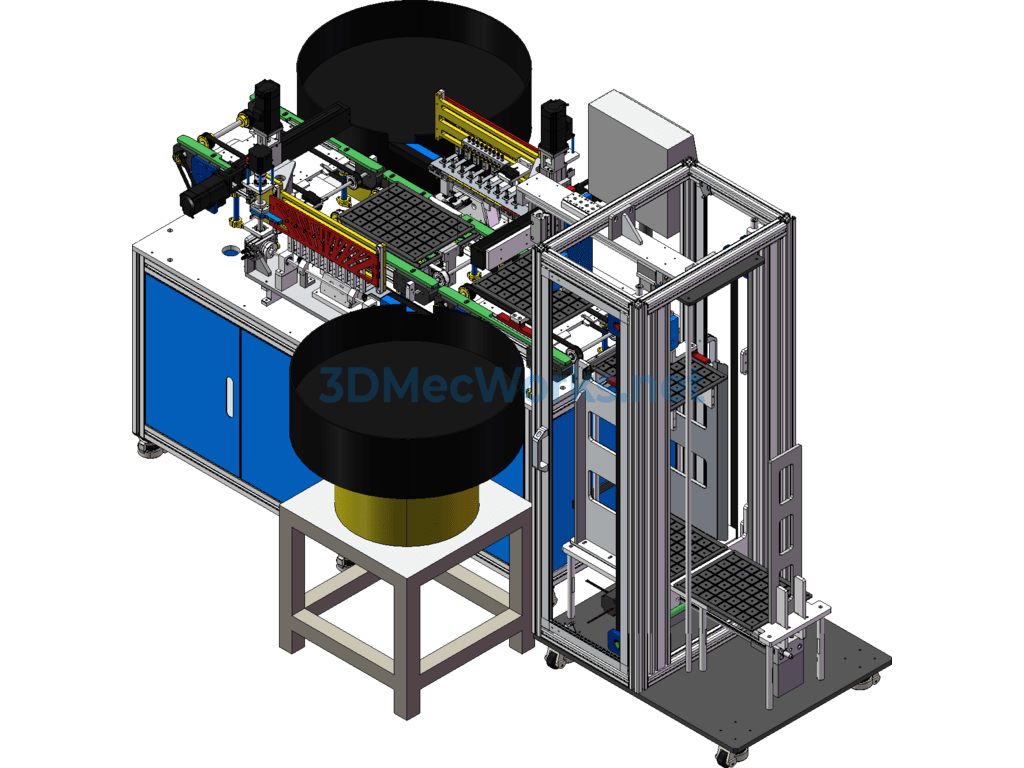

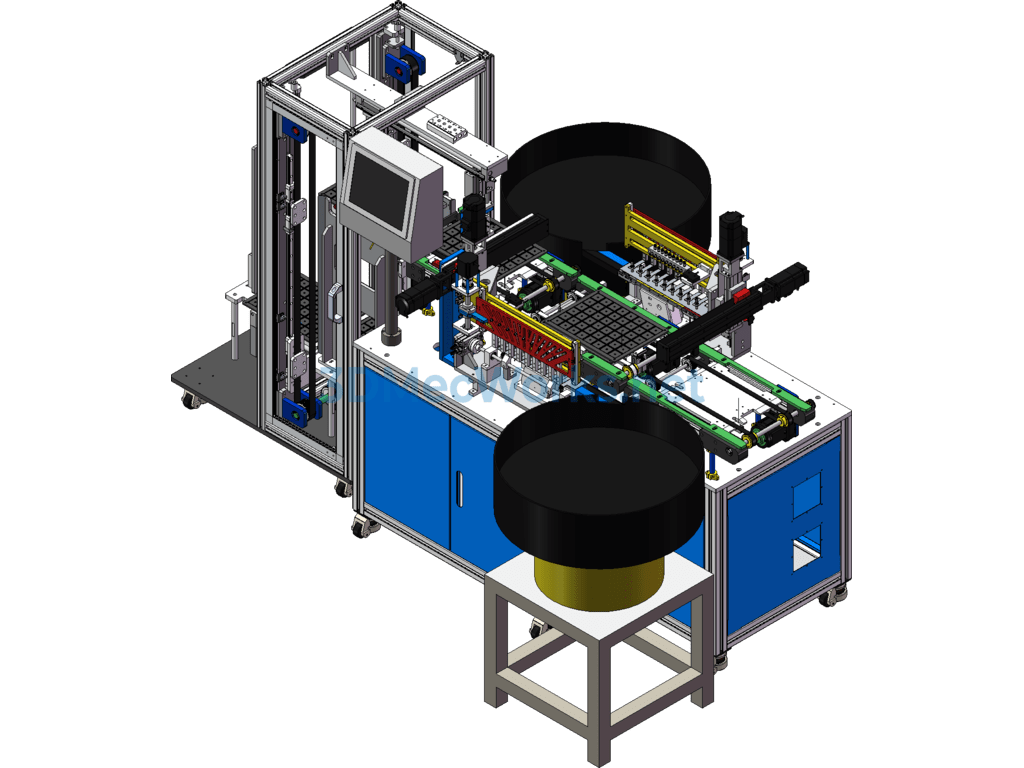

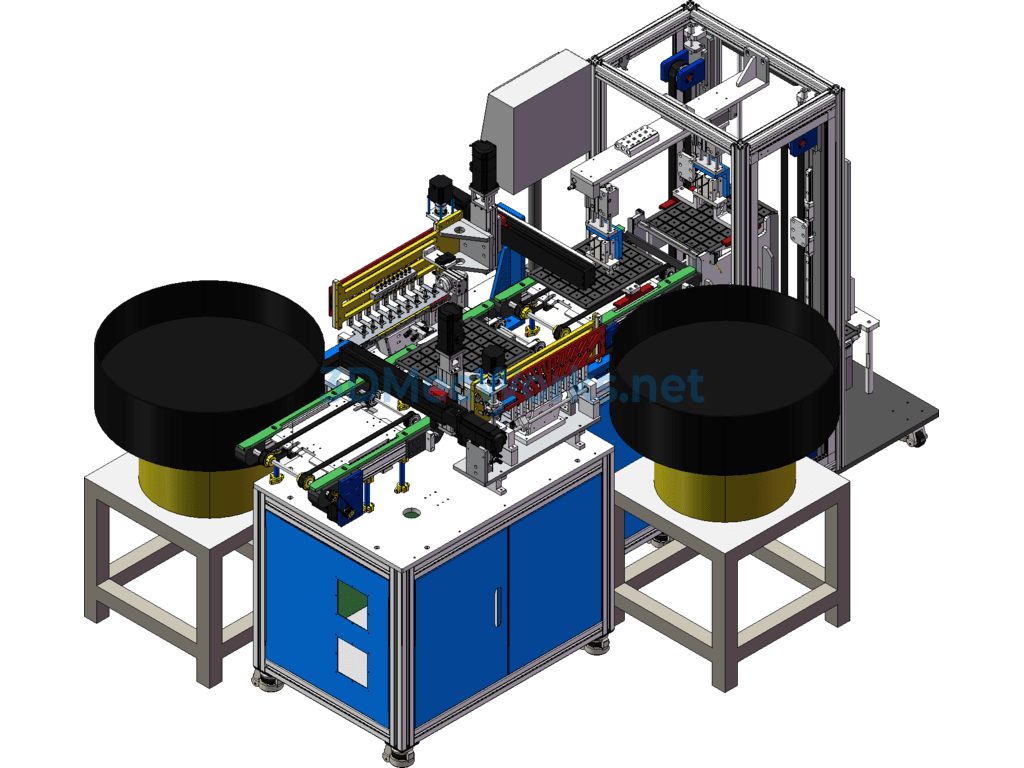

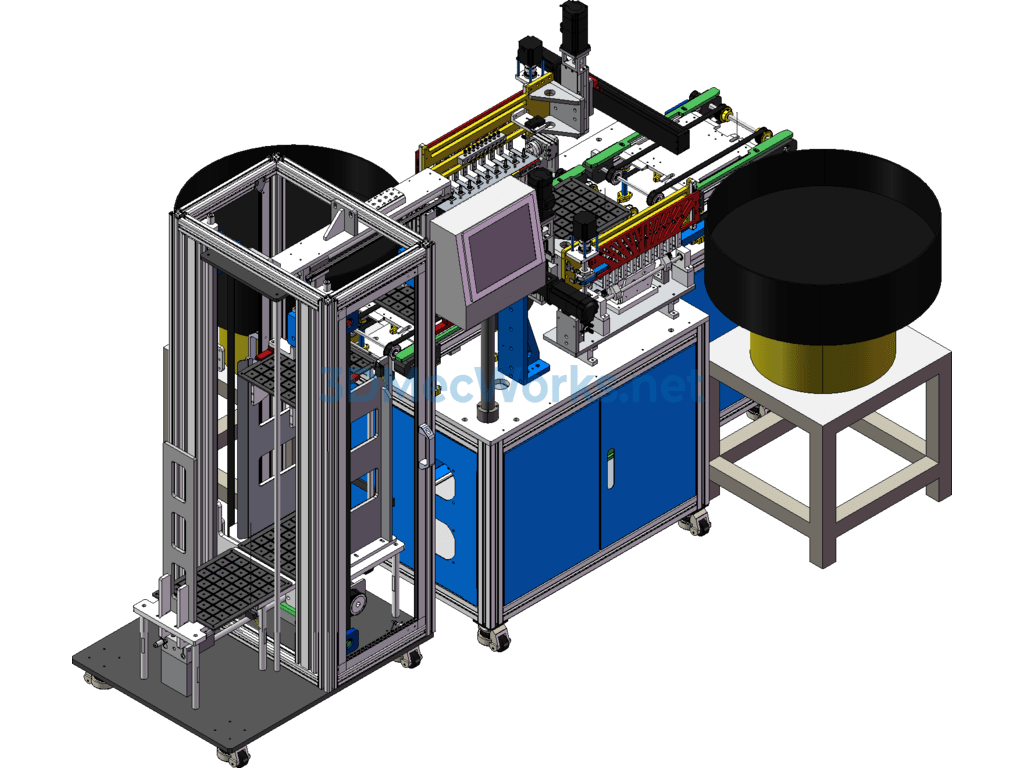

The fully automatic assembly transfer machine includes a drive motor, reversing cylinder, cylinder bracket, transmission shaft, main frame, mounting shaft, drive belt, conveyor roller, roller rotating bracket, connecting plate, drive sprocket, joint bearing, and reversing hinge. The drive motor is installed at the bottom of the main frame. The front end of the reversing cylinder is connected to the upper reversing hinge via a joint bearing, and the rear end is fixed on the cylinder bracket. The cylinder bracket is connected to the main frame. The transmission shaft is fixed to the main frame via bearings, and the drive sprocket and nylon roller are connected to the transmission shaft. The conveyor roller is mounted on the roller rotating bracket via a mounting shaft. The roller rotating bracket is installed on the connecting plate, and the connecting plate is connected to the main frame. This structure is simple, reasonable, and extremely effective in practical applications, requiring no other complex mechanisms or components. It offers stable mechanical performance, low manufacturing cost, and fast transfer speed, and can complete multiple sorting transfers.
