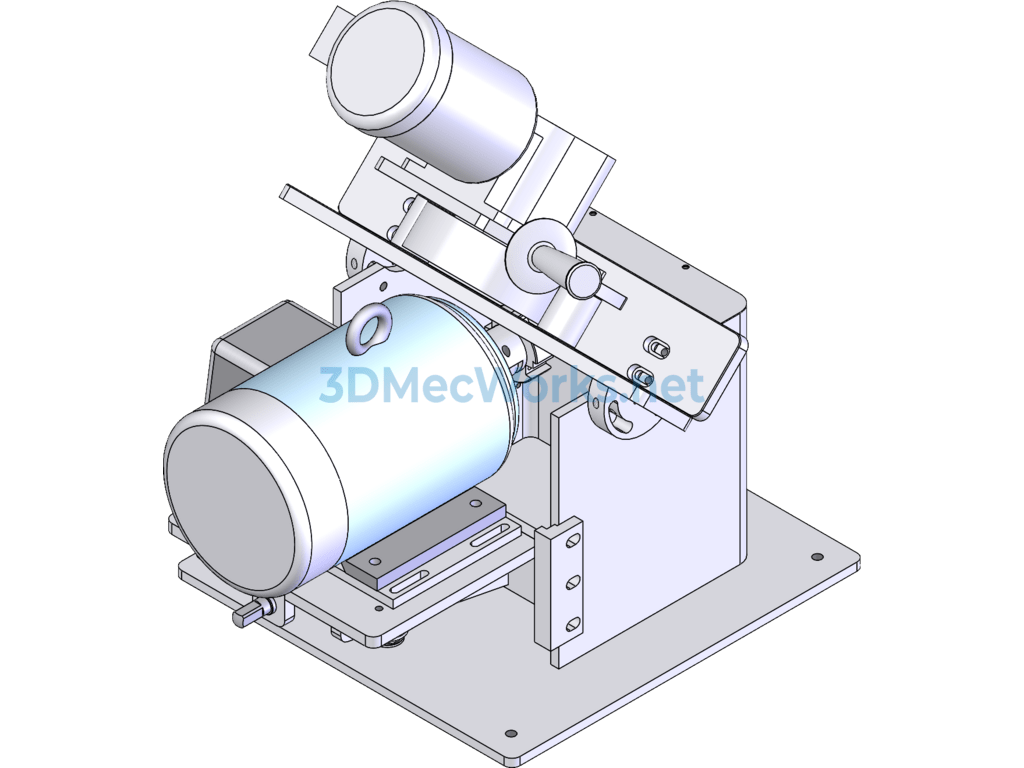

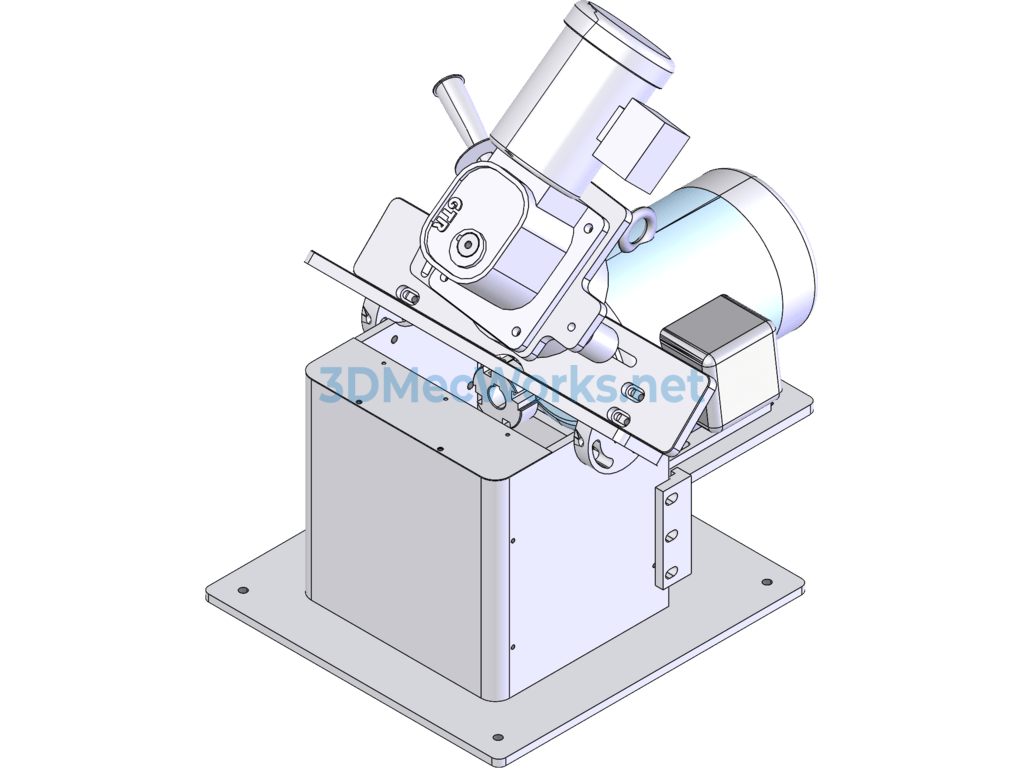

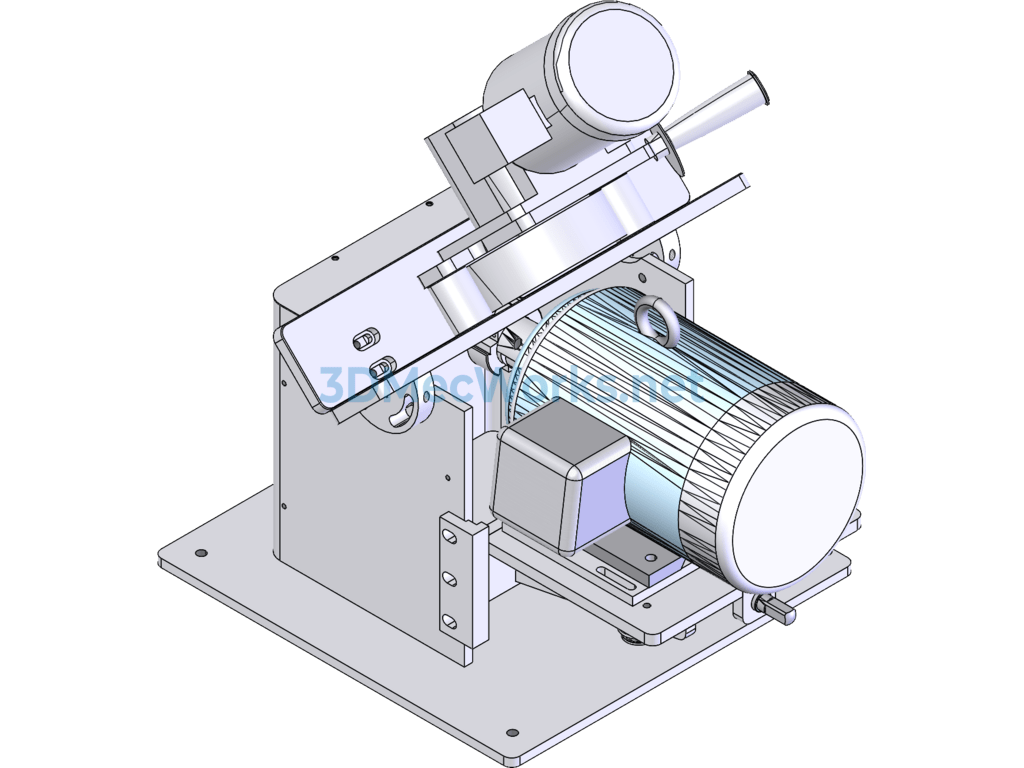

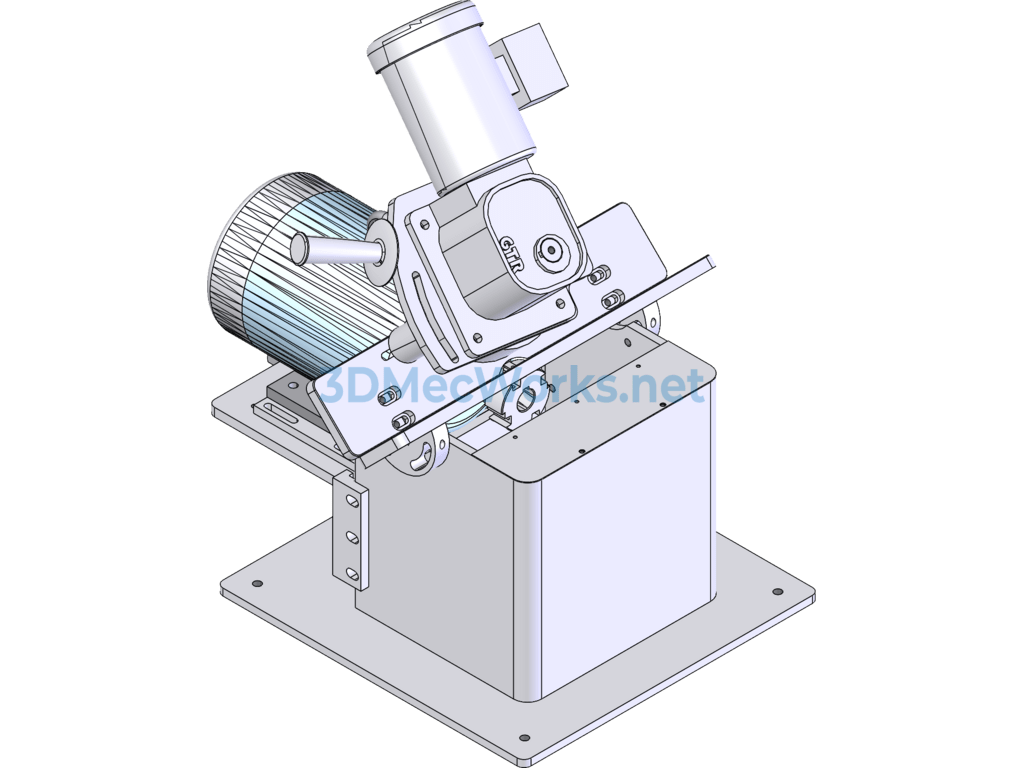

Full Set of Material-Feeding Plate Beveling Machine

Technical Specifications and Parameters of the Beveling Machine

1. Equipment Name: Material Feeding Type Flat Plate Beveling Machine

2. Equipment Model:

3. Equipment Purpose: Pre-welding process. Beveling of small-sized plates and strip-shaped plates.

4. Equipment Working Method: Utilizes a milling method for low-noise bevel processing while automatically rolling in the plates and feeding them automatically. Rapidly completes high-finish bevels. The bevel surface effect is comparable to a “mirror surface.”

5. Equipment Features:
– Production Equipment: Automatically advances, with fast speed (approximately 1.5 meters/minute); no need for manual pushing or handling.
– Cold Processing Method: Does not alter the material’s metallography, no thermal deformation, and no need for subsequent grinding.
– Low investment. Subsequent consumables are very inexpensive, with only the blades being consumables.
– Flexible and convenient, with simple working conditions and a very small footprint.
– Suitable for processing various materials including general carbon steel, alloy steel, high-strength steel, stainless steel, heat-resistant alloys, and aluminum alloys.

6. Equipment Application Range: Mainly used in welding and manufacturing fields such as steel structures, metallurgy, pressure vessels, petrochemicals, machinery manufacturing, water conservancy engineering, and aerospace.

7. Technical Requirements

7.1 Basic Parameters:
– Motor: Imported motor with a high-efficiency imported gearbox
– Power Supply Voltage: AC 380V 50HZ
– Motor Power: 2.2KW
– Motor Speed: 1450rpm
– Gross Weight of the Machine: 35kg
– Hydraulic Lifting Height: None
– Machine Color: Optional (Dark Blue)
– Cutting Tools: Ultra-wear-resistant, ultra-hard carbide special tools

7.2 Processing Parameters:
– Bevel Width C: 10mm in one pass, up to 18mm in multiple passes
– Bevel Angle: 20° to 70° (infinitely adjustable)
– Beveling Speed: 1.5m/min
– Steel Plate Thickness: 1.5 to 43mm. If the processing plate thickness does not exceed 20mm, it is recommended to customize a model with a clamping thickness within 20mm.
– Steel Plate Width: ≥10*50mm
– Machinery Dimensions: 400*500*400mm
