Fuel Pump Filter Screen Installation

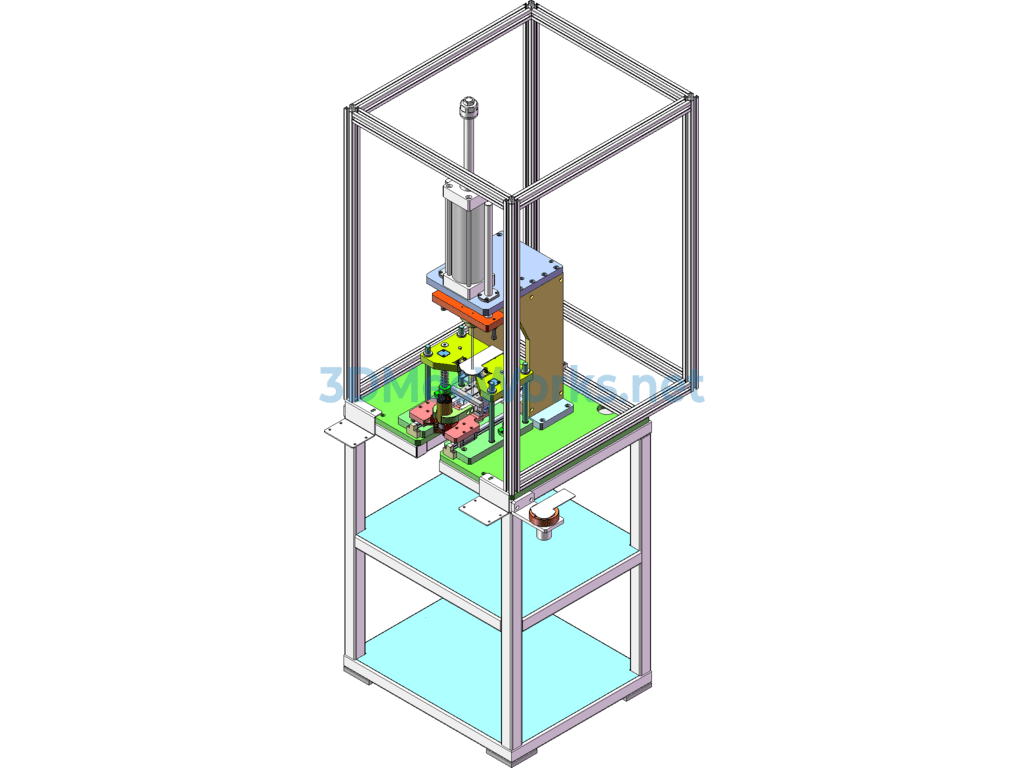

Three-dimensional model of the automatic installation machine for fuel pump core filter mesh, filter mesh assembly machine, equipment function, pressing the filter into the oil suction port of the pump core using a knife. Composition of the filter mesh installation machine: aluminum alloy frame, pneumatic pressure mechanism, filter mesh installation mold, and electrical control system. The filter mesh installation mold consists of filter mesh positioning, automatic feed-in and feed-out, pump core positioning, and fixture. Working principle: after the filter mesh and pump core are placed and positioned, press the start switch, the pump core moves into position aligning with the filter mesh installation hole, the pressure mechanism presses down, and the filter mesh installation is completed. The drawings are in SolidWorks 2018 format, welcome to download.
