Fruit Packaging Machine, Non-Standard Automation Equipment

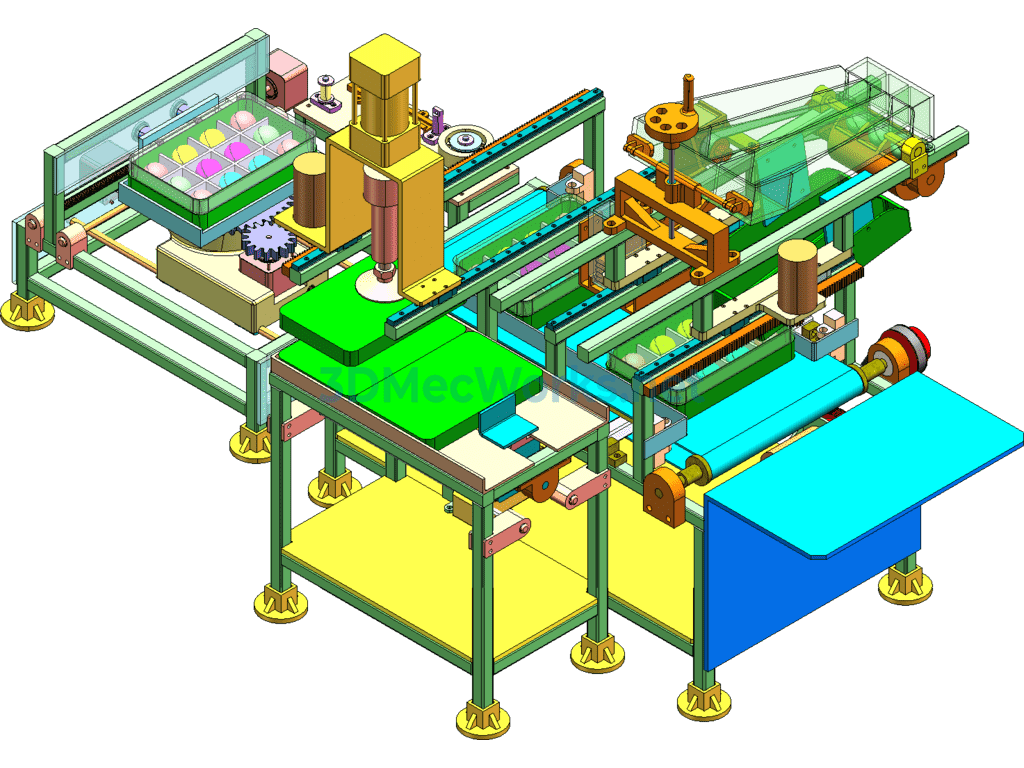

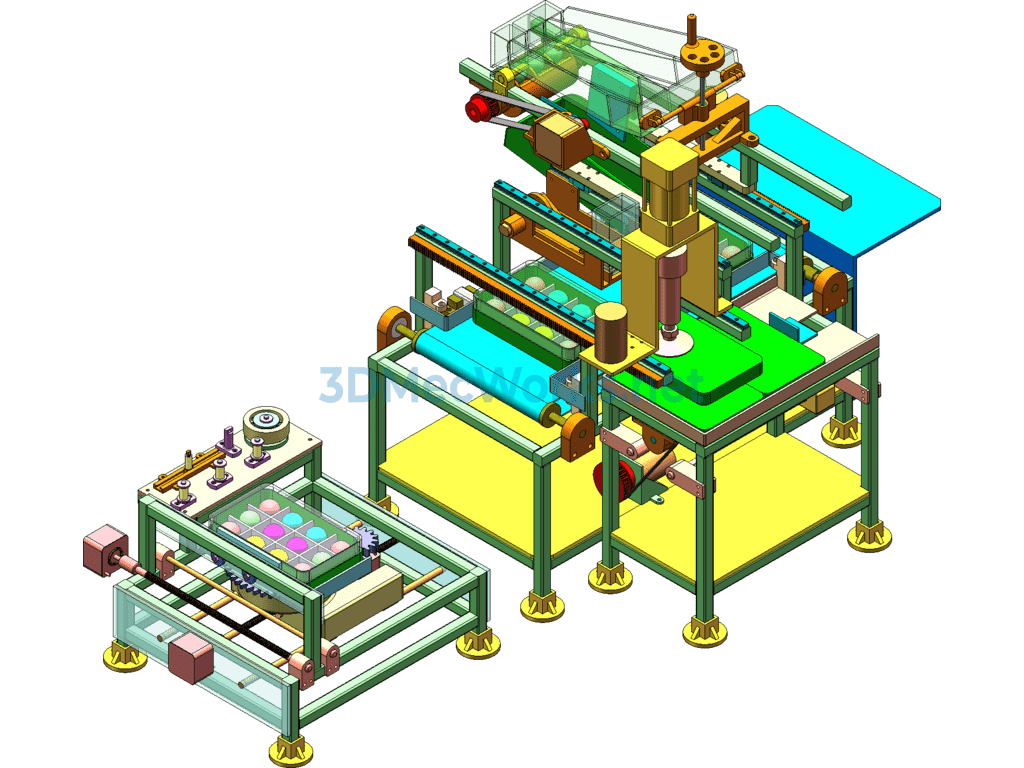

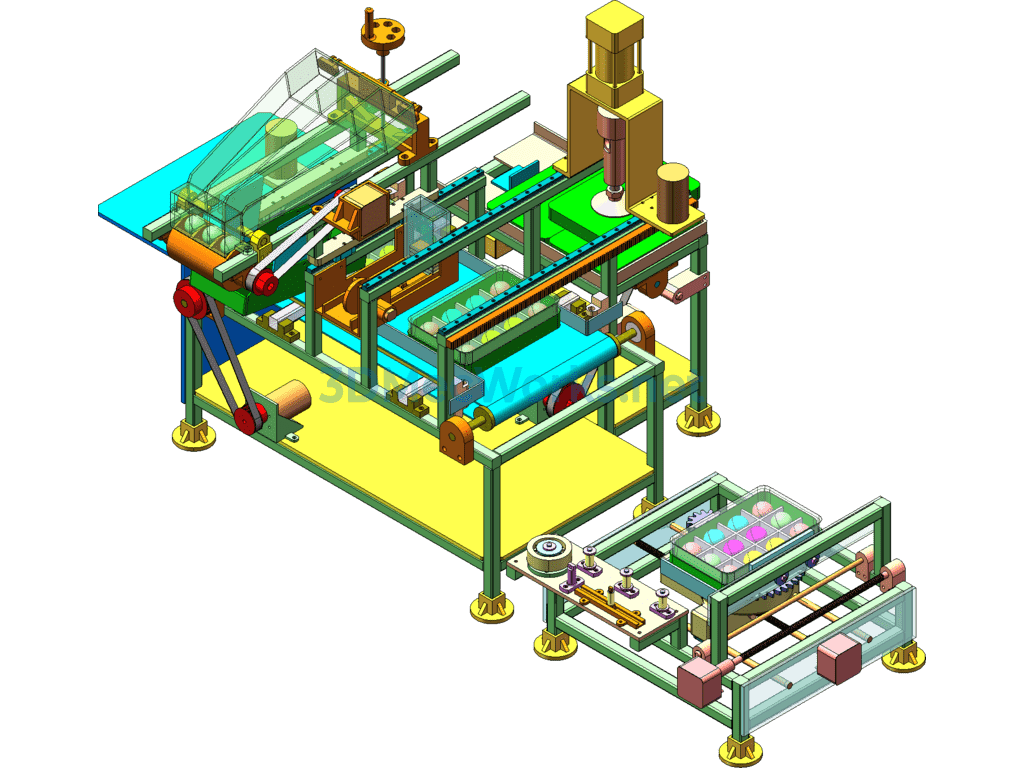

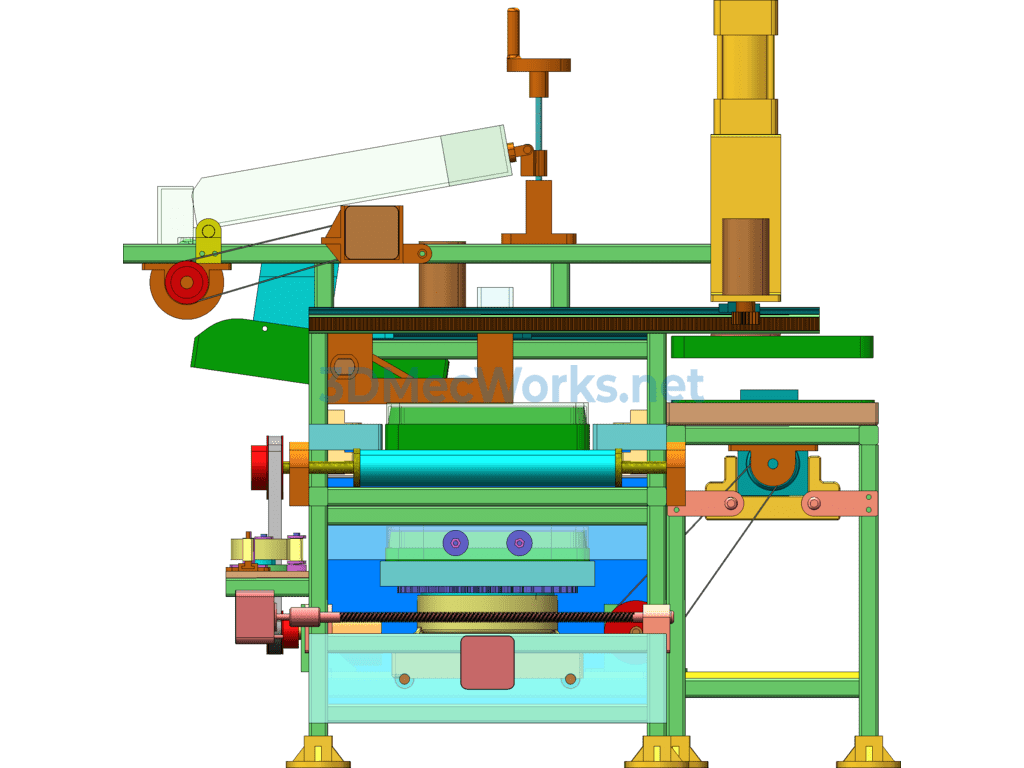

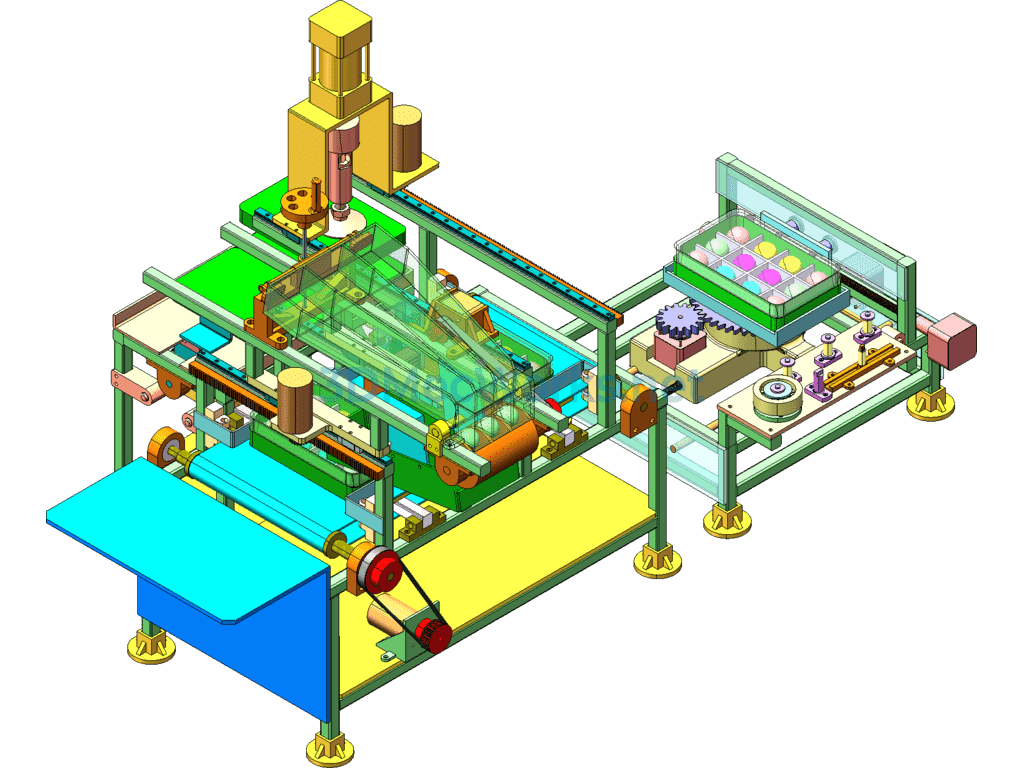

This is the design drawing of a fruit packaging machine. The document contains all blueprints and PLC programs, along with complete drawings, and has been tested on a prototype machine with no issues. This is a fully automated process, with cylinders, belt drive, roller drive, and gear drive, making operation very convenient. It includes source documents, and parameters can be edited. The blueprints include: PLC program, completed version of the packaging machine program.mwp, standard parts, sealing mechanism, frame, screw feeding mechanism, distribution box, Cylinder 1, fruit gift box assembly, etc.
