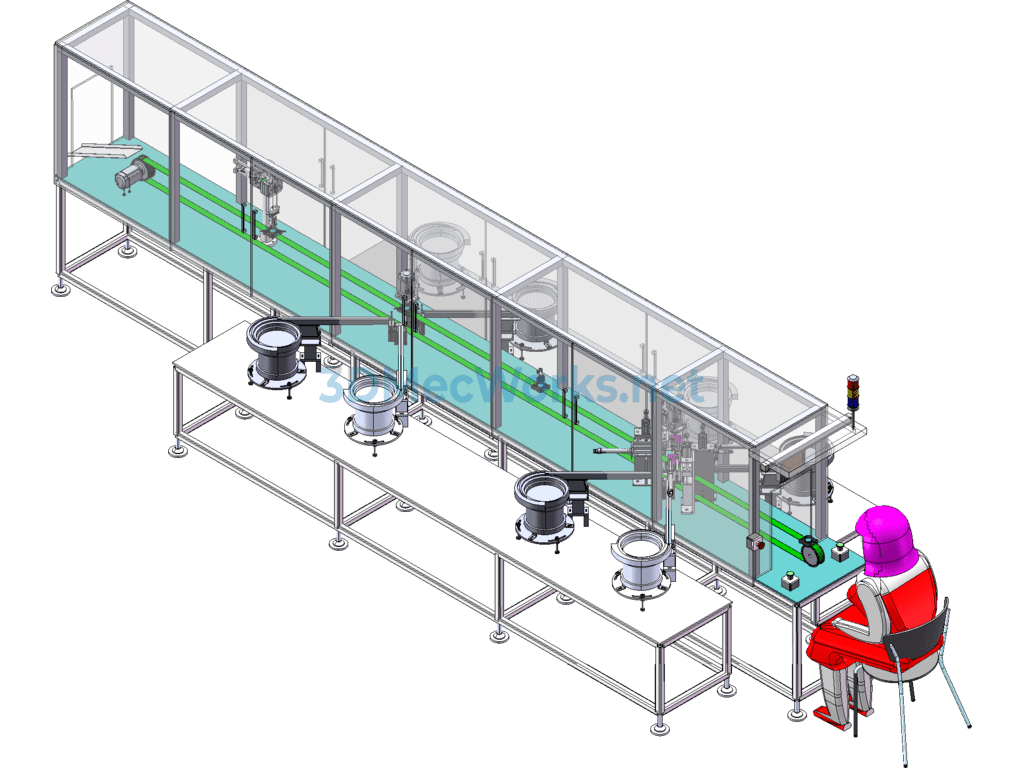

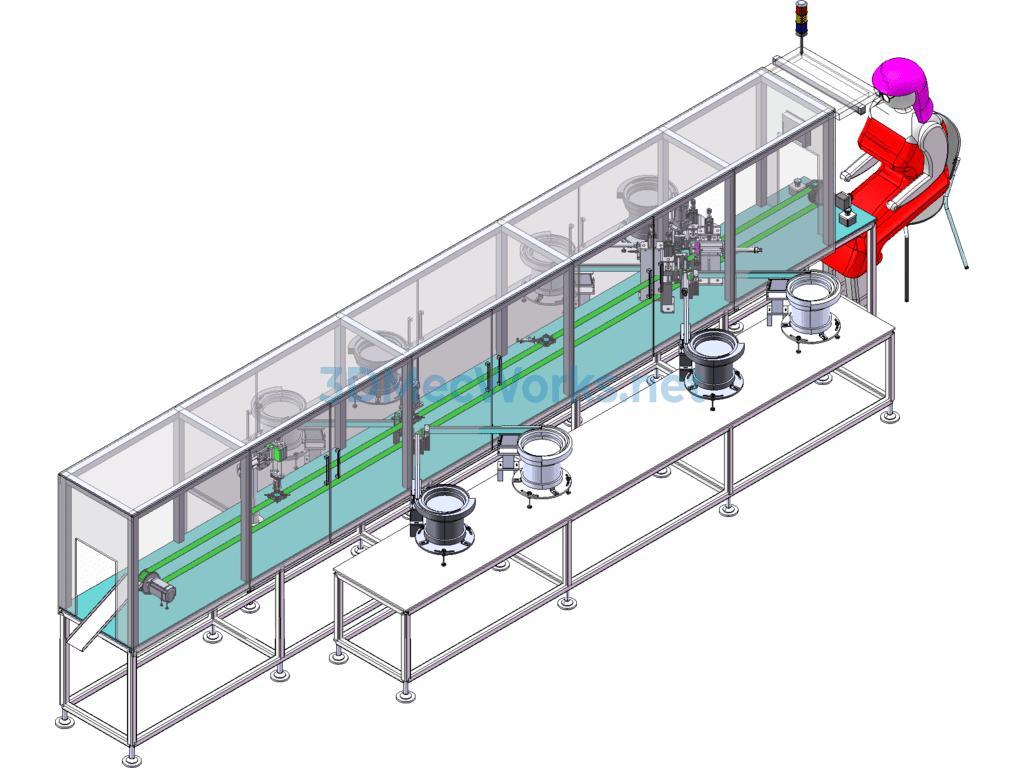

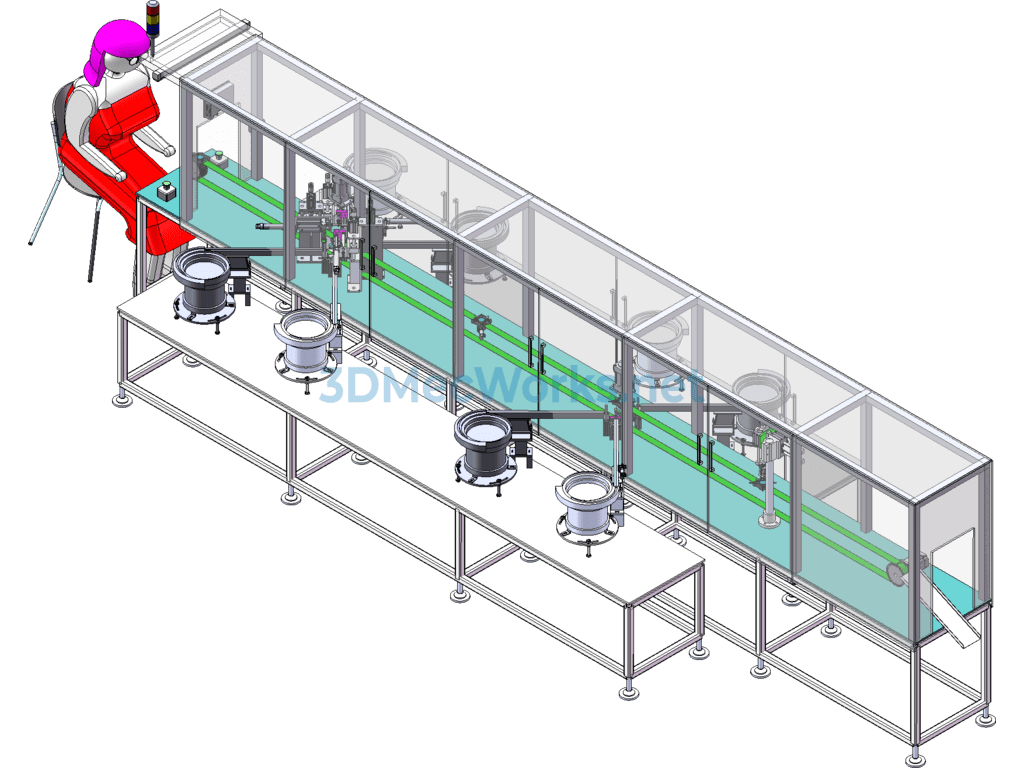

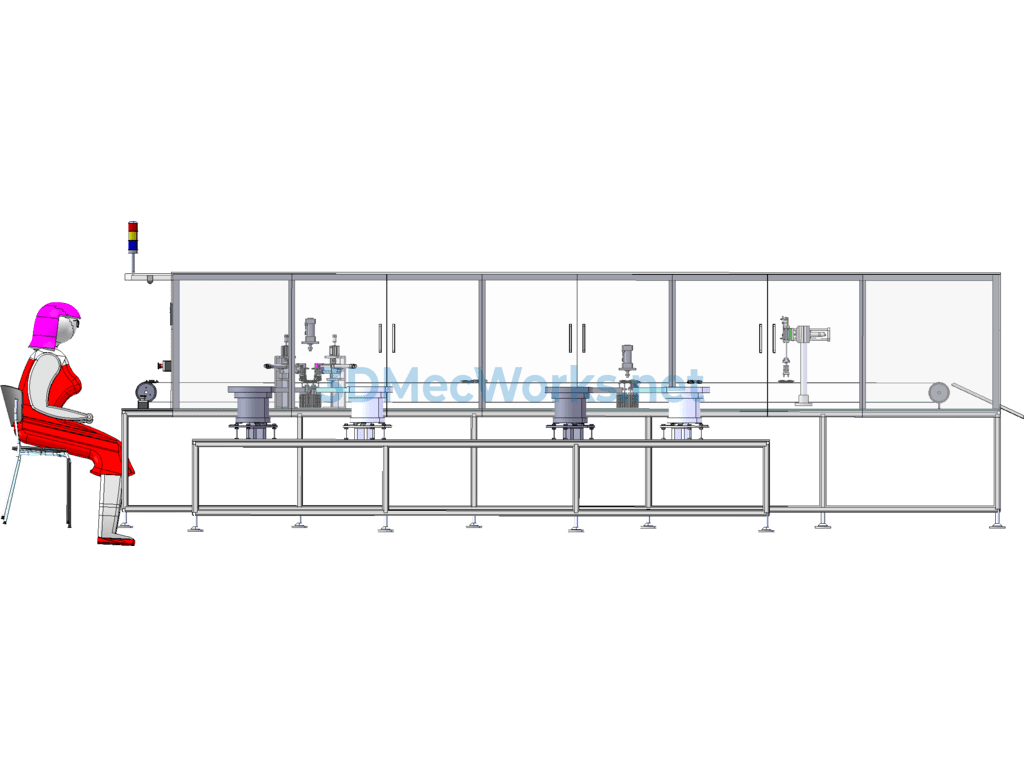

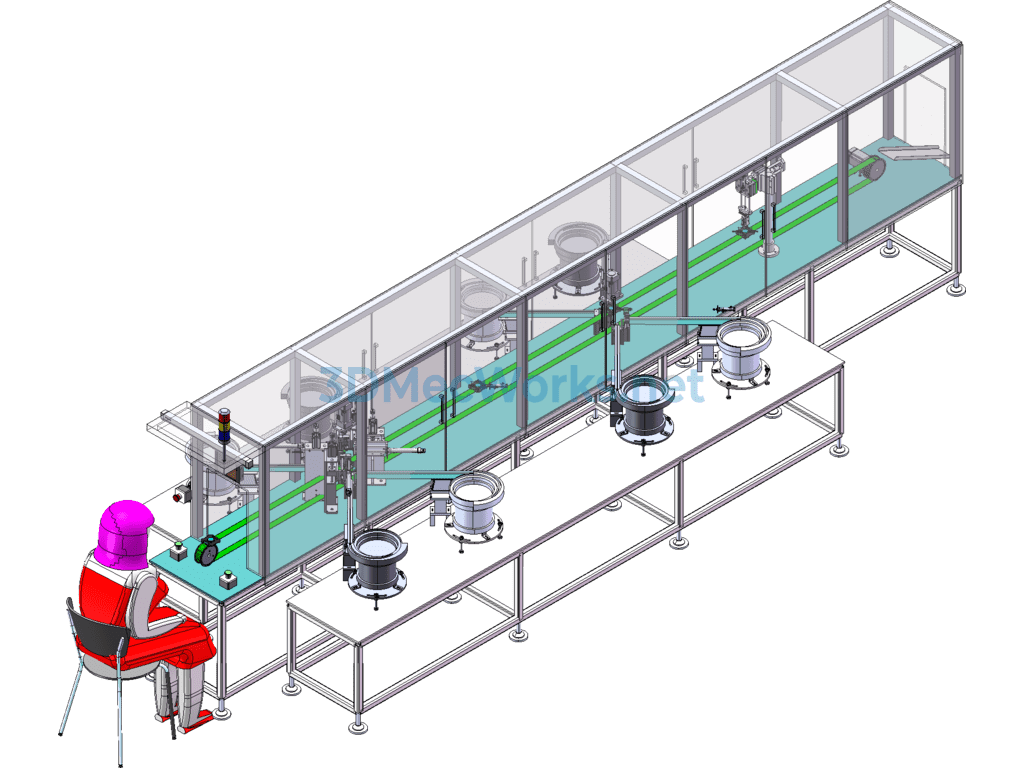

Quadrupole Carbon Brush Automatic Assembly Machine The compressed package contains detailed information such as the equipment manual and schematic diagrams. The structure of the equipment includes: carbon brush carrier, positioning jig, spring carrier, vibrating plate, bending foot mechanism, discharge mechanism, Panasonic servo motor, clamping mechanism, frame, baffle, spring feeding mechanism, product, SMC, quadrupole carbon brush automatic assembly machine general drawing, etc. The design is reasonable and detailed and is well worth referencing! http://https://3dmec.net/ Work process of quadrupole carbon brush automatic assembly machine: 1. Manually place the carbon brush platen into the positioning jig, 2. Use the vibrating plate to feed the carbon brush shell and bend the foot, 3. Use the vibrating plate to feed the carbon brush for automatic assembly, 4. Use the vibrating plate to feed the spring and bend the back foot of the carbon brush shell, 5. Product discharge [SW design source file sharing If you need STP or other documents, please contact the drawing engineer at Kaba Network]
