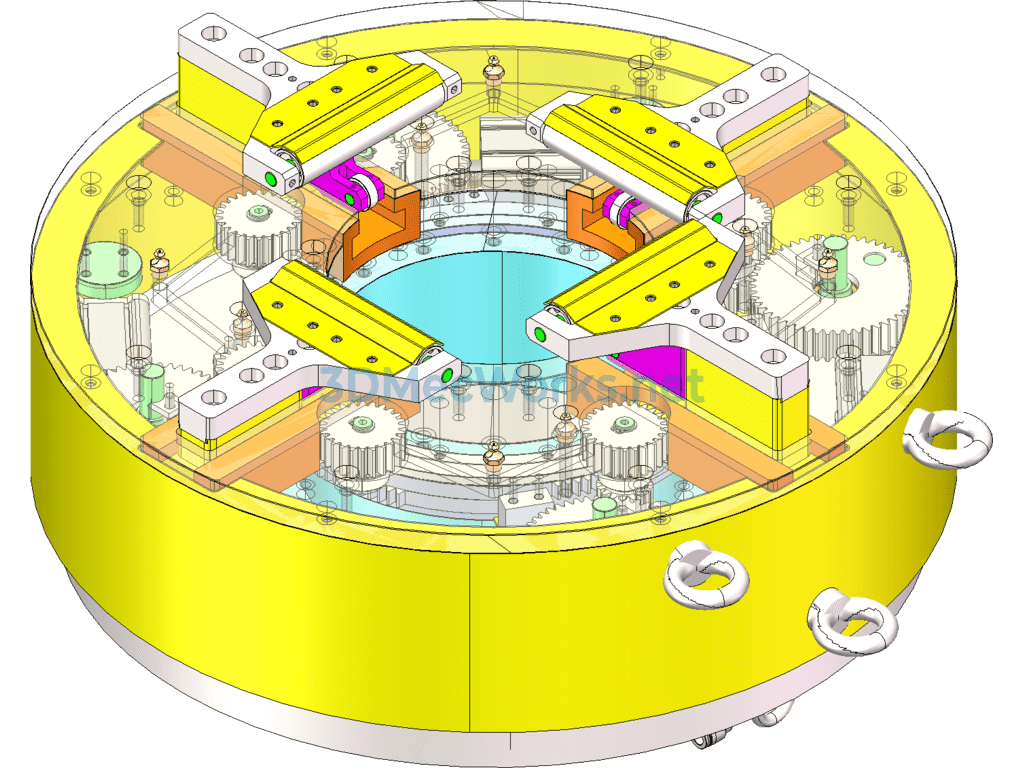

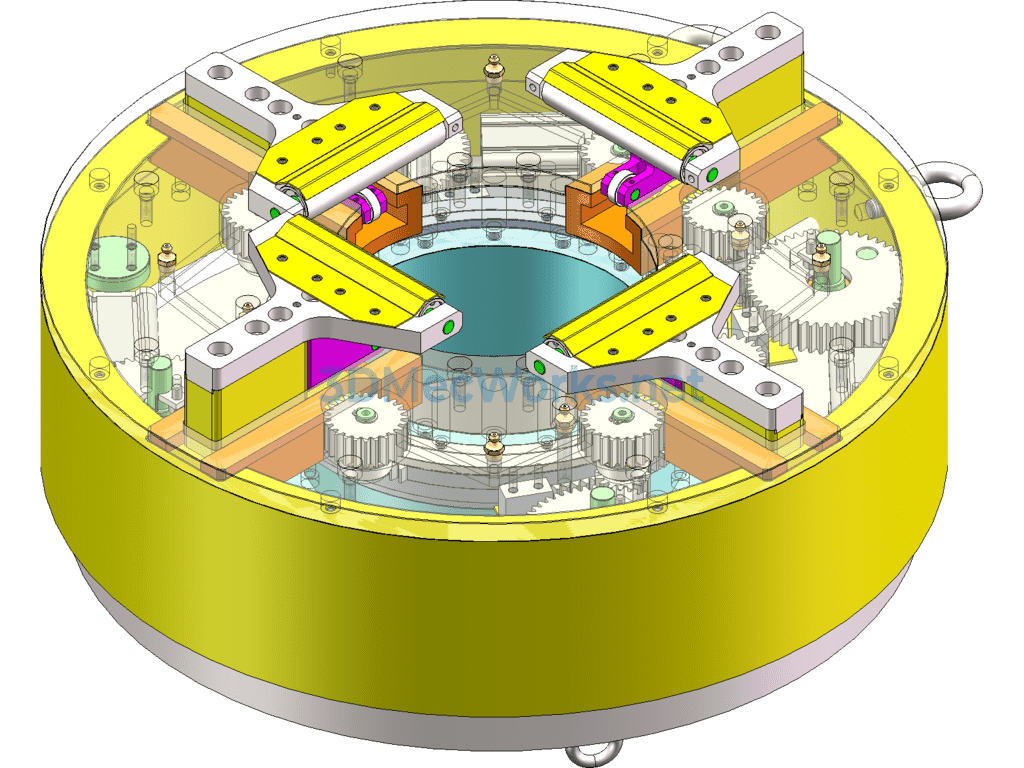

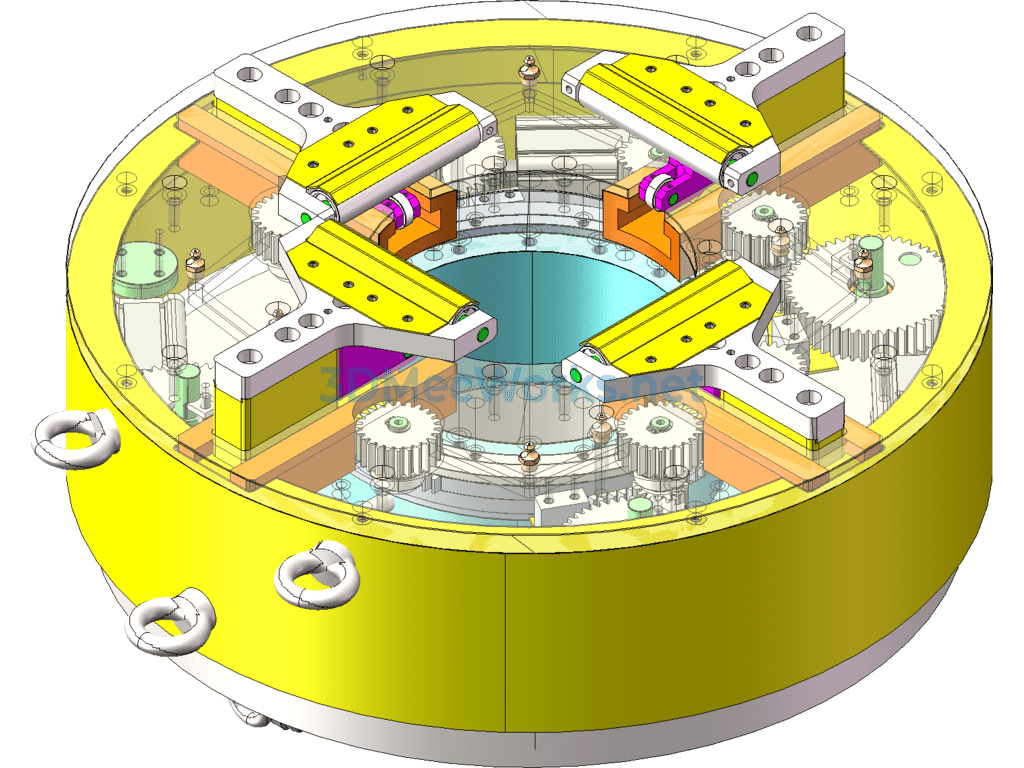

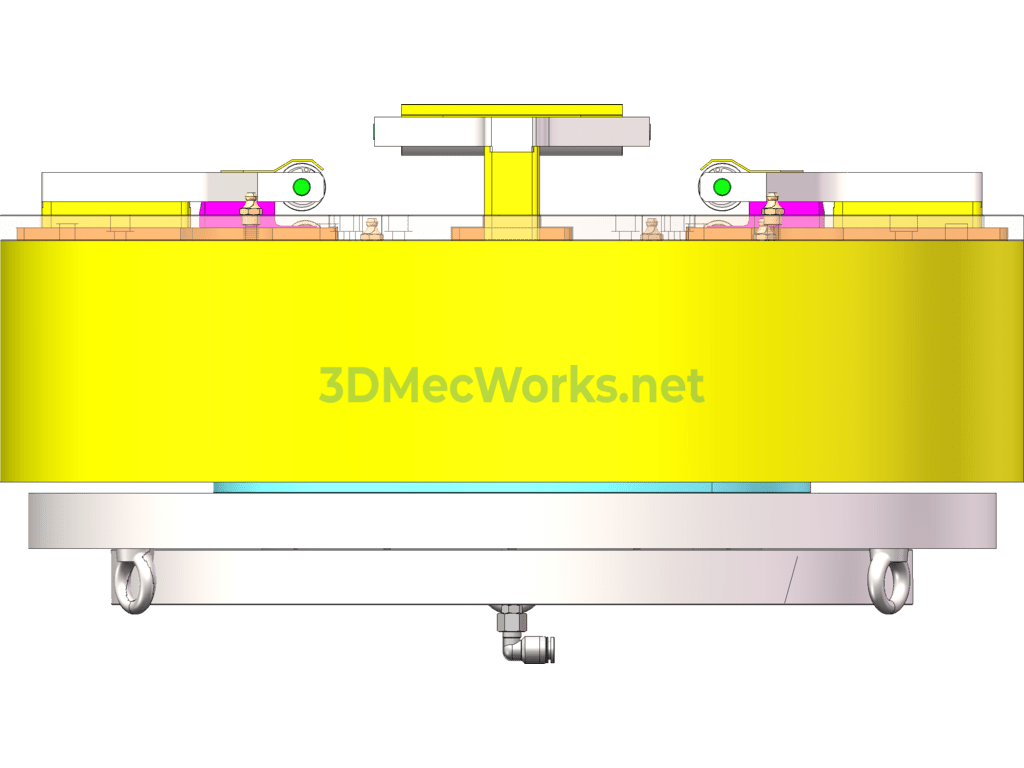

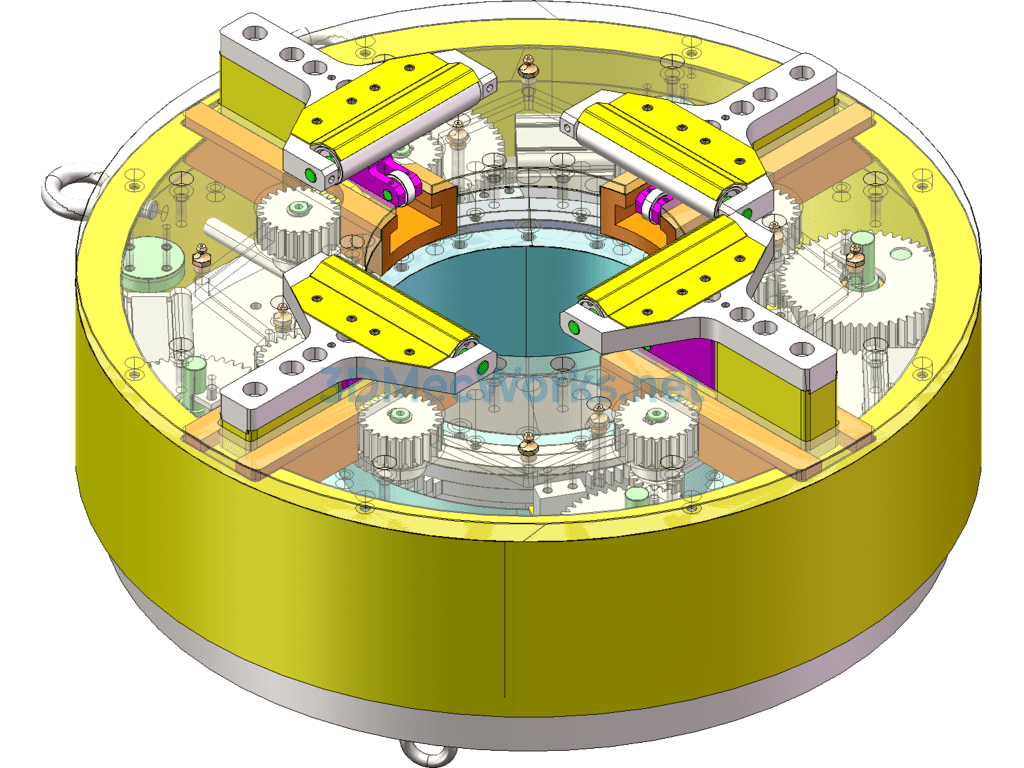

Four-jaw hollow self-centering chuck, mainly used in laser tube cutting machines. _x000D_
It can hold round pipes, square pipes, I-beams, and various special-shaped pipes, and can be driven by a servo motor. The internal mechanism uses a cylinder gear structure to drive and relies on pneumatic force for clamping. It can hold pipe diameters ranging from 25-200mm, covering most specifications. _x000D_
The internal structure is highly refined, with each component having detailed modeling and material property settings, even allowing for direct 2D drawing generation. The overall assembly drawing includes comprehensive assembly constraints, enabling motion simulation._x000D_
The three-dimensional structure is completely self-developed. Several team members engaged in months of discussions and brainstorming, making the entire structure scrutinized and possessing strong practicality._x000D_
This drawing file is solely for learning and communication purposes. Interested parties are welcome to download.
