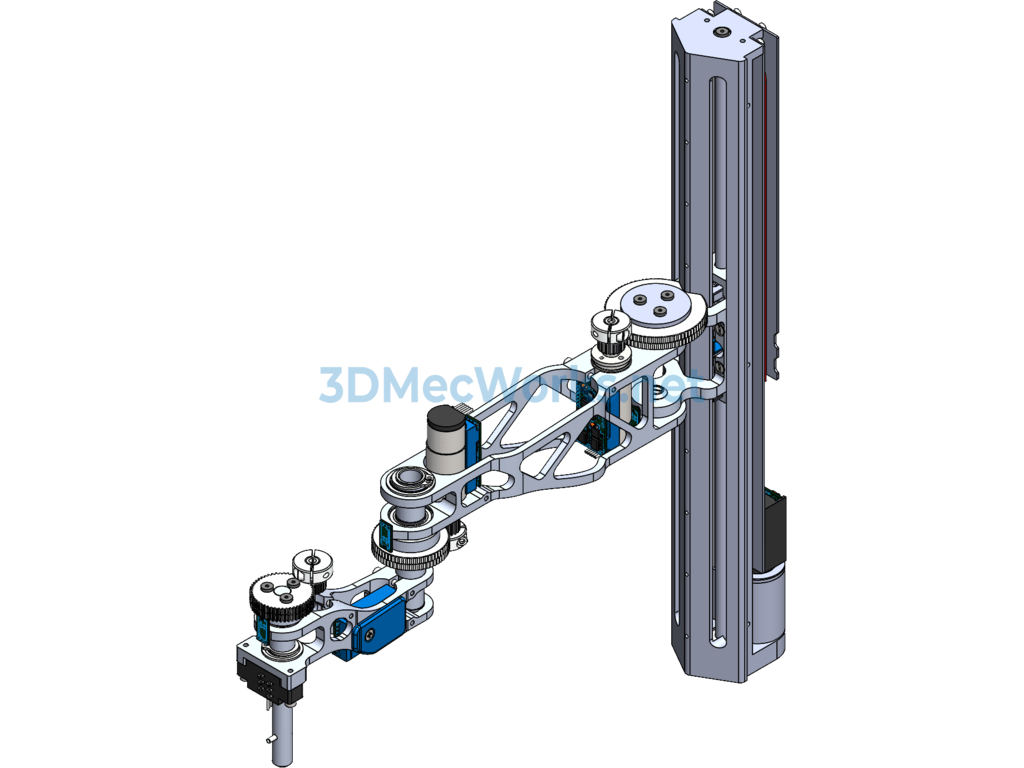

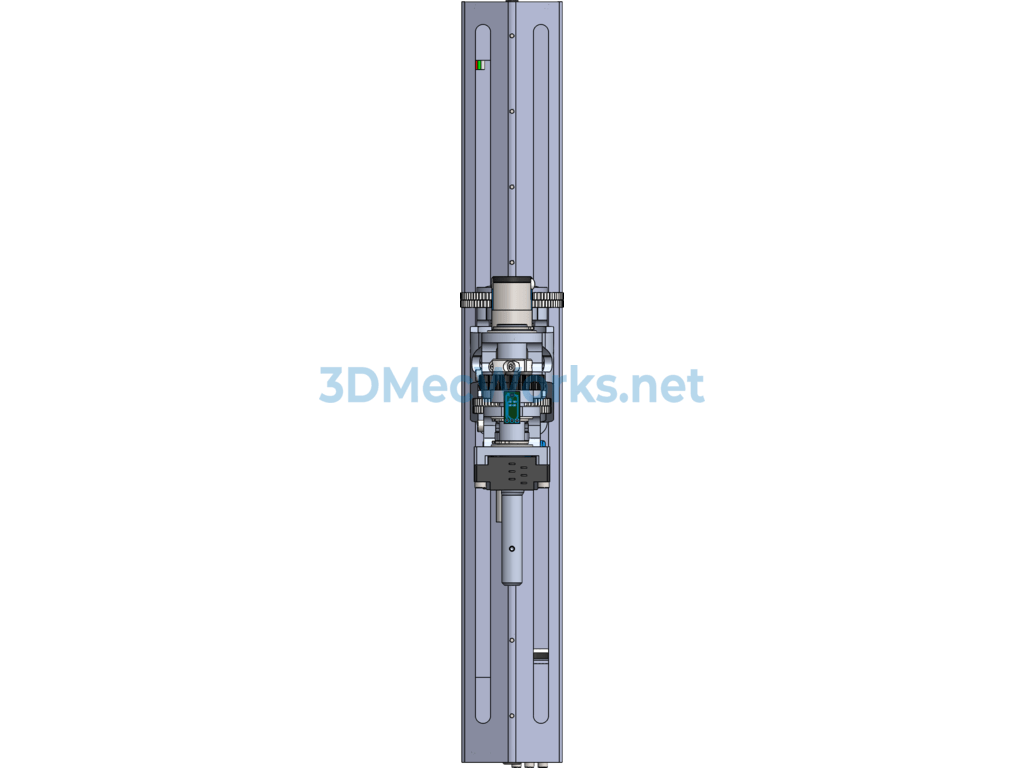

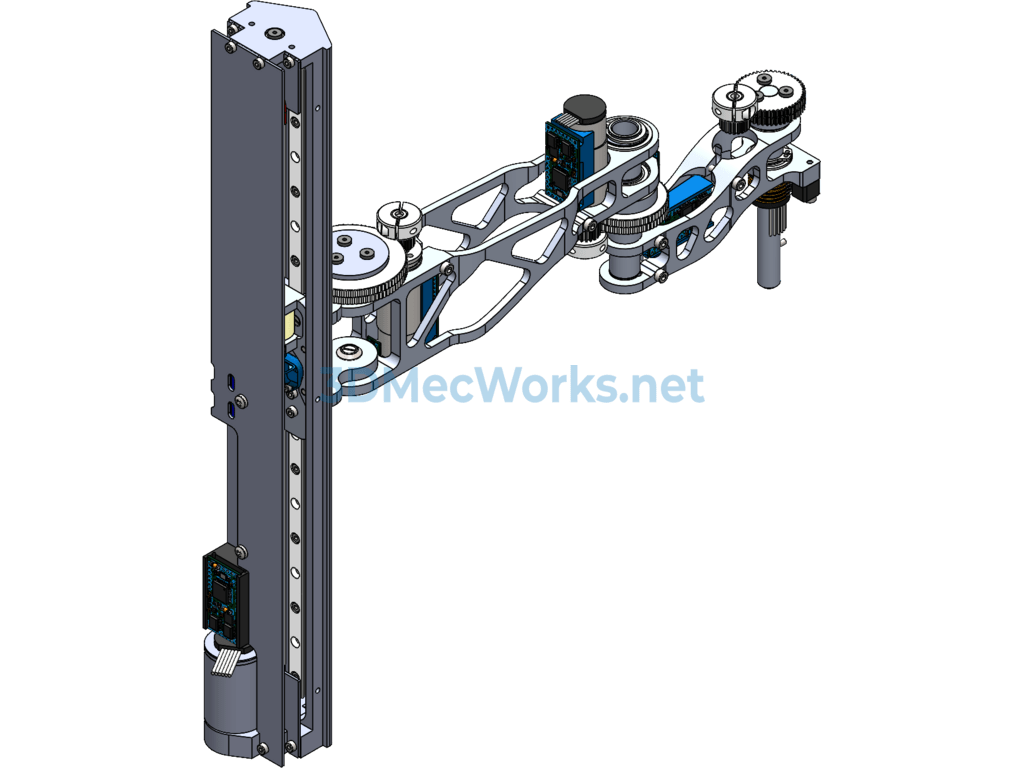

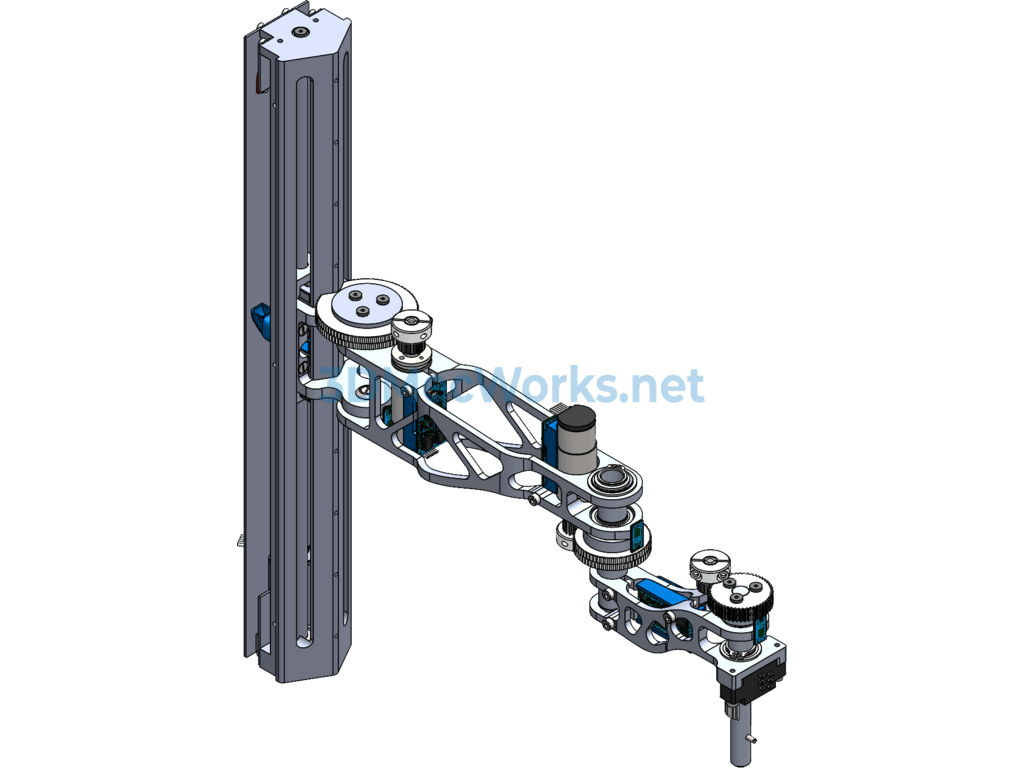

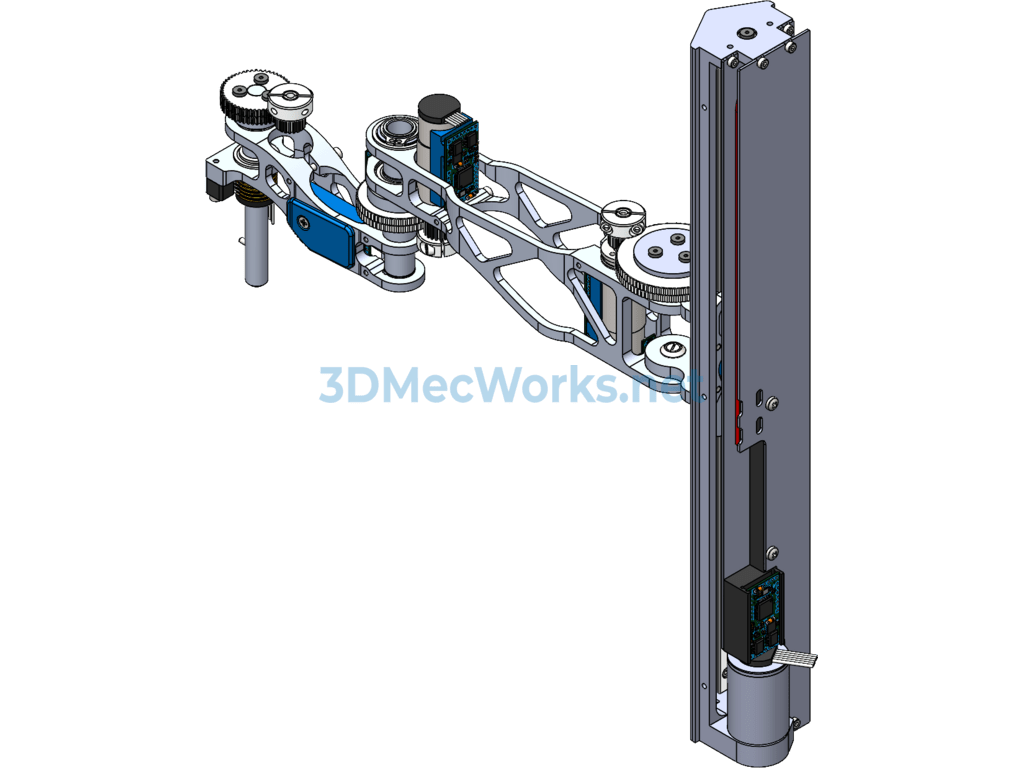

Four-Axis Robotic Arm (four-Axis Robot Arm) Sw Design

Four-axis robotic arm (four-axis robot arm) SW design source files sharing, welcome to download.

The four-axis robotic arm includes a supporting platform, two X-axis guide rails set parallel to each other on the supporting platform, two supporting columns set parallel to each other and capable of sliding left and right, vertically arranged on the X-axis guide rails, a Z-axis guide rail fixed at the upper ends of the two supporting columns, and a Y-axis guide rail capable of sliding back and forth, vertically arranged on the Z-axis guide rail.
