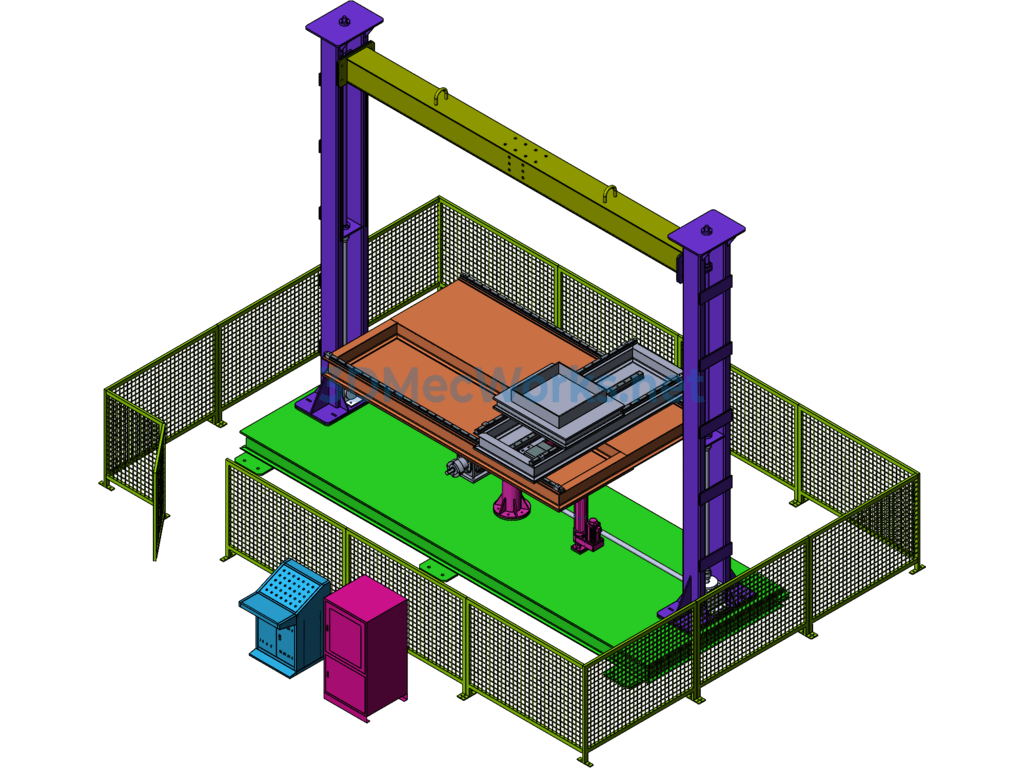

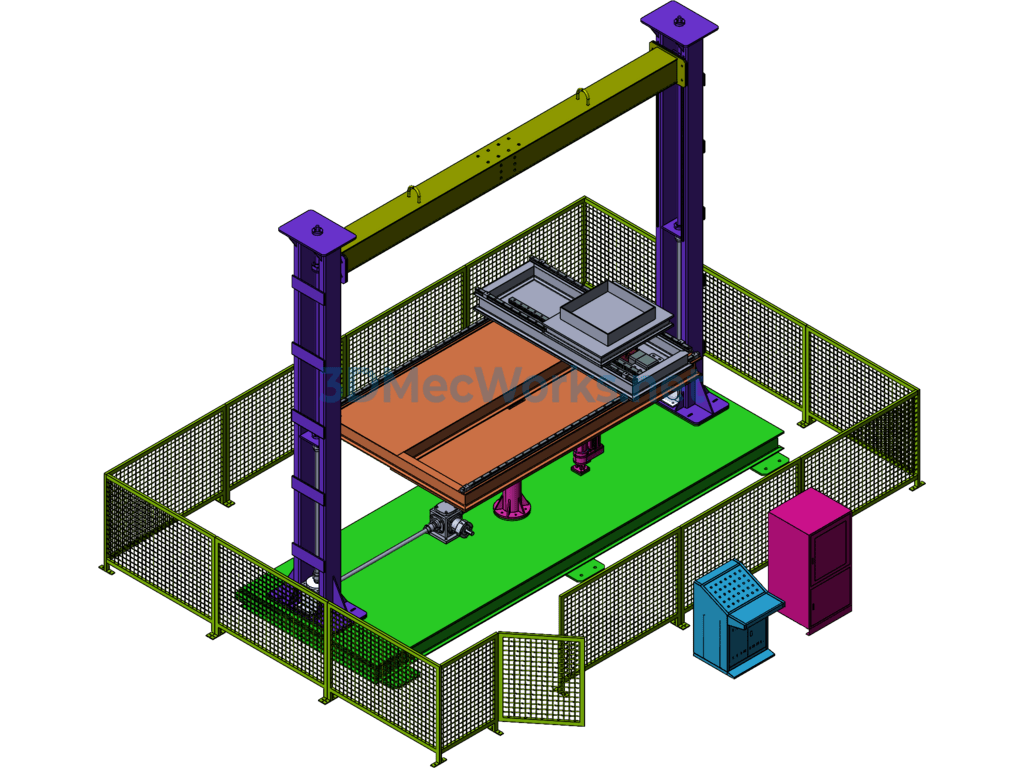

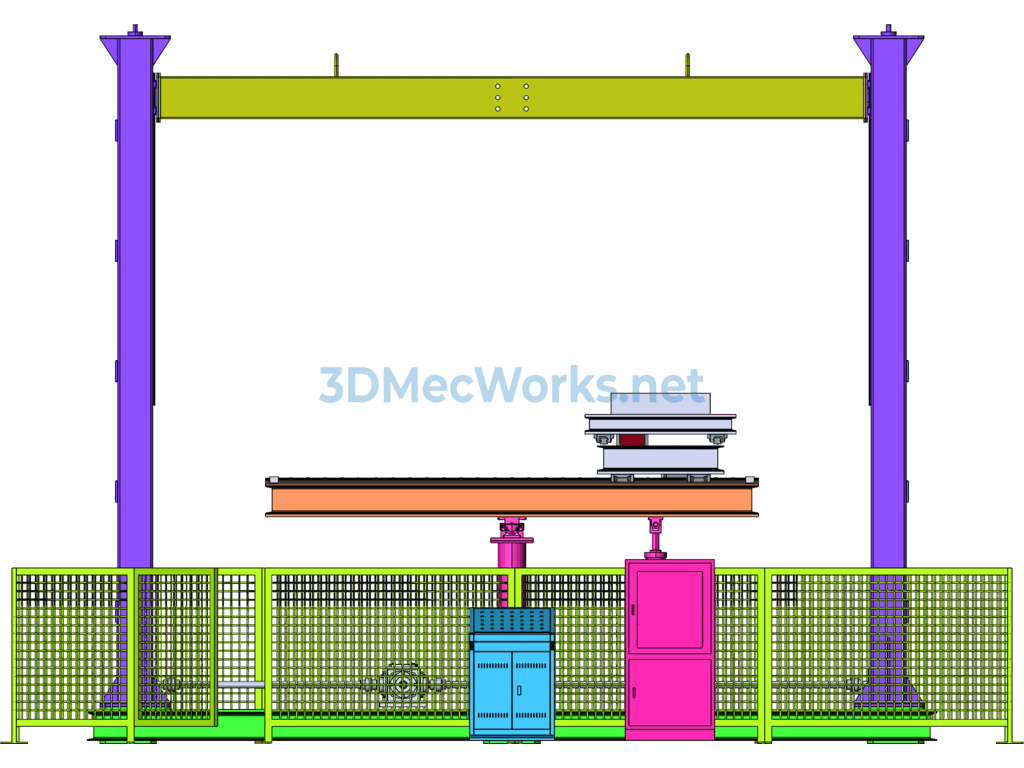

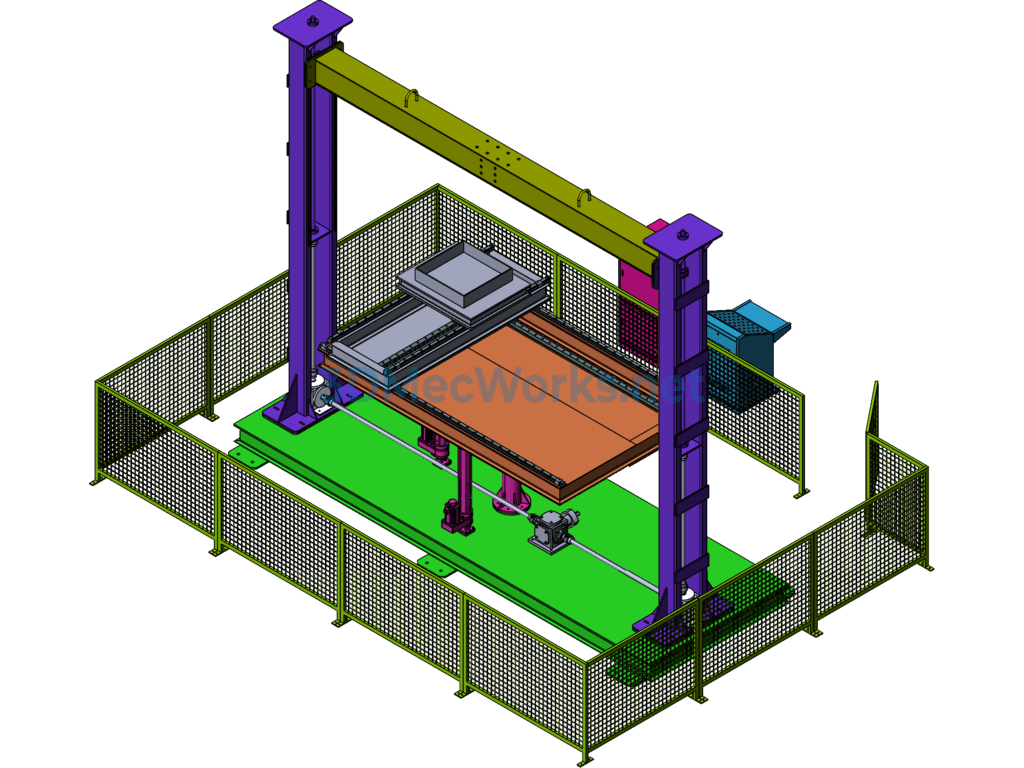

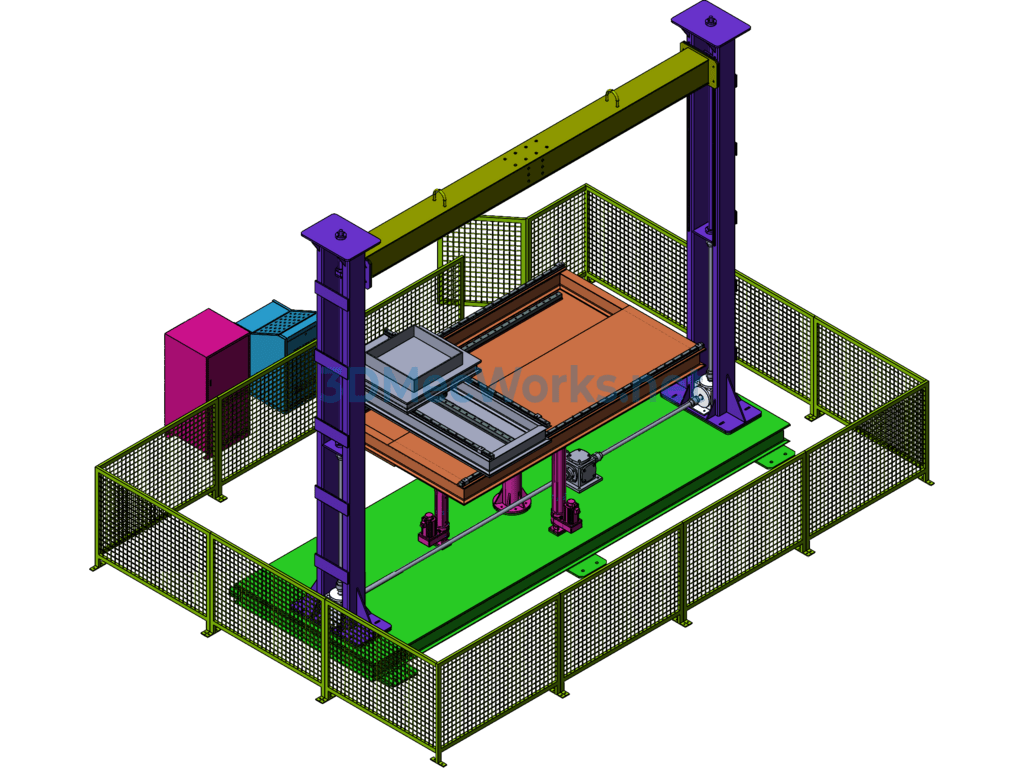

The model is a four-axis positioning device. The base of the fixture is composed of a three-point stabilizing device consisting of three hydraulic cylinders. There is a motor-driven single-axis motion mechanism on the gantry, which can move in the XY directions and shift within the three-dimensional plane. The model is in SolidWorks assembly format.
Specification: Four-Axis Positioning Device
|
