Four-Axis Mechanical Arm Equipped With Three Types of Transfer Mechanisms Simultaneously

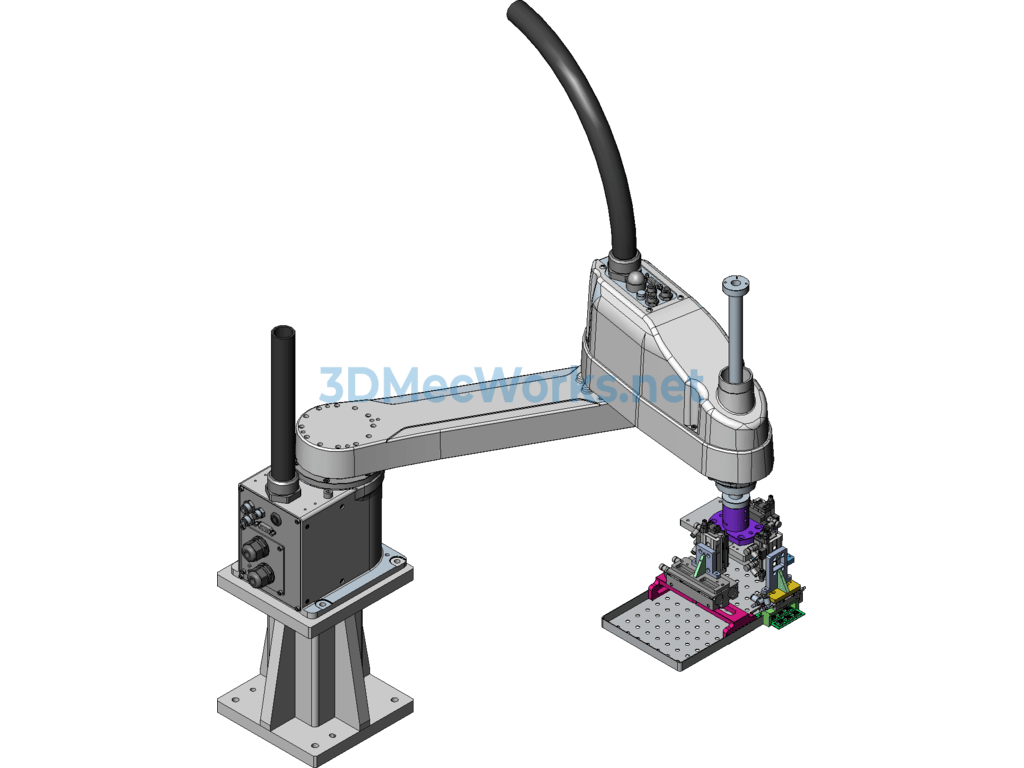

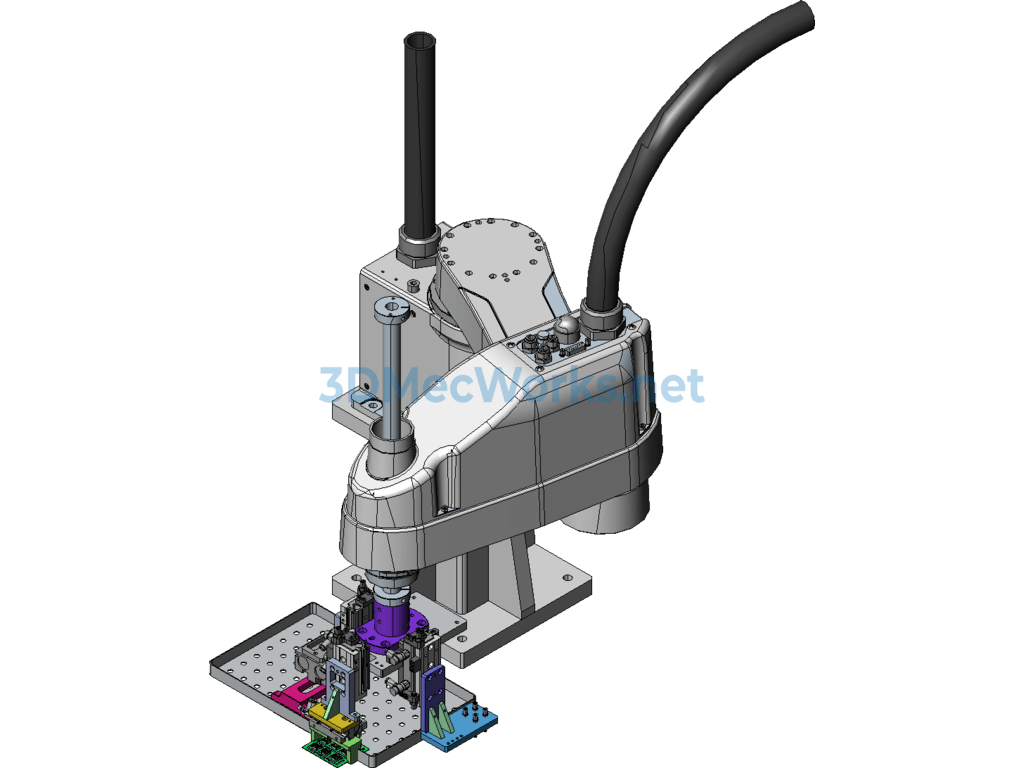

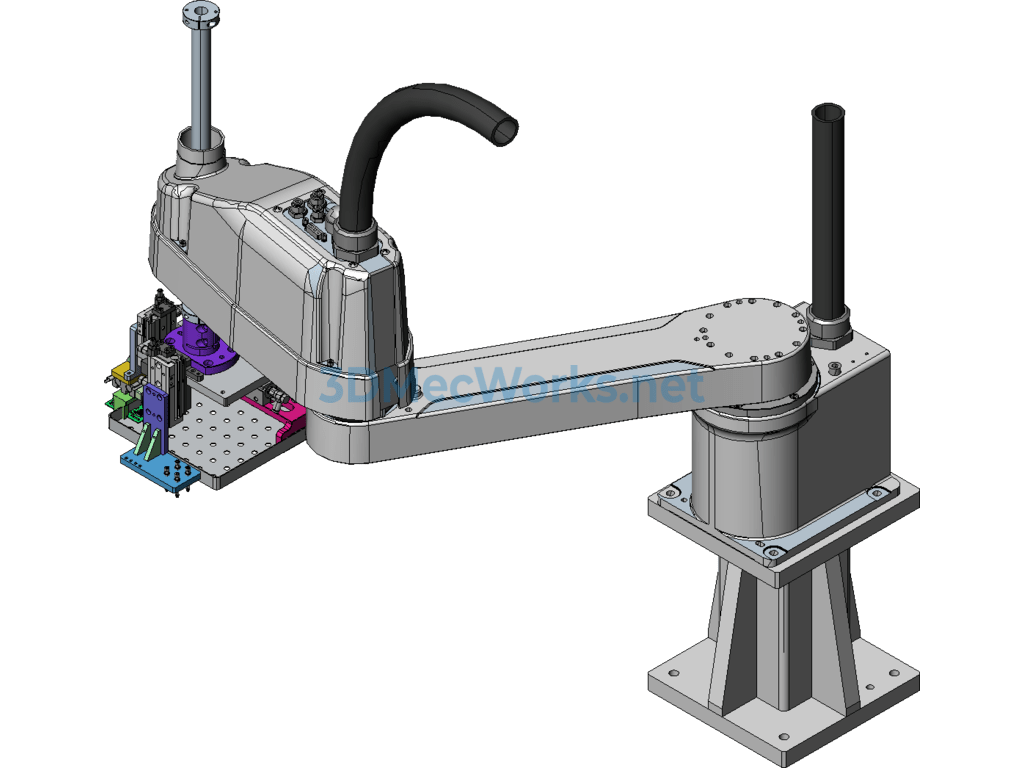

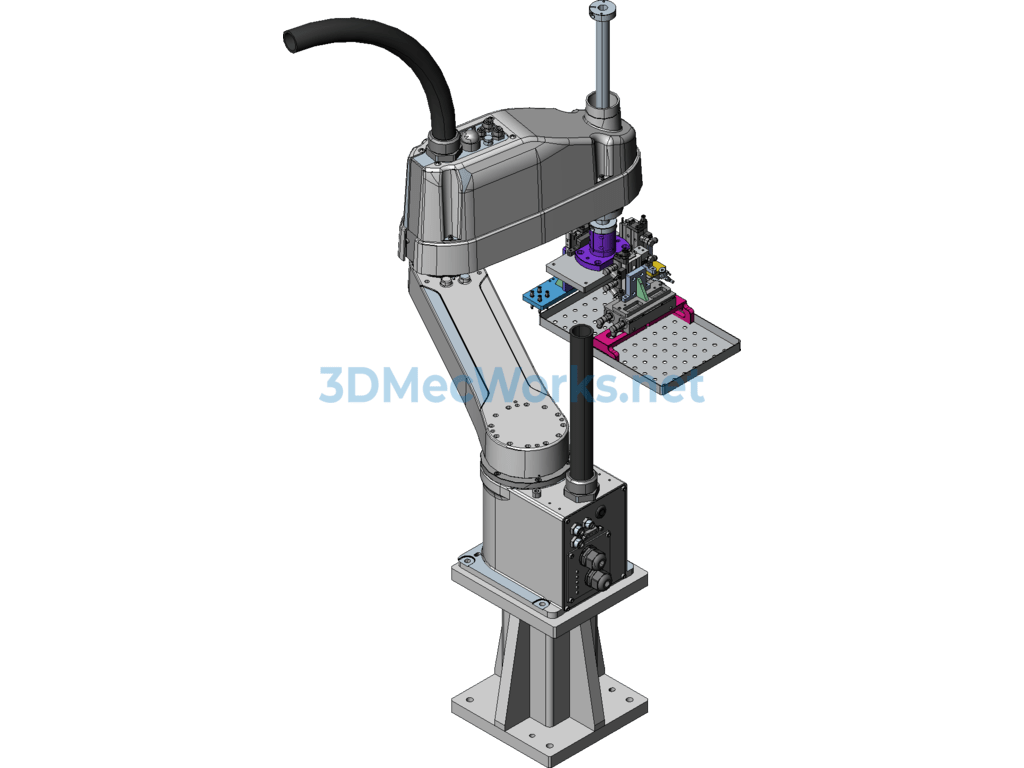

This mechanism is a four-axis manipulator equipped with a fixture for picking and placing different products. It can grip, suction, and expand the product externally at the same time. Manipulators are widely used in industrial settings, placing workpieces held at the terminal in various positions. The pneumatic chuck is used to achieve convenience and reliability, and the design requirements for the gripping part are reasonable and reliable. The combination of pneumatic and electric systems is adjusted according to actual conditions to achieve functionality, making it the first choice for industry professionals. For mechanical enthusiasts to study and reference. Reproduction or use for illegal activities is prohibited, thank you! (Including stp format)
