Four-Axis Machining Fixture for Automobile Steering Knuckle

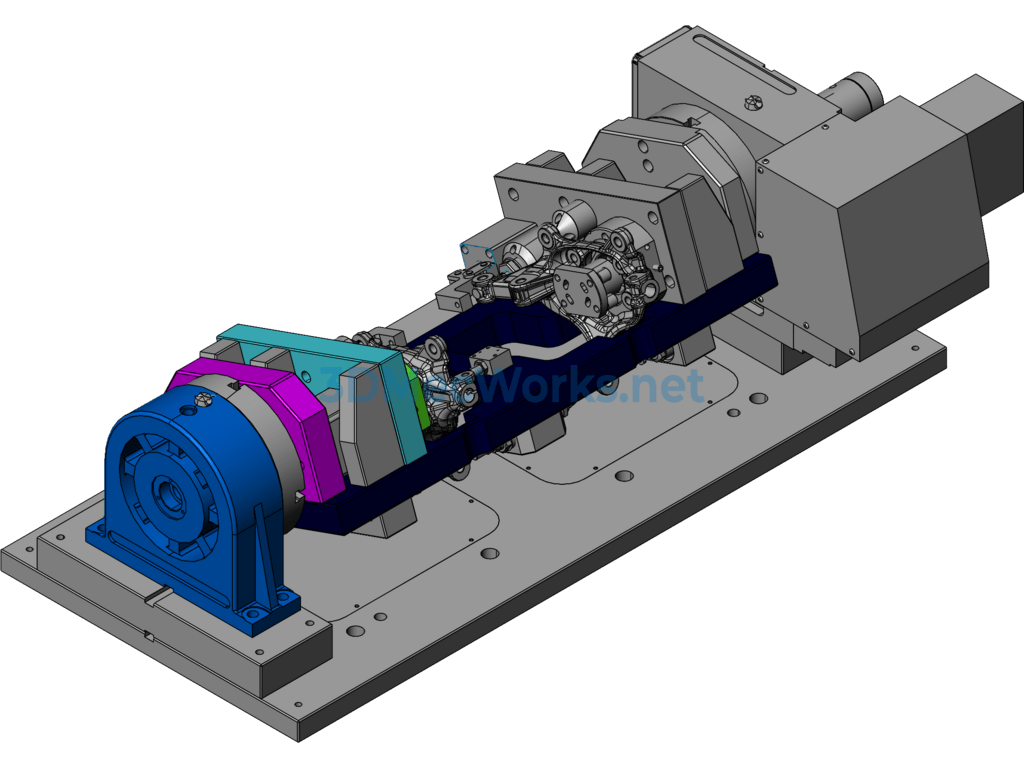

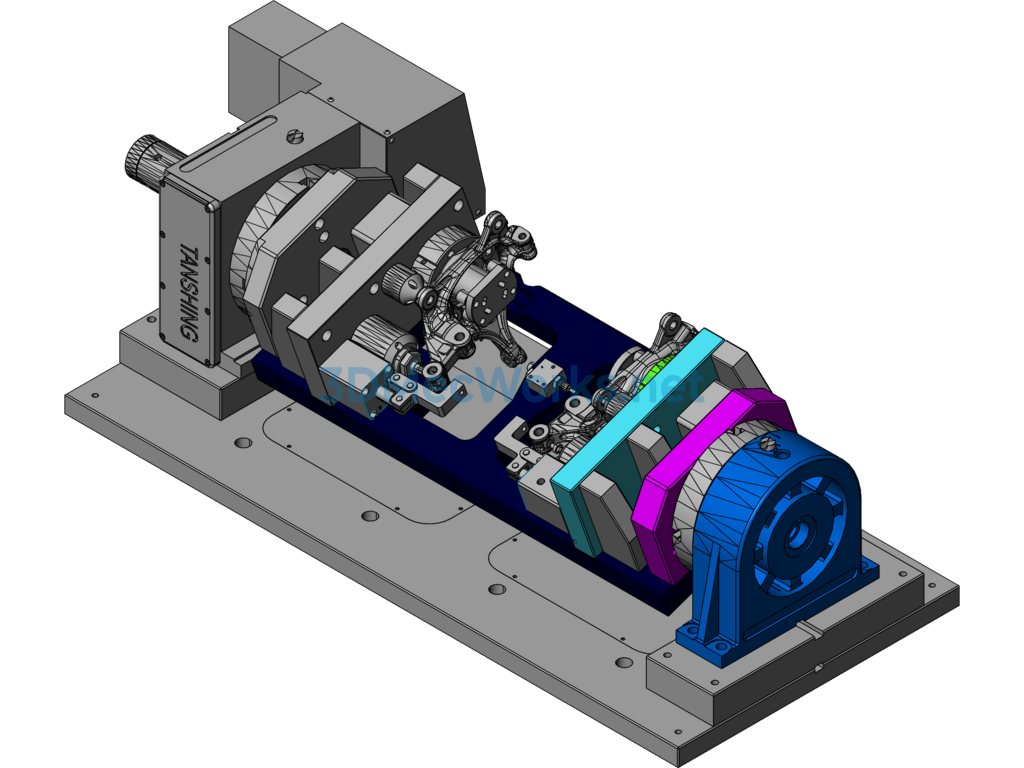

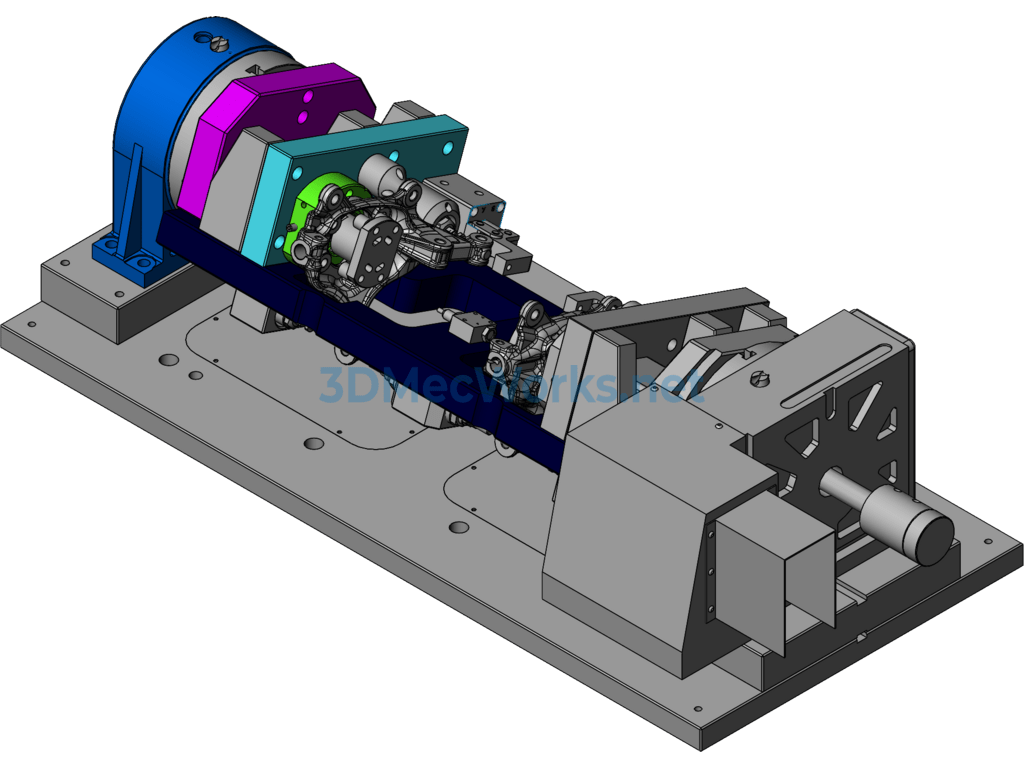

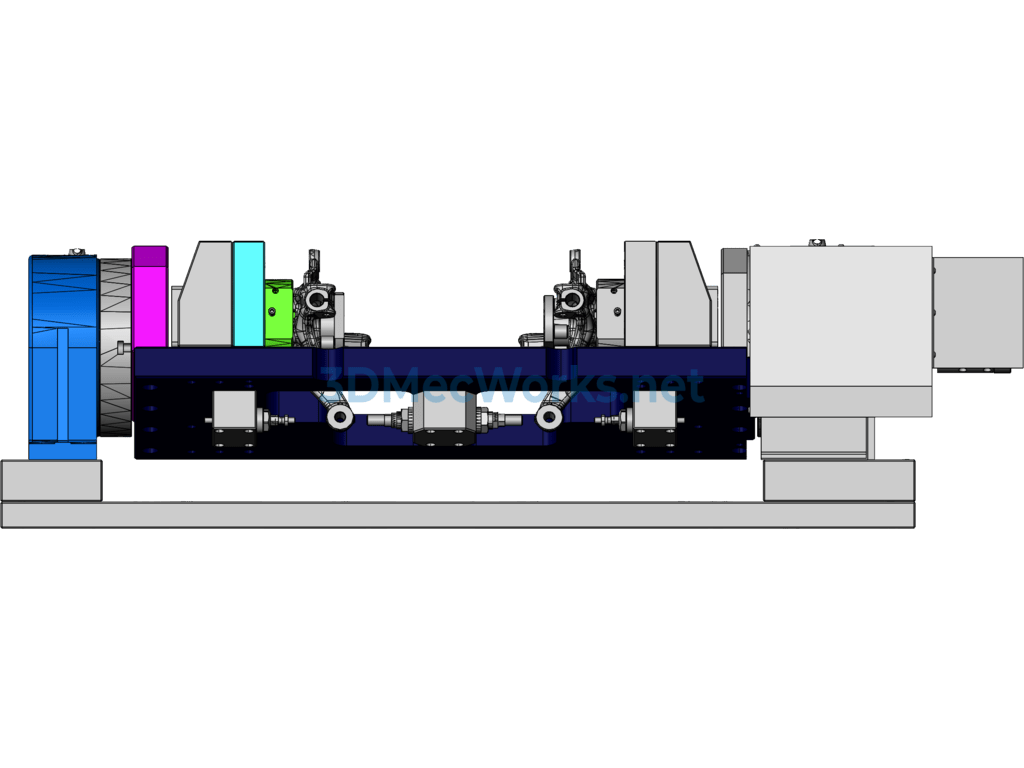

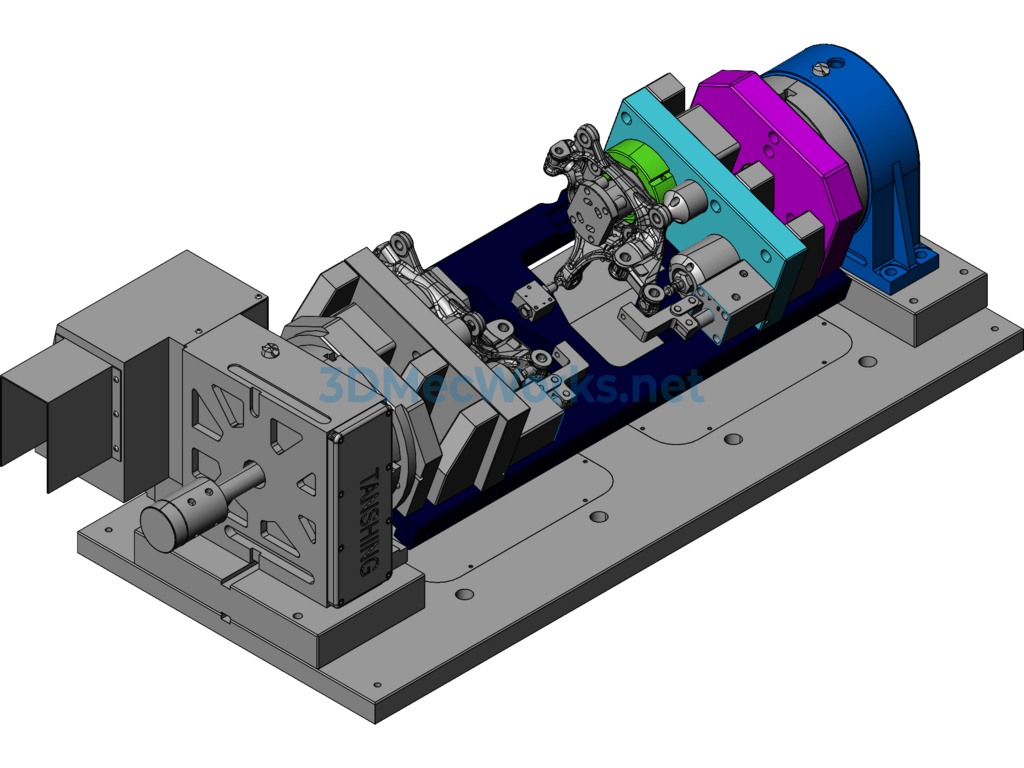

Automobile Steering Knuckle Four-Axis Machining Fixture 3D Model
This fixture is used for the vertical machining of automobile steering knuckles and includes a fourth axis. The model in the drawing is in STP format and contains modules for rotary table use, cylinder use, support cylinder use, bridge plate, base plate, L-plate use, hydraulic oil distribution, etc.!
Specification: Four-Axis Machining Fixture for Automobile Steering Knuckle
|
