Forming Machine Equipment

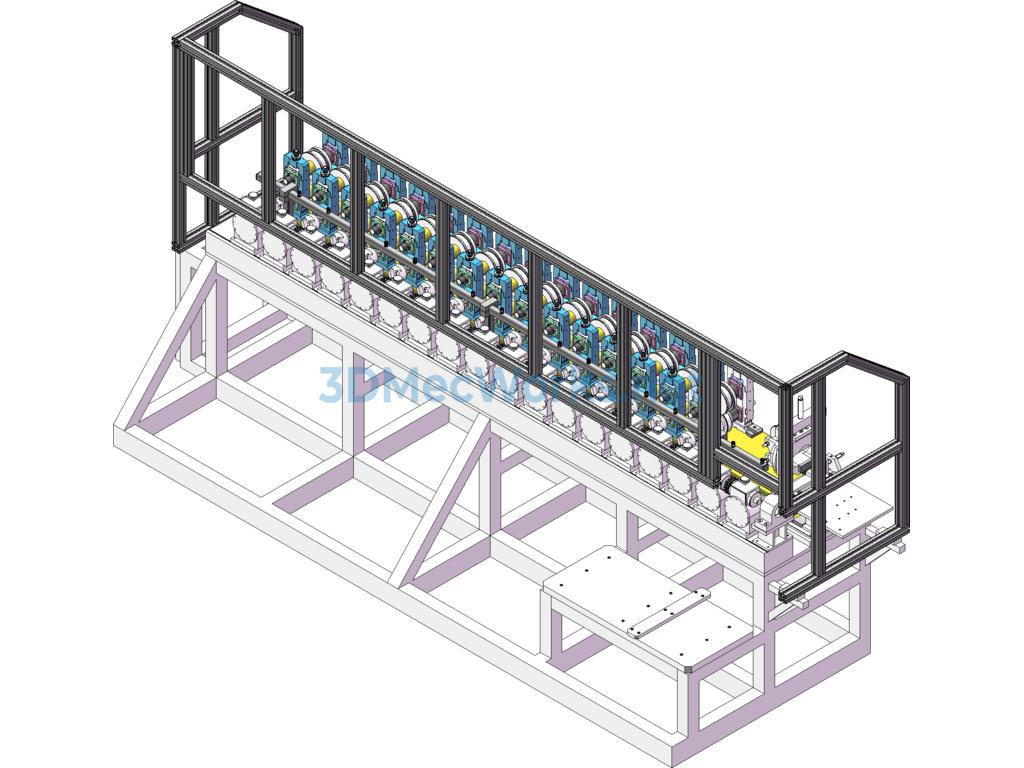

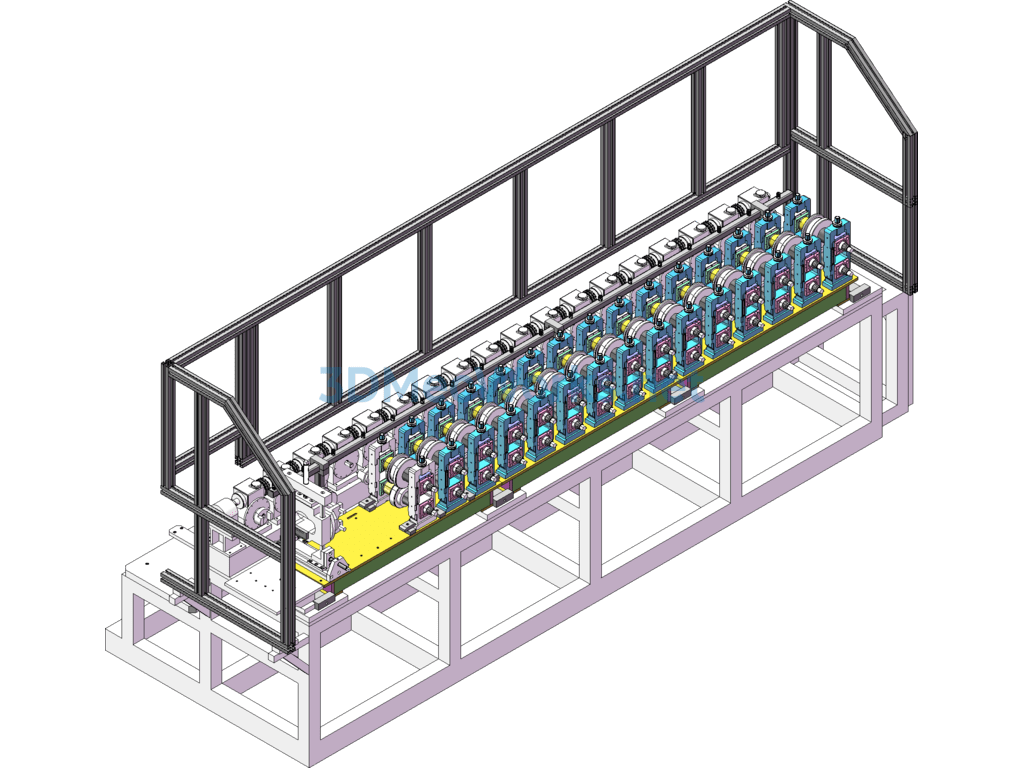

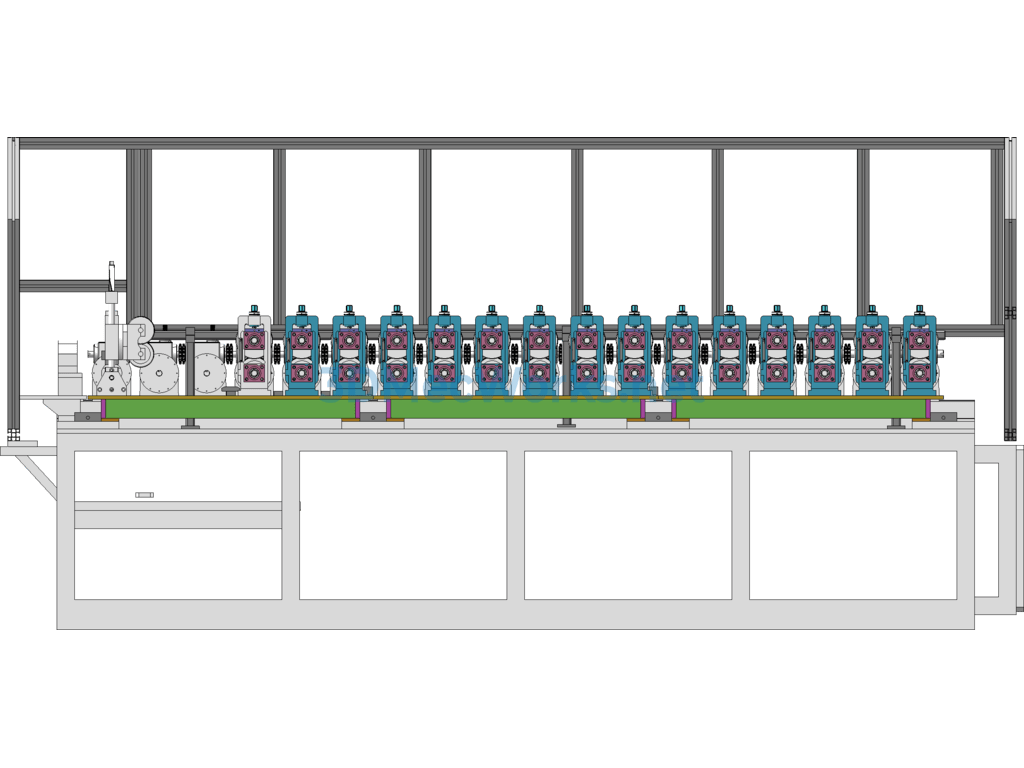

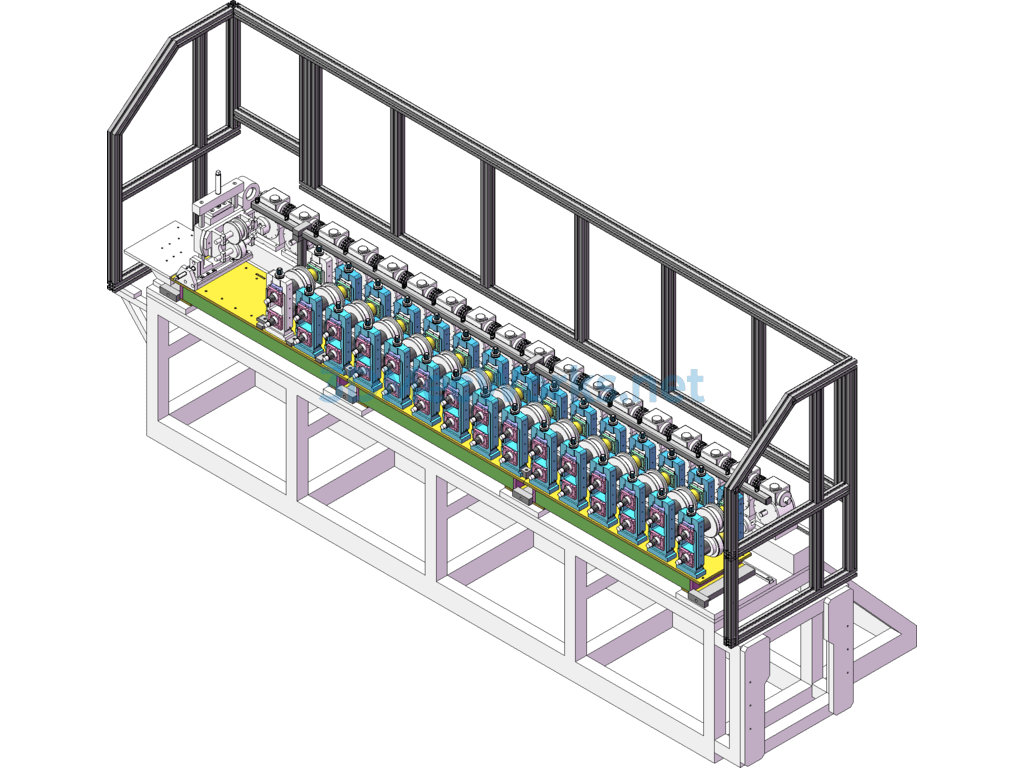

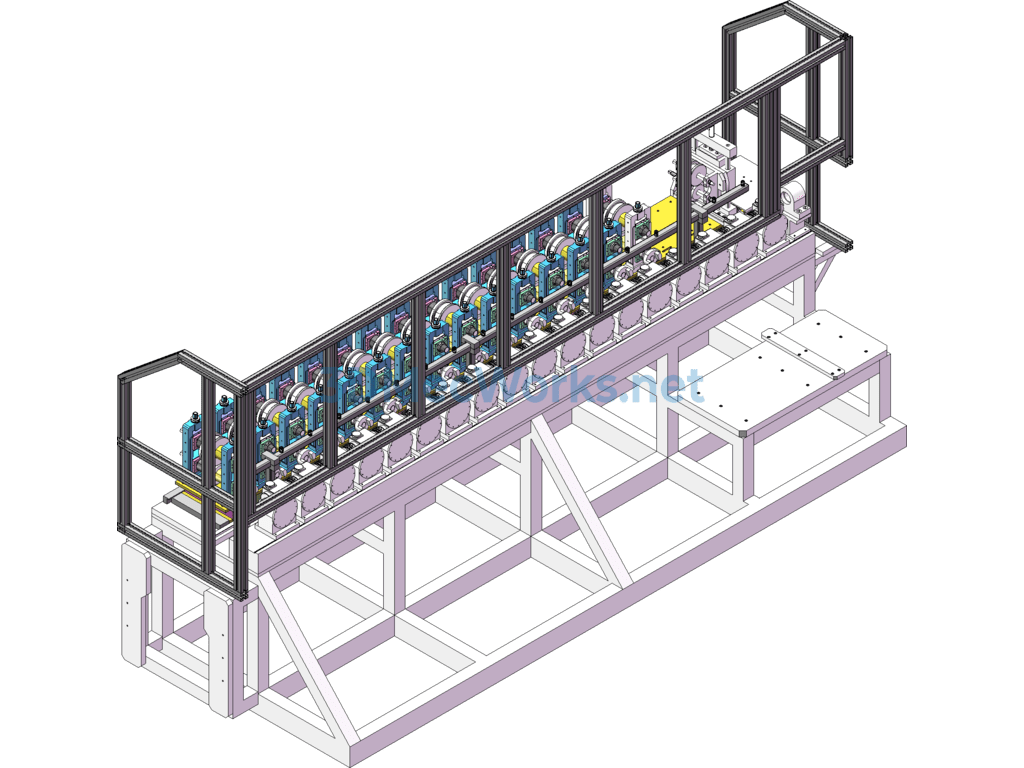

This is a 3D model diagram of an originally designed online forming machine, using roller forming. The drawing is reasonably designed and can effectively improve production efficiency. The structure of the drawing is very detailed, with engineering drawings and a bill of materials. The working principle of the equipment: it uses multiple sets of rollers for roll forming, with transmission through a gearbox driving each set of rollers to roll form the product. The drawing format is Solidworks2018. Everyone is welcome to download it.
