Fluid Pump Assembly - SolidWorks - Free Download

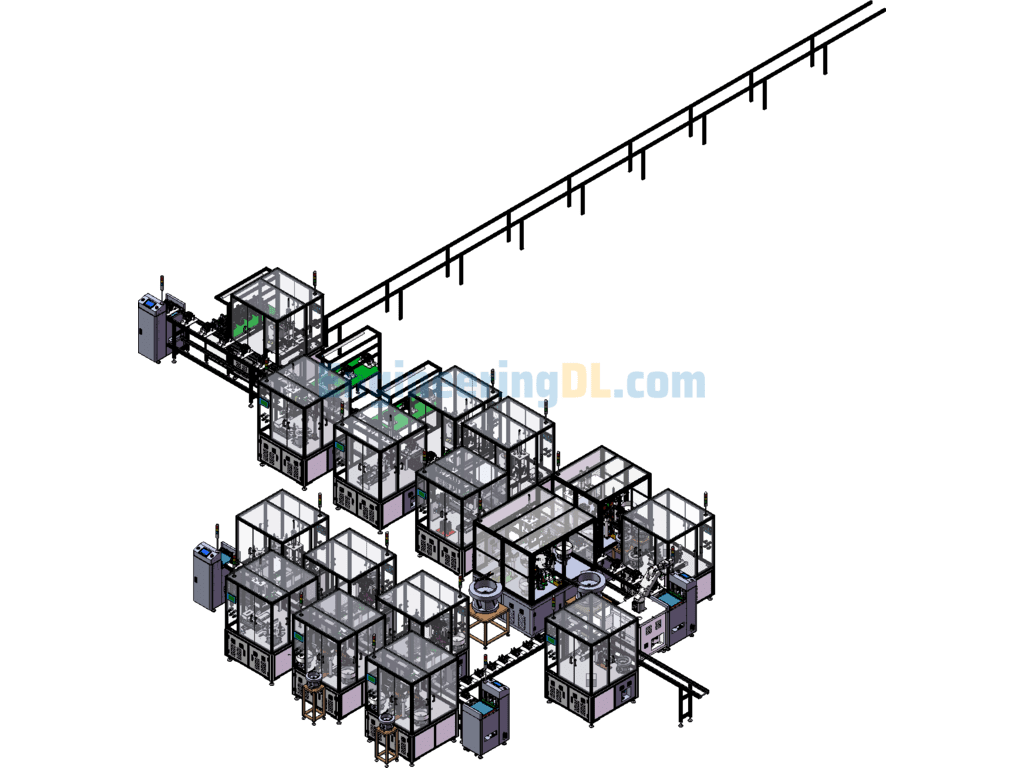

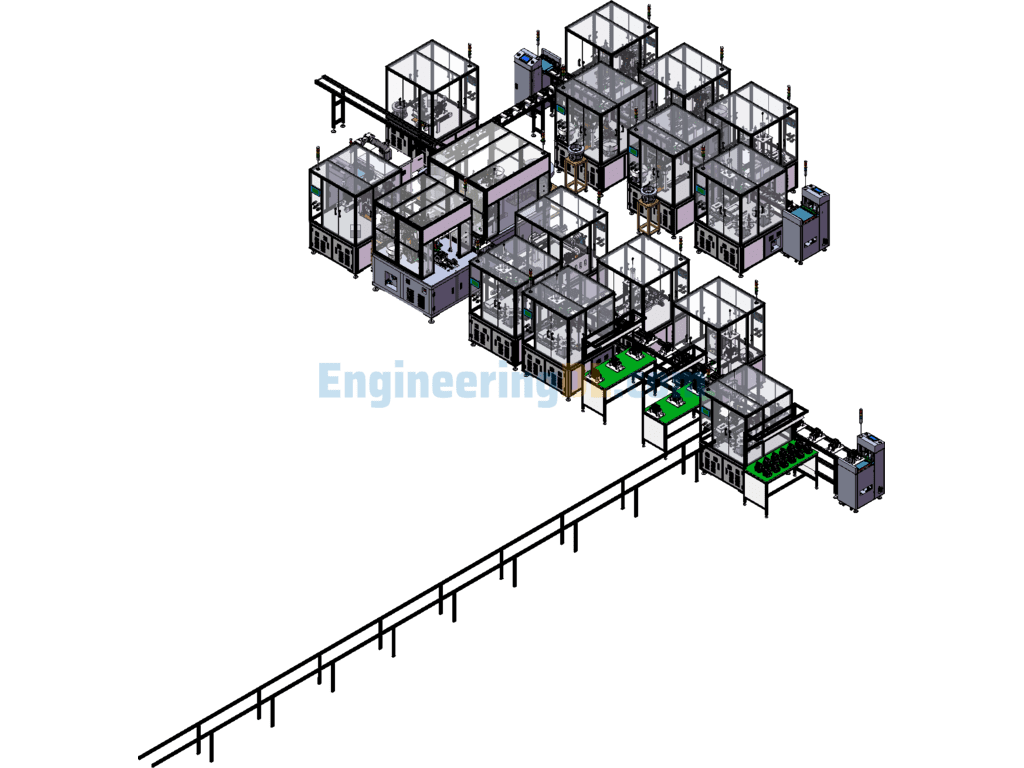

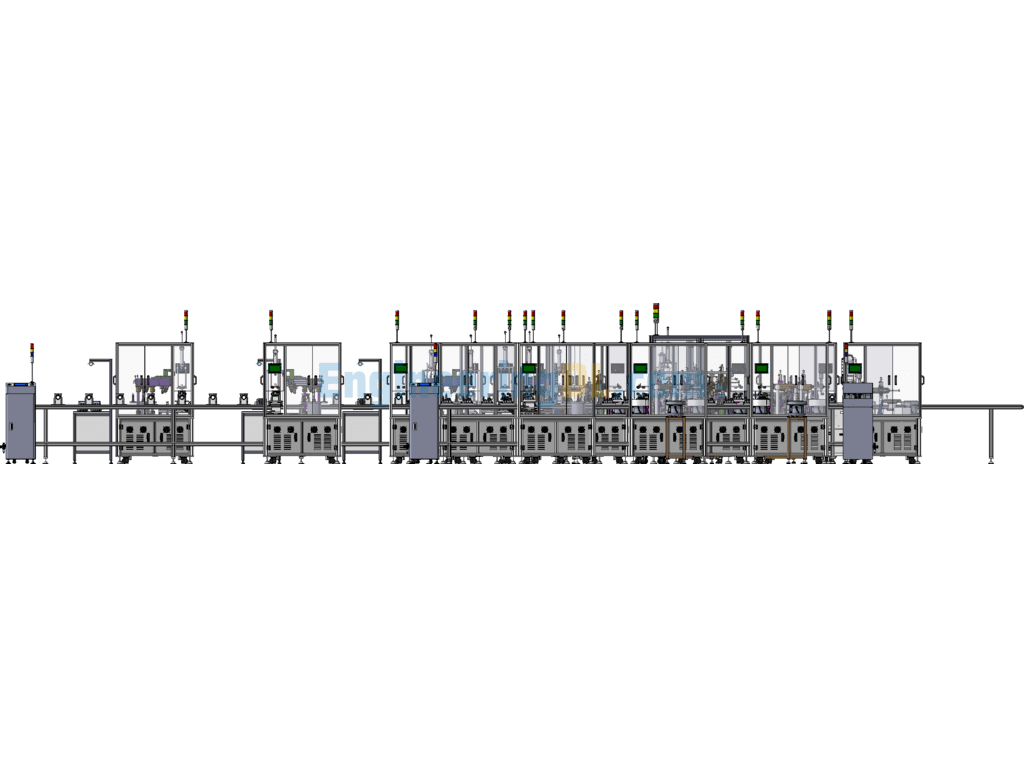

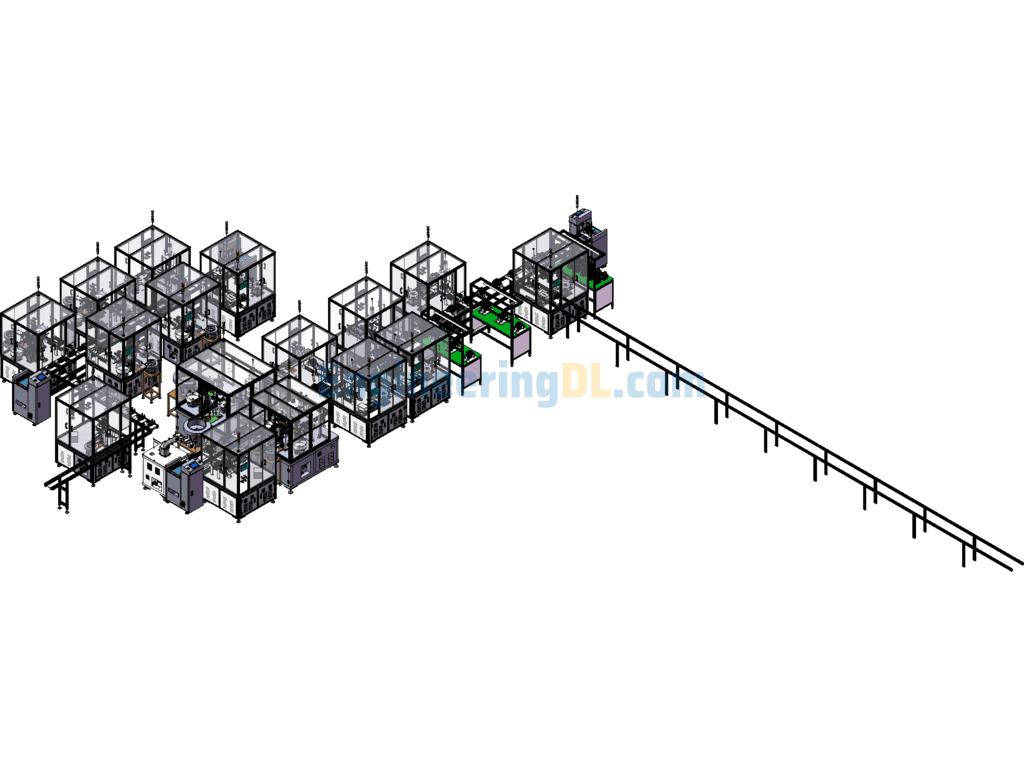

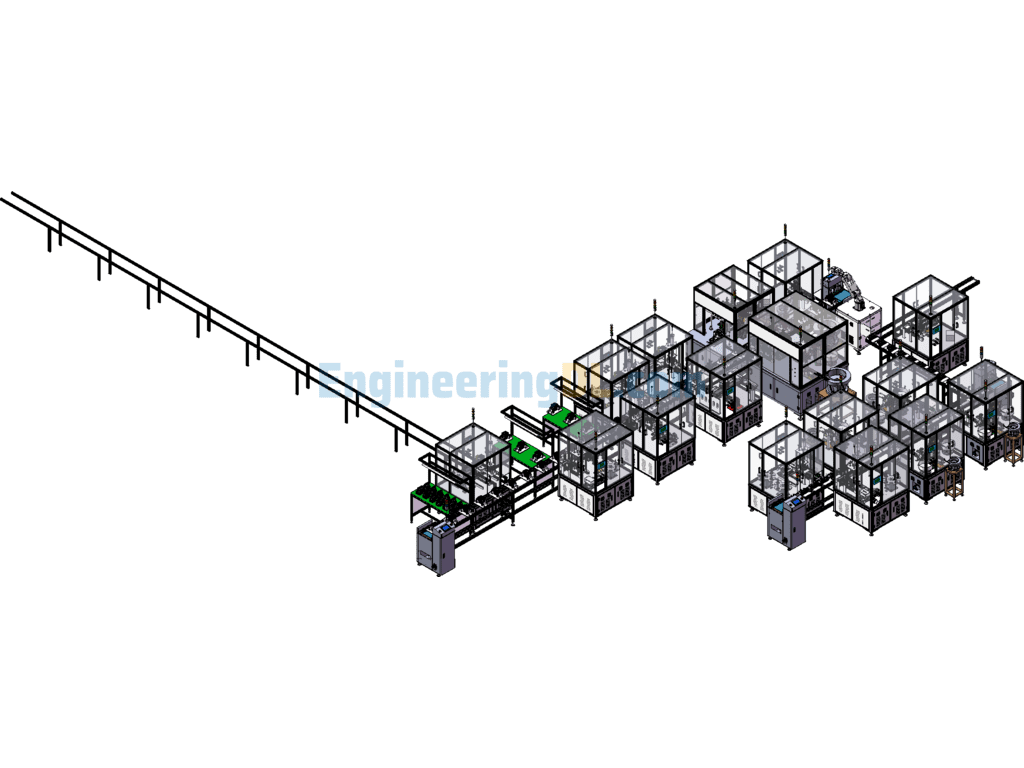

Mainly focused on the assembly of high-pressure cleaner motors and their pumps_x000D_
1 Motor section includes bearings, snap rings, seals,_x000D_
spray ceramic plunger, oil window end cap, oil level indicator, O-ring,_x000D_
oil drain plug, dipstick, etc._x000D_
2 Pump body section includes O-ring, water inlet valve, plug head,_x000D_
low-pressure plug head, water inlet joint, pressure regulating cap, etc.
Specification: Fluid Pump Assembly - SolidWorks - Free Download
|
