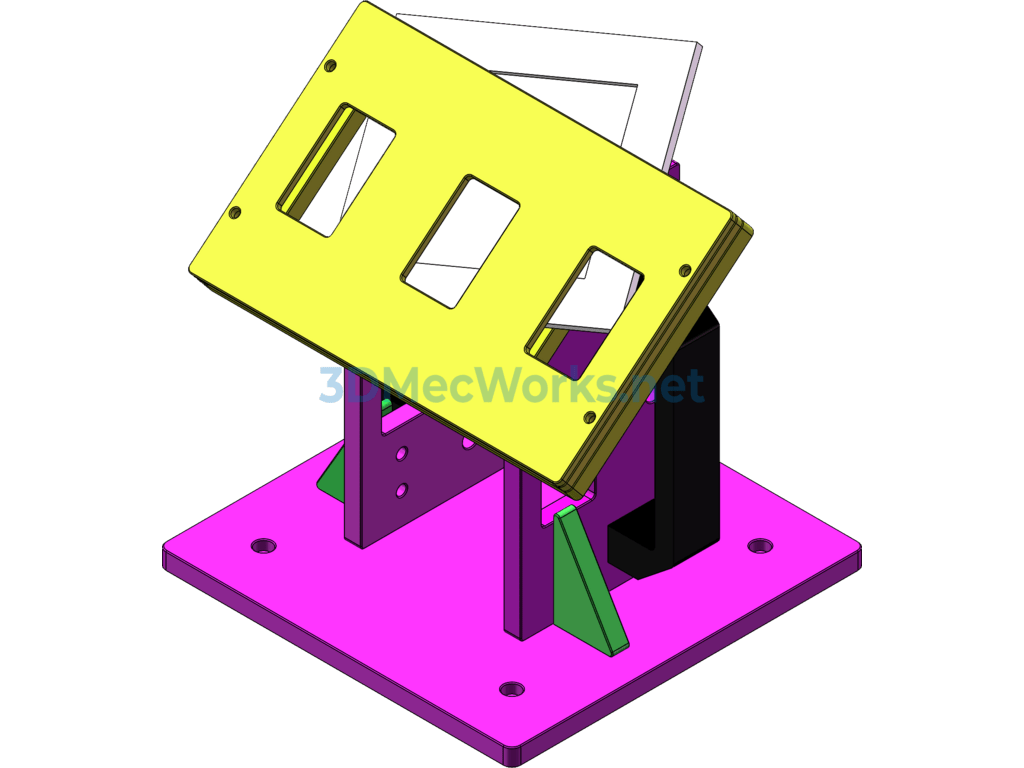

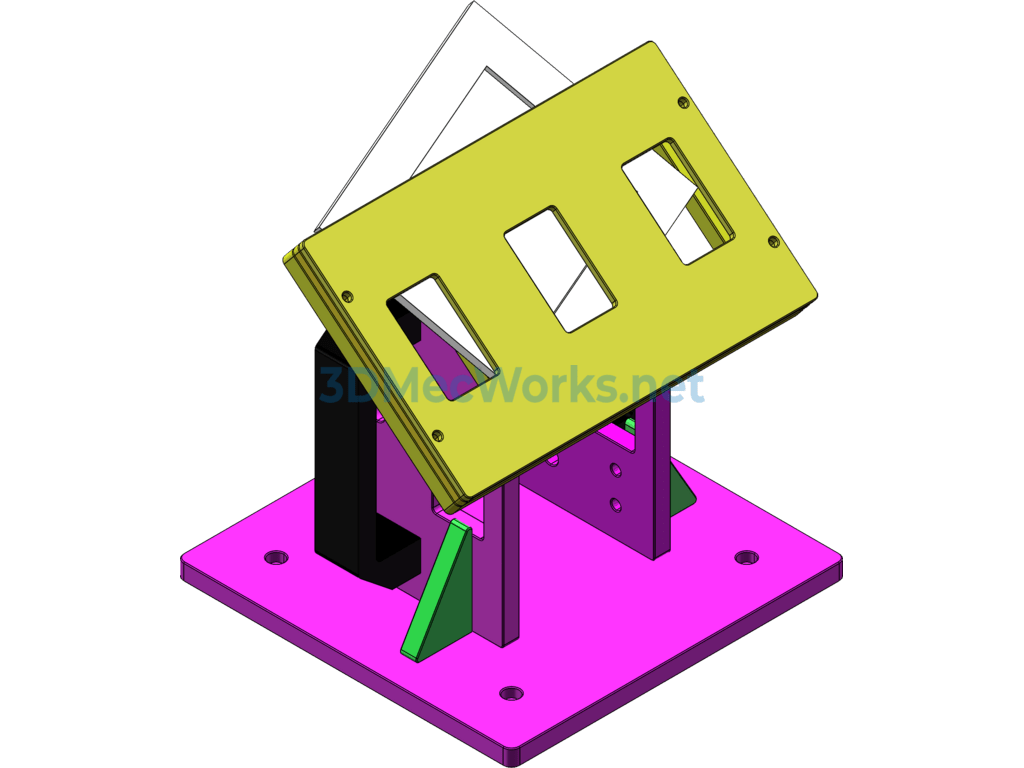

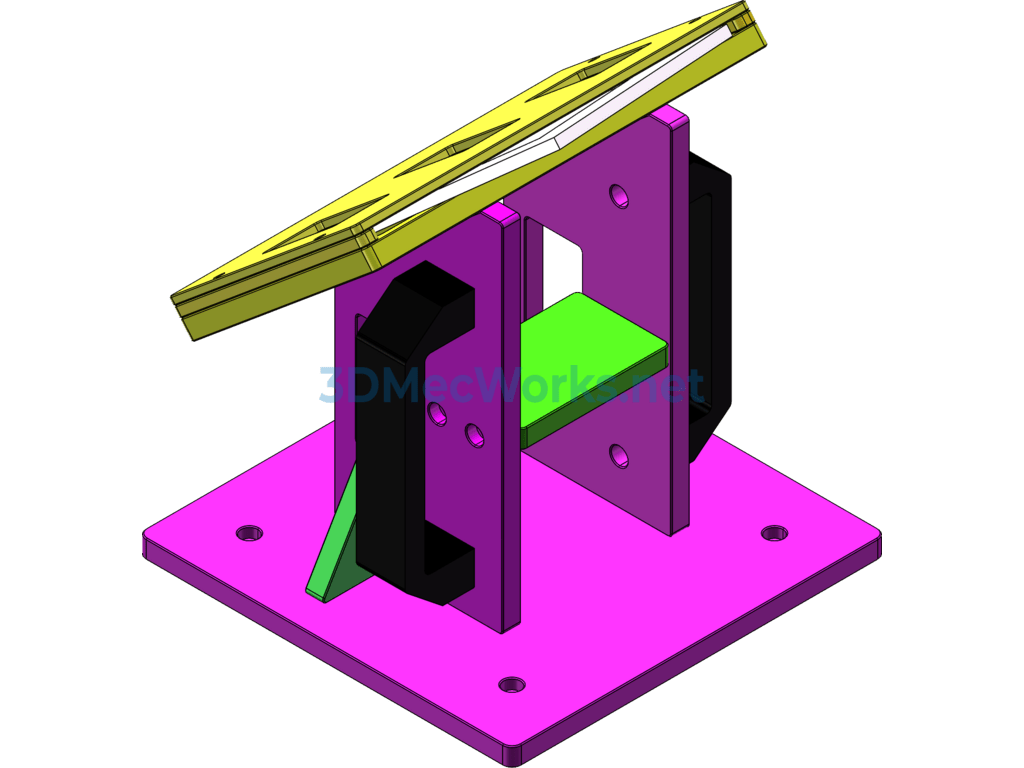

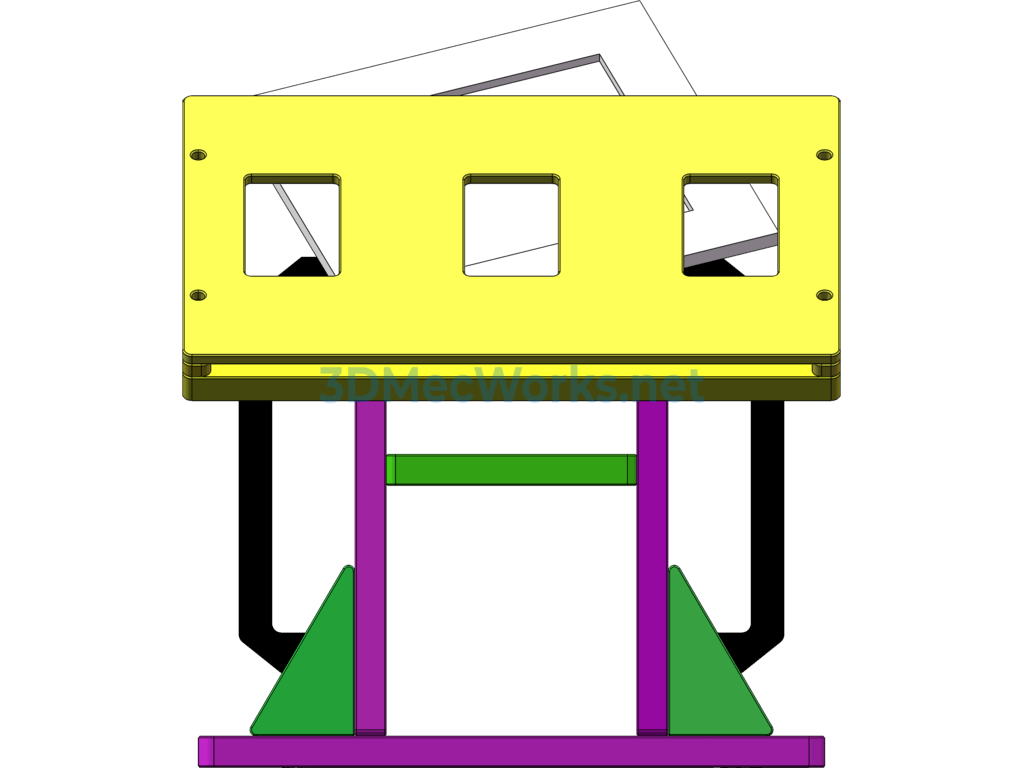

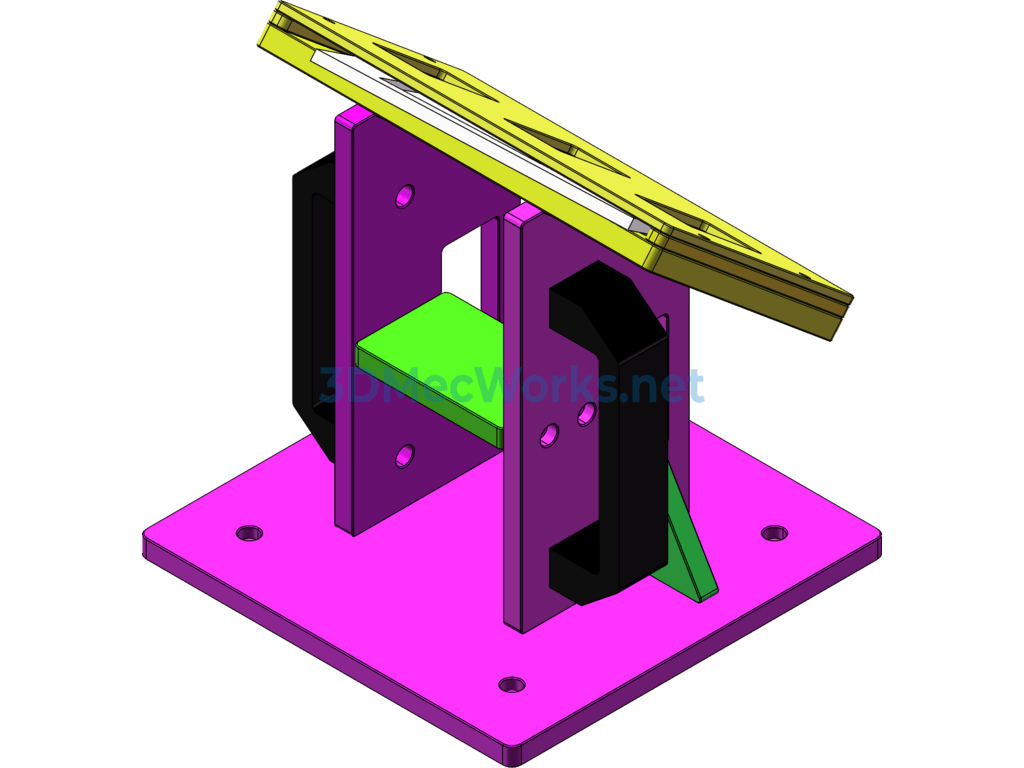

Flatness Inspection Fixture

Published by

42,615 views

34,090 downloads

SKU: B012501009083 Category: 3D Projects Tags: Fixture, Flatness, Gauge, Inspection Machine, Non-Standard Equipment, VIP Project

Flatness inspection fixture, capable of measuring product thickness.

Specification: Flatness Inspection Fixture

Design Software	SolidWorks
Editable	Editable, With parameters
File Formats	Sldasm, SLDDRW, Sldprt
Industry Application	Creative Design, Mechanical Equipment, Molds & Tooling
Sharing Level	Platinum
Version	2016
