Fixed Lower Shell (Injection Mold + Cylinder Core-Pulling) - UG(NX) - Free Download

0
Sold by
@ MrBlue
[mecworks-btn]
SKU: A012501005652

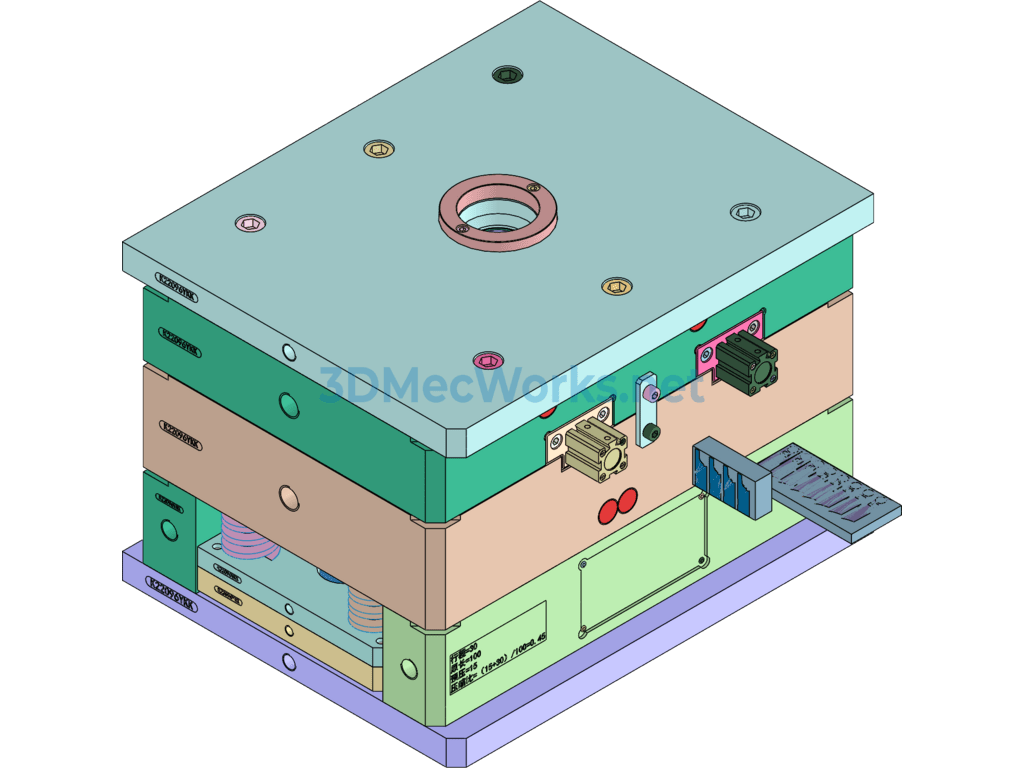

This model is a fixed lower shell injection mold drawing, with the product material being ABS, and the mold cavity producing four outputs at once; it uses a large gate submerged injection system; the product is ejected by ejector pins, and there is a reversed round hole in the front mold, requiring a front mold slide block; a cylinder core pulling mechanism was adopted in the mold design considering the cost; the structure of the drawing file is very clear, and everyone is welcome to download and study it.

Specification: Fixed Lower Shell (Injection Mold + Cylinder Core-Pulling) - UG(NX) - Free Download

Design Software

Editable

File Formats

Industry Application

Sharing Level

Version
