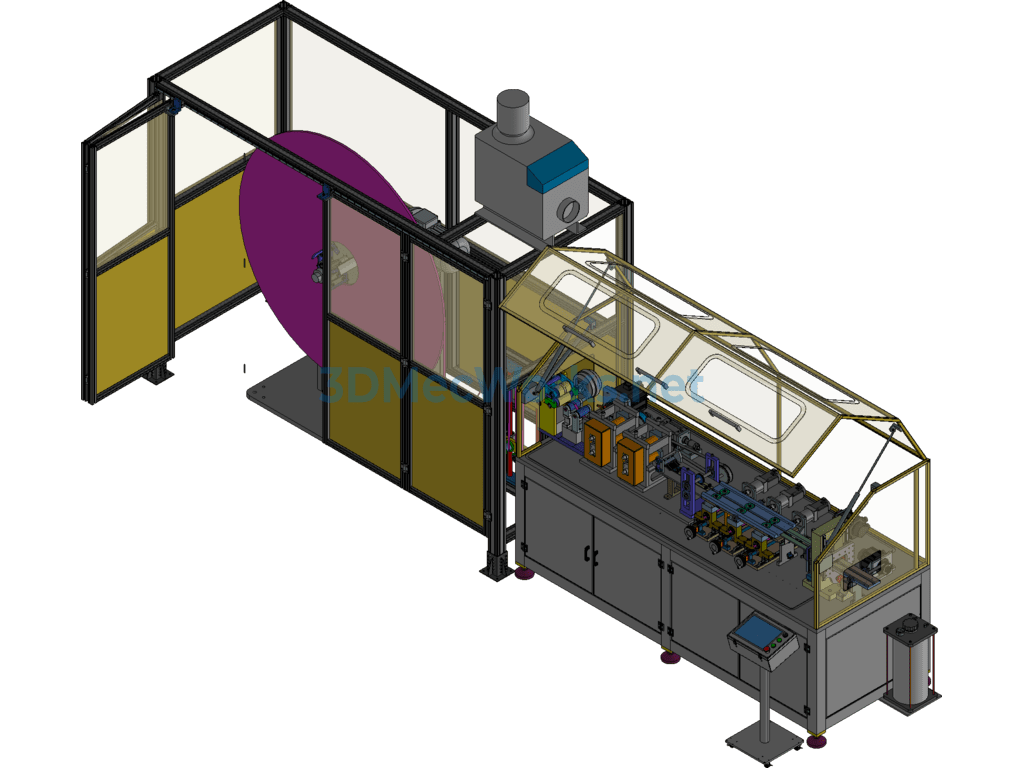

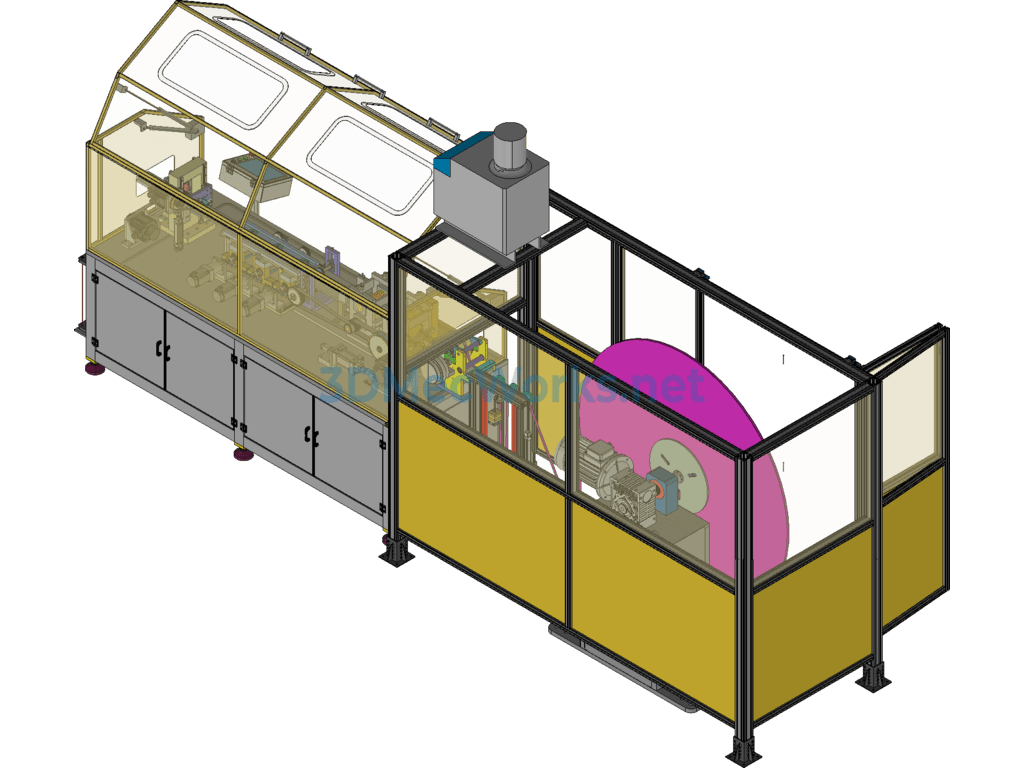

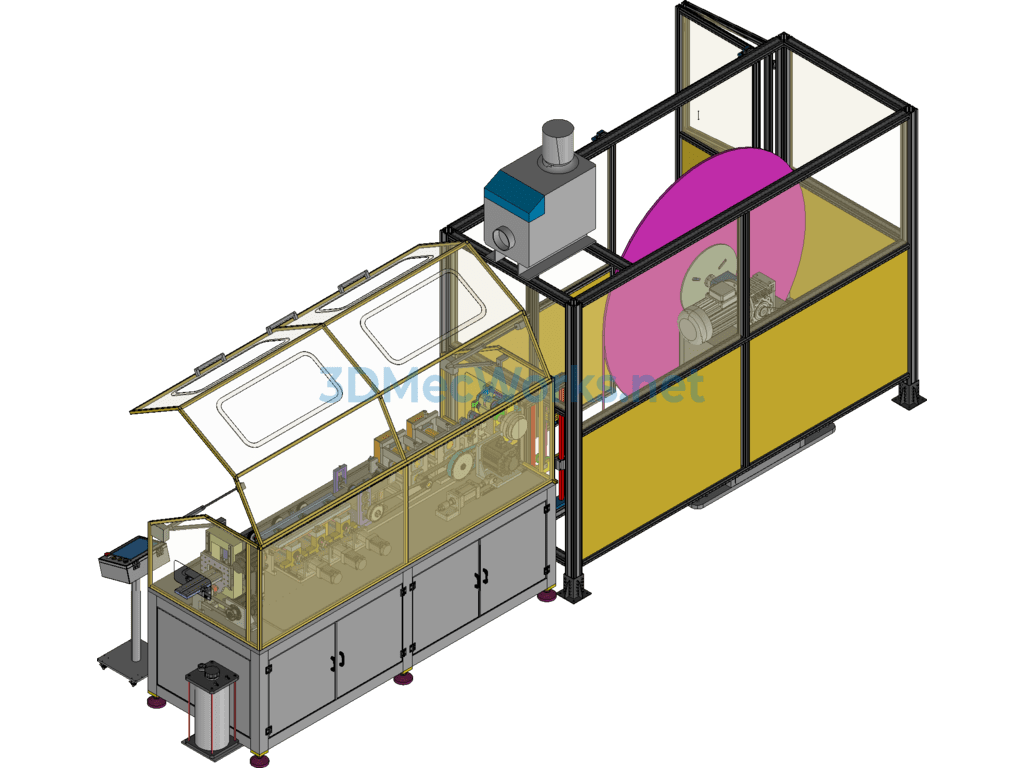

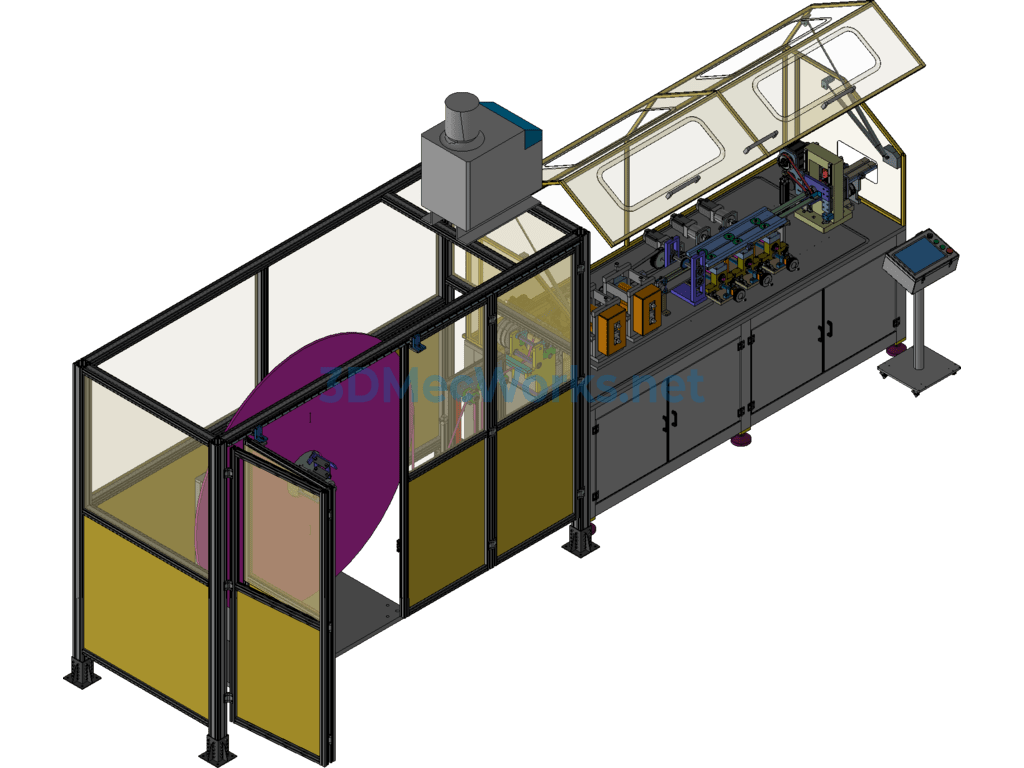

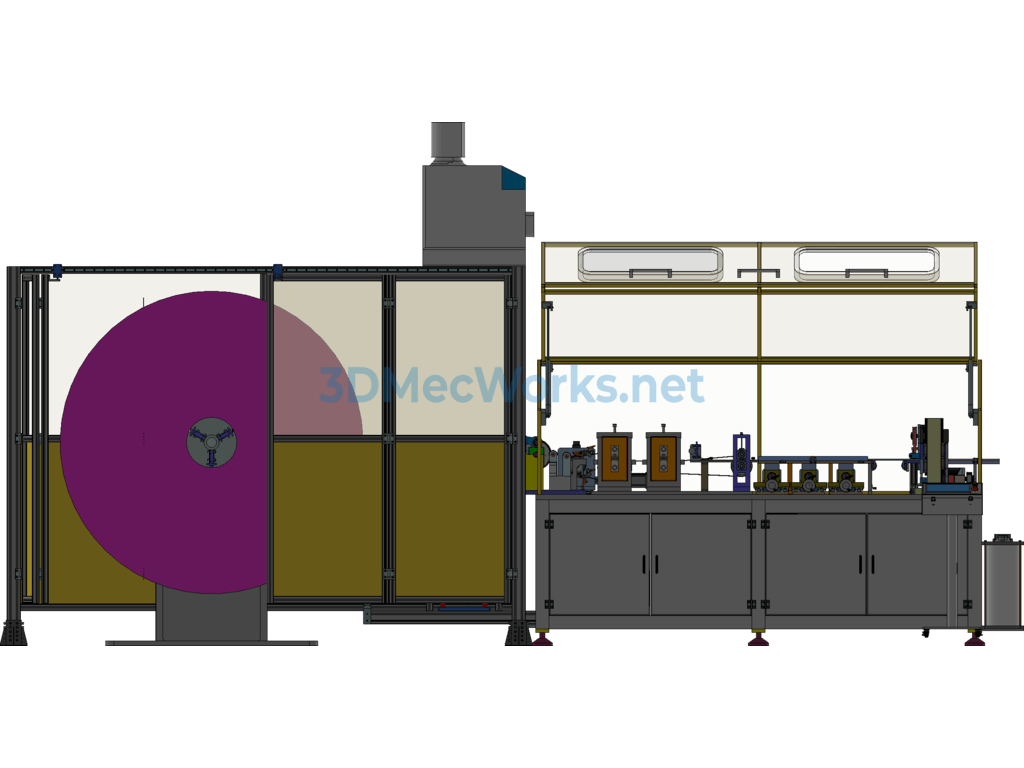

Fin Forming Machine, Aluminum Foil Forming Machine, Servo Cutter, Closed-Loop Tension Control, Uncoiling Mechanism
Fin forming machine, aluminum foil forming machine, servo cutter, closed-loop tension control, uncoiling mechanism equipment mainly used for automatic forming of automotive radiator aluminum foil
Feeding speed 170m/min
Cutting frequency 90 times/min
Material thickness 0.06~0.12MM
Material Aluminum foil
Fin height 5~12MM
Fin width 12~26MM
Fin density 1.6~3.2
Single feeder maximum 1800MM
Material roll inner diameter 200~350MM
Fin height error 0.03+/-
Adjustment range 0.05+/-
Fin length 5MM@500+/-
Fin average density 0.1+/-
Wavelength per cut section 1+/-
Specification: Fin Forming Machine, Aluminum Foil Forming Machine, Servo Cutter, Closed-Loop Tension Control, Uncoiling Mechanism
|
