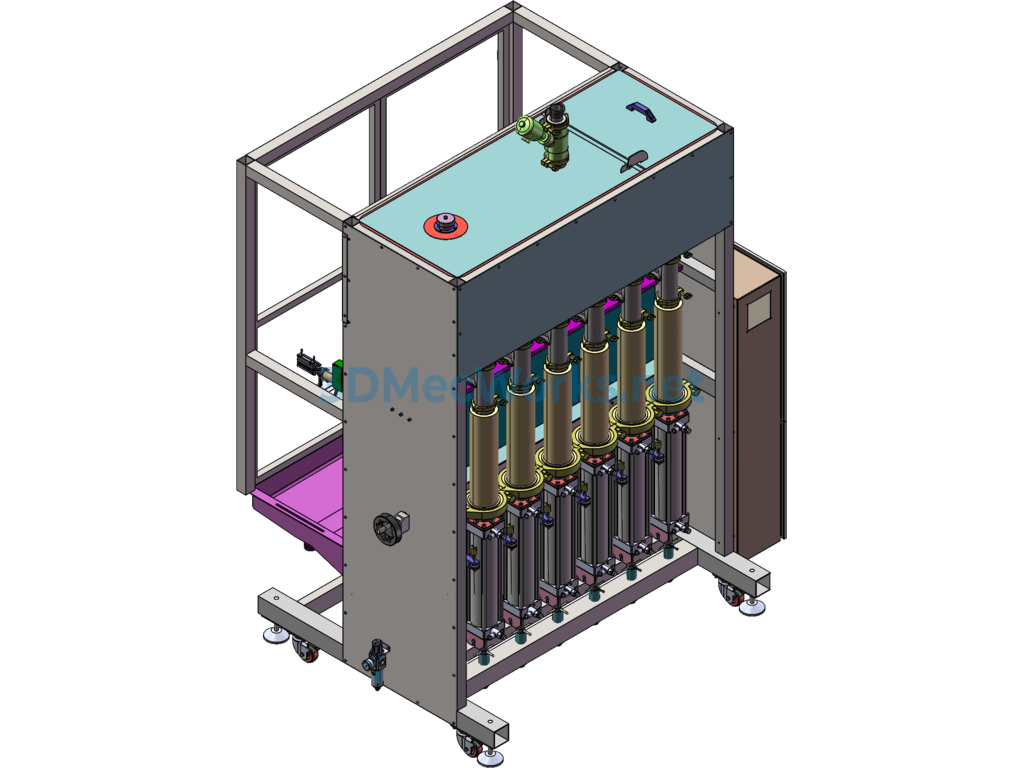

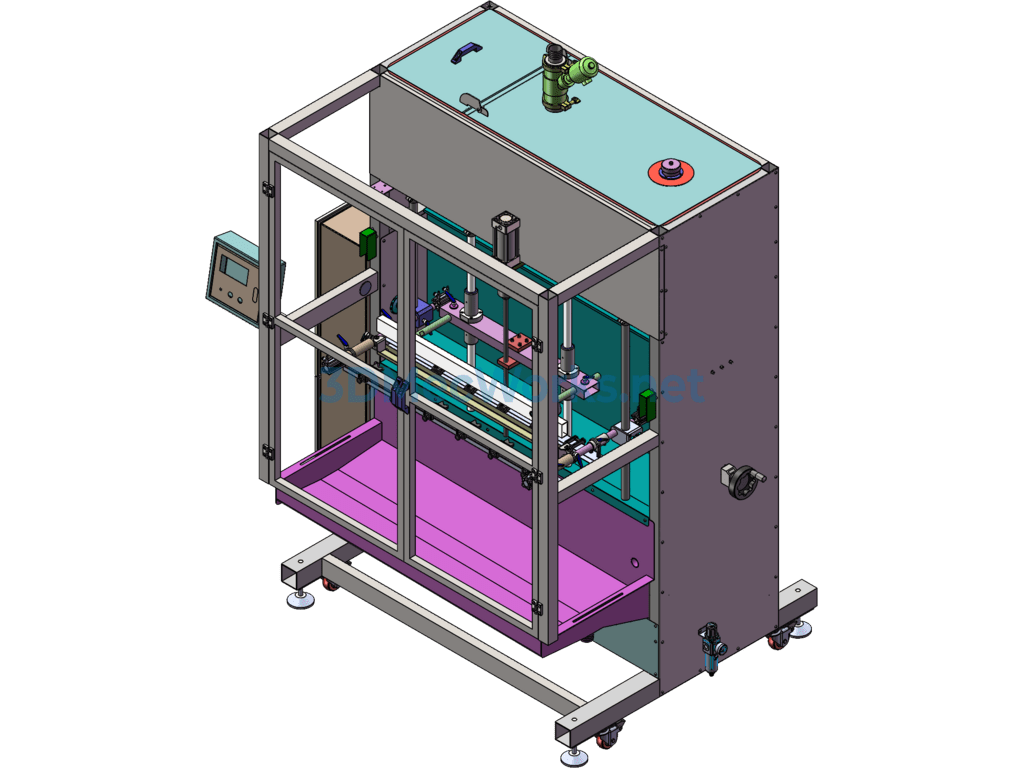

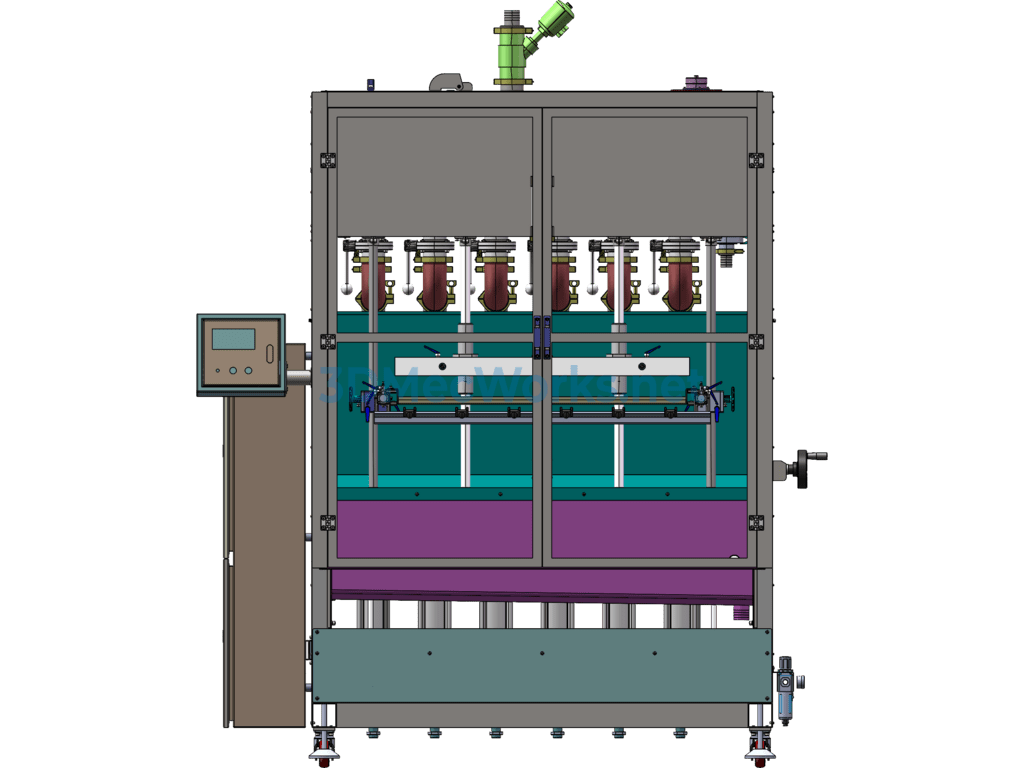

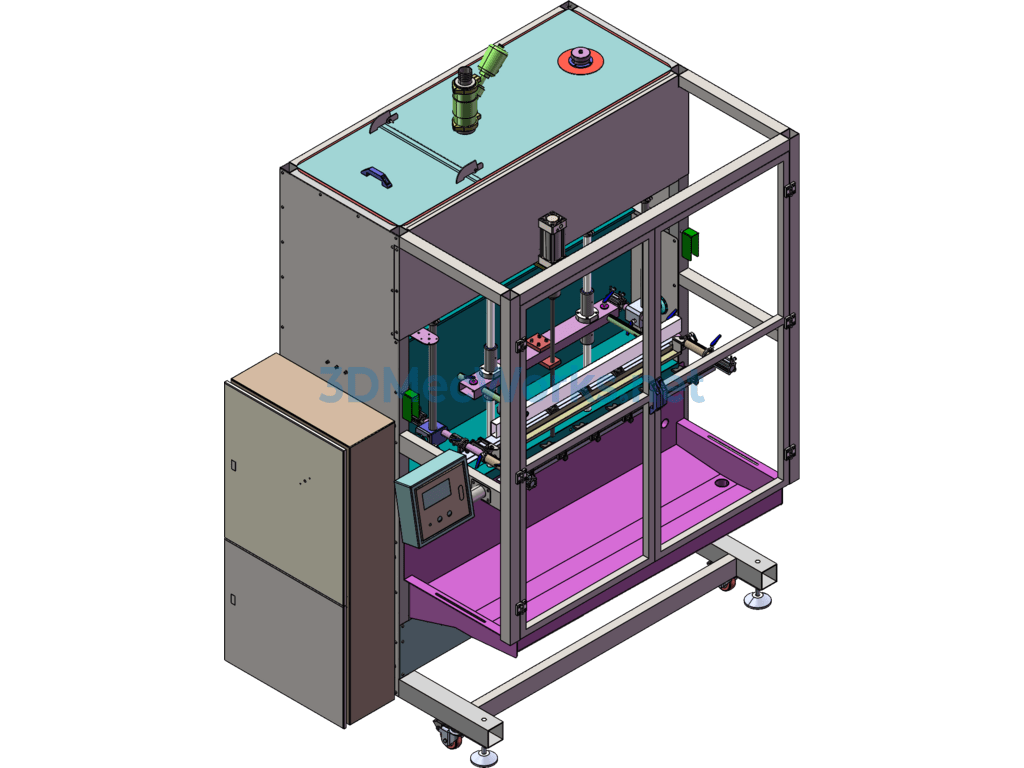

This drawing is the 3D model design of a filling machine. The main structures of this filling machine include sheet metal frame, filling components, three-way valve (three inches), bottle-clamping components, material box, electrical box, filling lifting mechanism, discharge valve sleeve, cylinder positioning sleeve, and more. The design of the drawing is reasonable, containing more than 270 drawings, including assembly drawings and part drawings, available in STEP format, which can be opened using various 3D software. Welcome to download for reference.
