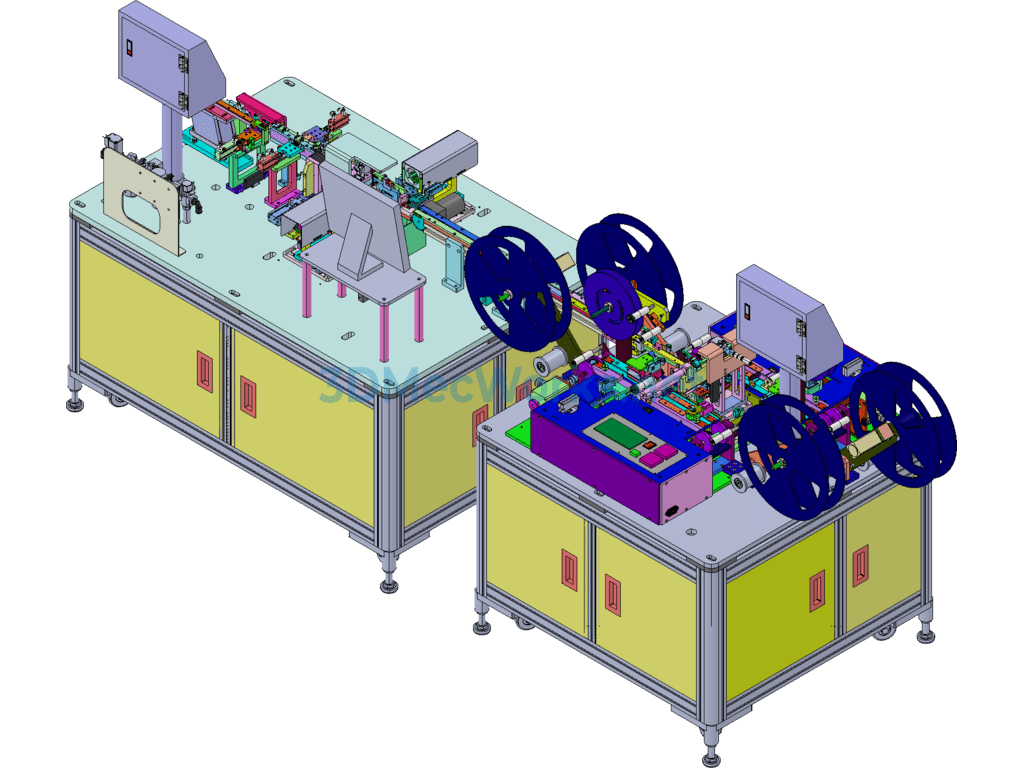

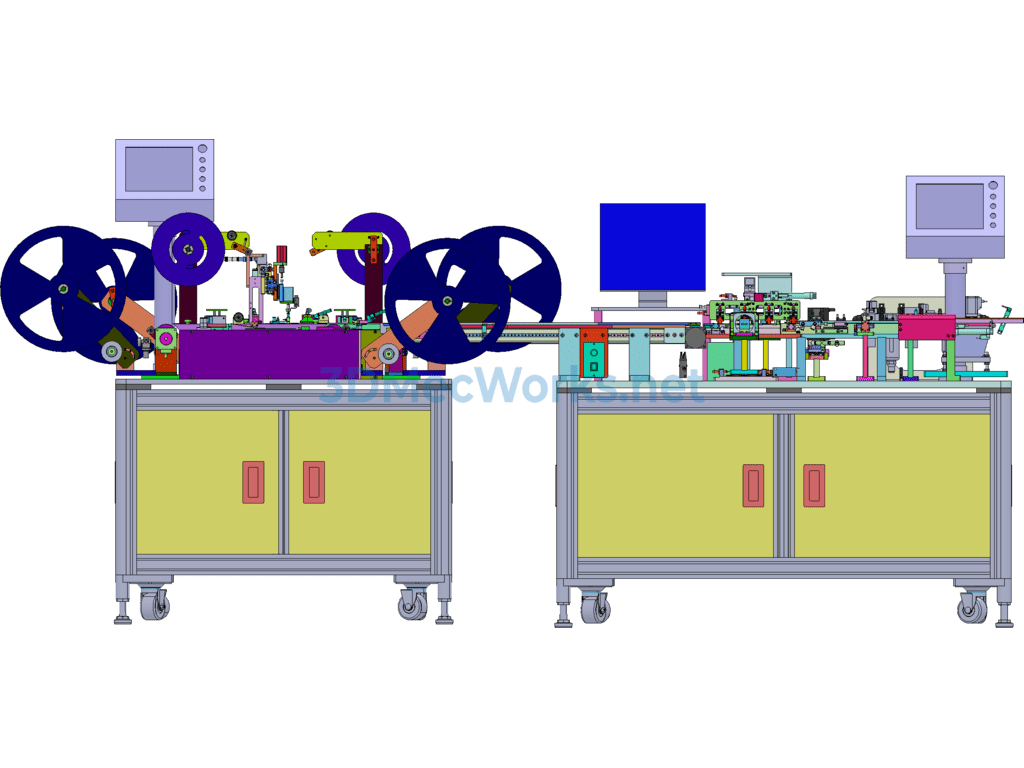

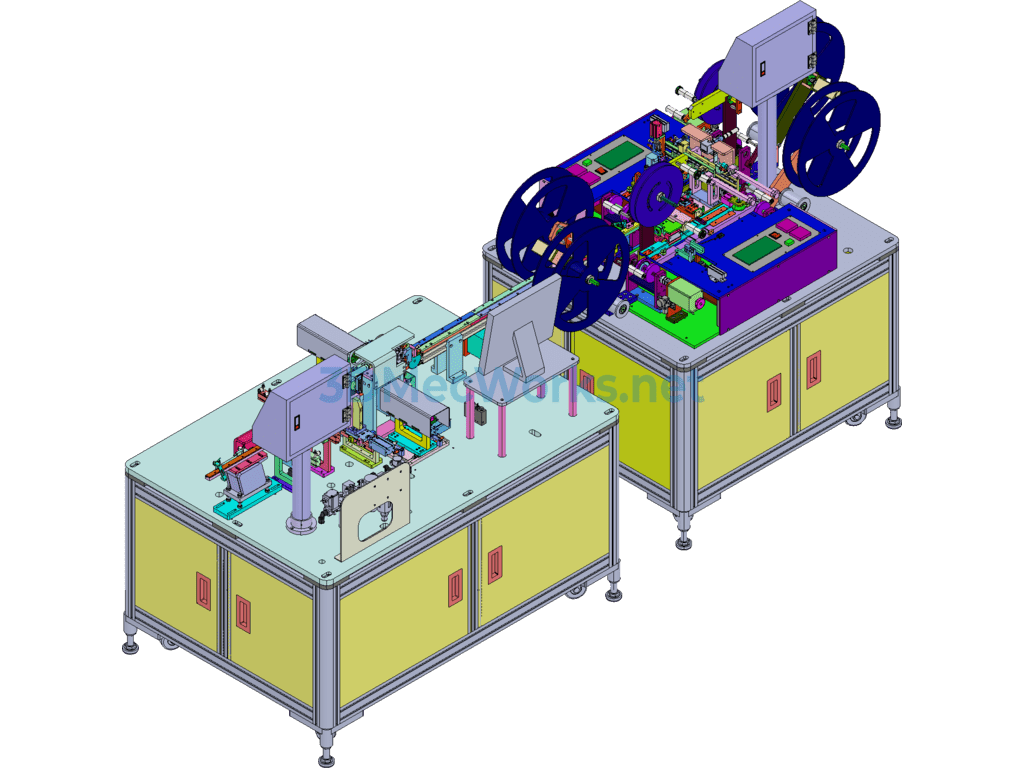

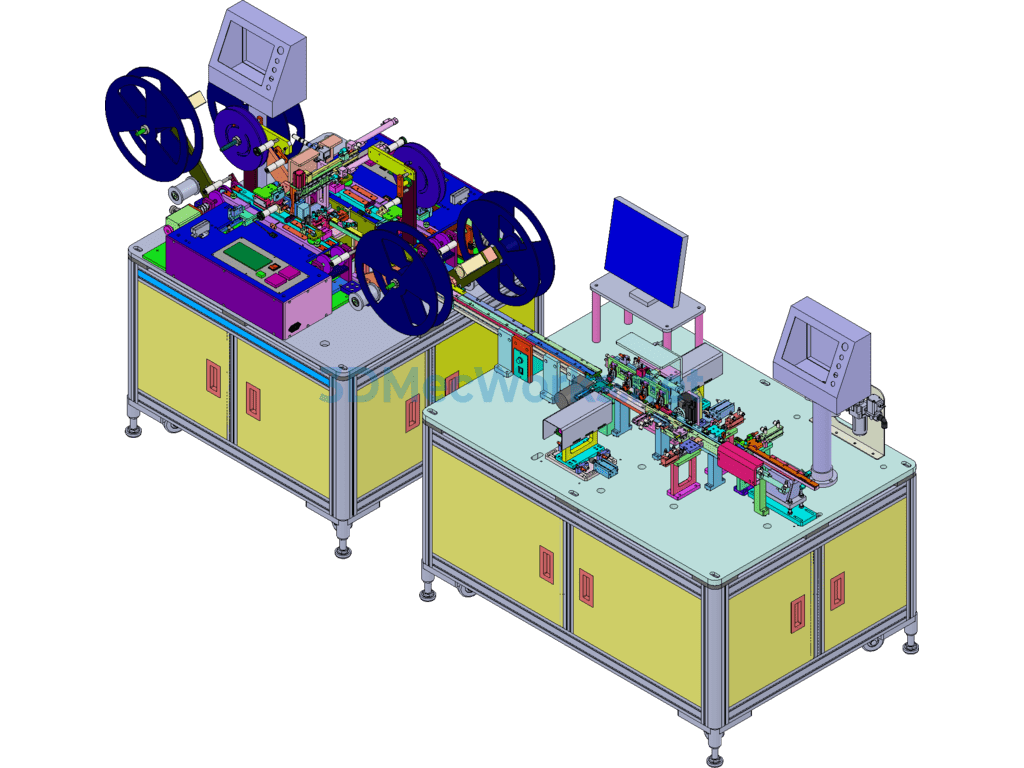

Ffc Automatic Ccd Inspection Dual-Sided Packaging Machine

FFC Automatic CCD Detection Dual-sided Packaging Machine
This equipment is a very commonly used and mature machine in electronics factories. It is an automated device for cutting capacitor leads, bending, performance testing, and integration of positive and negative sorting. It features a linear manipulator handling mechanism with multiple workstation designs. The equipment has been successfully mass-produced, with SW2014 design source files provided, which are quite complete, along with iges files of high reference value. Welcome to download.
Detect the cutting width of FFC gold fingers, SPAM, and related dimensions of each bayonet. The same machine can detect FFC products of various specifications (1.0 pitch and 0.5 pitch). Operators manually load products, and if there are defects, it will automatically alert and display the defective dimensions. All measurement dimensions and images of the products are saved on the hard drive for viewing at any time. Capacity: 500 pieces per hour detection. Optical resolution: 0.009mm/pixel.
