Feeder (automatic Feeding Device)

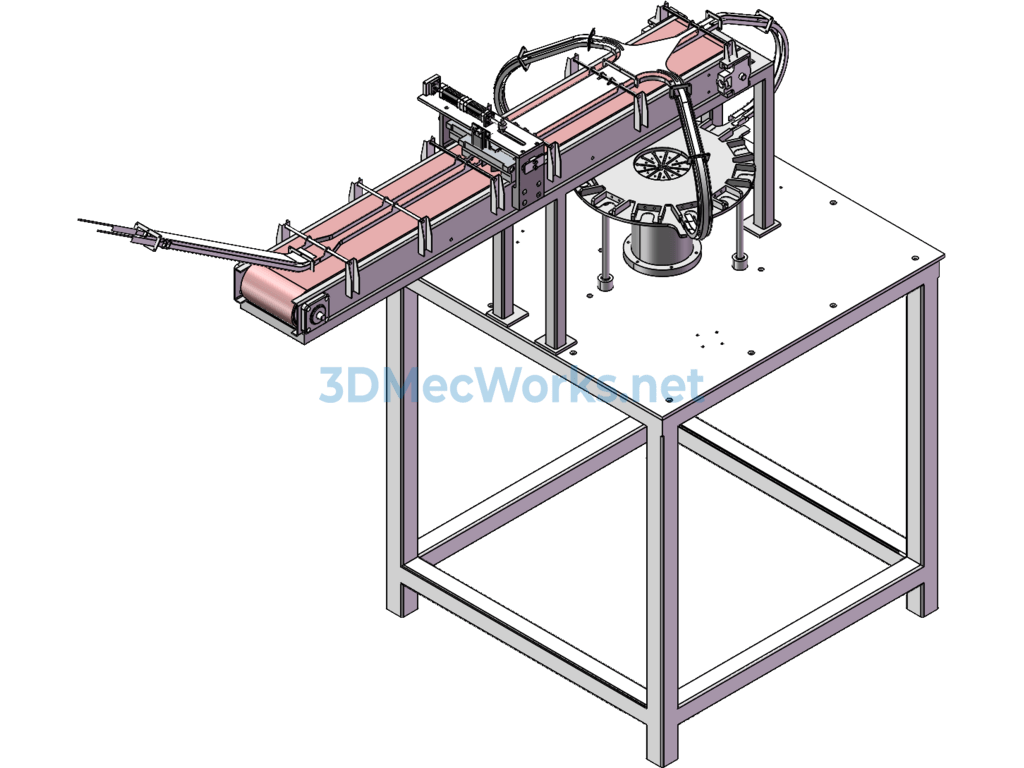

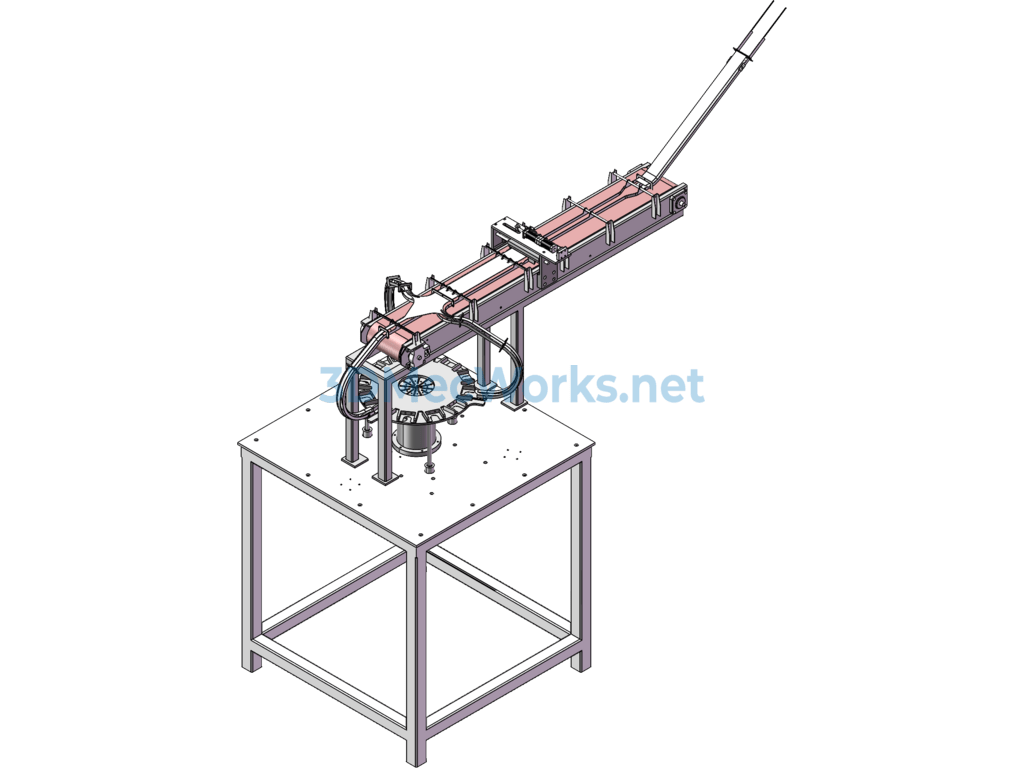

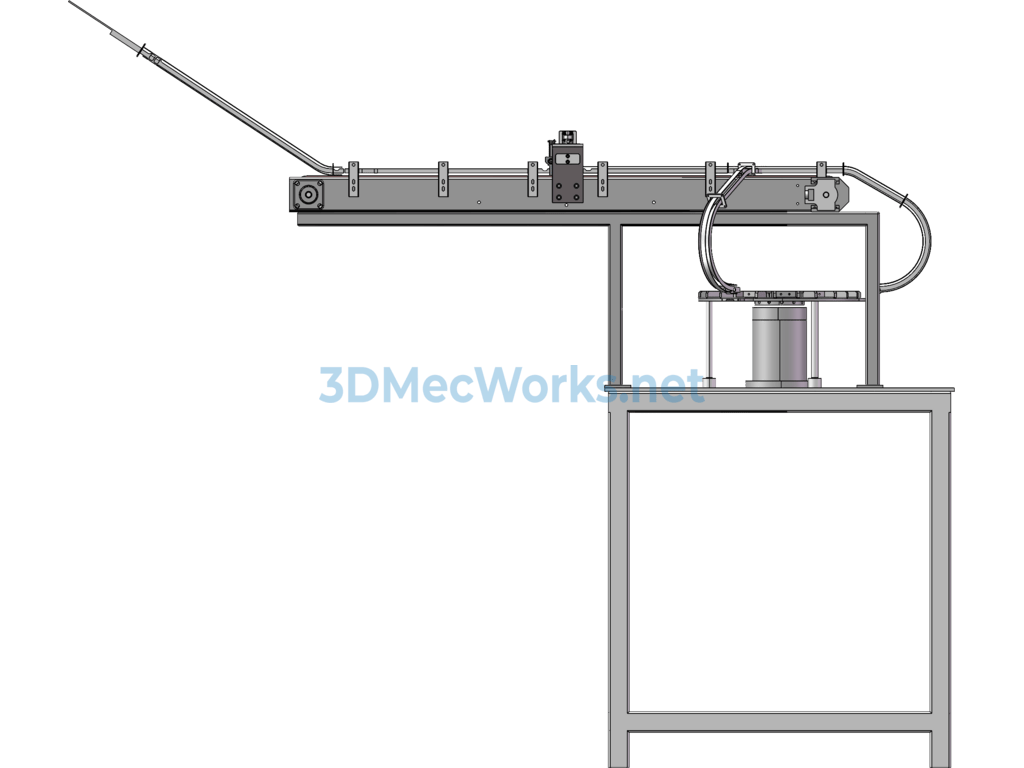

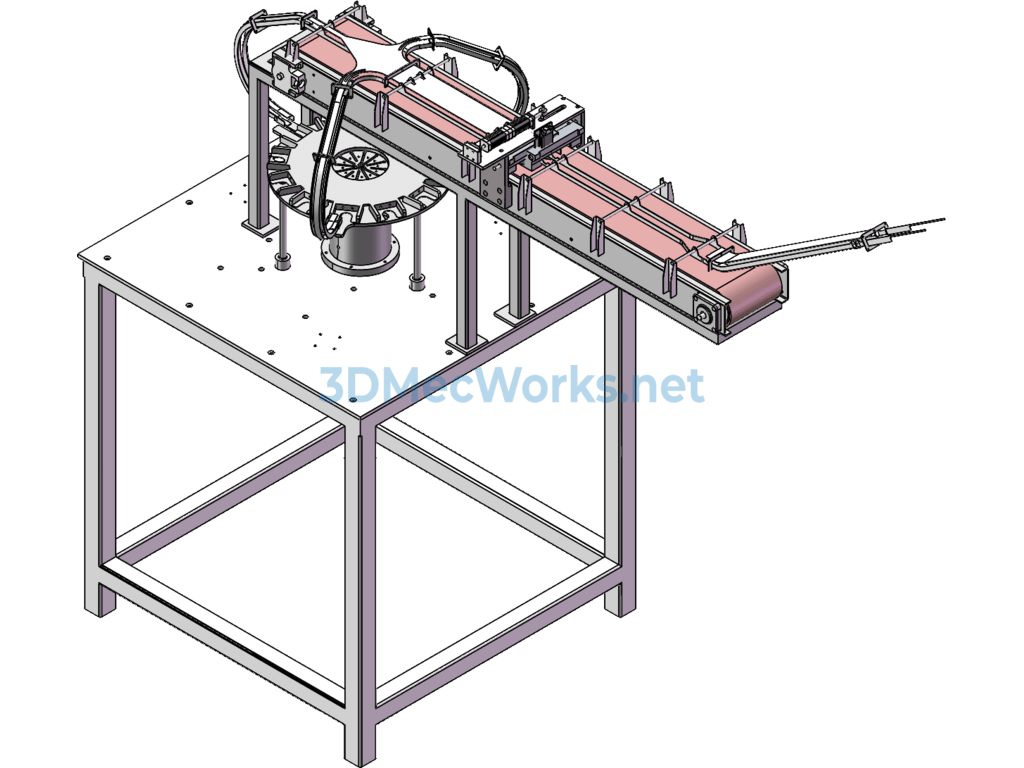

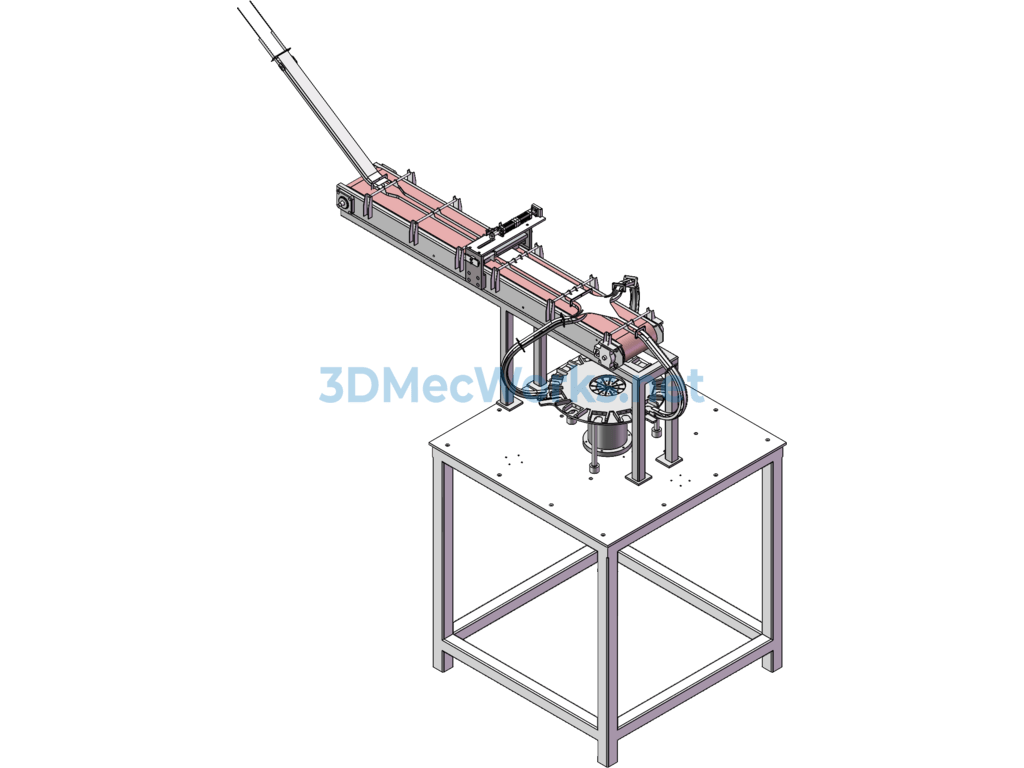

This feeder is an automatic feeding device 3D model, an automatic feeding device that mainly includes a lifting device, a pushing device, and a transverse feeding device. These devices together constitute a main body, characterized by:

The lifting device includes several longitudinal frame surfaces in front of the main body, which are embedded with sliders that can move longitudinally. The top end of each slider is equipped with an inclined block with an inclined top surface, and all sliders are commonly and fixedly provided with a lifting rod. On the plane where all sliders are collectively located, a rack is provided, and each rack can engage with gears pivotally mounted at predetermined positions on several longitudinal frames.

The pushing device includes a lateral frame surface above several longitudinal frames in front of the main body, where several push plates are pivotally mounted at equal intervals. At the bottom end of each push plate, there is a commonly pivoted pull rod.

The transverse feeding device includes several rollers axially mounted at equal intervals on the intersurface of the two topmost lateral frames of the main body.
