Fb Guide Groove Notch Punching

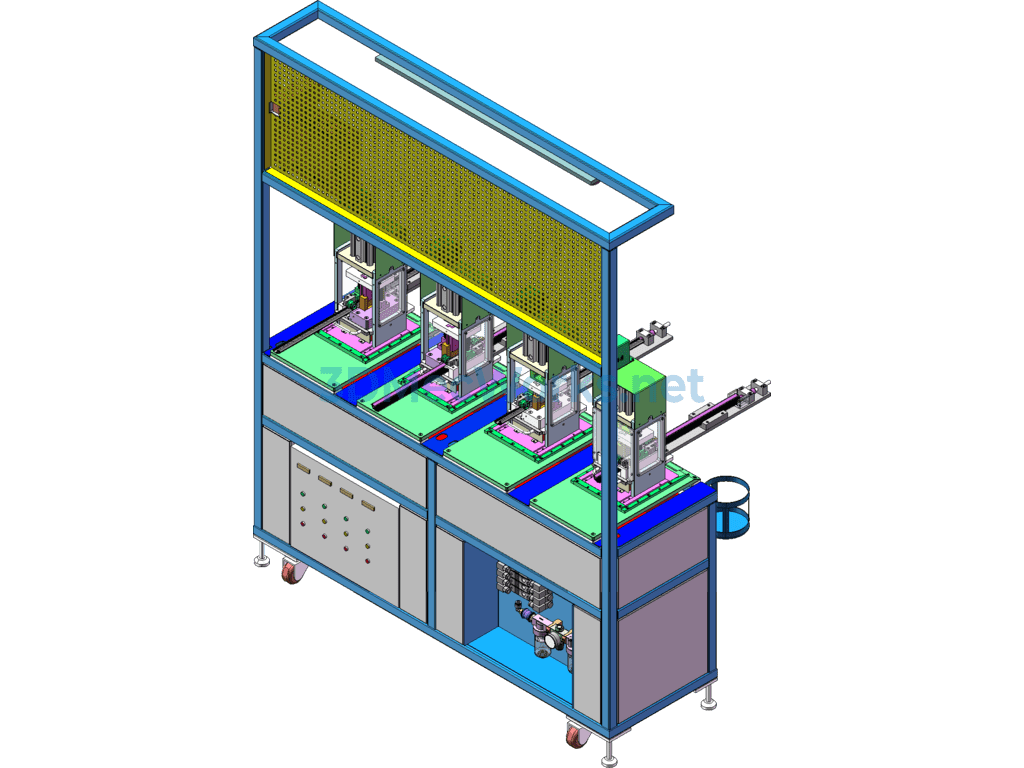

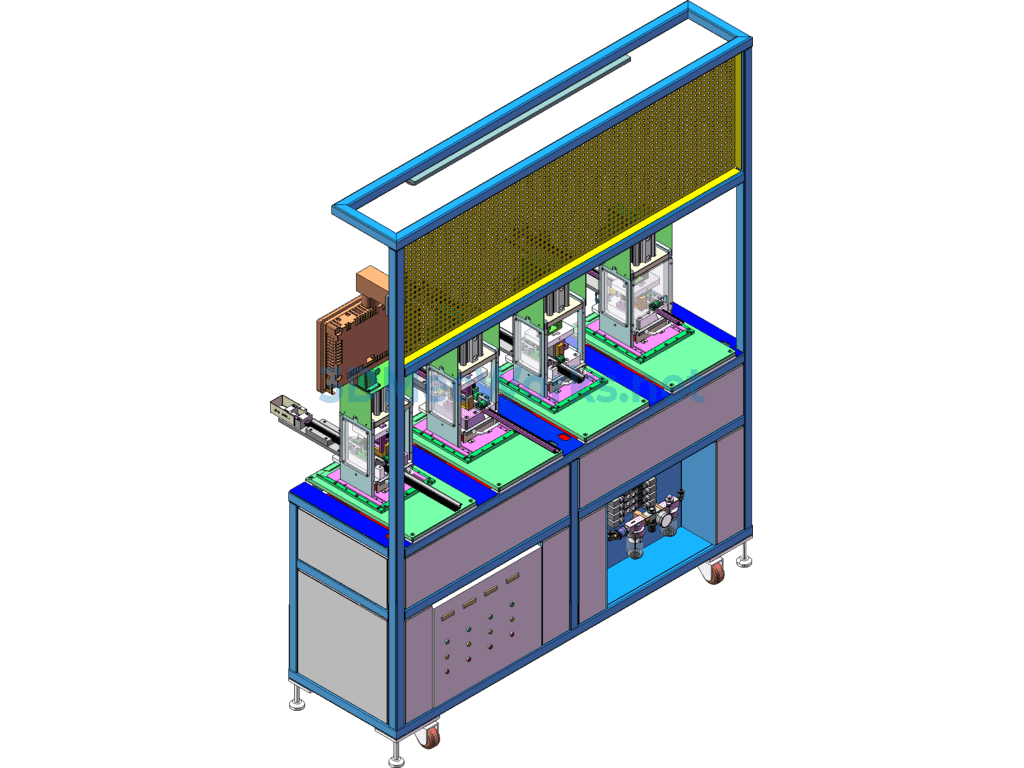

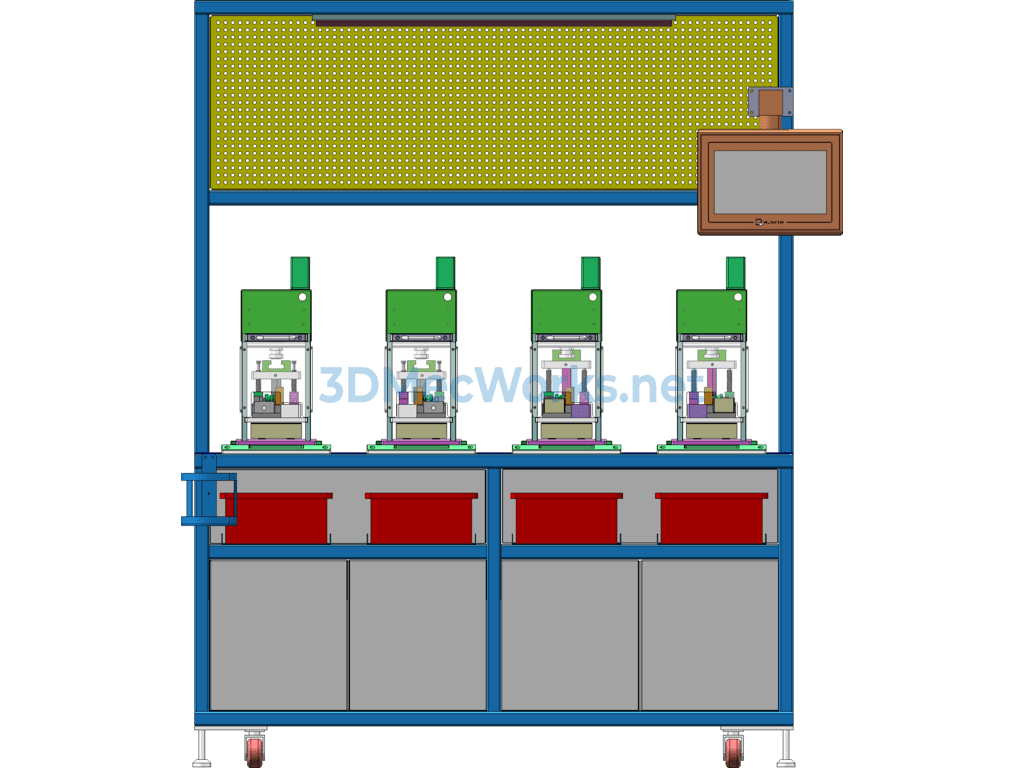

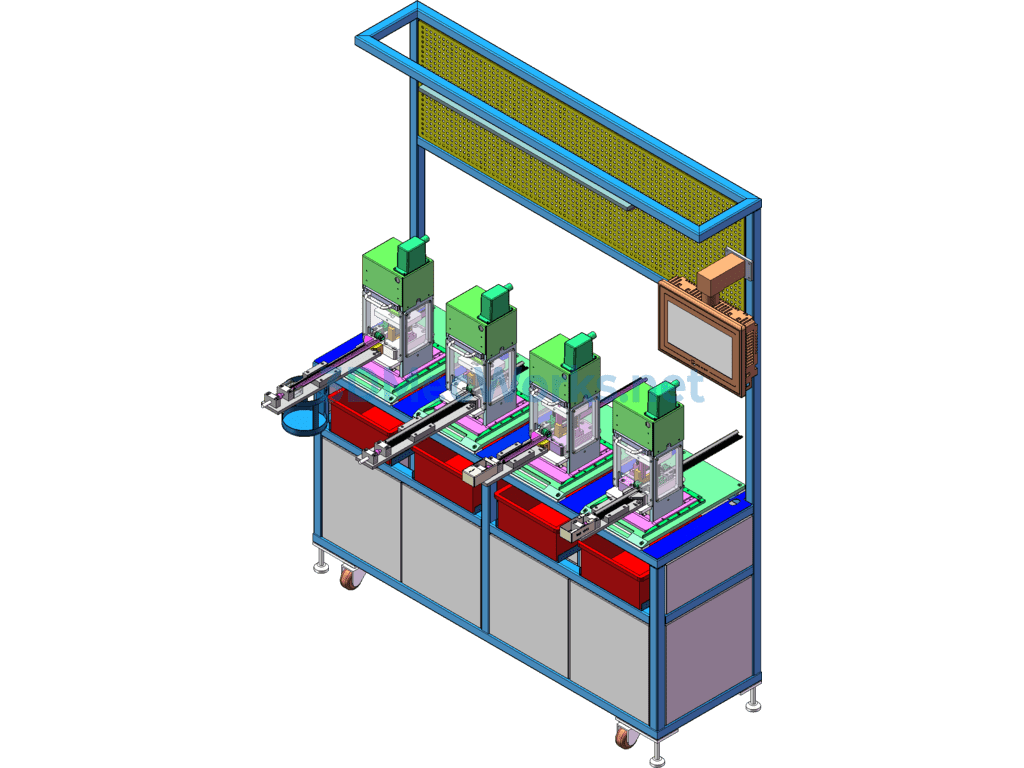

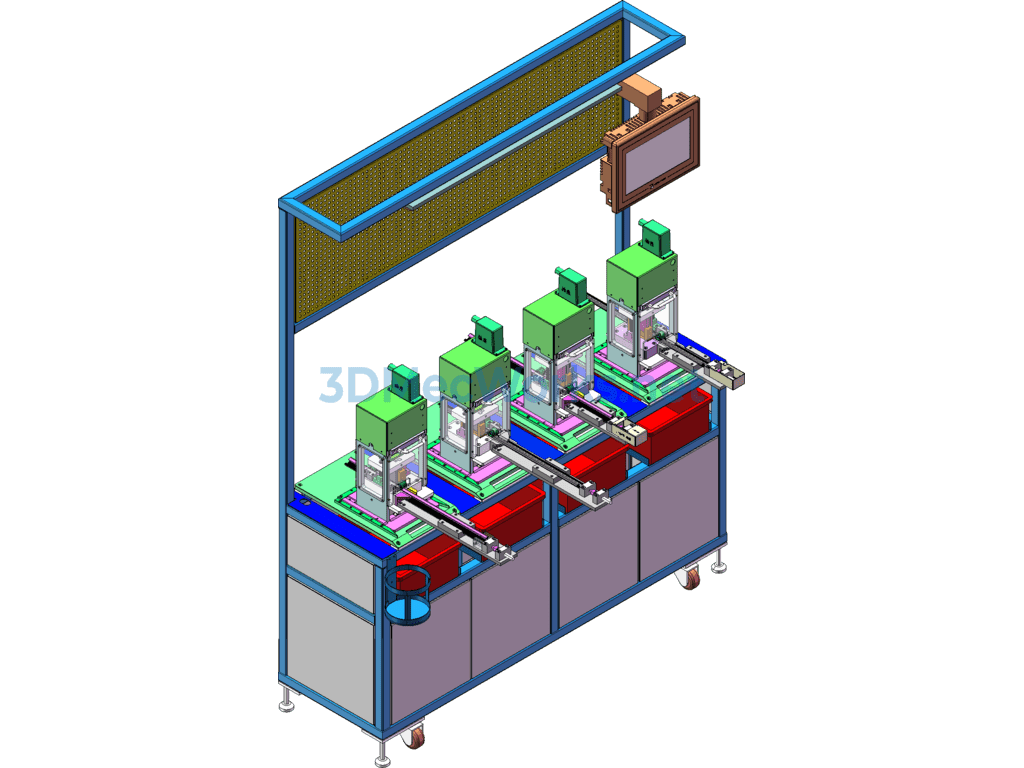

3D model of the car door seal guide slot notching and punching machine. The tooling uses a rear-positioning method, and the punching equipment can be equipped with four mold racks, allowing for switching between punching molds. The product is relatively soft, and the drawings include many classic structures, providing plenty of design inspiration. The tooling principle is relatively simple: it achieves the purpose of punching using the principle of forming a blade edge with the upper and lower molds. The drawings are very detailed, formatted in SolidWorks 2018, and everyone is welcome to download.
