Ew35 Fully Automatic Assembly and Inspection Machine (complete Set of 3d Models + Engineering Drawings)

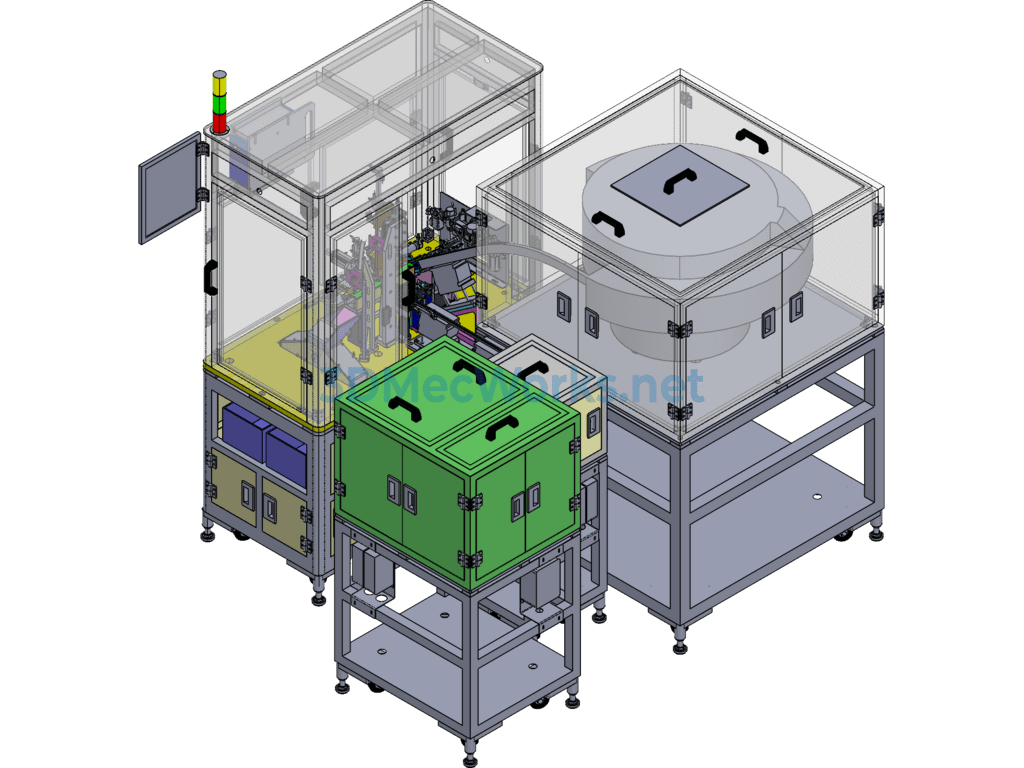

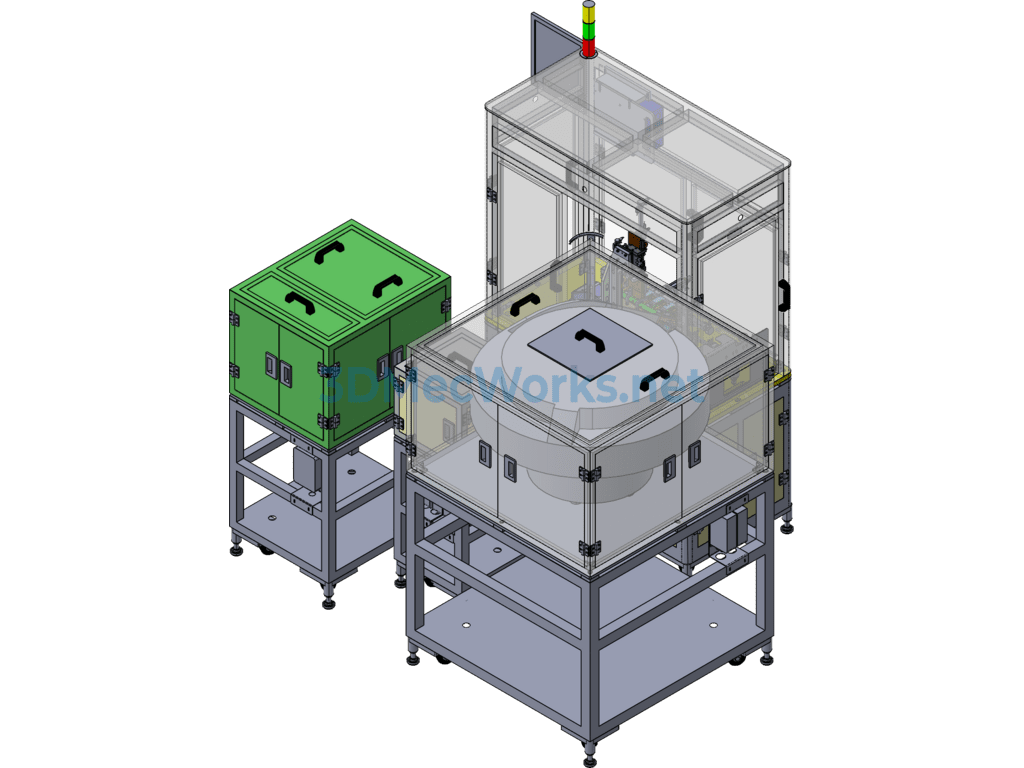

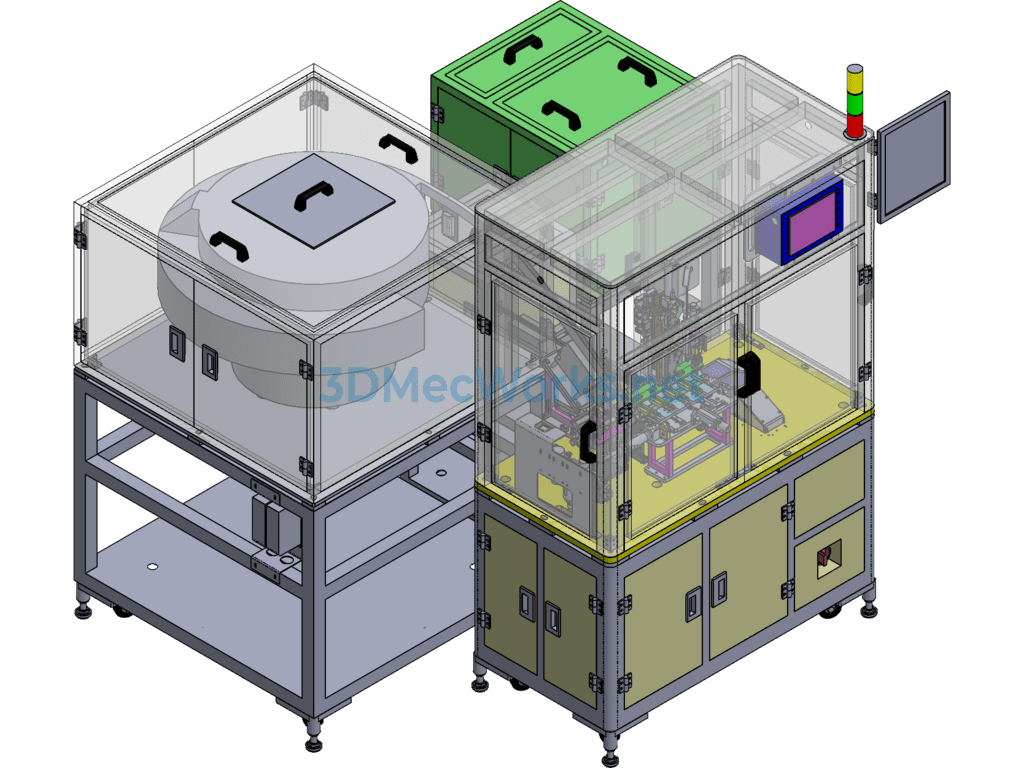

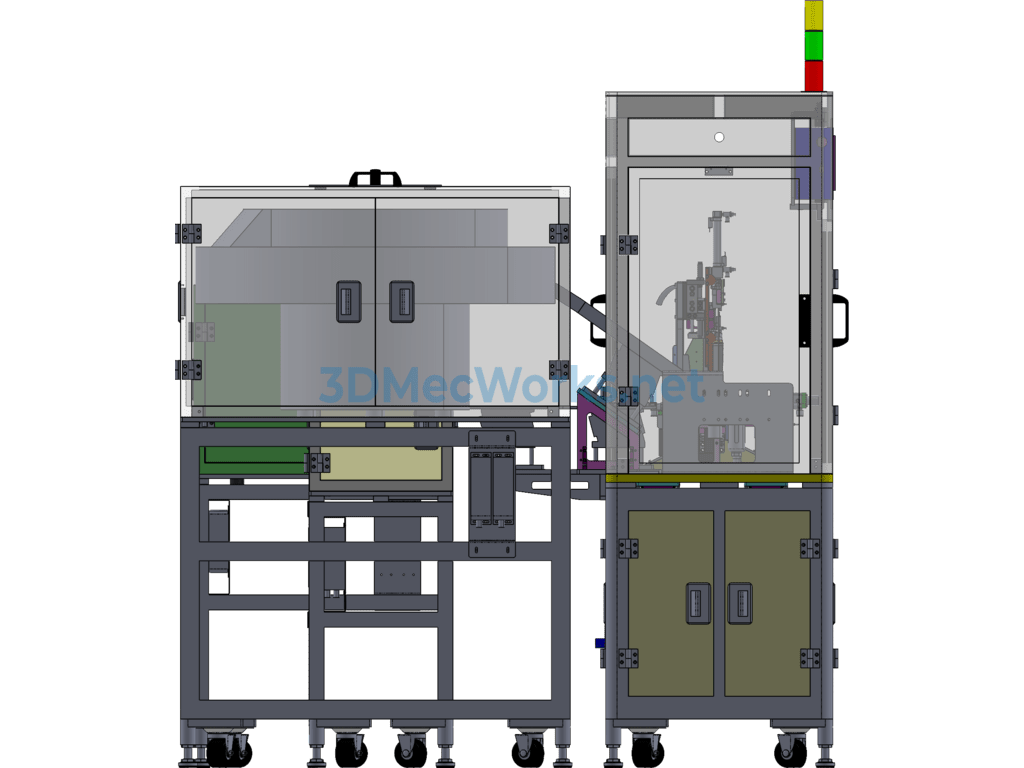

This model EW35 fully automatic assembly and inspection integrated machine includes feed mechanisms, plastic inspection, screw and nut assembly, plastic misalignment, and the collection of good and defective products, among other components. Its functions integrate those of an assembly machine, feed mechanism, inspection mechanism, conveyor feed and discharge equipment, and vibrating plate. The 3D model designed with Solidworks software provides source files such as sldasm, sldprt, as well as engineering drawings SLDDRW, DWG, and other file outputs. This mechanism is relatively mature and worth referencing.
[Tested by the administrator, this model is only for reference and cannot be edited and saved, but its structure is good and worth referring to. If not liked, do not download]
