Esnq Non-Standard Automation Equipment

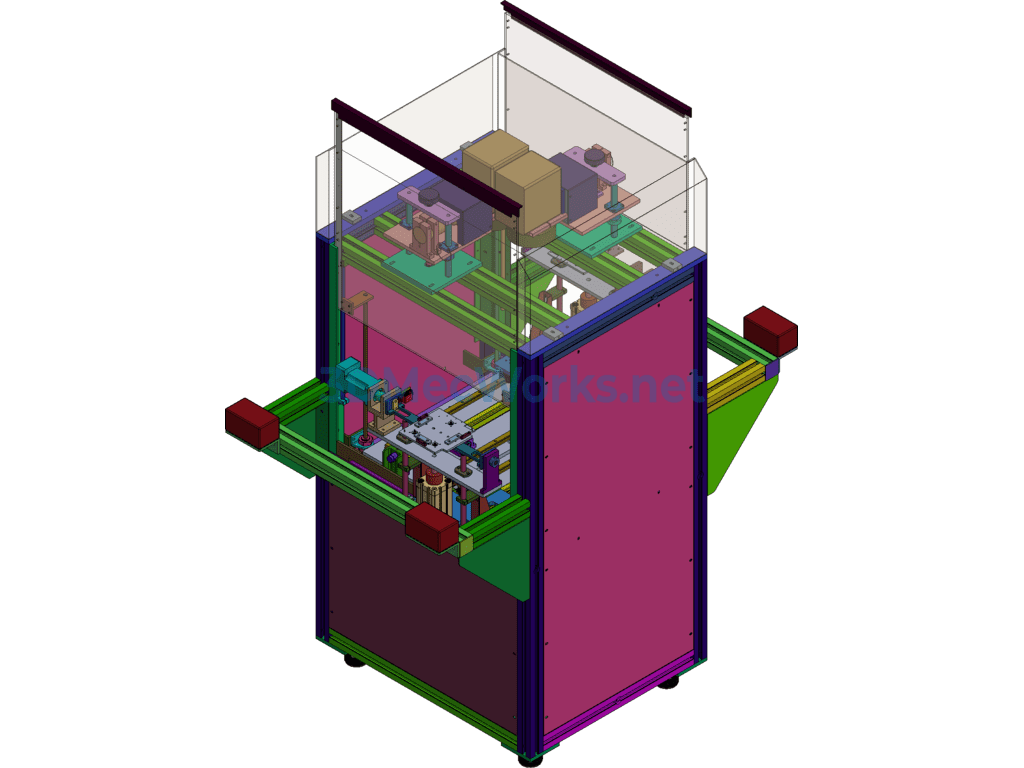

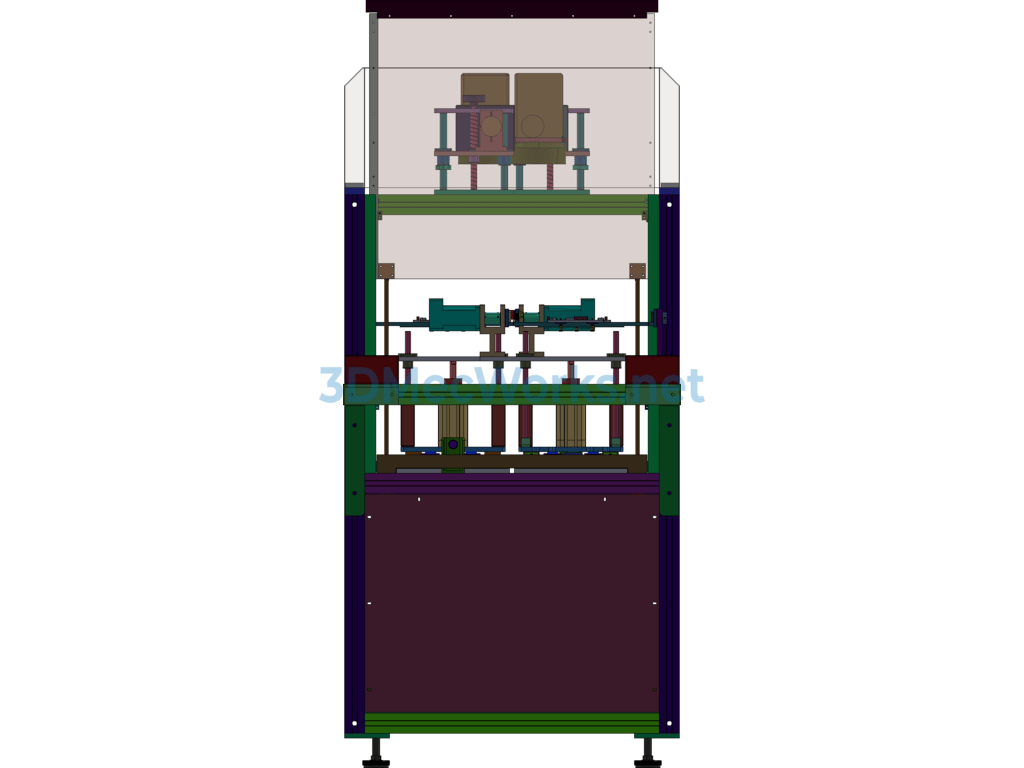

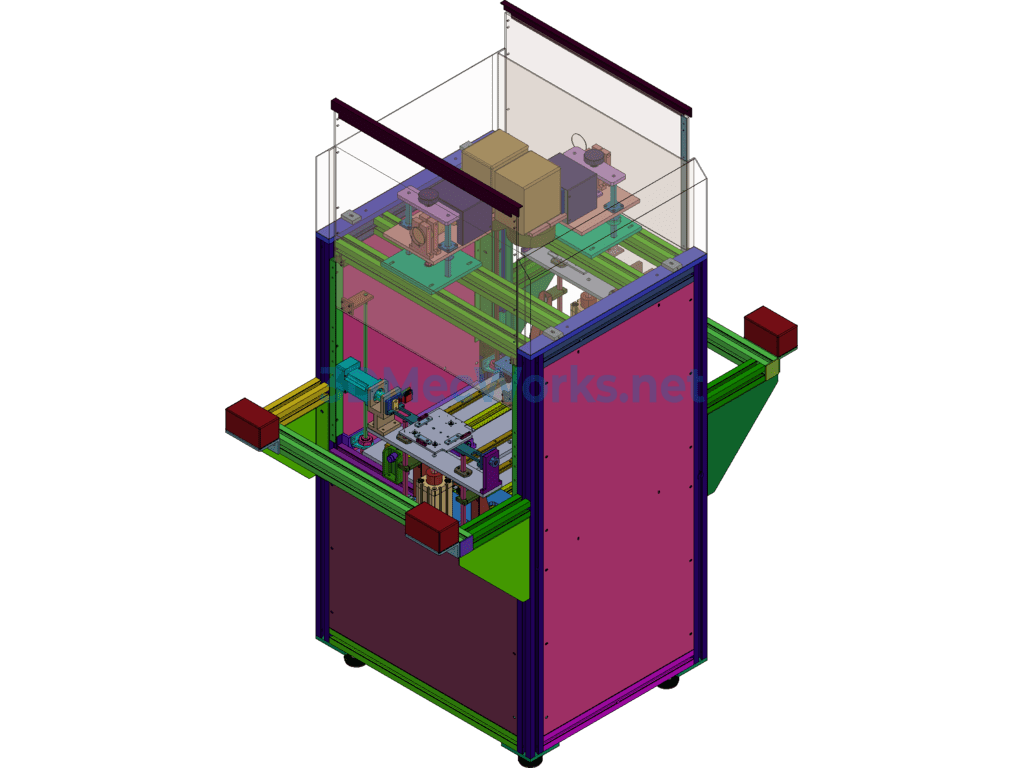

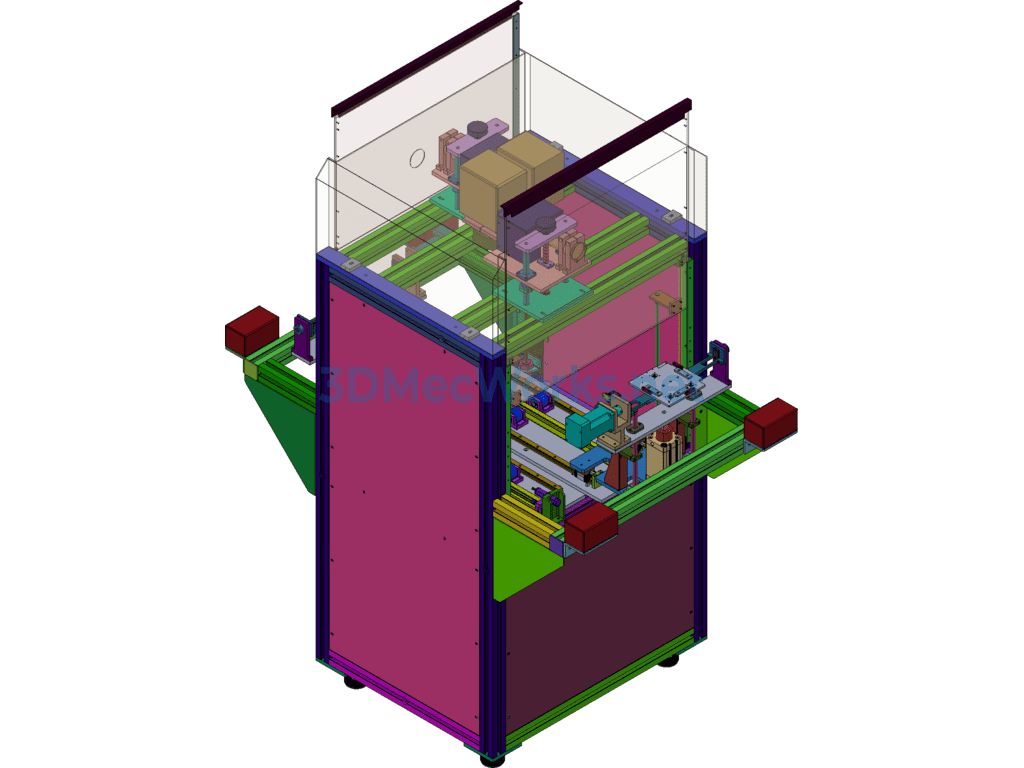

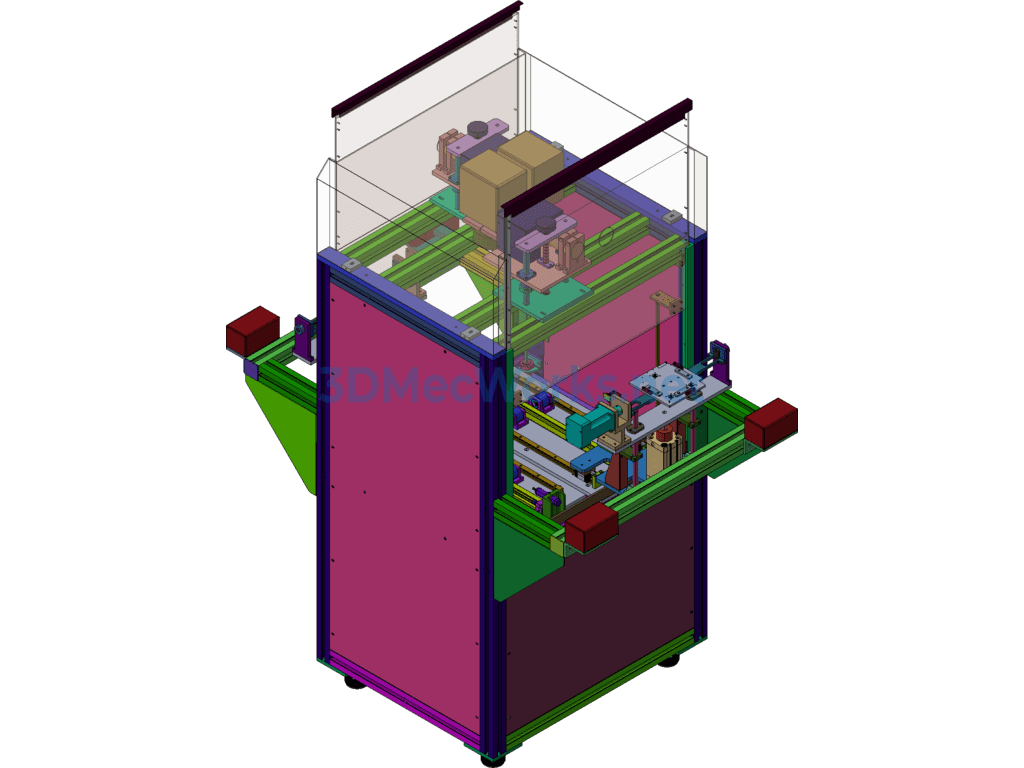

This equipment mechanism is designed by SW2016 and includes part features. Non-standard automation custom design, drawings have been used in actual production, featuring many classic structures. Most 3D models displayed have a complete independent mechanical arm for material grasping mechanisms. The linear motion modules and the servo/stepper motor selection parameters involved meet the actual calculation requirements. The control system uses a host computer C++/C# in cooperation with CCD visual recognition or employs a PLC multi-axis position point step-by-step control. The linear slider selection is mainly Hiwin/THK, the cylinder selection is Airtac/Festo, and the sensor selection is mainly Keyence/Omron/Jaqun. The overall structure is clear, the parts are complete, and the design is reasonable, making it an ideal reference or learning material for your design. Note that it is for peer reference only and should not be used for production according to the original model dimensions! The complete decompression includes STP and UG general editable formats.
