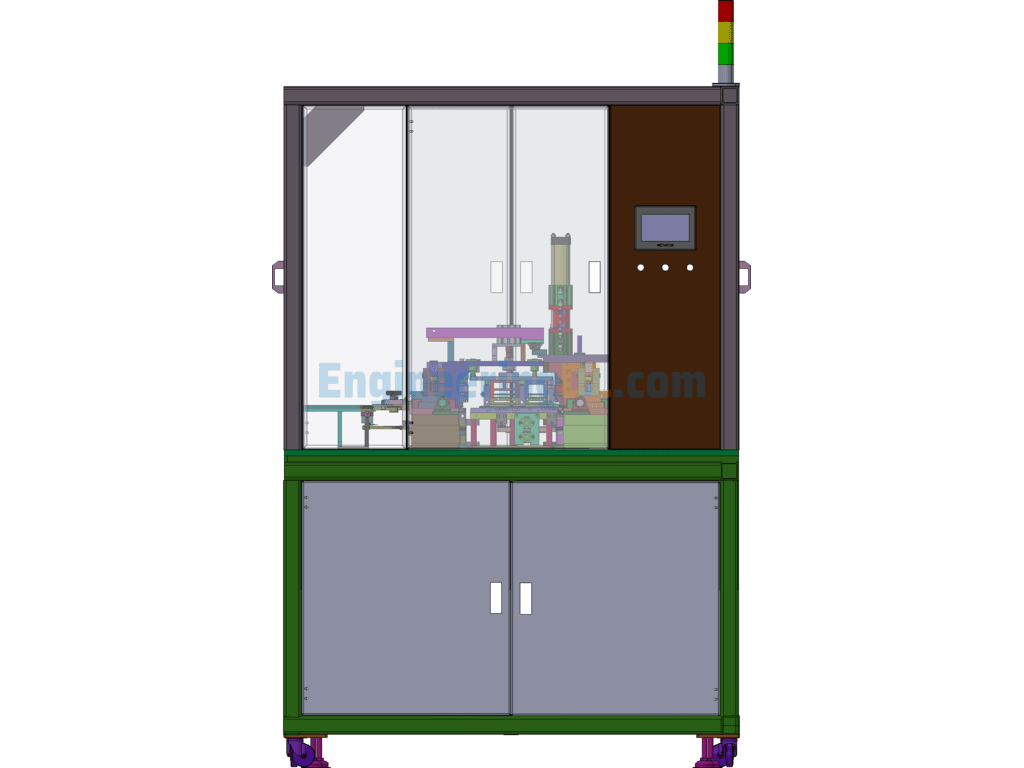

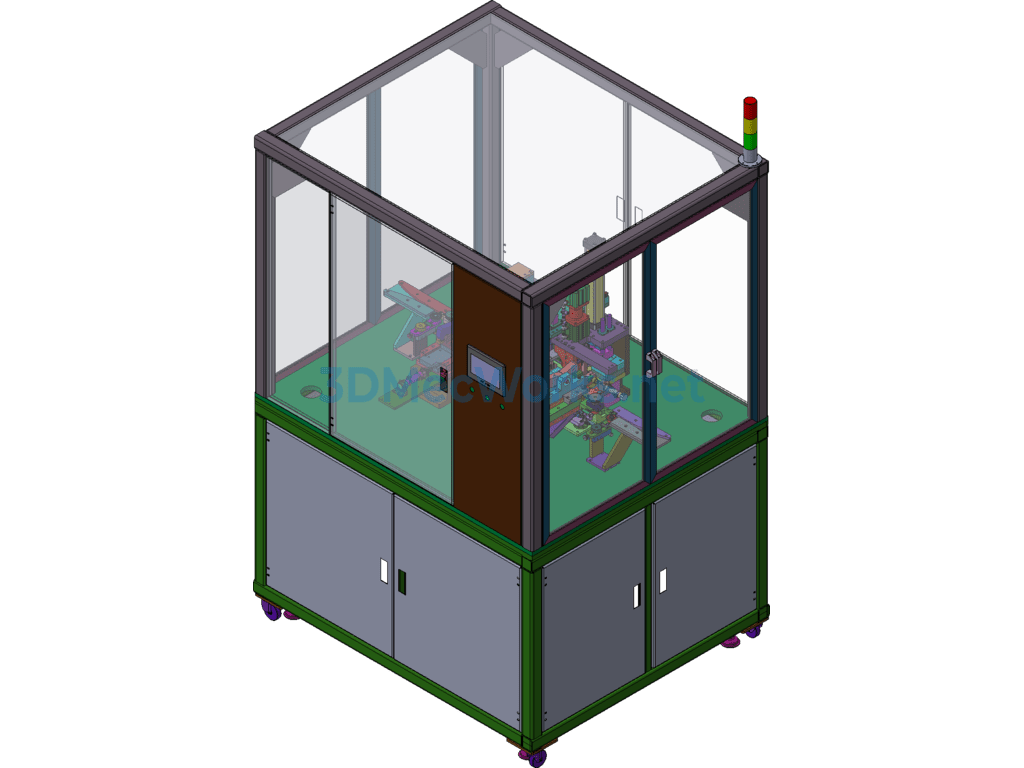

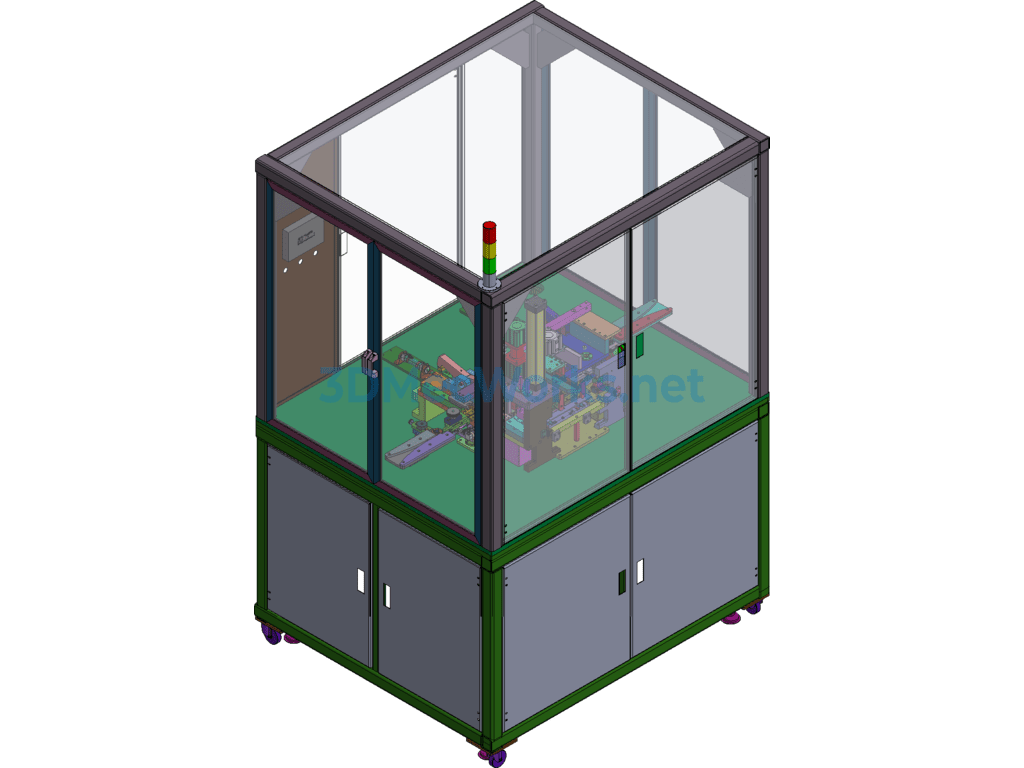

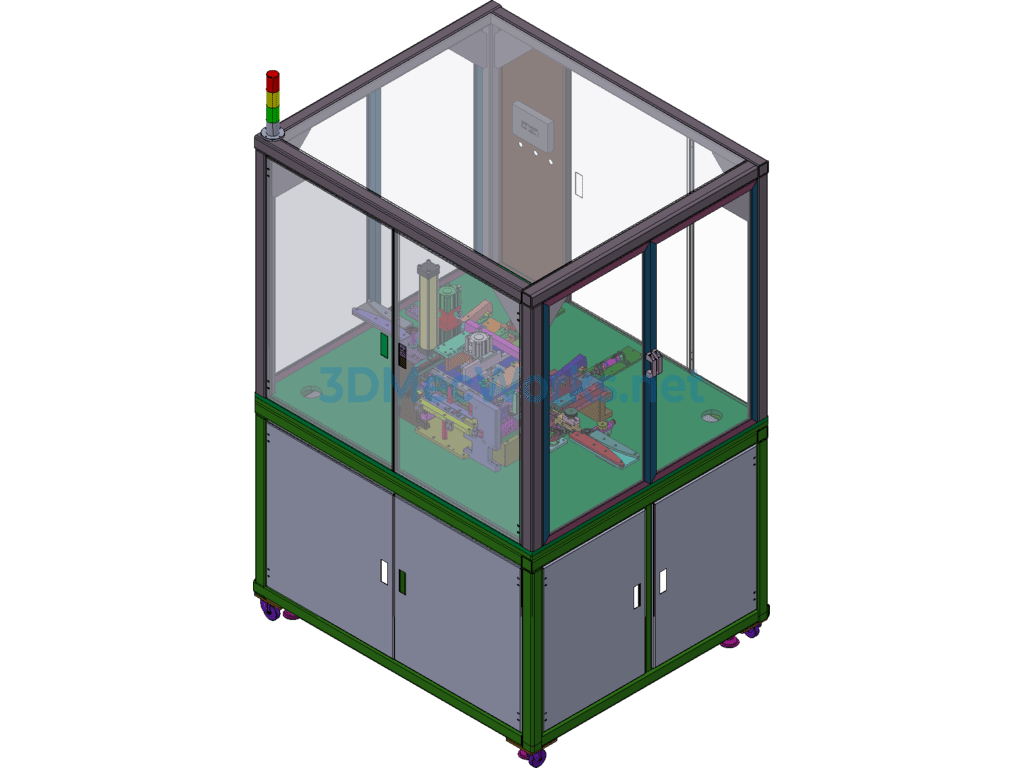

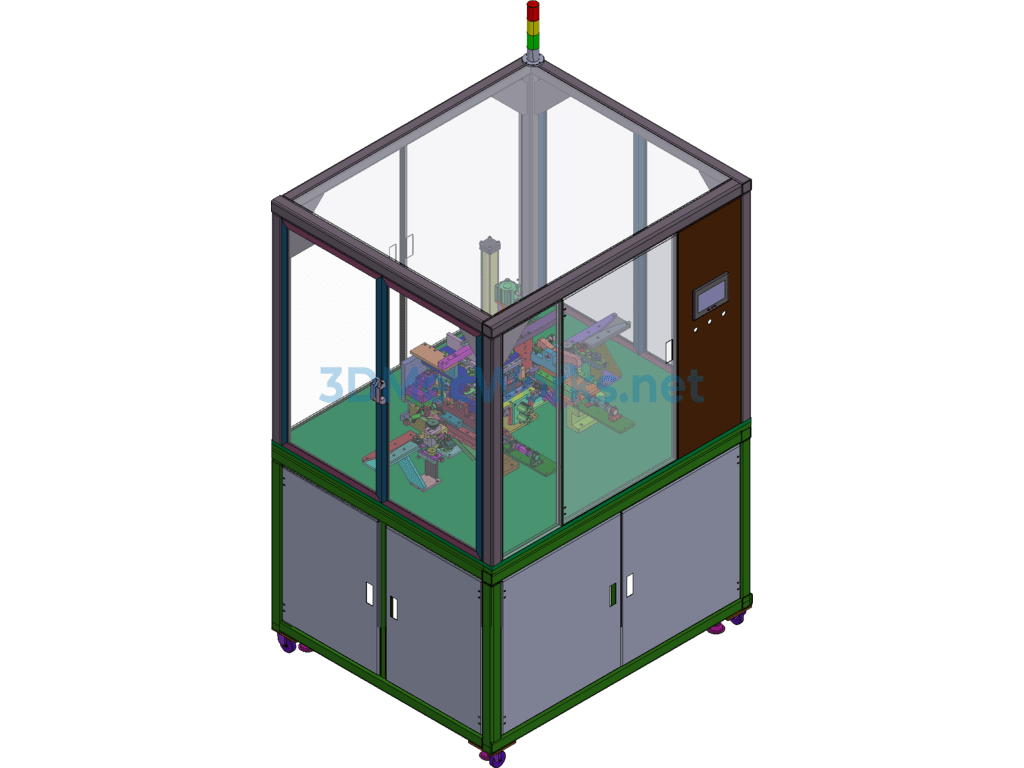

This equipment mechanism is designed using SW2016 and includes part features. Non-standard automation custom design, drawings have been used in actual production, and have many classic structures. Most of the 3D models shown in the equipment design have a complete independent robotic arm material handling mechanism. The linear modules involved and the servo/stepper motor selection parameters meet the actual calculation requirements. The control system uses a host computer C++/C# combined with CCD vision recognition or PLC multi-axis position point control for single action control. The linear slider selection is mainly Hiwin/THK, the cylinder selection is Airtac/Festo, and the sensor selection is mainly Keyence/Omron. The overall structure is clear, the parts are complete, and the design is reasonable, making it an ideal textbook for your design reference or study. It is only for peer reference. Please note that the original model dimensions cannot be used for manufacturing! The entire decompression includes STP and UG common editable formats.
