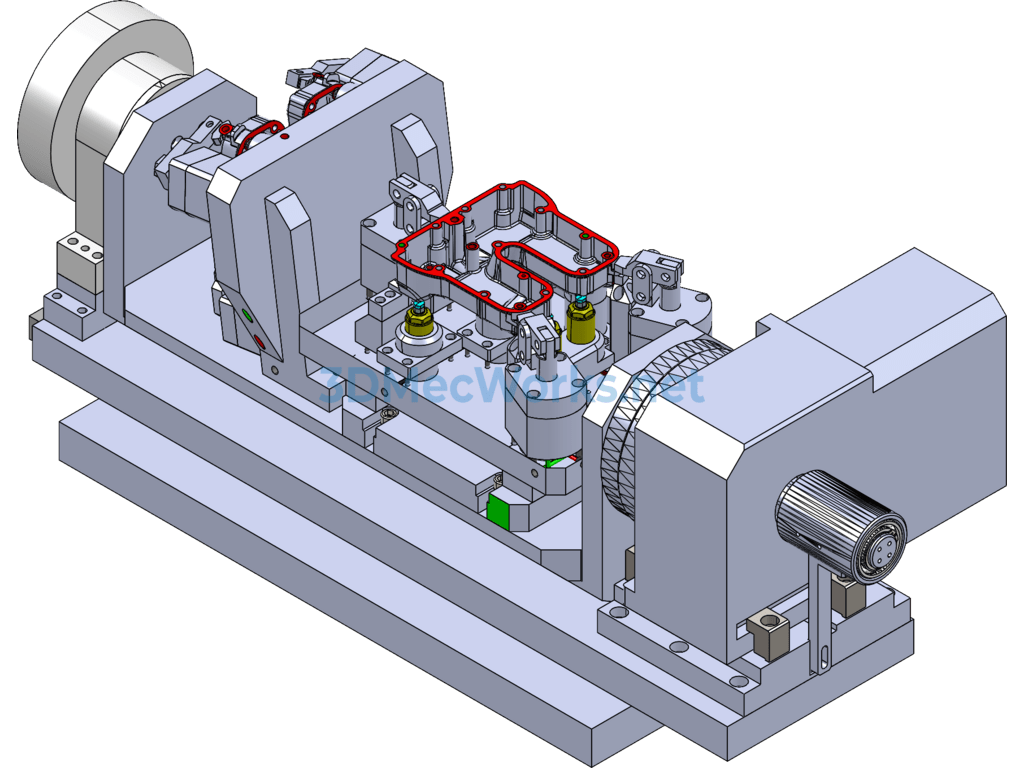

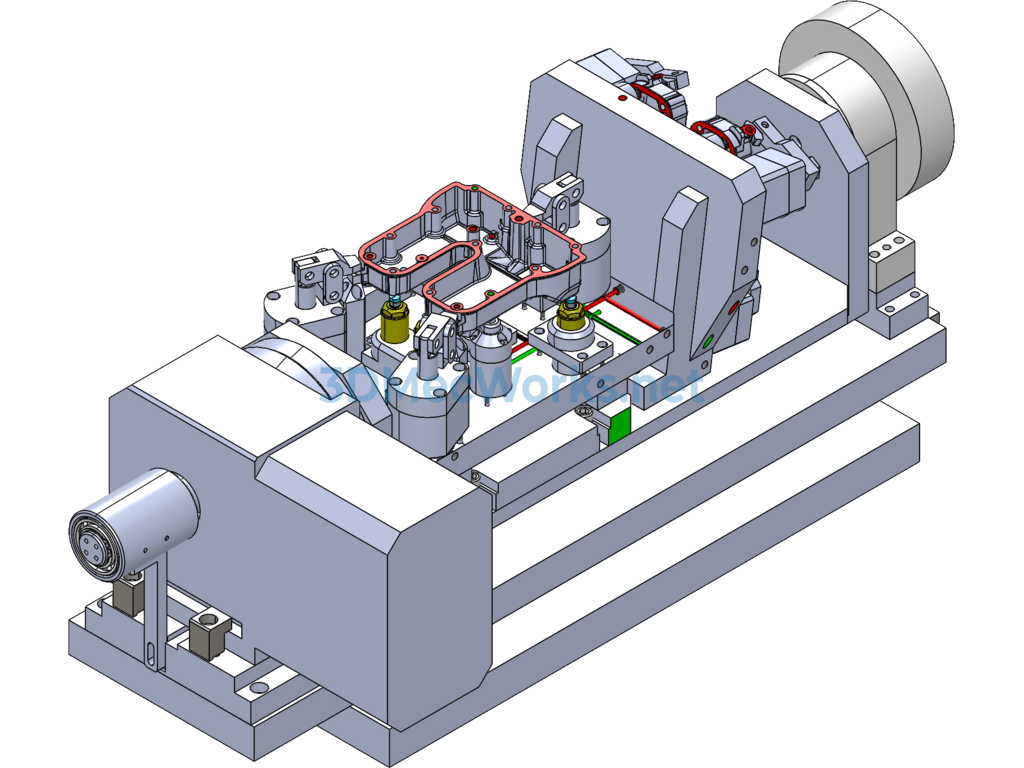

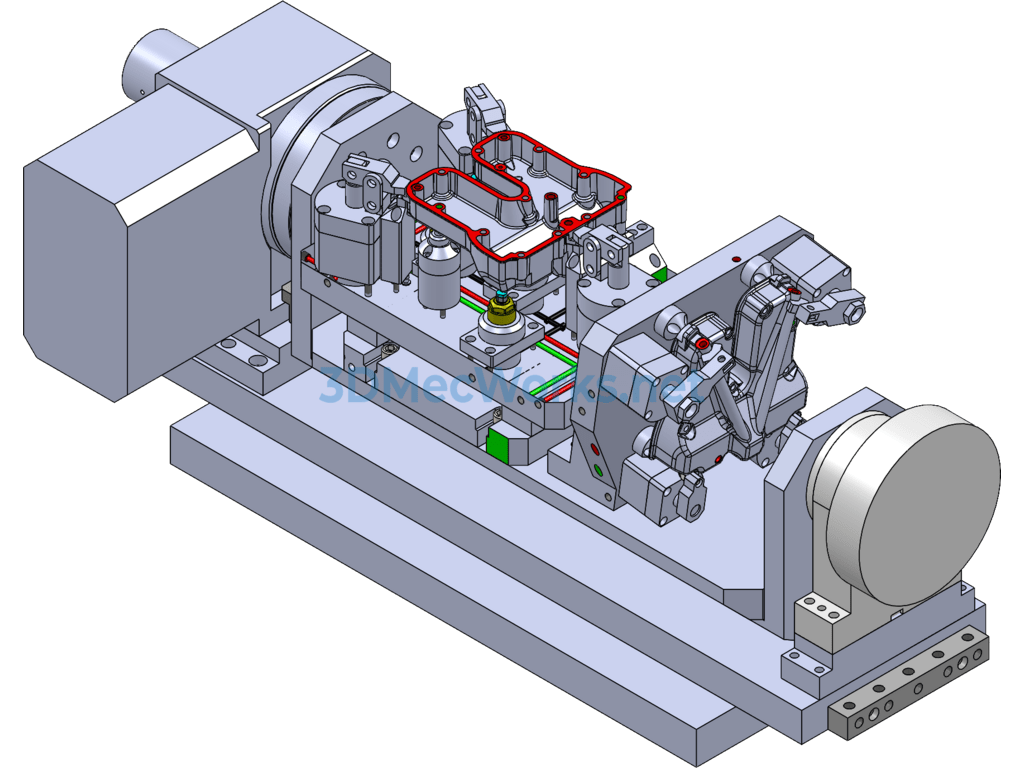

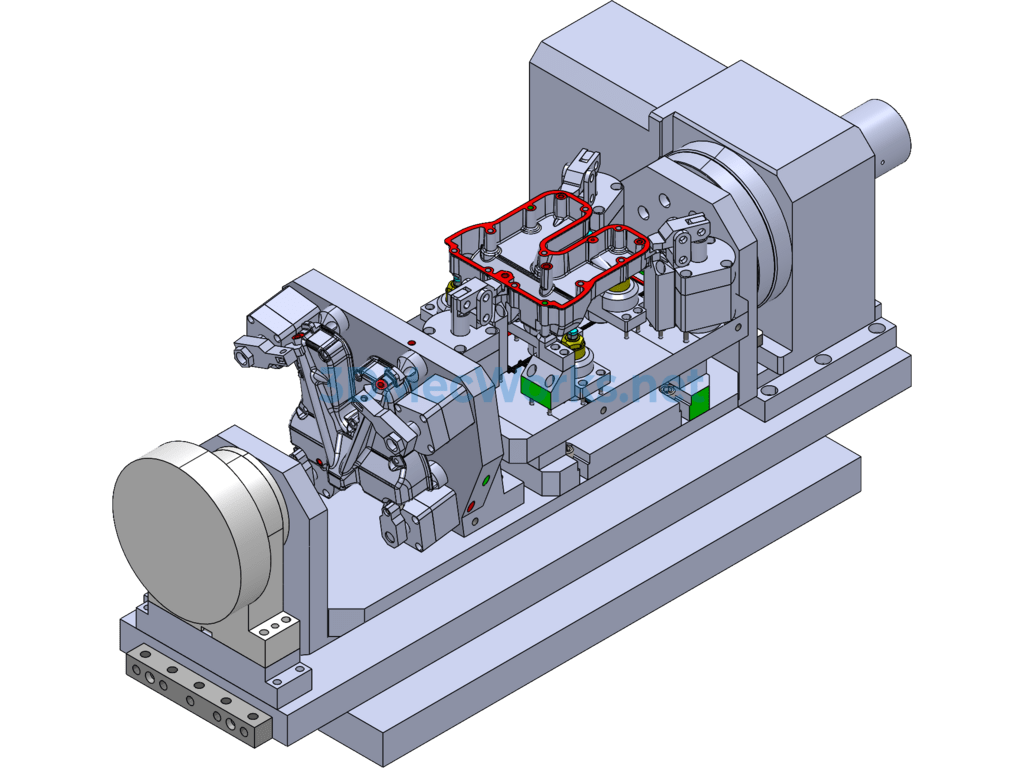

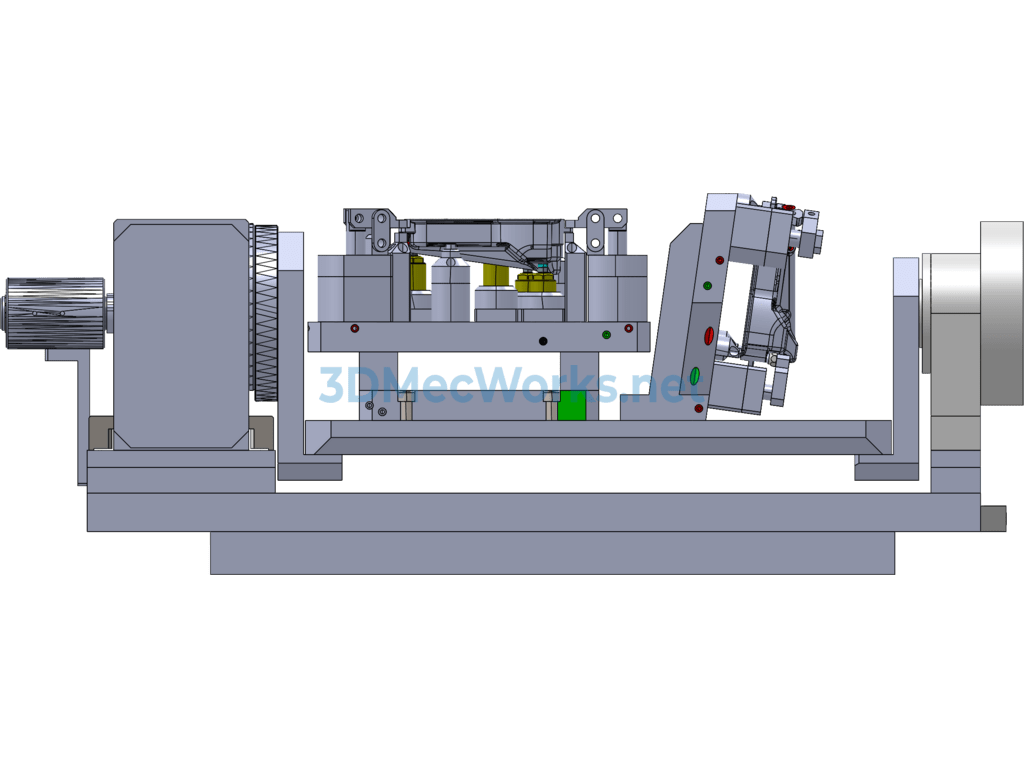

Engine Cylinder Head Hydraulic Fixture Assembly Drawing

This drawing is an assembly diagram of an engine cylinder head hydraulic fixture, designed to work with the Brother TC-S2Dz_O machine tool, Tsudakoma rotary table RNA200, and tailstock TS-160P. The worktable dimensions are 800X400. This fixture uses external form positioning and features two workstations in one cycle, with two inlet and two outlet oil passages. The fixture’s weight is approximately 365KG (including the rotary table at 61KG and the tailstock at 27KG), exceeding the machine tool’s maximum load capacity (250KG) by 115KG.
