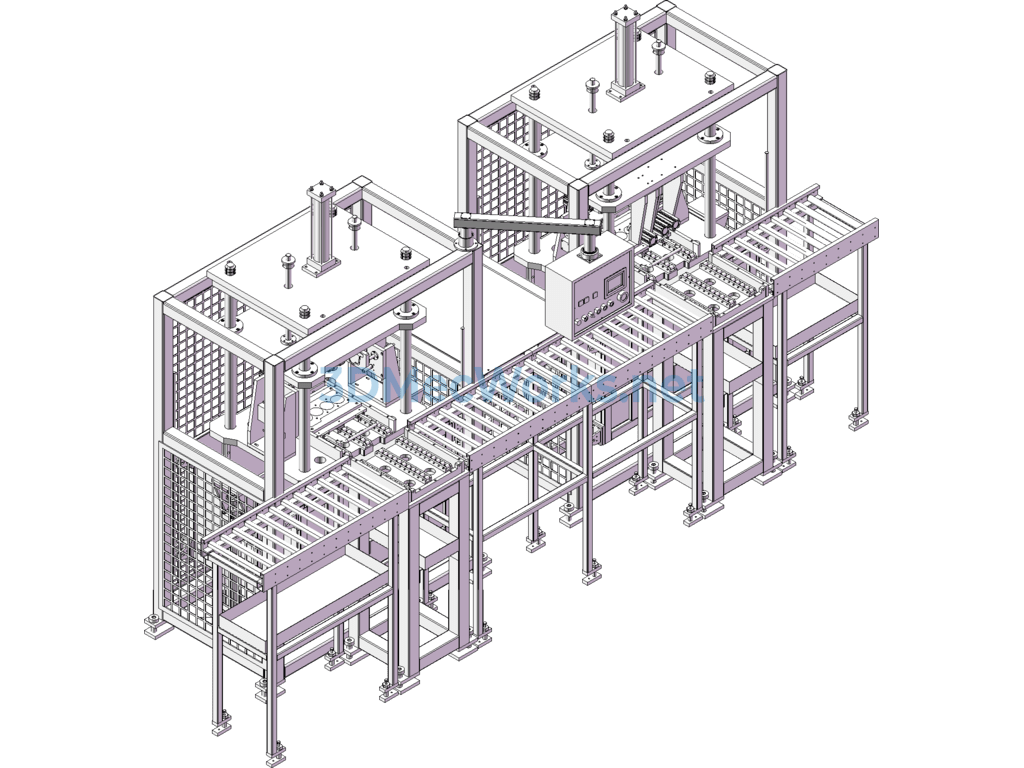

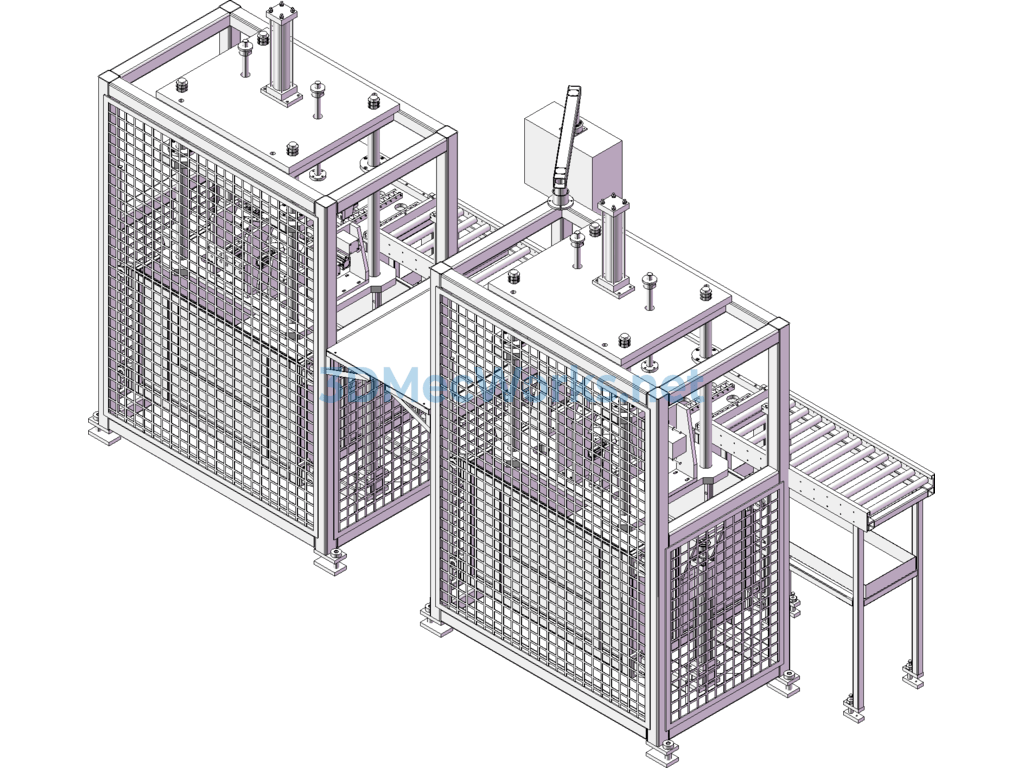

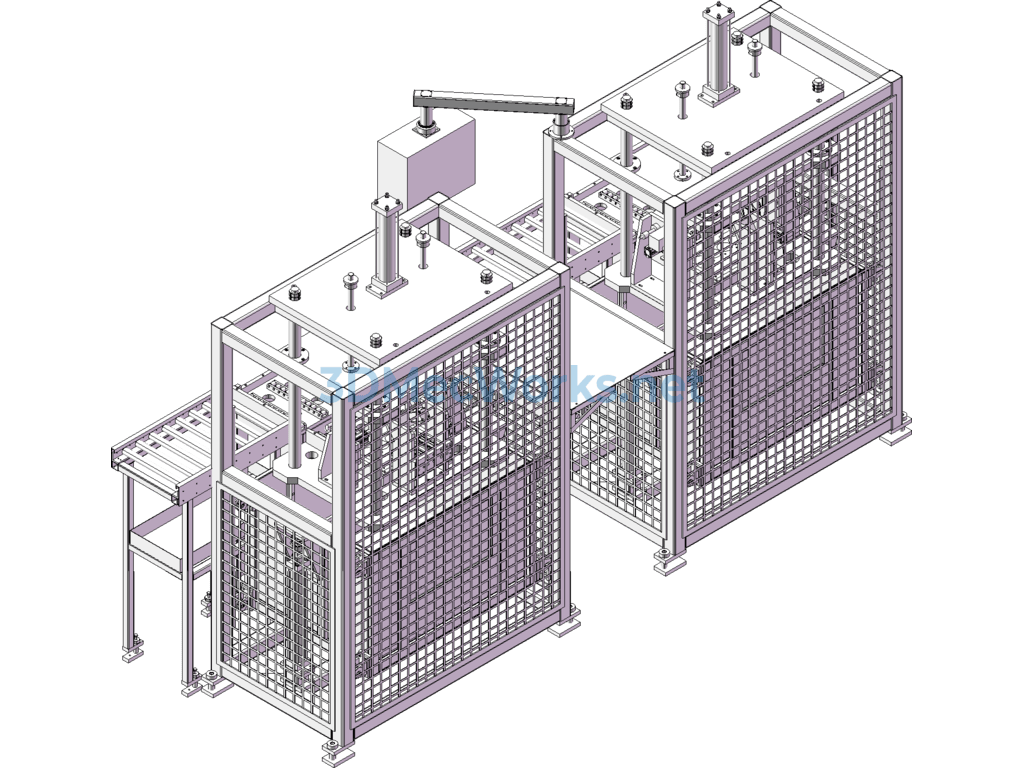

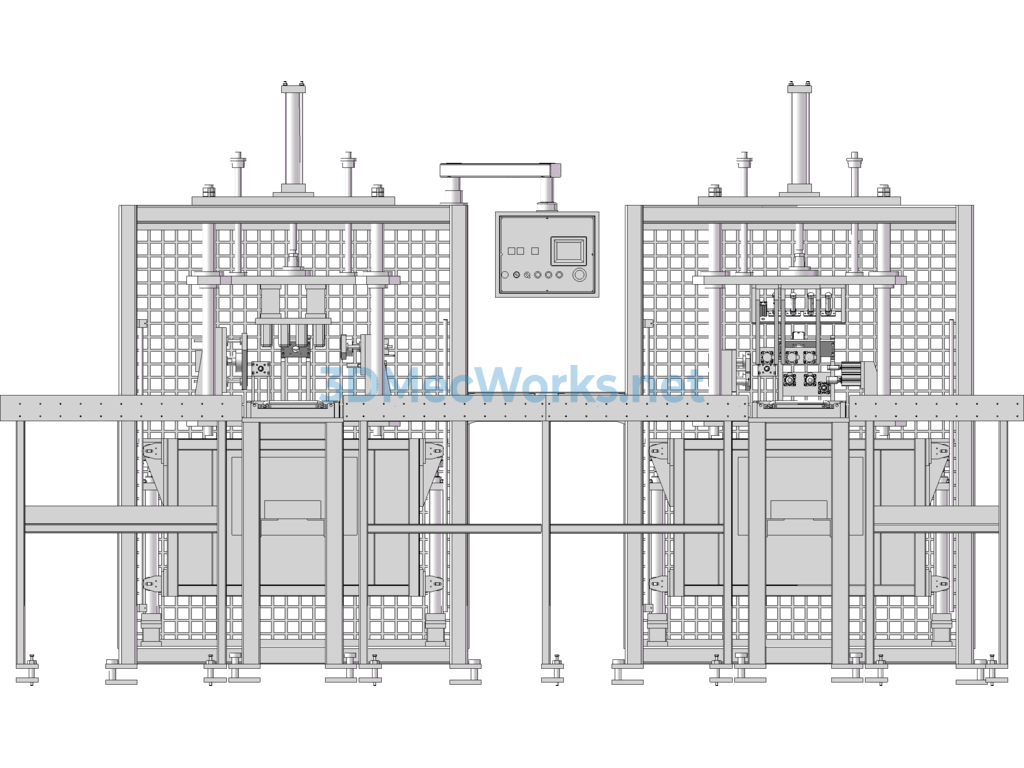

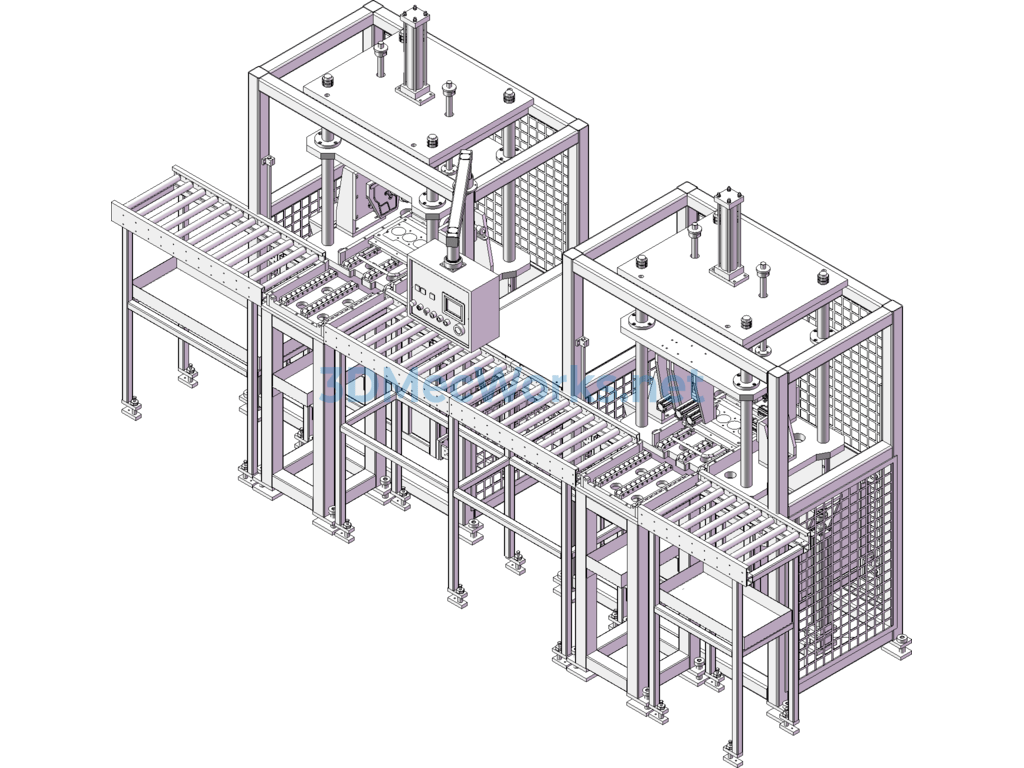

Provided is a 3D model of the engine inner cavity gauge water and air pathways. The model consists of a frame, column, positioning fixture, display screen, among other components, including an outer fence. It addresses the difficulty of measuring the engine’s inner cavity by providing a detection method. The files are available in SolidWorks 2015 model and STEP format. You are welcome to download.
Specification: Engine Block Air and Water Circuit Leak Testing Equipment
|
