Energy Storage Container
Container-type Energy Storage System Model
Highly integrated modular design with integrated storage and inverter, electrical control and inverter can be housed separately;
High compatibility for both grid-connected and off-grid applications;
Flexible expansion with internal cluster expansion + box paralleling;
Powerful grid support capability: LVRT, HVRT, ZVRT, anti-islanding, active and reactive power adjustment, PF control, soft start/stop;
Internet of Things capability: supports LAN local monitoring and 4G remote IoT, supports cloud platform.

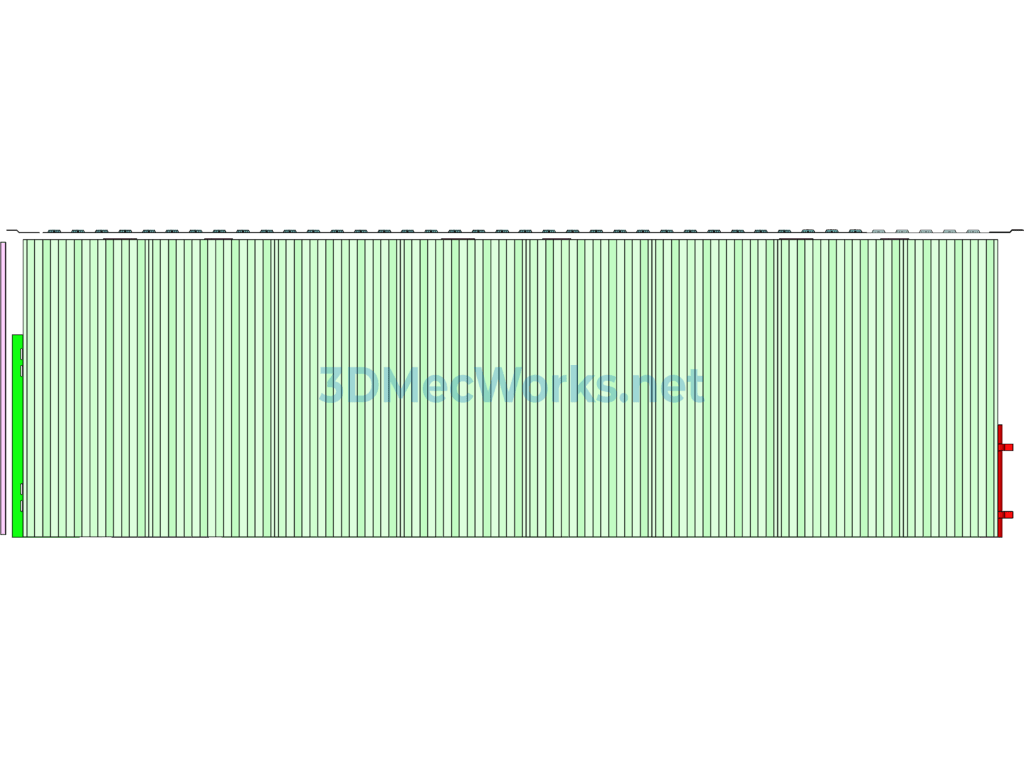

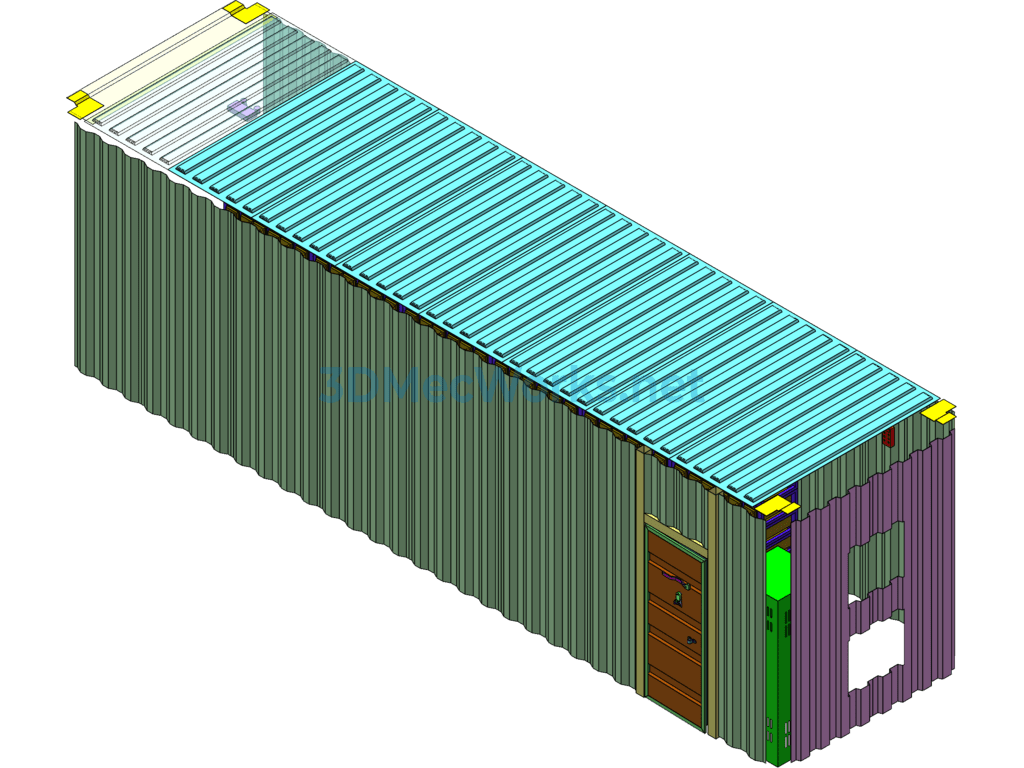

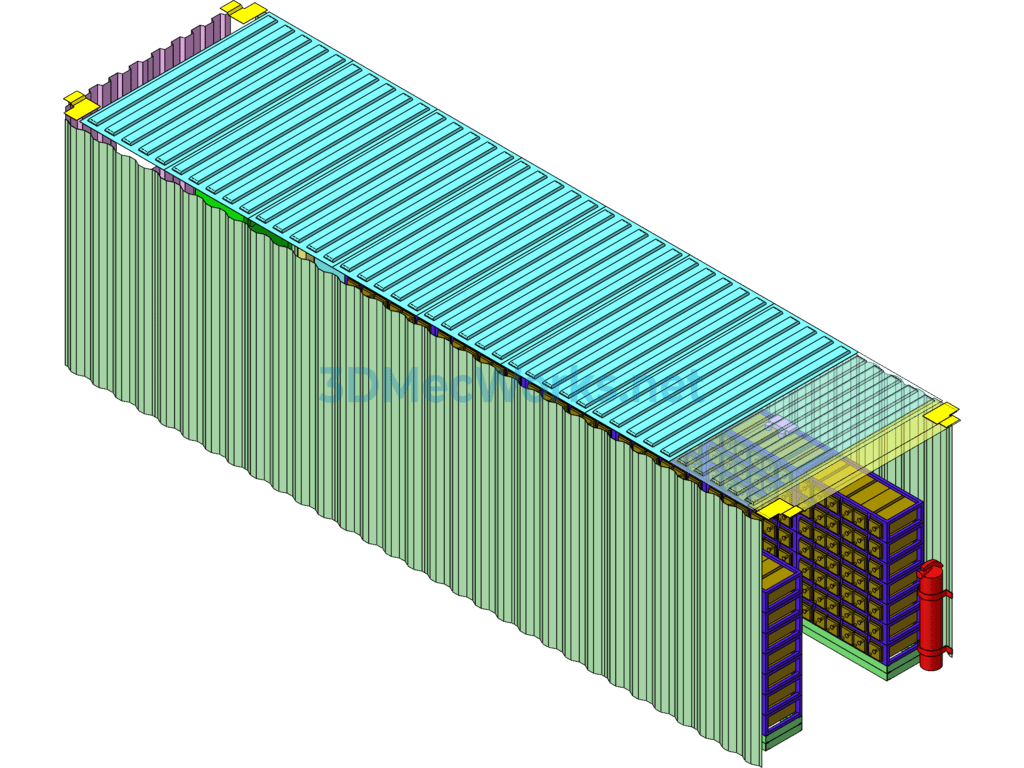

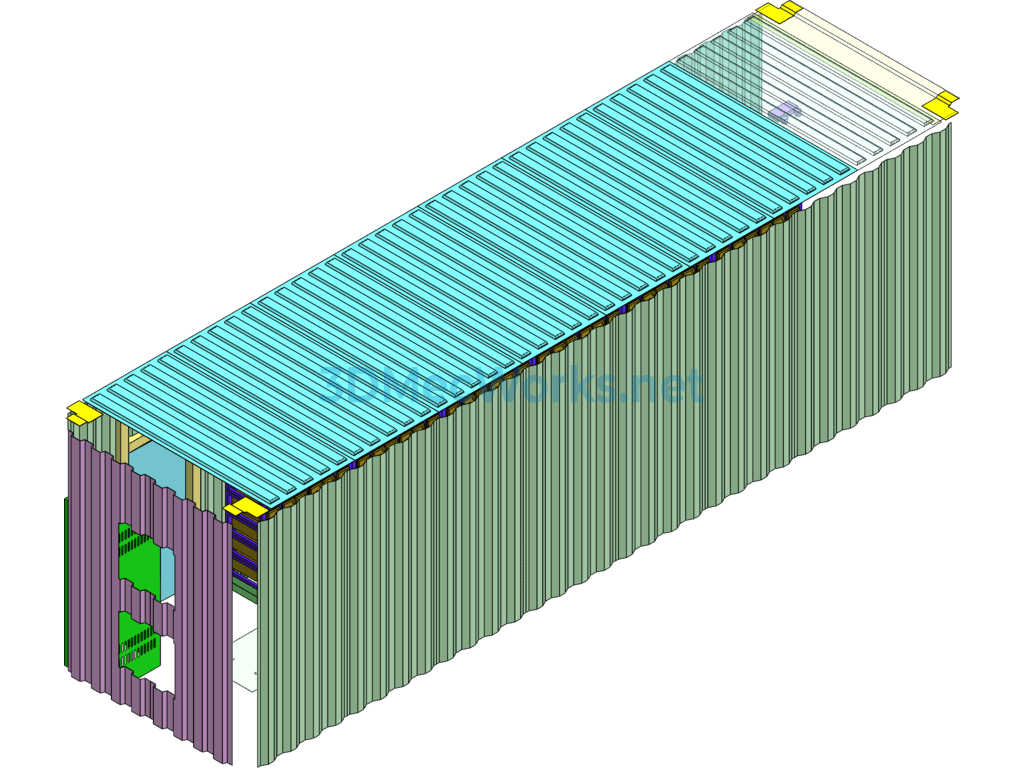

Energy storage container drawings, include air conditioning section, battery section, equipment, distribution box section, battery rack section, ventilation duct section, internally enriched, reasonably designed.

Specification: Energy Storage Container

Design Software

Editable

,

File Formats

, , ,

Industry Application

,

Sharing Level

Version
