Energy Storage 6-In 1-Out Combiner Cabinet

0
Sold by
@ MrBlue
[mecworks-btn]

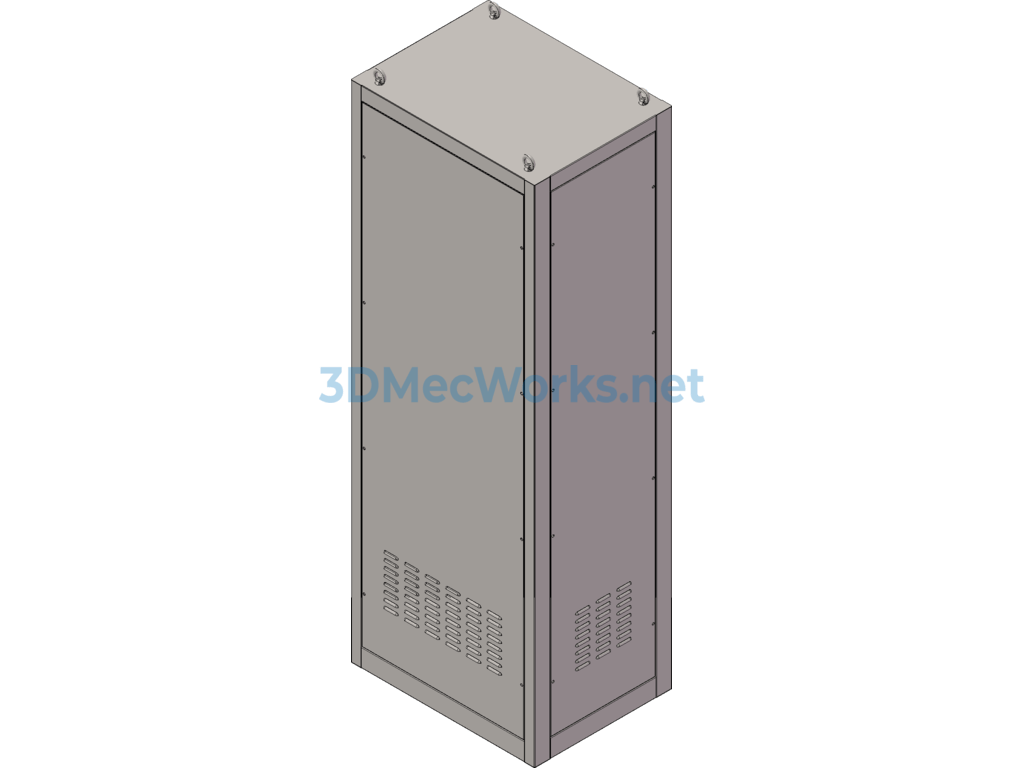

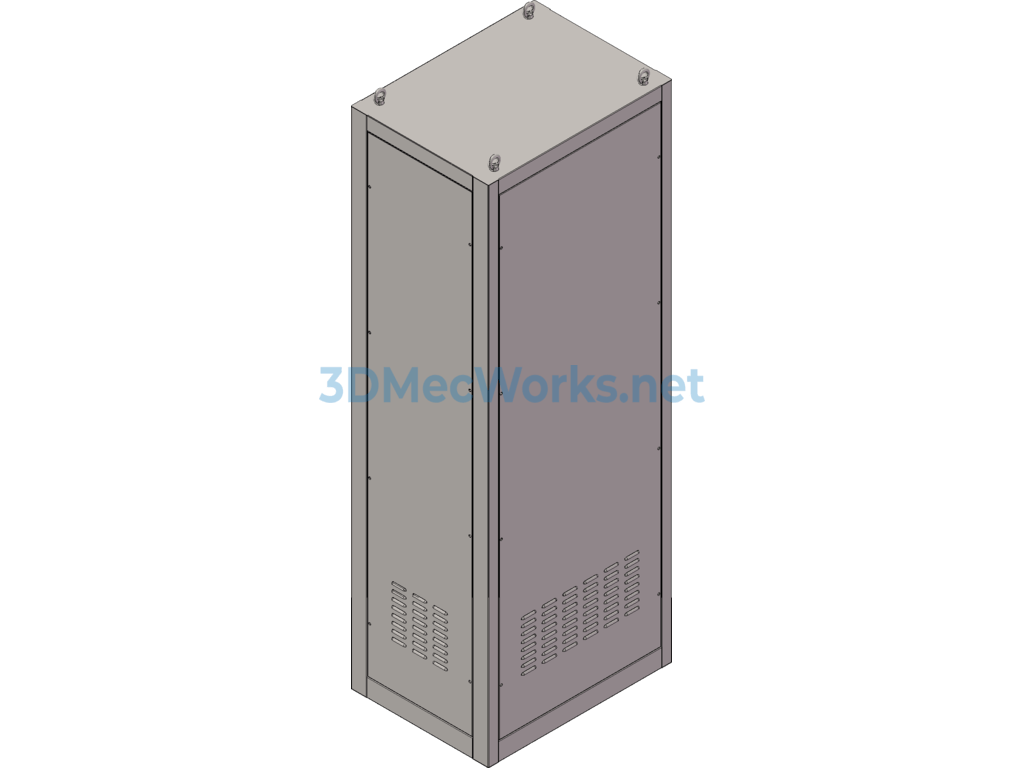

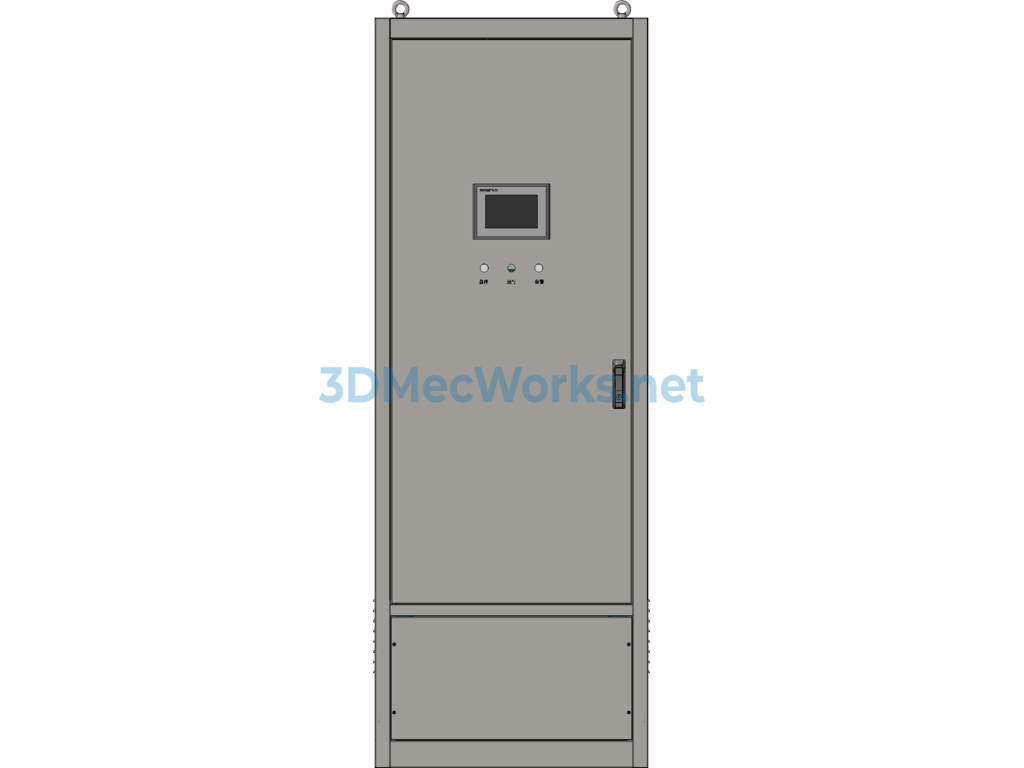

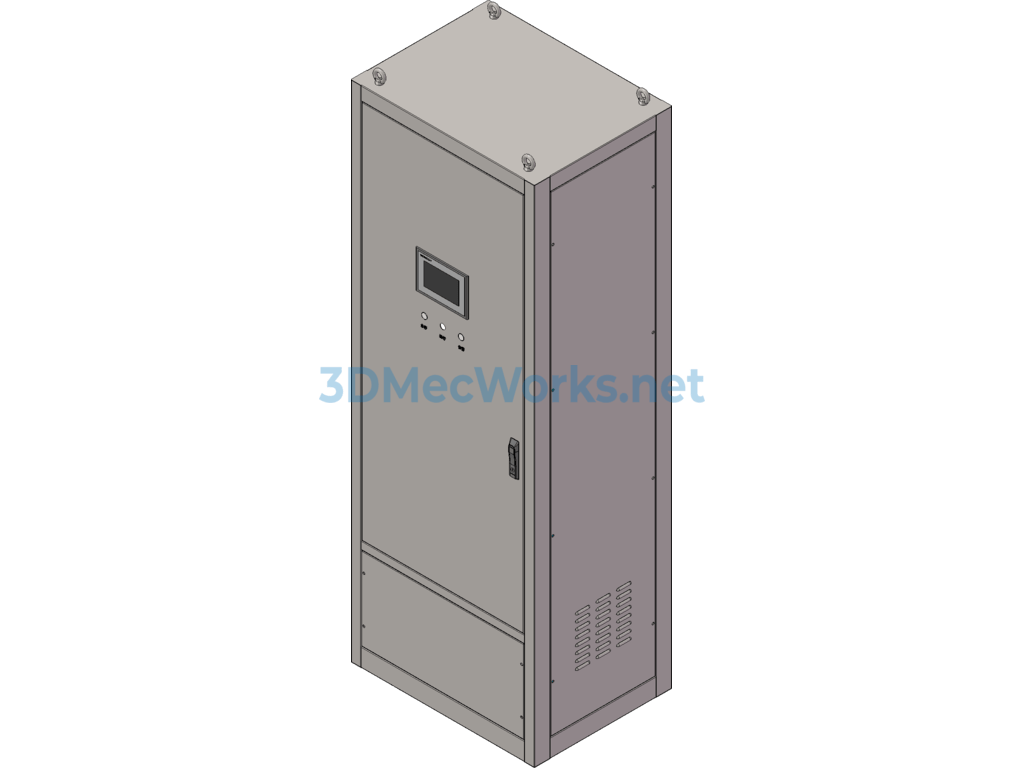

Commercial and industrial energy storage system DC side combiner cabinet, this combiner cabinet is designed in a six-in-one-out mode, with one side corresponding to the battery cluster and the other side corresponding to the inverter’s DC side. It comes with a three-level battery management system master control, and includes internal equipment such as circuit breakers, air switches, UPS, and mainframe. Welcome to download.

Specification: Energy Storage 6-In 1-Out Combiner Cabinet

Design Software

Editable

,

File Formats

, ,

Industry Application

Mechanical Equipment

Sharing Level

Version
