Elevator and Lift Model

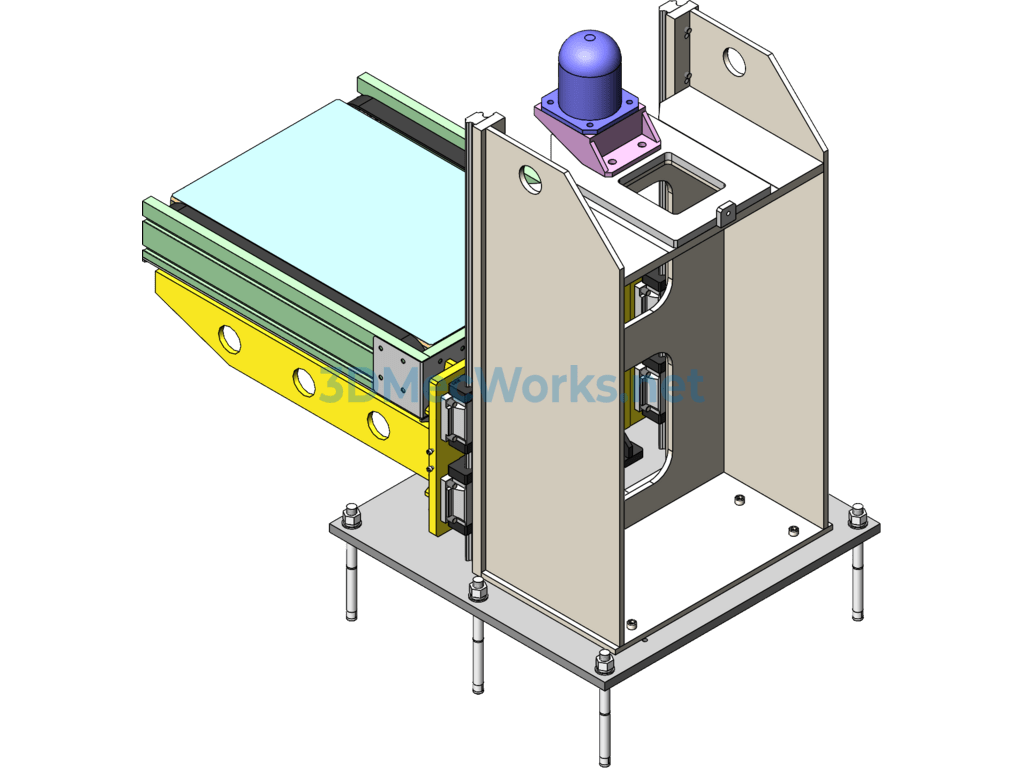

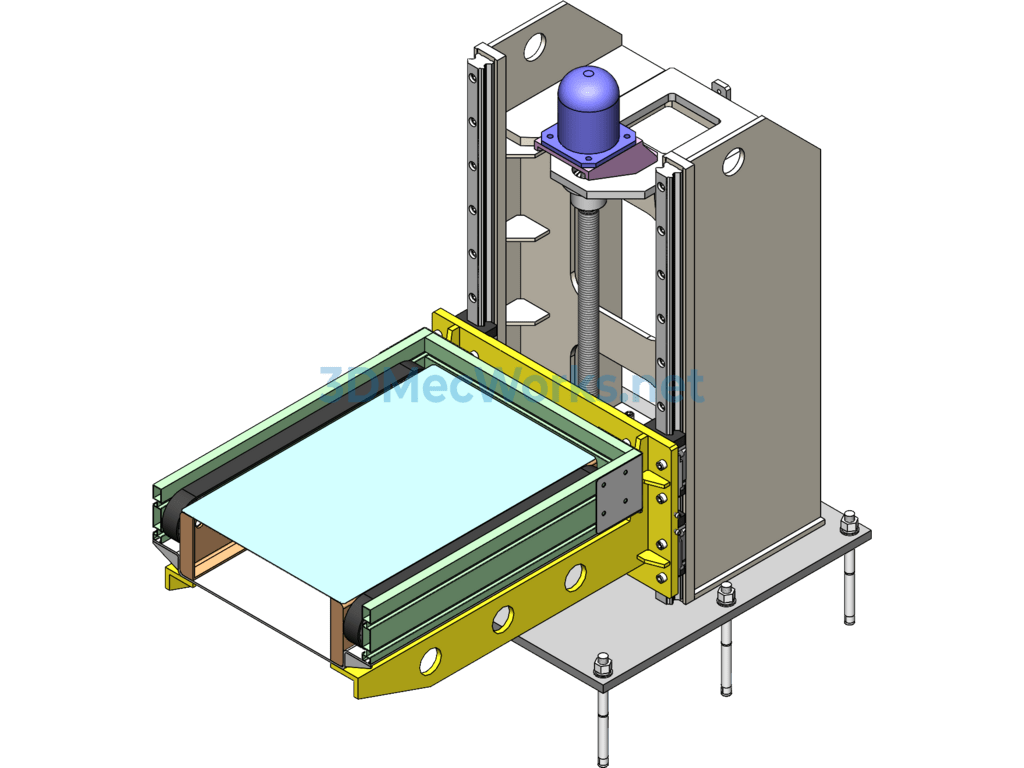

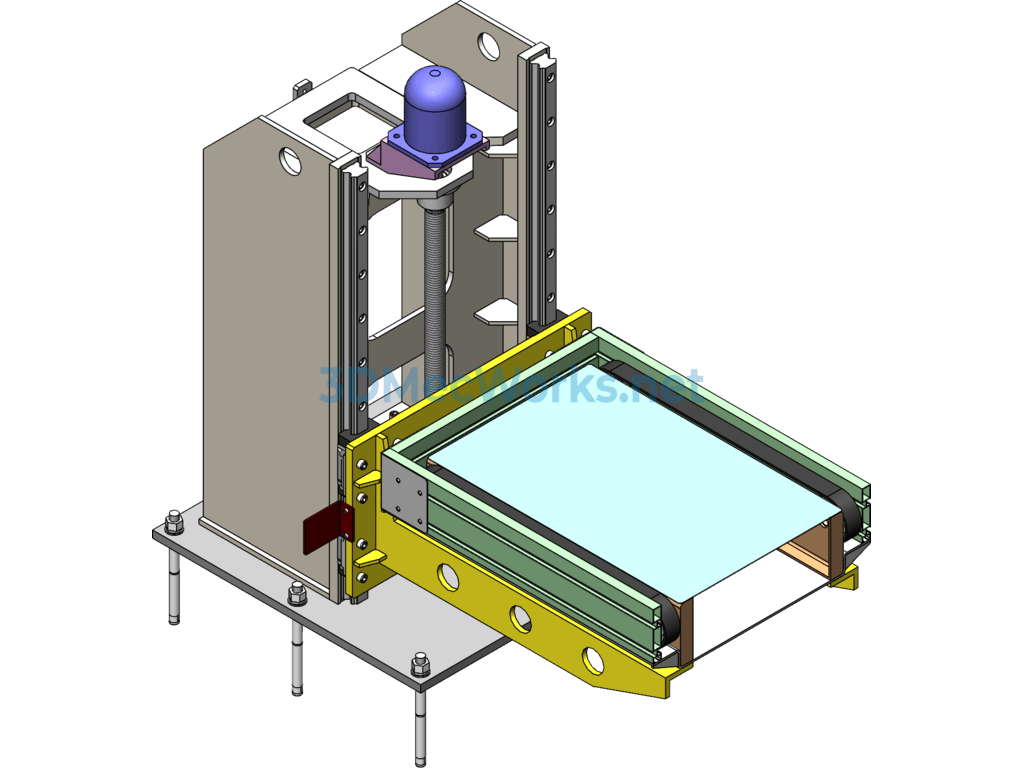

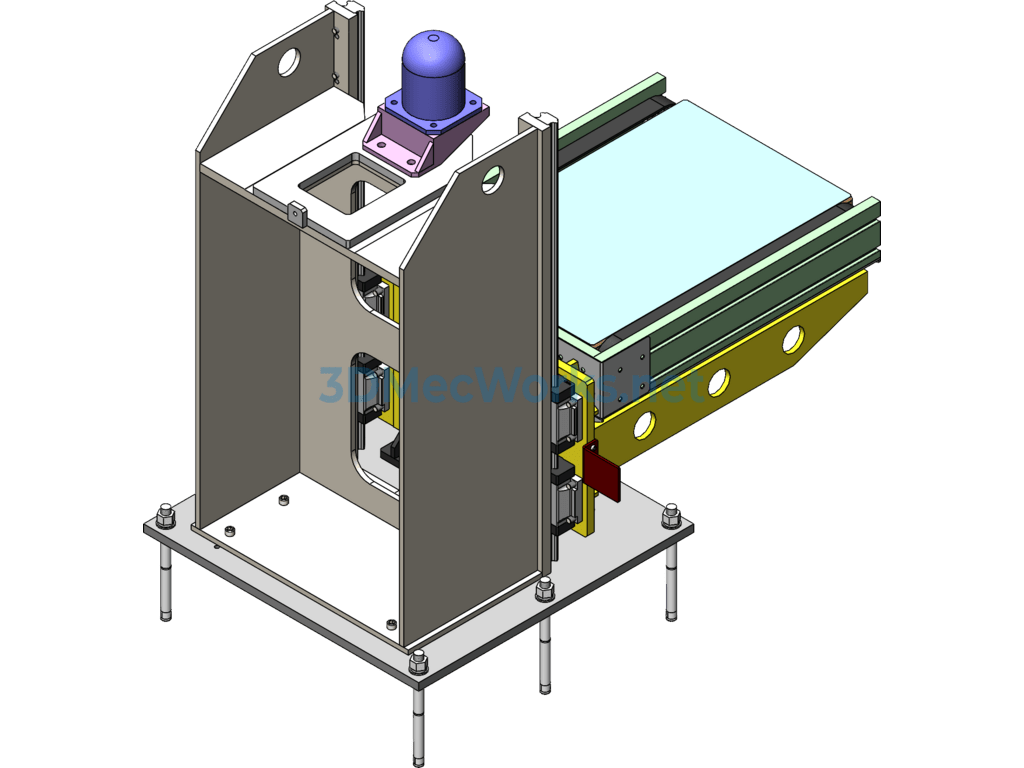

This model is a piece of equipment for a hoist, also known as a lift. The device is driven by a servo or stepper motor, utilizing a lead screw for motion, with linear guides assisting the movement to enable the belt line to move up and down. The belt line is capable of bidirectional movement, facilitating the merging of objects between upper and lower levels during the conveying process.

This model file is in SW format and includes an upload of the source file with editable parameters, which is available for download and study.
