Electronic component carrier tape cutting machine, also known as the electronic component carrier tape cutting machine 3D model, provides 370 sldasm﹑sldprt source files for download. The electric motor increases speed through belt transmission, causing the straightening cylinder to rotate at high speed. The rebar passing through the straightening cylinder is straightened and the rust on the rebar surface is removed by the straightening die. Another pair of reduction belts drives the motor and gear reduction box, which simultaneously drives two conveying pressure rollers to pull the rebar forward and a crank wheel to move the hammer head up and down.

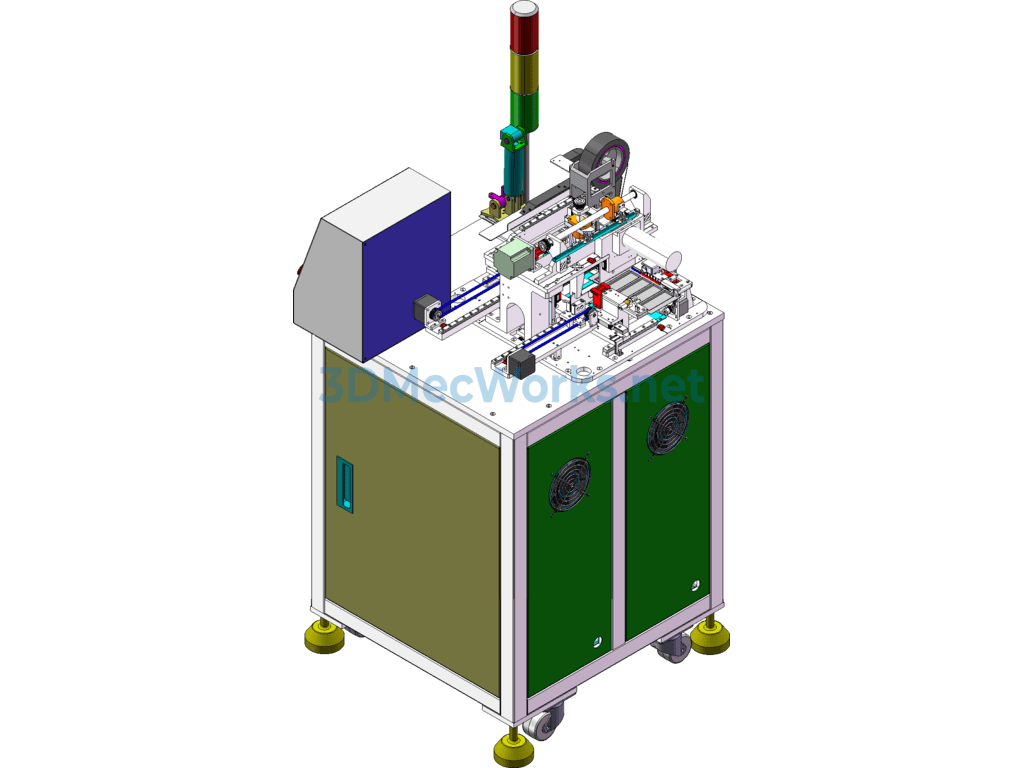

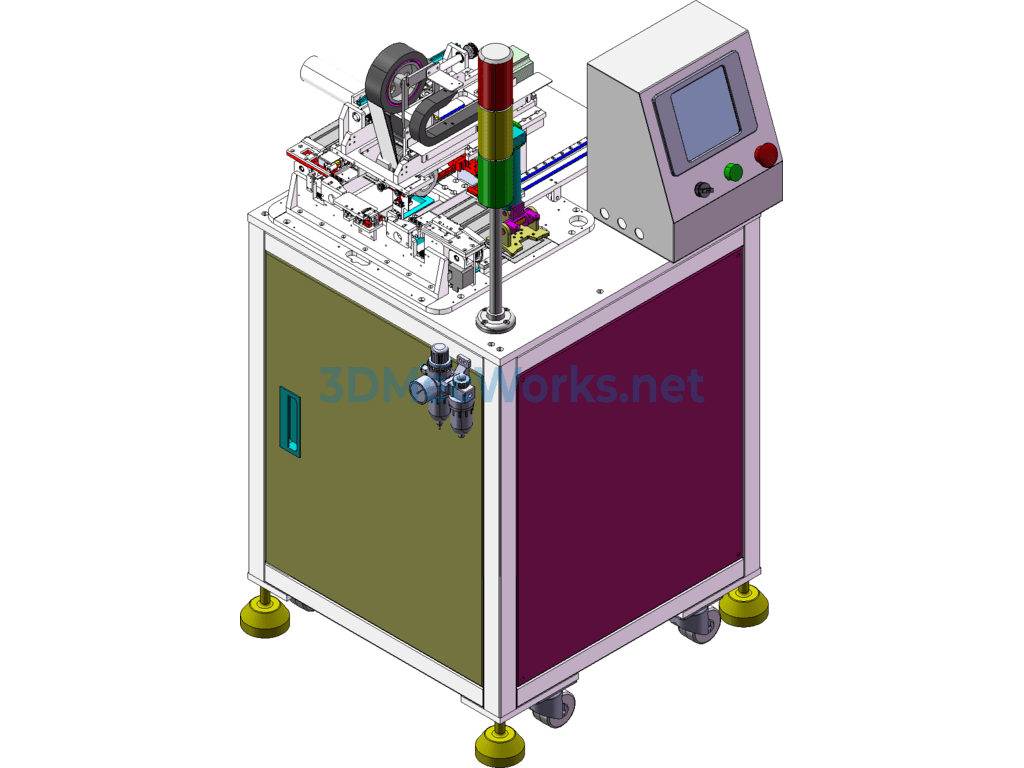

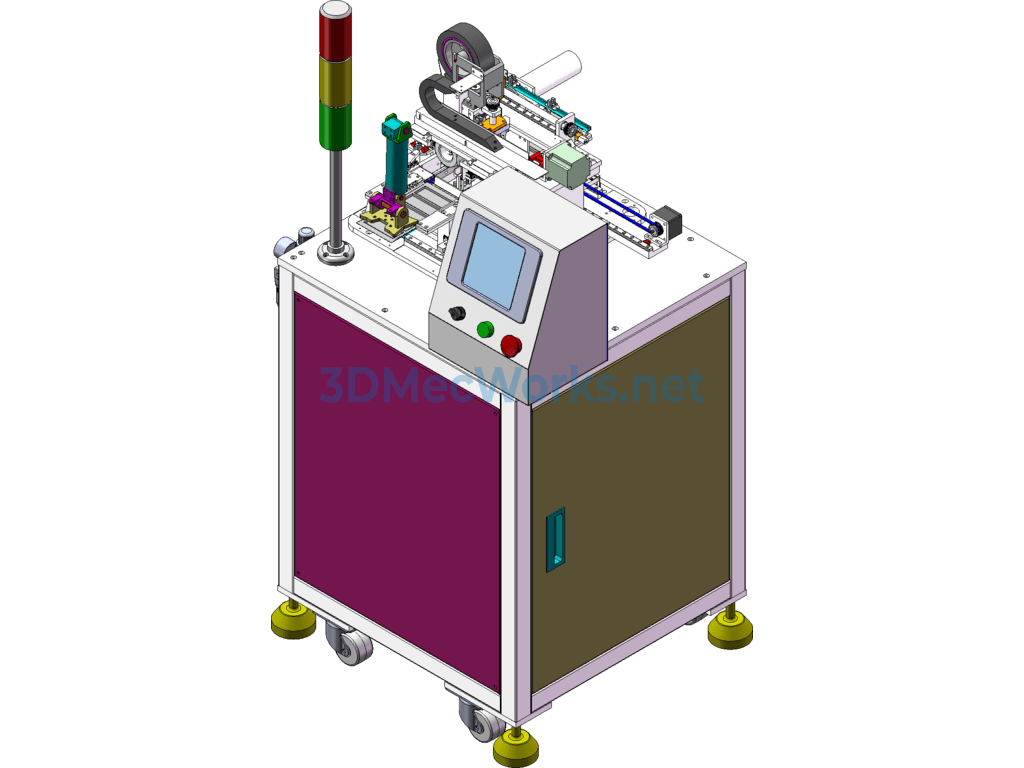

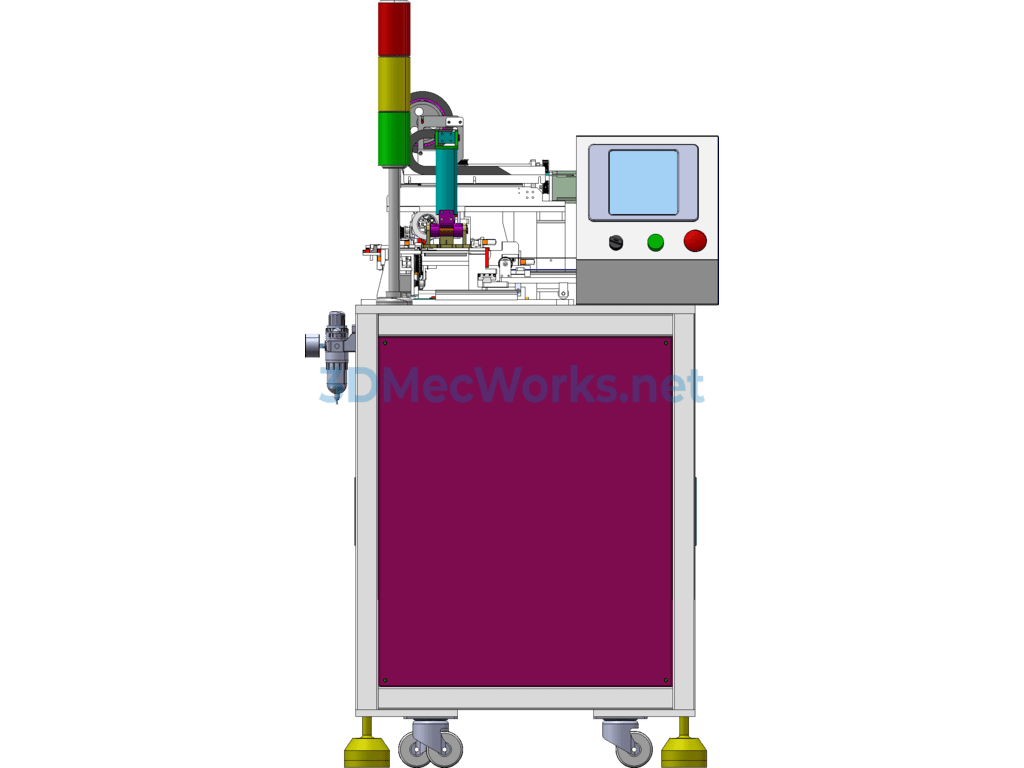

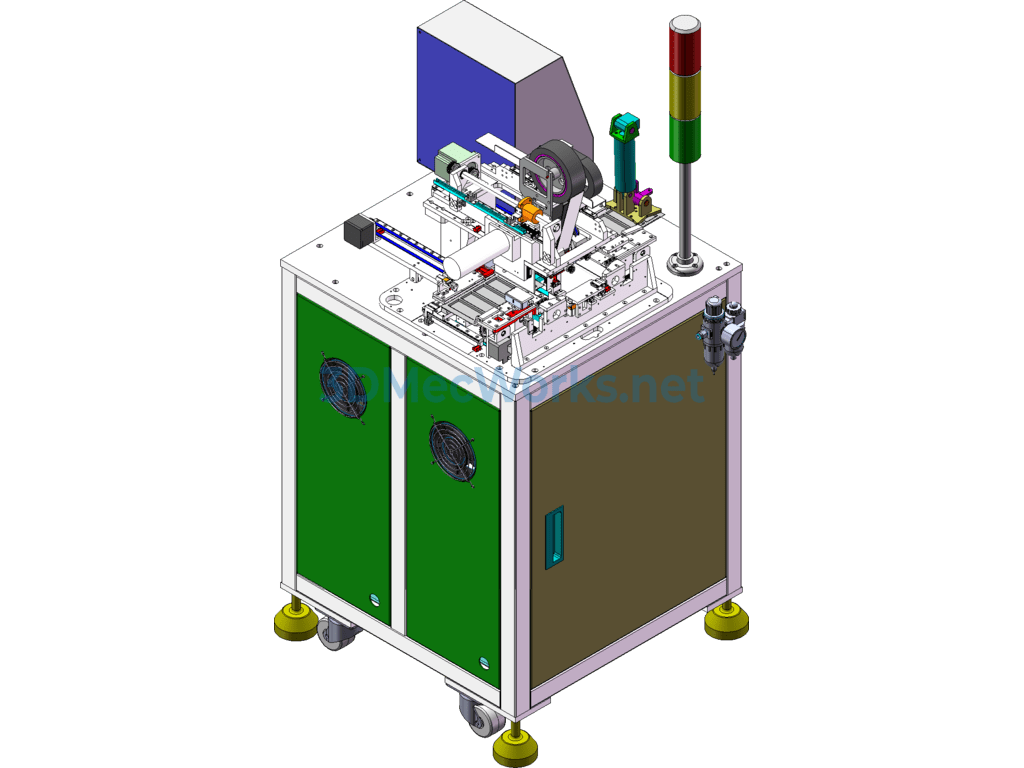

This equipment is a carrier tape cutting machine for electronic components. After cutting, two stepper motors transport the material to the next workstation. The front part is the loading position and pressing position, and above is the feeding structure for the loaded tape. You can download it for structural study. It is a very commonly used motor belt transmission method, worth referring to and learning from.
