Electric Hot Melt Machine

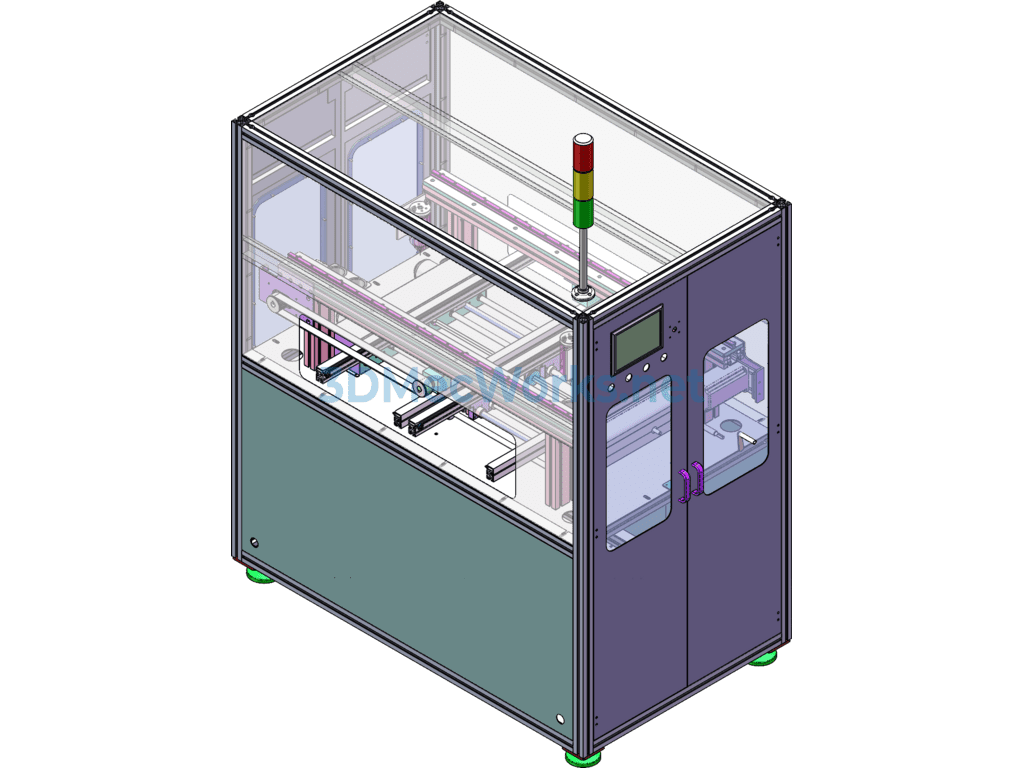

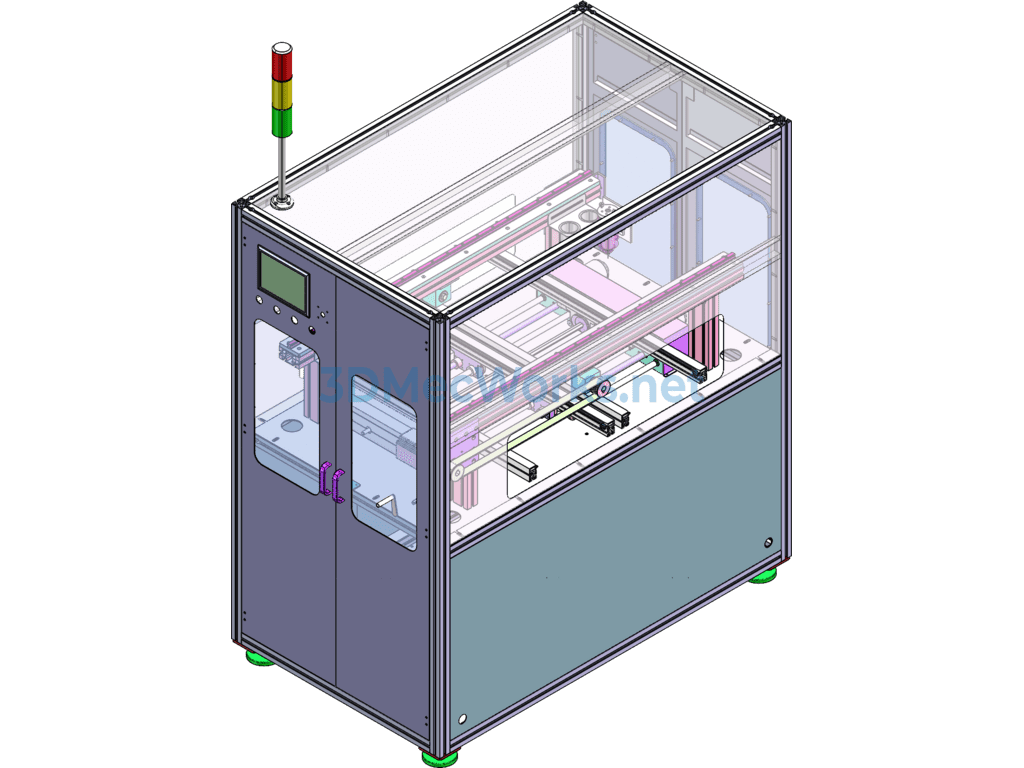

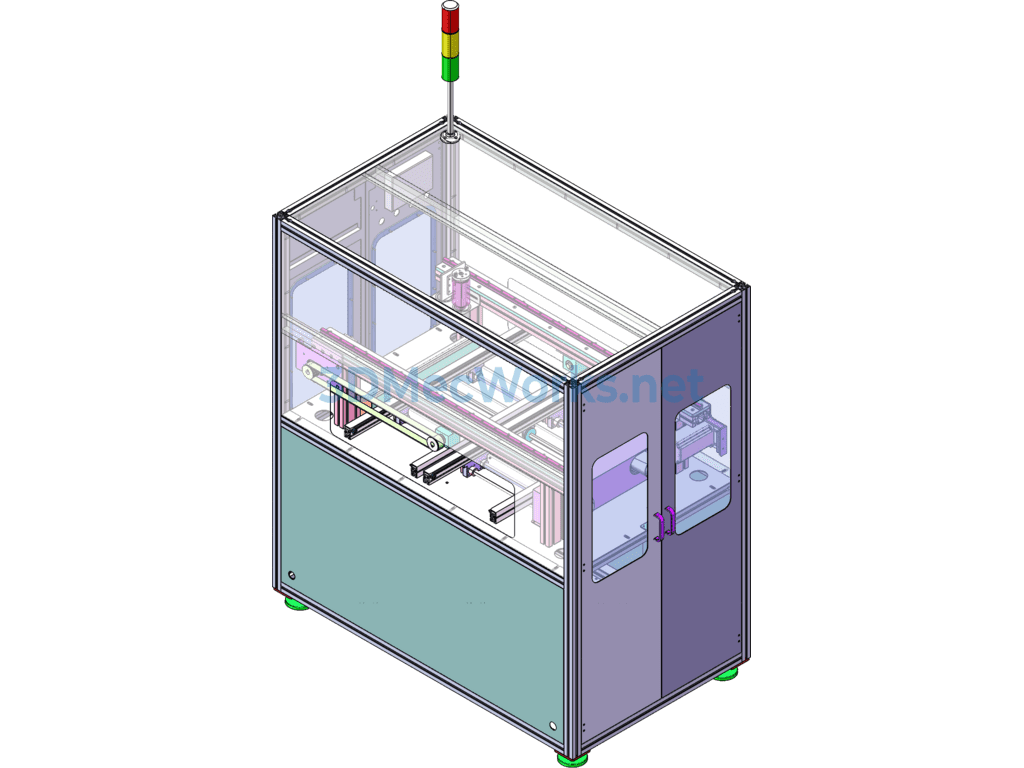

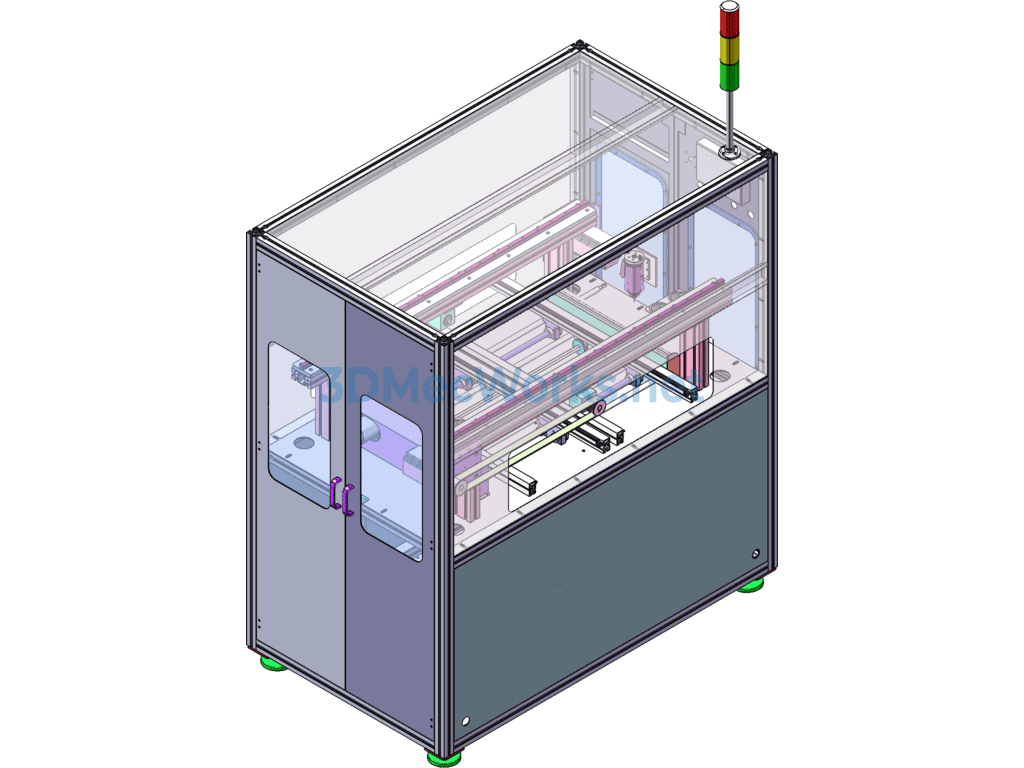

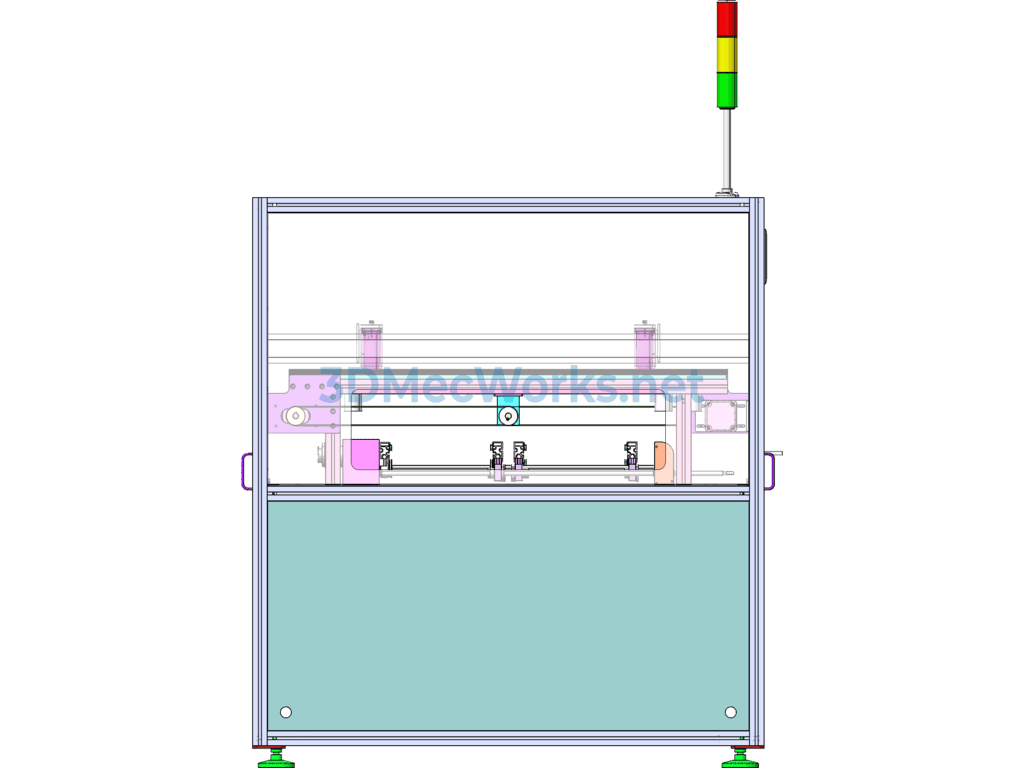

This document is a set of design materials for a point heat-type glue melting machine, including the equipment assembly drawing (file name: equipment assembly drawing), and SolidWorks files for each part. It serves as an important reference for the research and development of related flattening and mechanical design.
Introduction to the Glue Melting Machine: The hot melt glue machine is mainly used for automated applications of hot melt adhesive spraying, scraping, rolling, coating, and injection. It is widely used in household products (diapers, sanitary napkins, mouse traps, cockroach houses, and other disposable items), the automotive industry (interior sealing, headlight manufacturing, windshield assembly, air filter, non-woven fabric composites, footwear, printing, electronics assembly, garment manufacturing, non-stick stickers, packaging industry (carton packaging, cigarette box packaging, Tetra Pak beverage packaging), coating and composite industry (label paper, double-sided adhesive tape, medical breathable tape), and bookbinding, among other industries.
