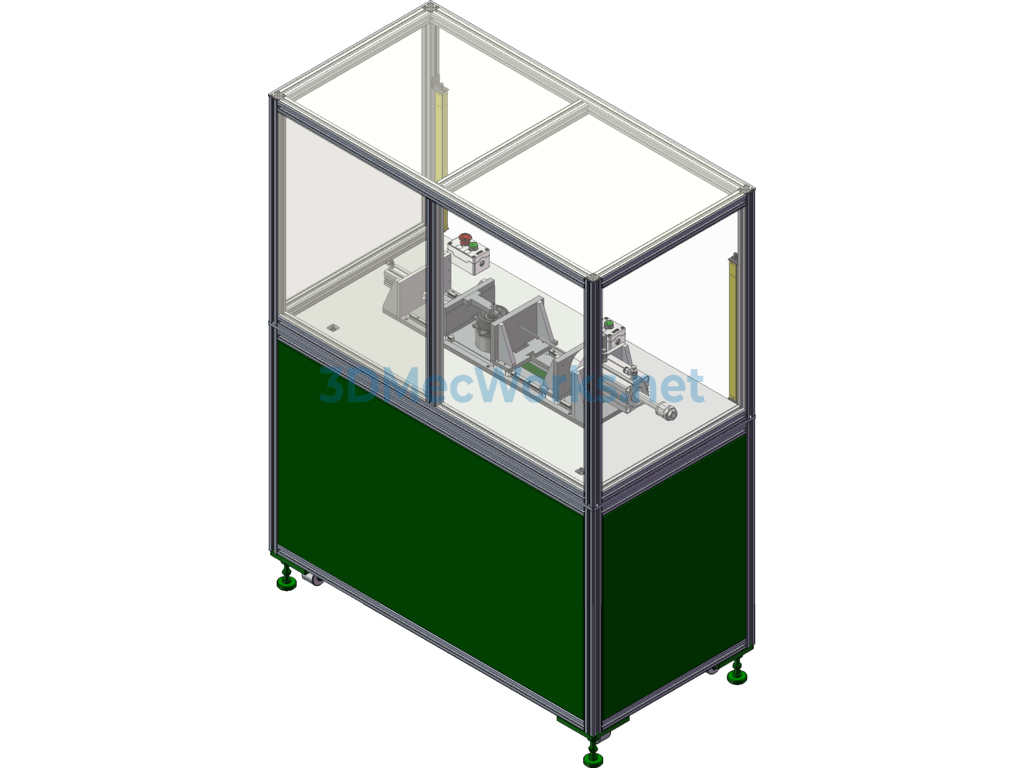

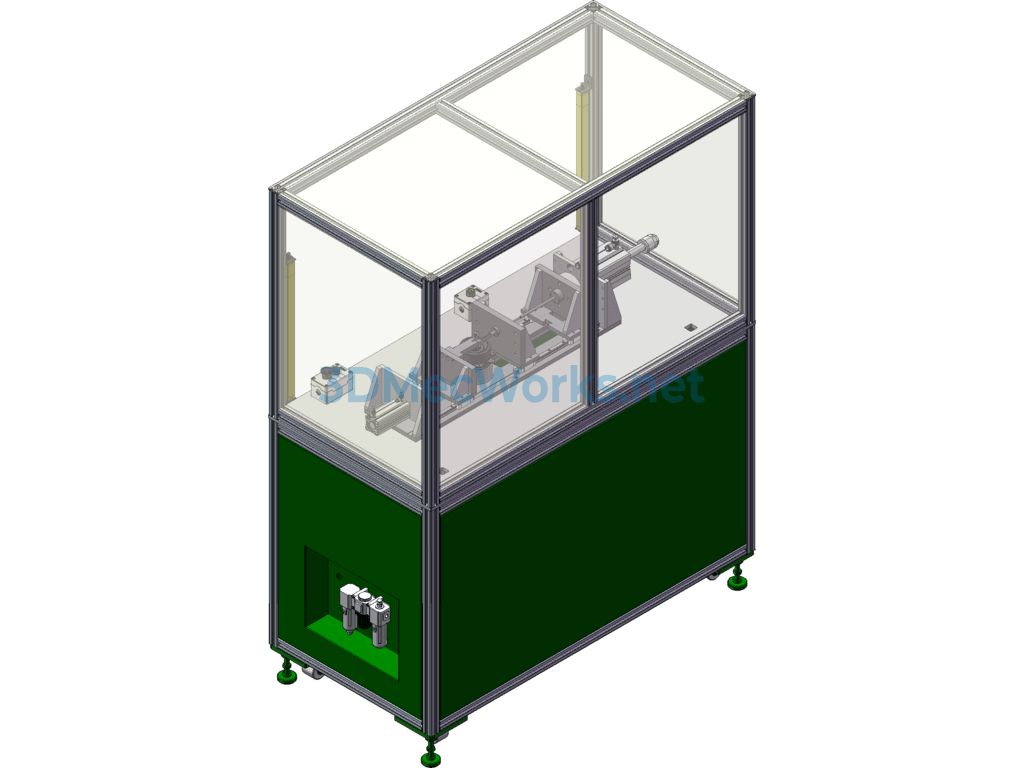

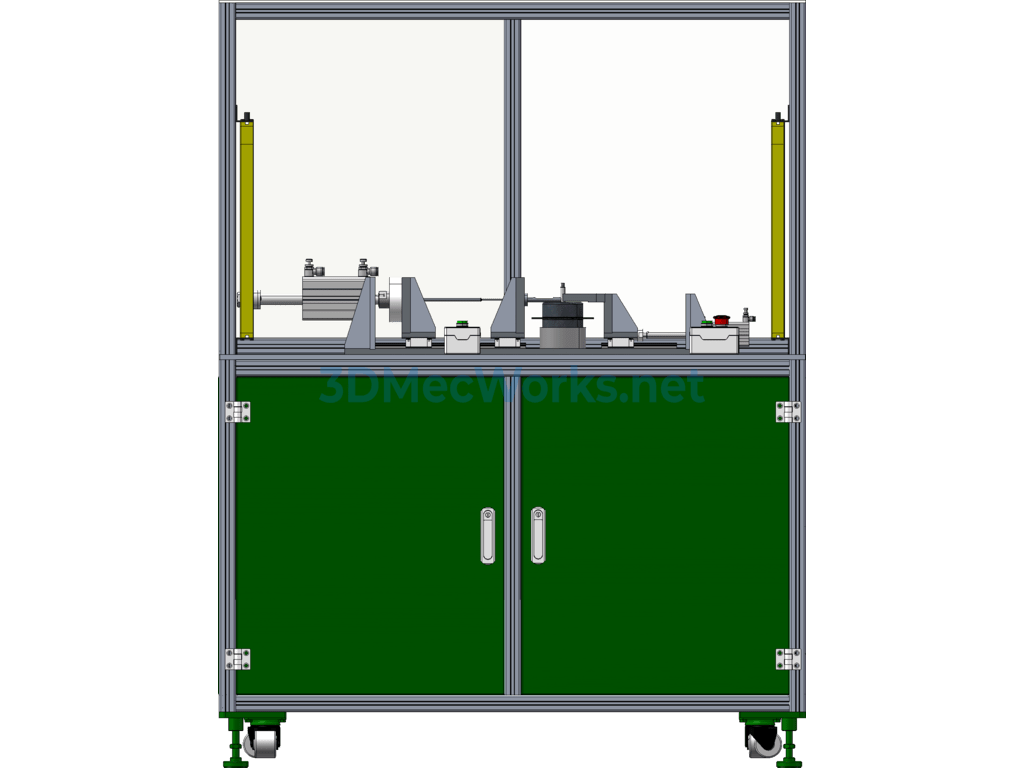

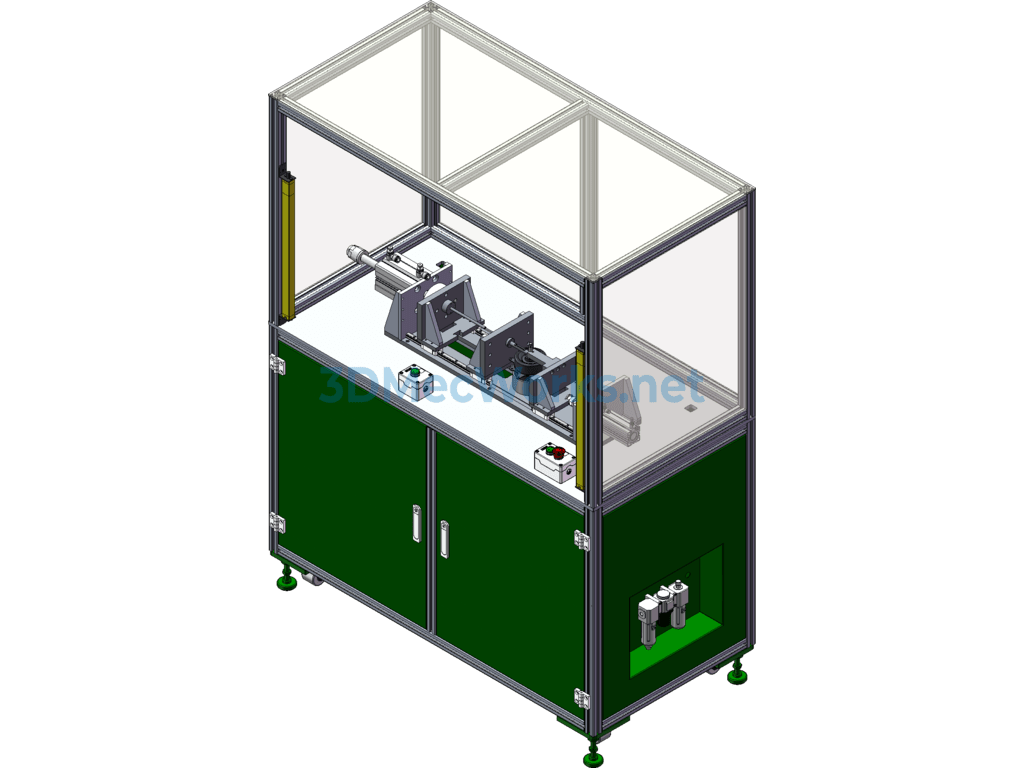

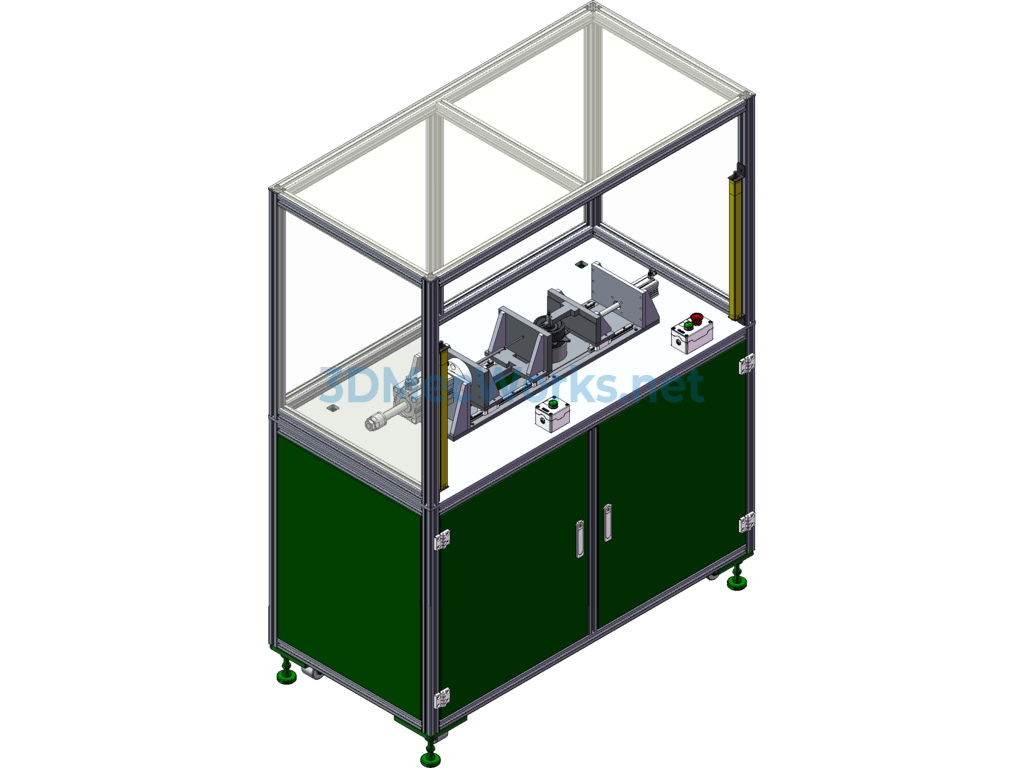

This set of equipment is used by range hood motor manufacturers for the press-fitting of flexible cylindrical pins on motor shafts. The punch structure can be adjusted and replaced according to the product type, and is designed using a pneumatic structure. The file package includes formats such as step, x_t, igs, easm.

Specification: Elastic Pin Installation Machine - SolidWorks - Free Download

Design Software	SolidWorks
Editable	Editable, With parameters
File Formats	iges(igs), Sldasm, Sldprt, step(stp), x_t
Industry Application	Mechanical Equipment
Sharing Level	Diamond
Version	2018
