Dual Traction Horizontal Drilling Machine

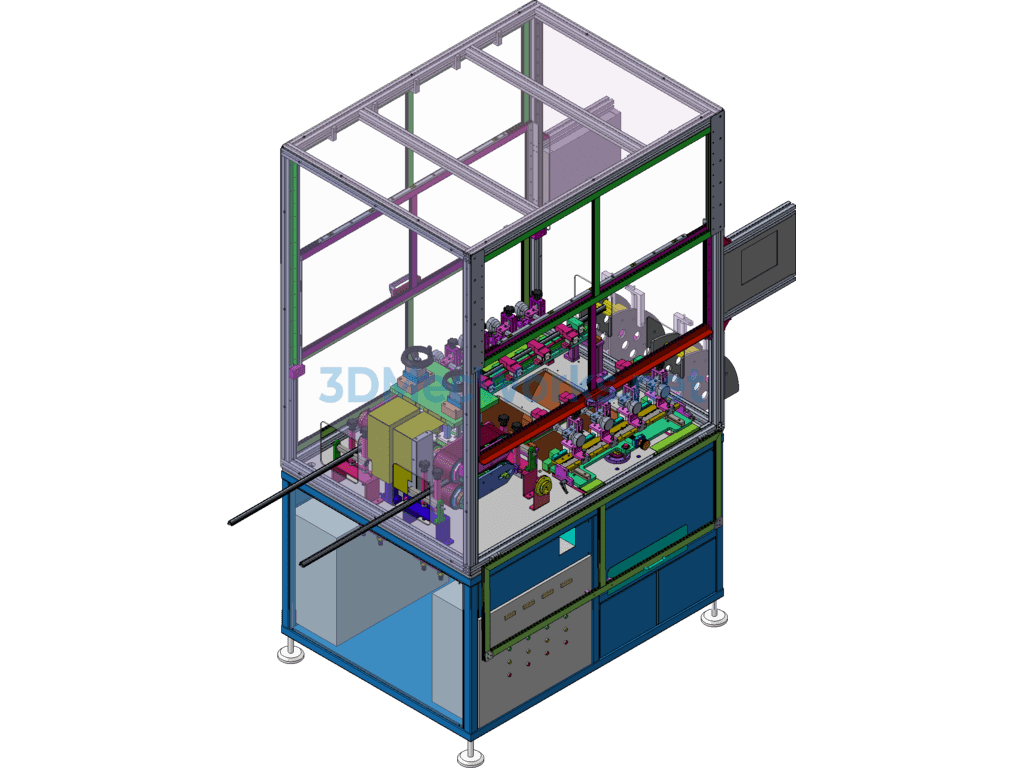

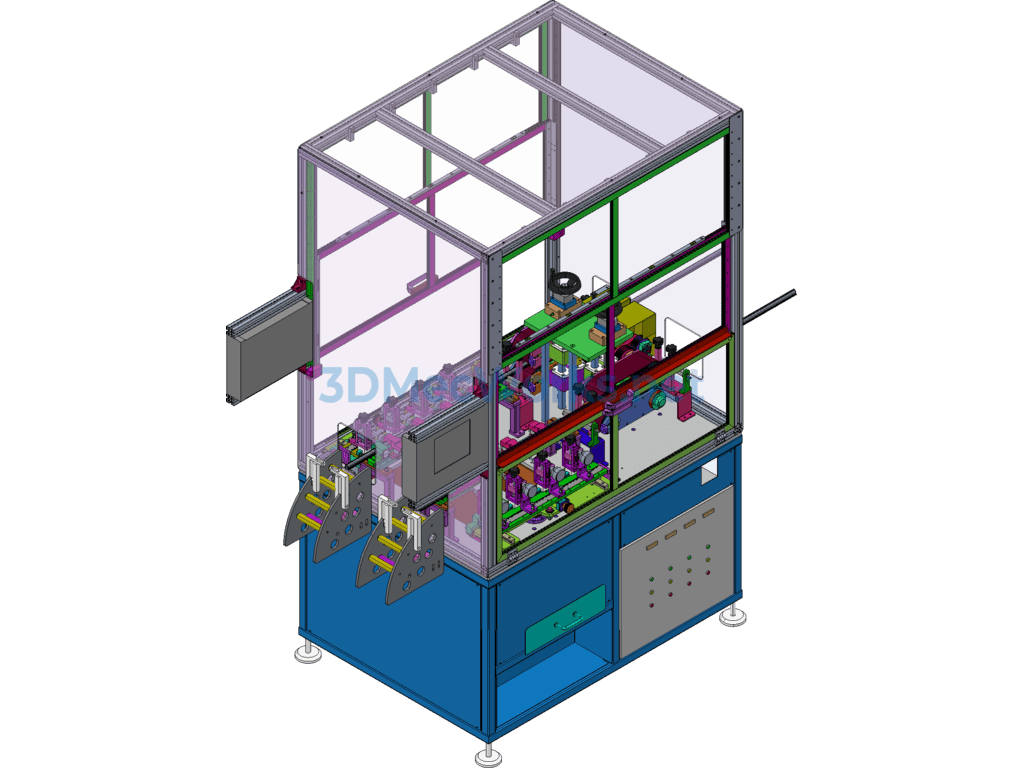

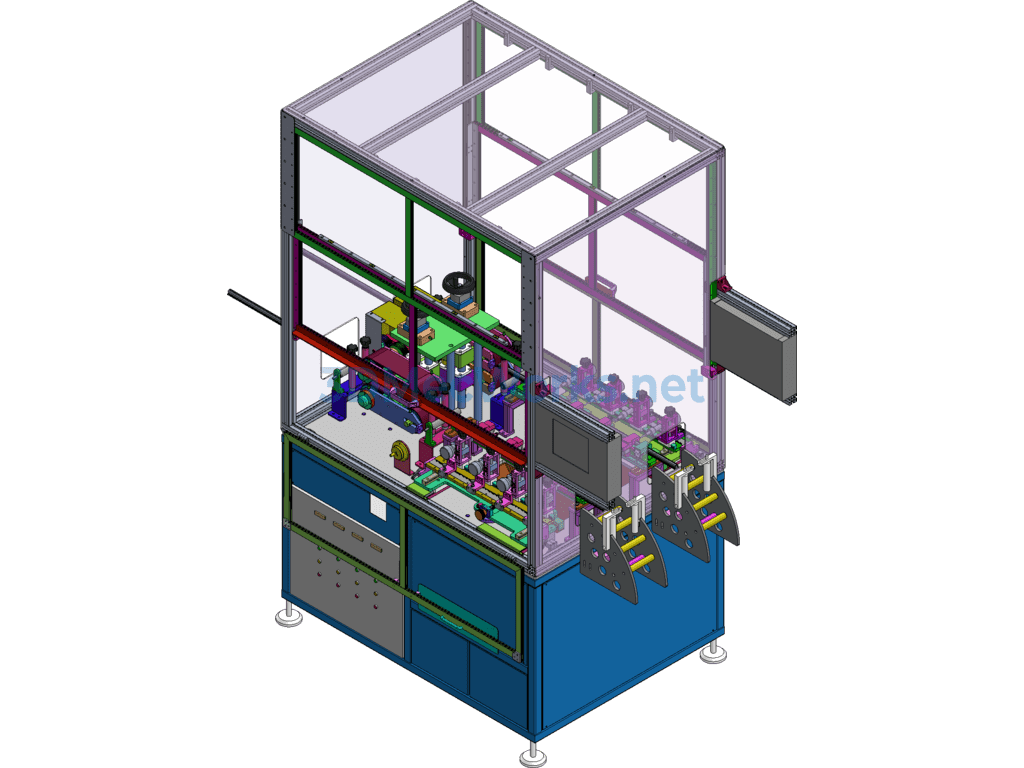

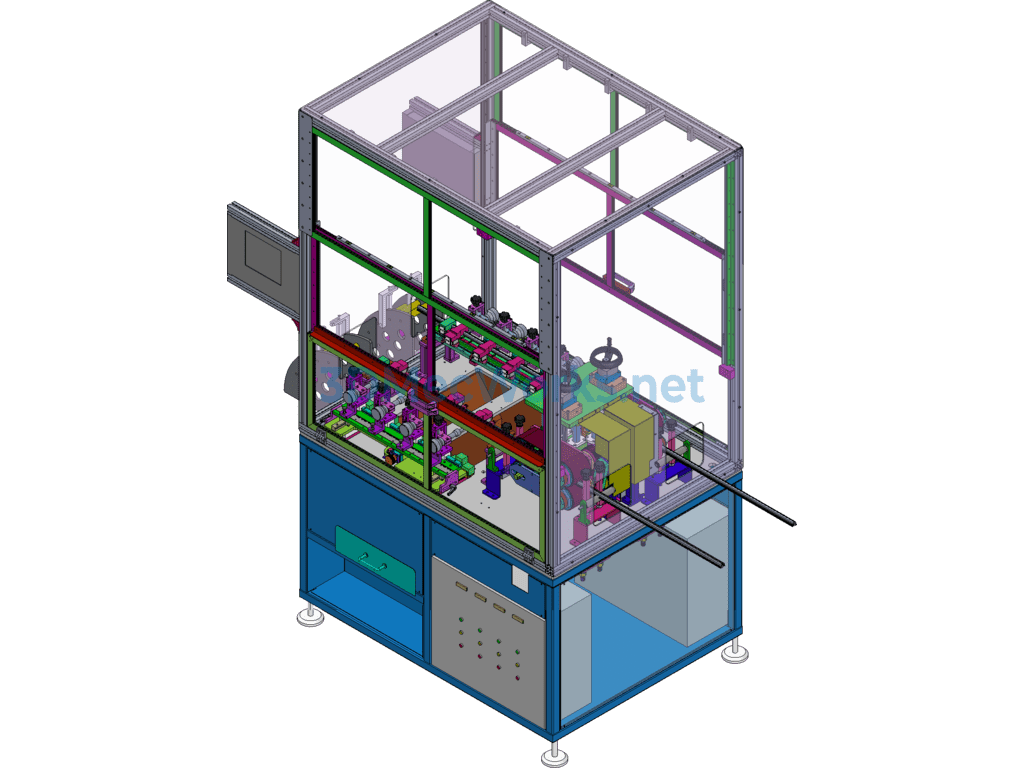

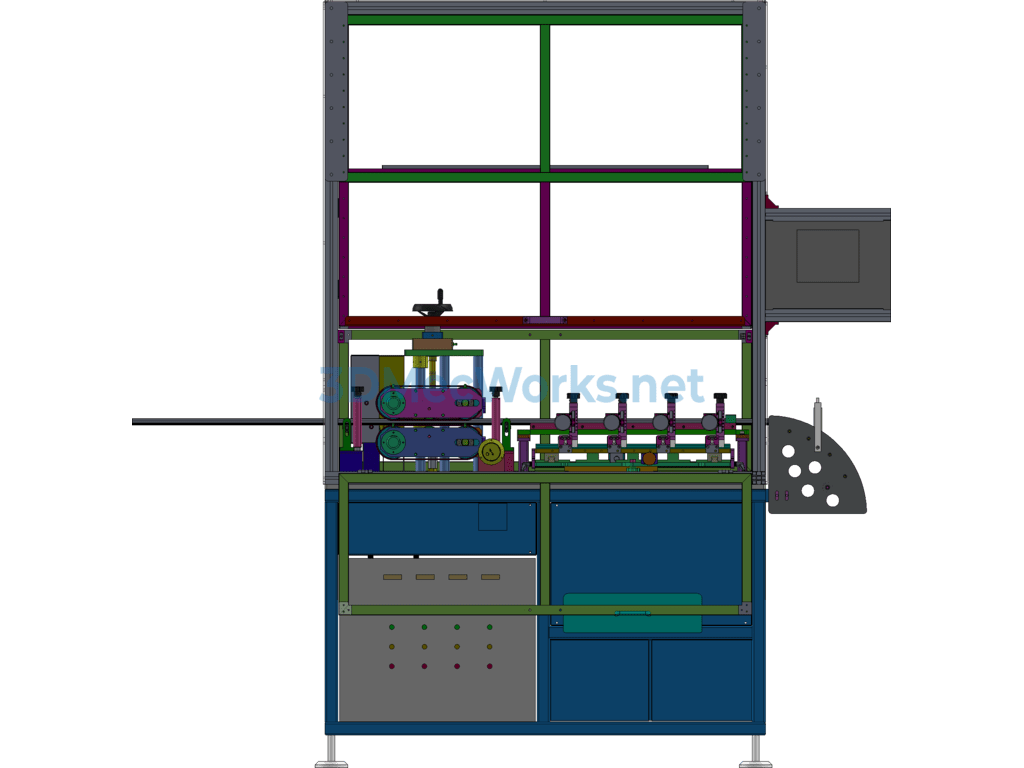

This is the 3D design model of a dual-traction punching machine, which can operate independently with two production lines simultaneously. The front and rear punching tools work independently, allowing for a rapid increase in punching speed. The internal structure diagram is very detailed, including engineering drawings and a parts list. The working principle involves the front traction machine automatically feeding material, with the speed of loading automatically controlled by the photoelectric unit. The product passes through the punching fixture, where an air drill installs the corresponding punching needle. The air drill’s movement is reciprocating, achieving the goal of high-efficiency punching. The drawing format is Solidworks 2018; everyone is welcome to download and refer to it.
