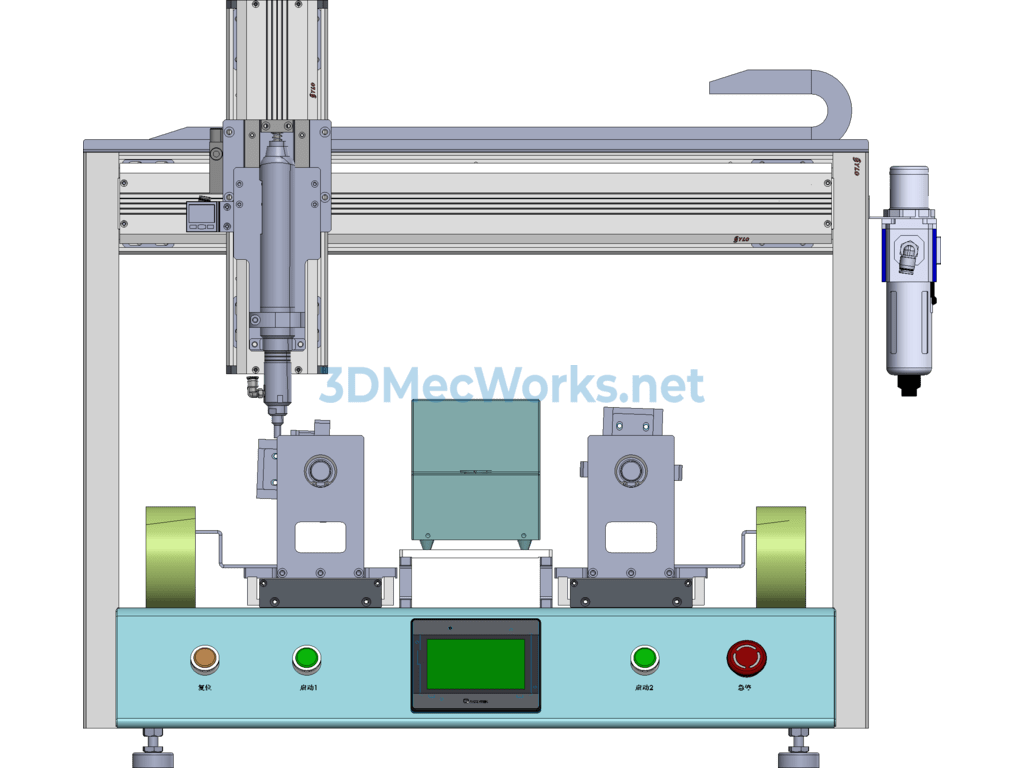

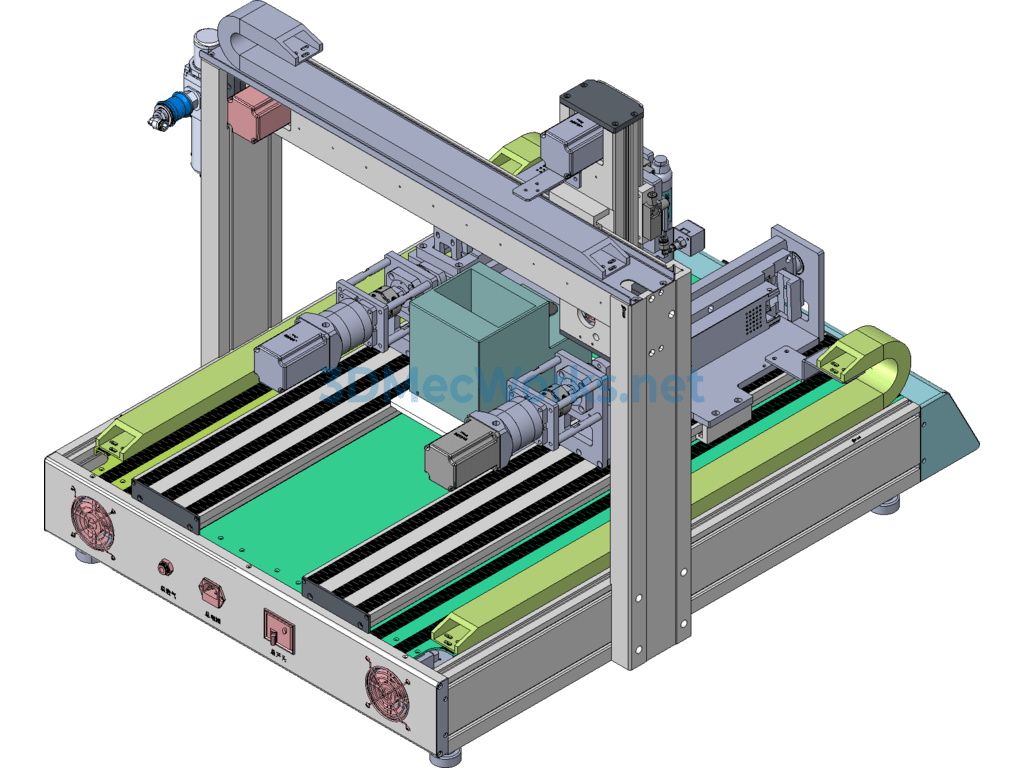

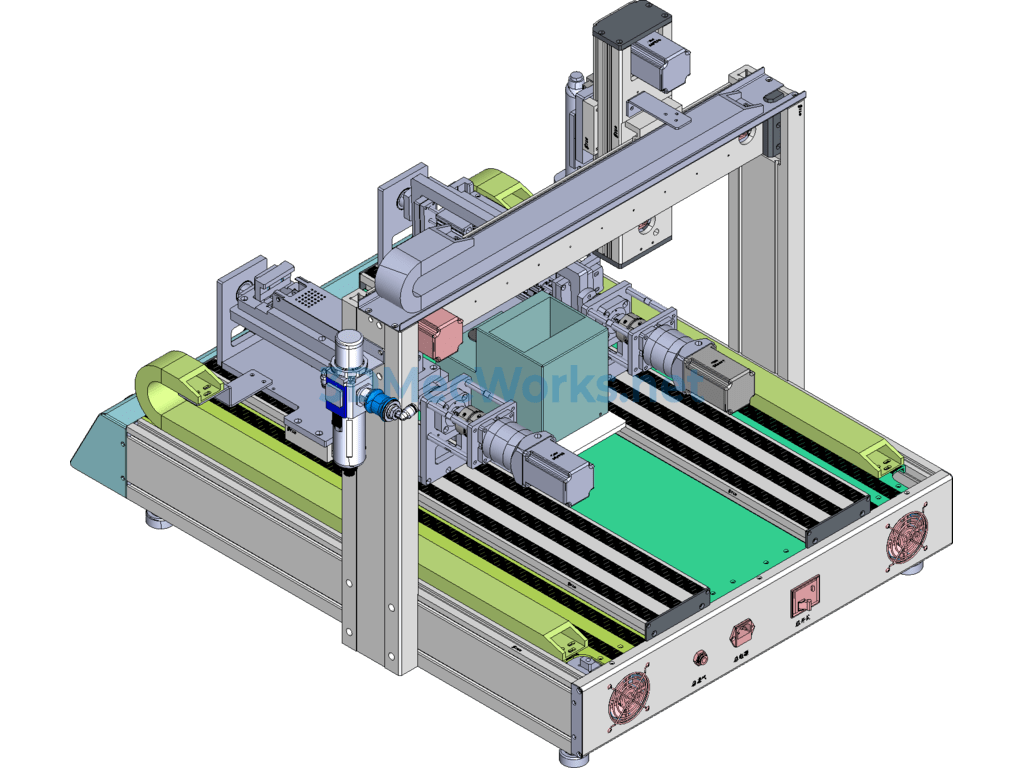

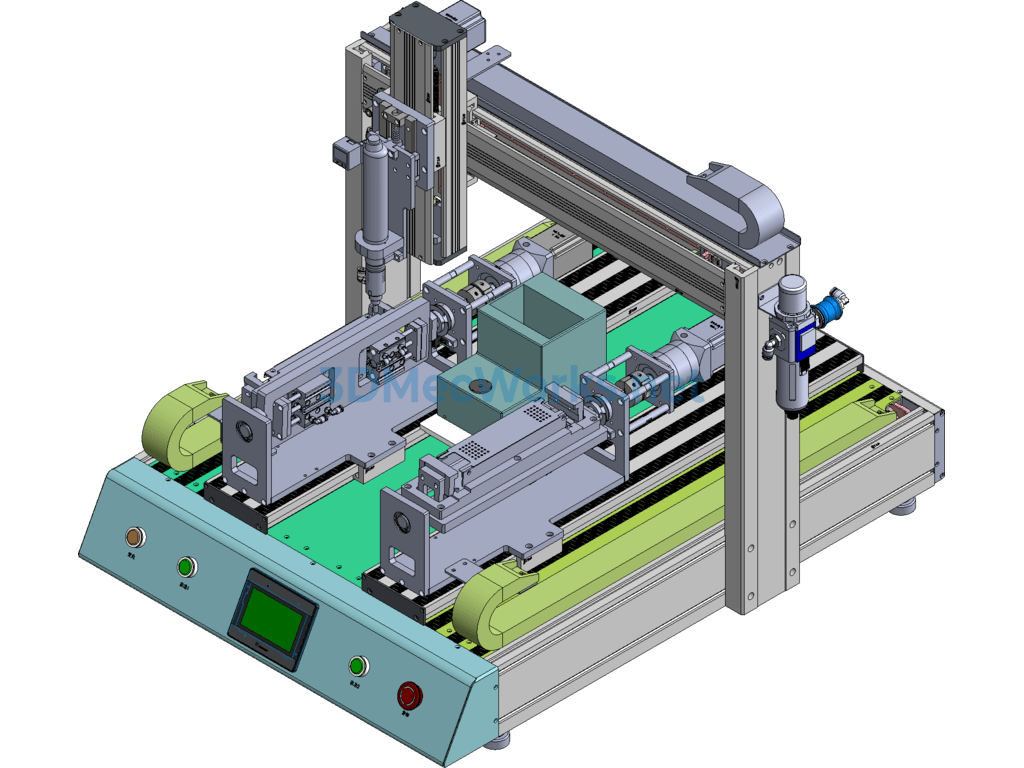

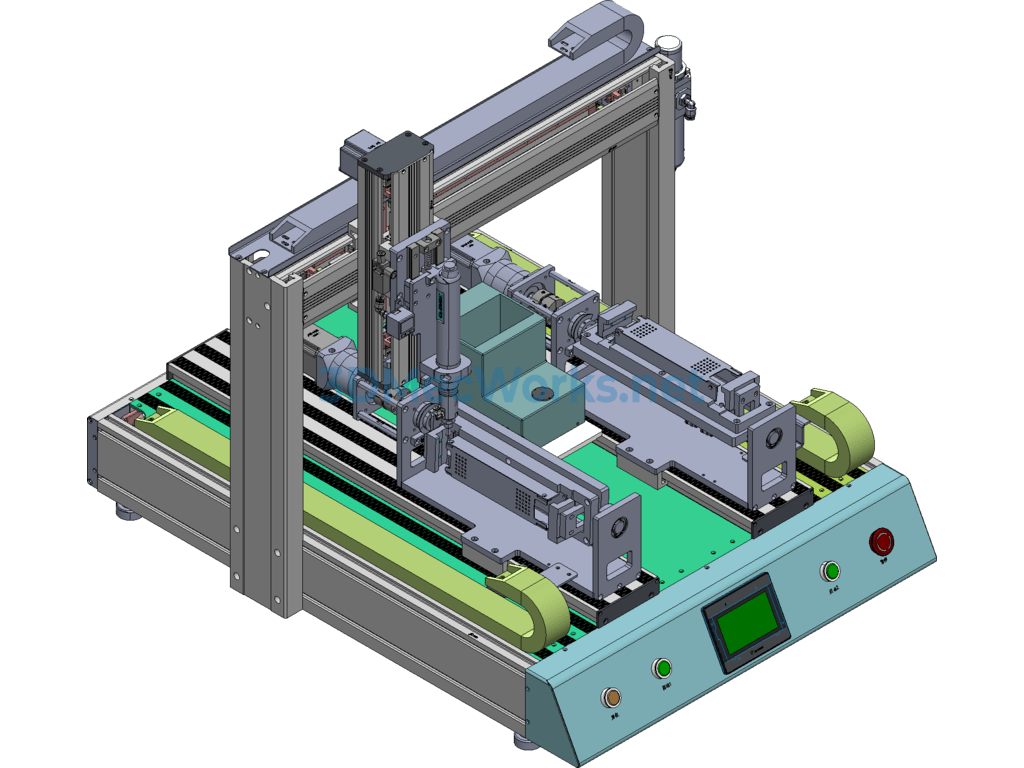

Equipment Features
1. Uses the Handy Helper electric screwdriver for fastening, with adjustable screw torque
2. All motion components use high-precision XY manipulators. The Z-axis utilizes a cylinder for up and down movement. Dual workstations for fastening M3, M4, M5 screws, employing a suction-type screw feeding system to enhance work efficiency
3. The feeder uses a screw distribution mechanism, stable in structure without lodging, adjustable to the corresponding screw track according to screw size
3. The equipment adopts a modular structural design and modular assembly process, with each key component and position being detachable individually. Damaged parts can be quickly replaced, which facilitates maintenance.
4. The display screen includes automatic monitoring screen; alarm screen; making it easy to set parameters and view information.
5. This desktop screw machine is used for fastening switch power supplies.
6. The equipment is constructed using profiles to save costs and make assembly simple and convenient.
7. Fault alarms: stripped threads, loose locks, missed tightening, etc.
8. Repeatability accuracy: 0.02mm
9. Maximum speed: 800mm/s
10. Belt: Misumi timing belt
