Dual-Station Hydraulic Fixture for Housing

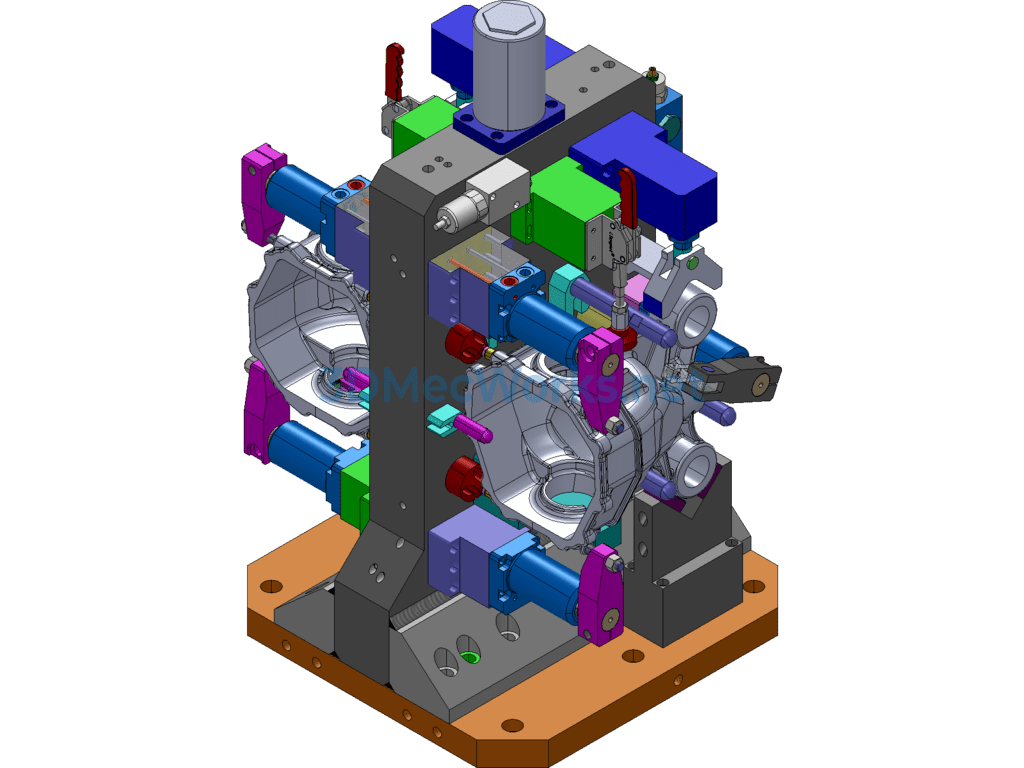

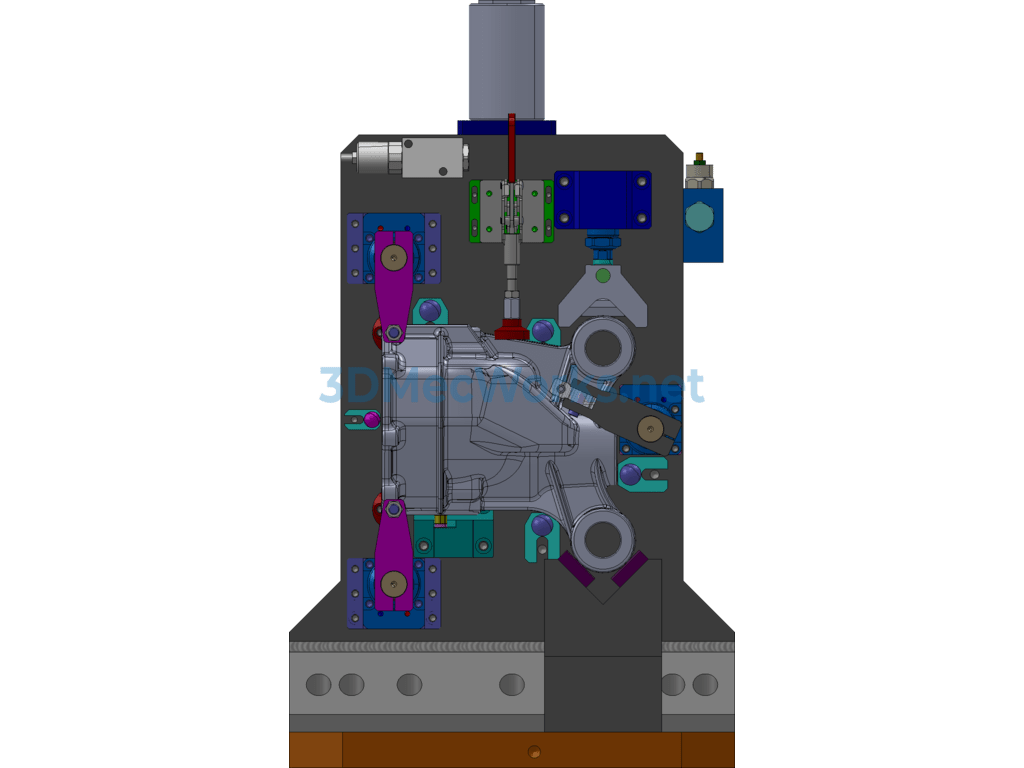

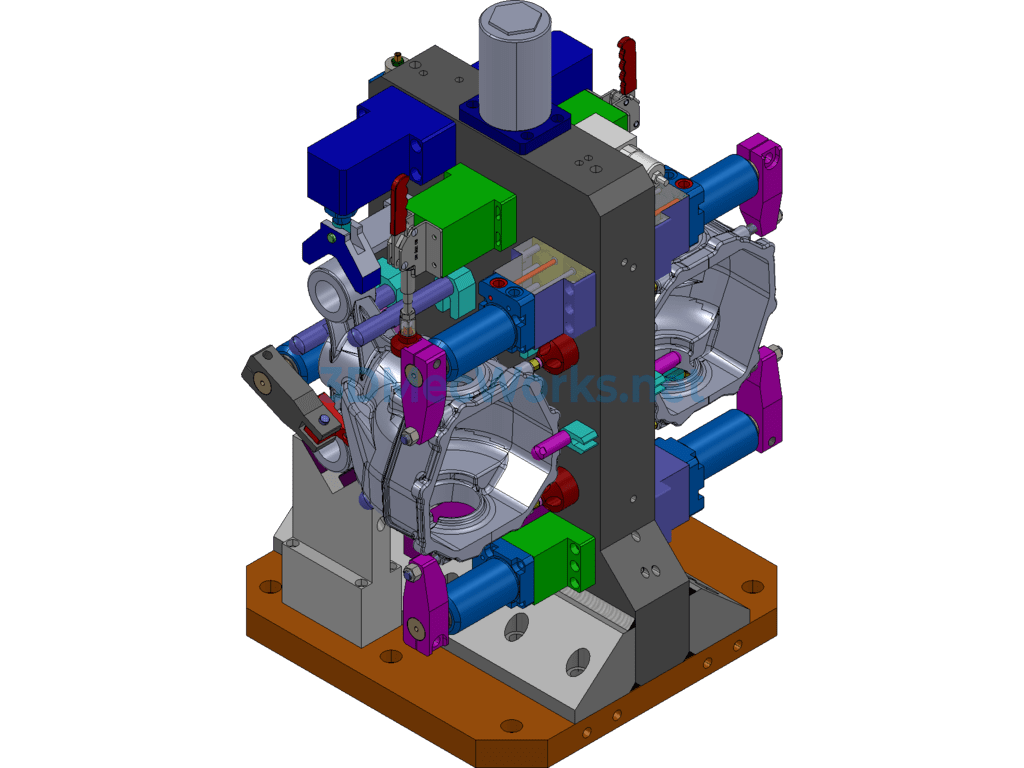

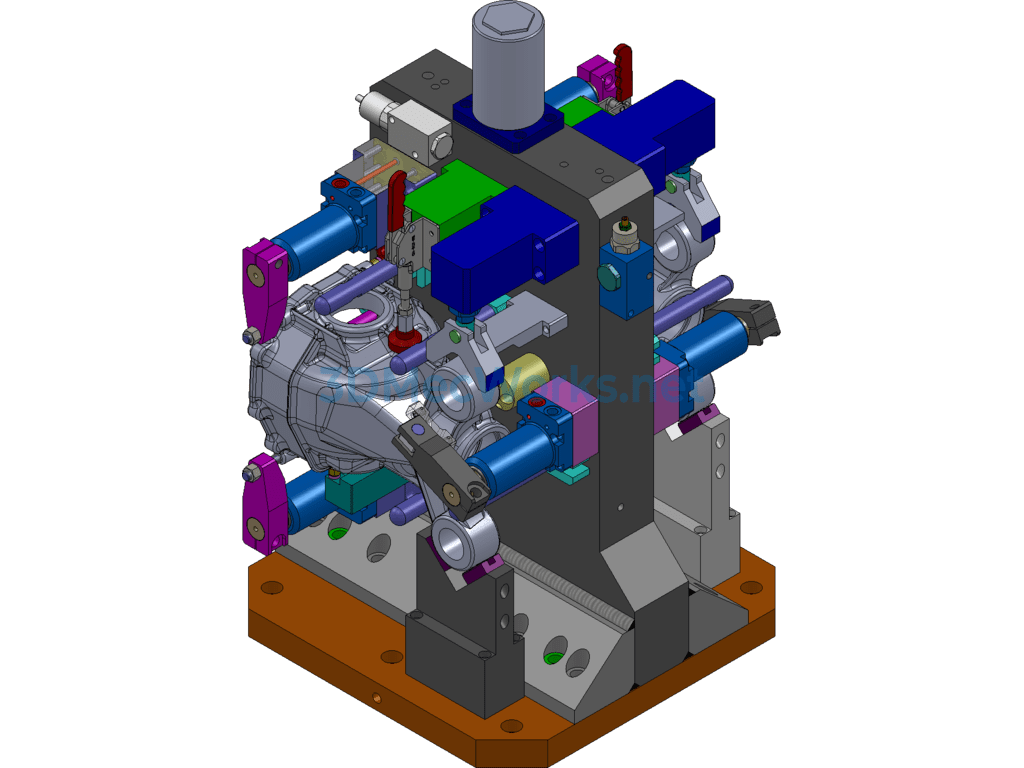

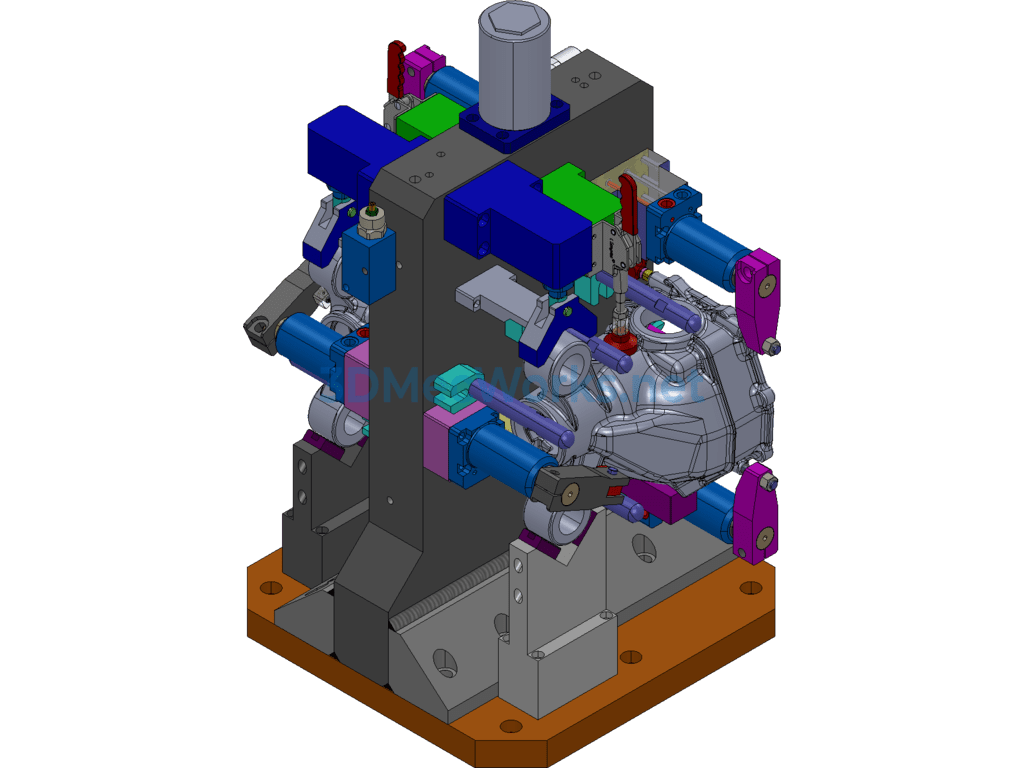

3D model of dual station hydraulic fixture designed in SW, very detailed content, including assembly, parts, purchased parts, and oil circuit, can be opened in SW2012 or later, with STEP format attached. The content of this equipment is relatively complex, but it’s easier to learn the positioning significance of fixture tooling. This fixture is positioned by positioning pins and clamped by hydraulic cylinders and toggle clamps.
Specification: Dual-Station Hydraulic Fixture for Housing
|
