Drilling Rig Control Panel

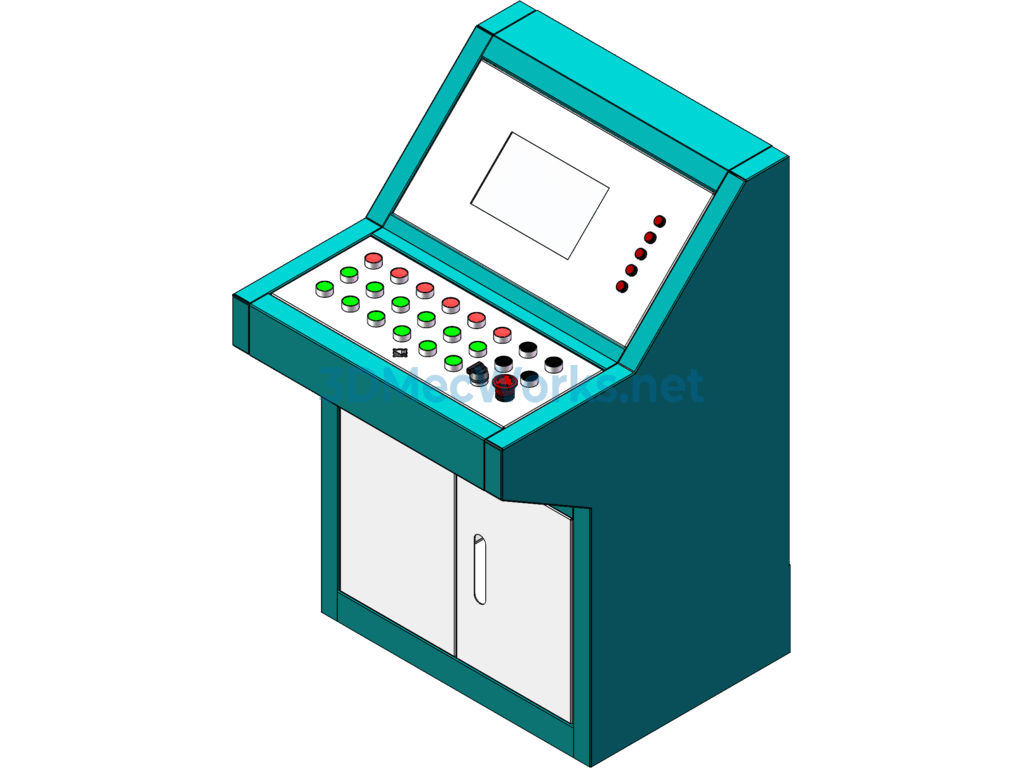

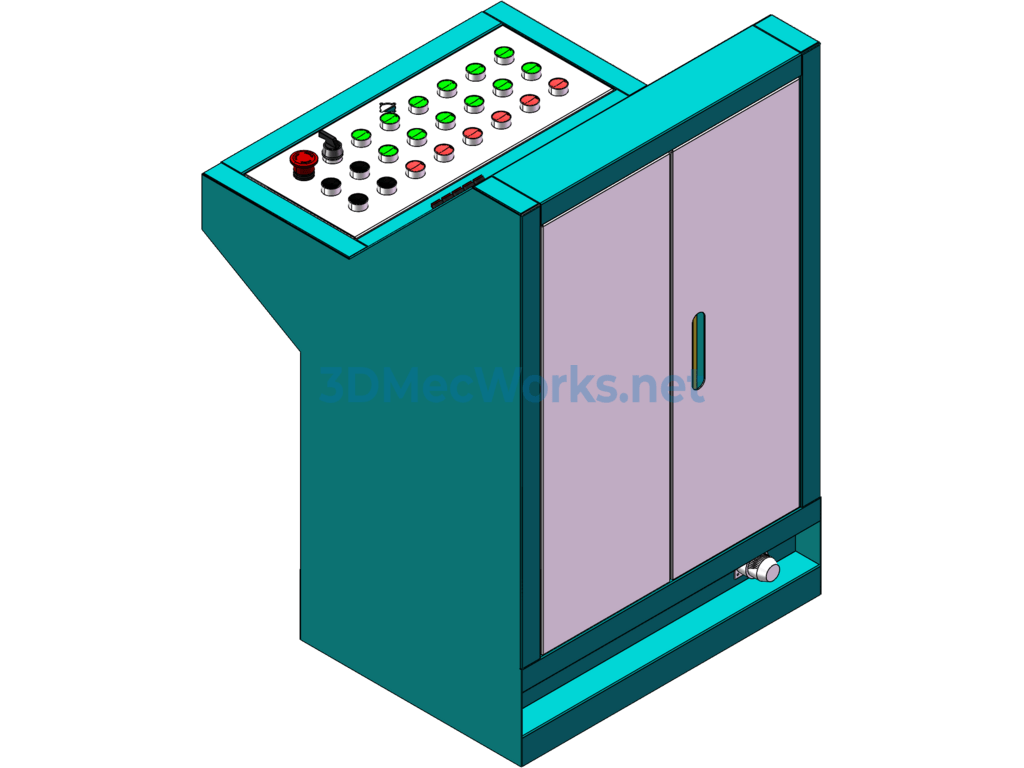

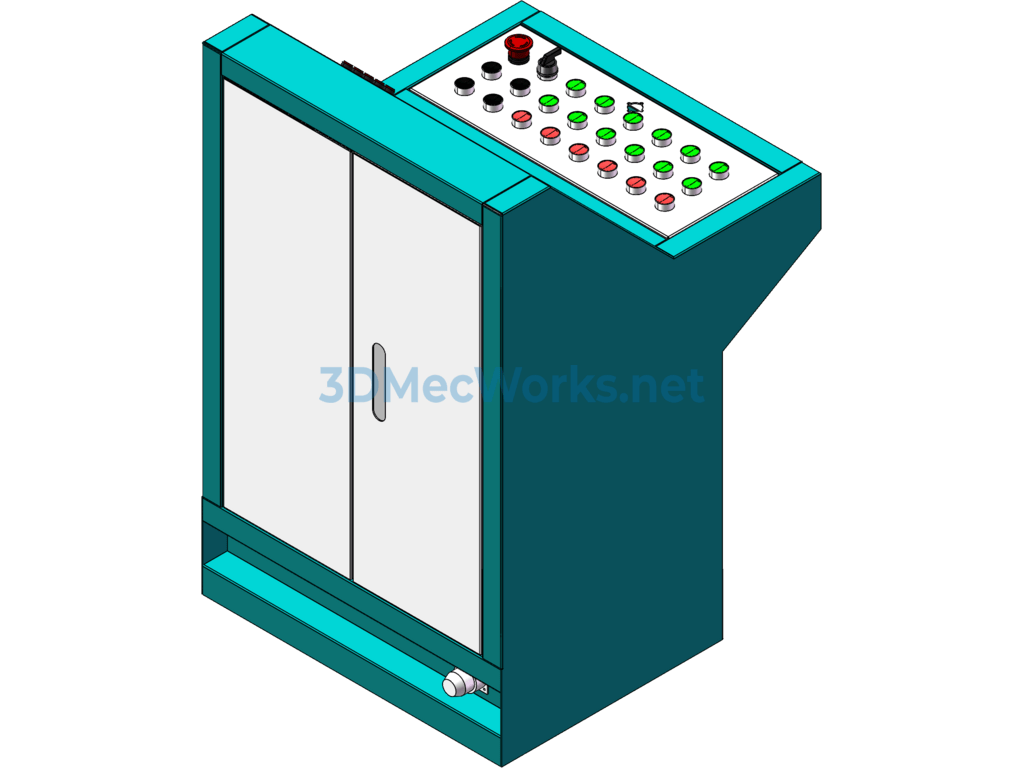

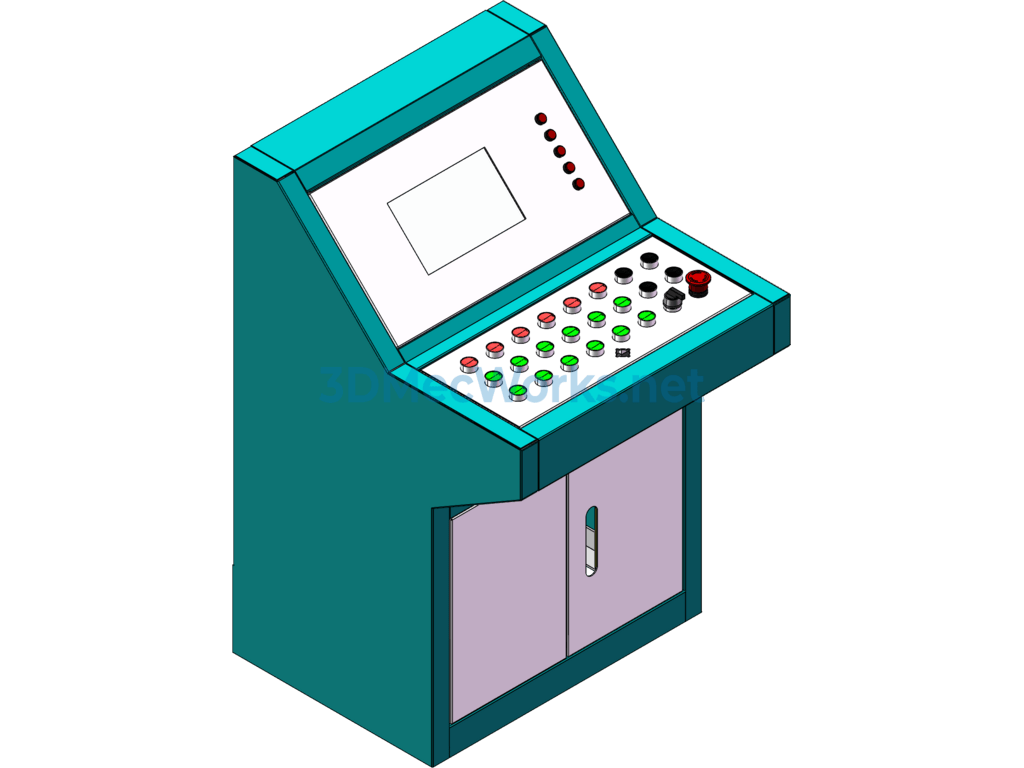

Drill Rig Control Console: This model is created using SolidWorks 2014, with parameters that can be edited. It is suitable for use in underground coal mines. The console can be edited independently, with a height of 1200 and two doors at both the front and back. The display screen is placed separately in an independent box. It is mounted at the back of the console and secured with bolts. The panel is equipped with buttons and knobs, including an emergency stop control. If interested, feel free to download and study it.
