Drawing of Turntable Stacking, Loading, and Unloading Mechanism (magnetic Tile Storage Component)

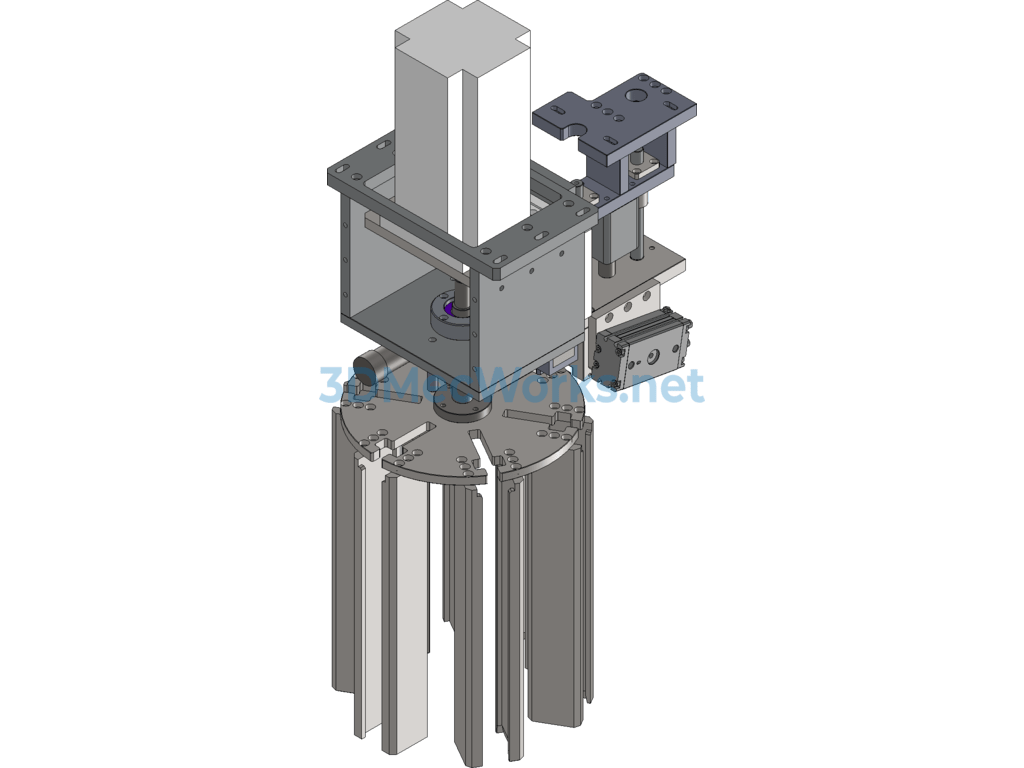

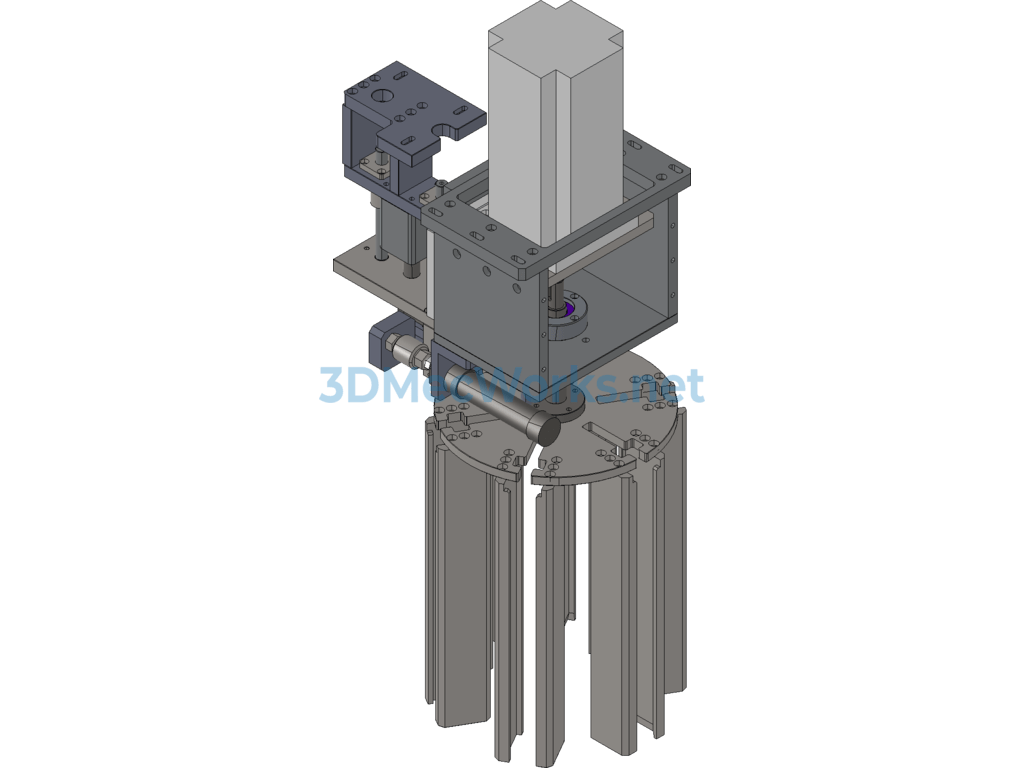

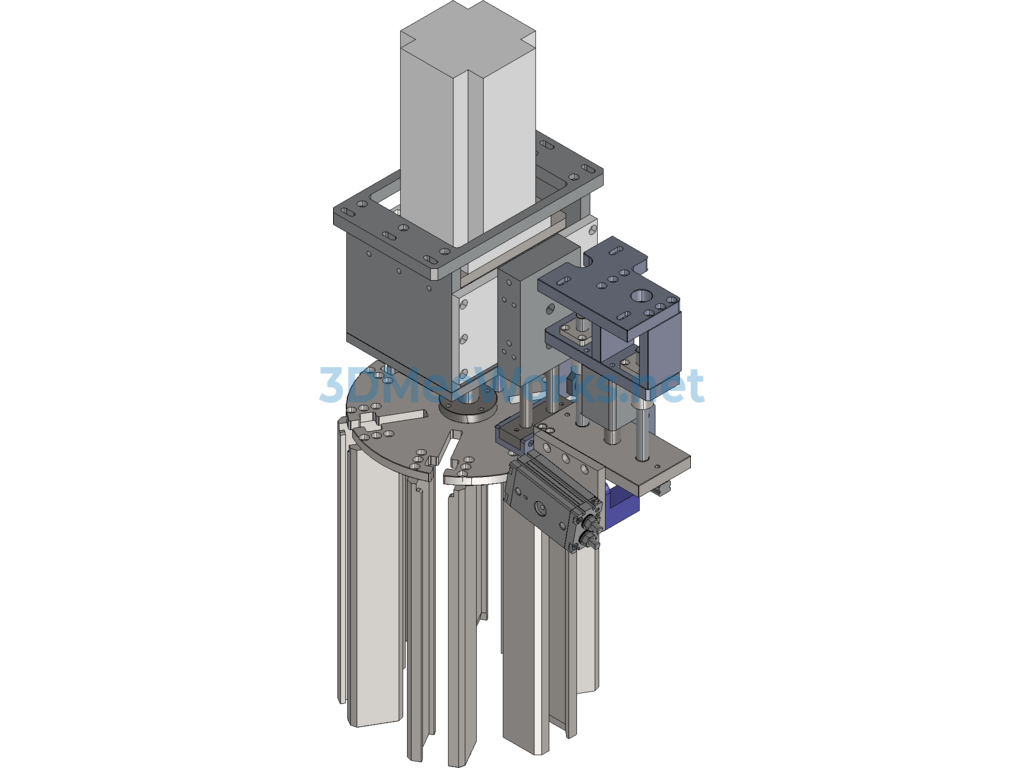

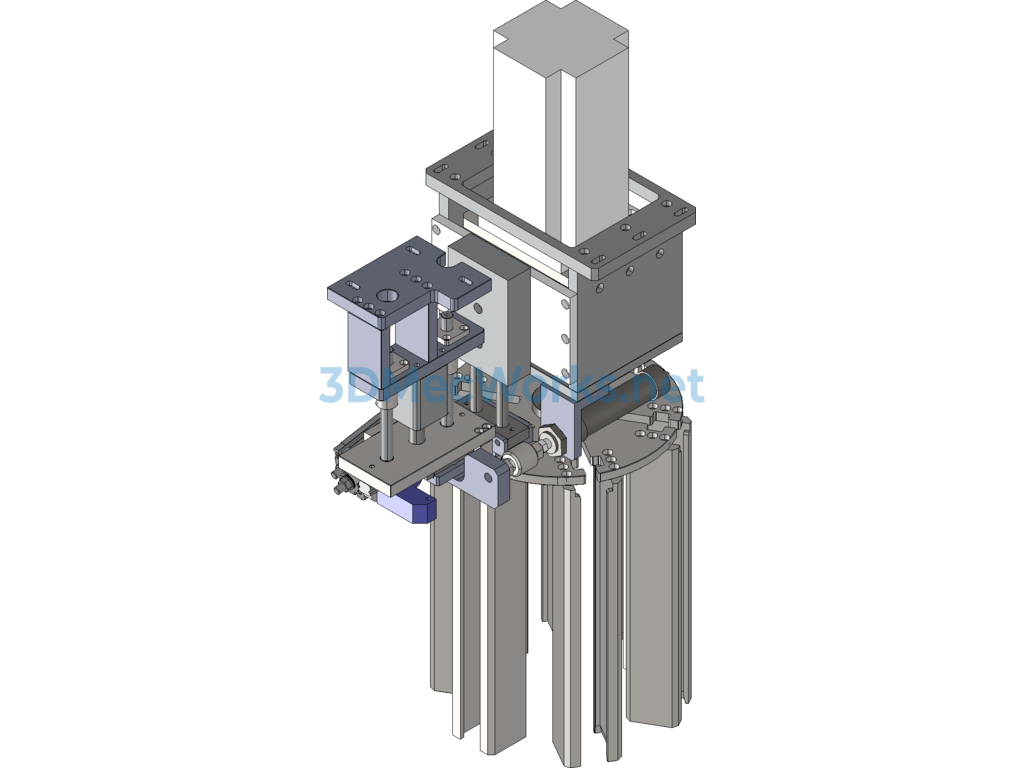

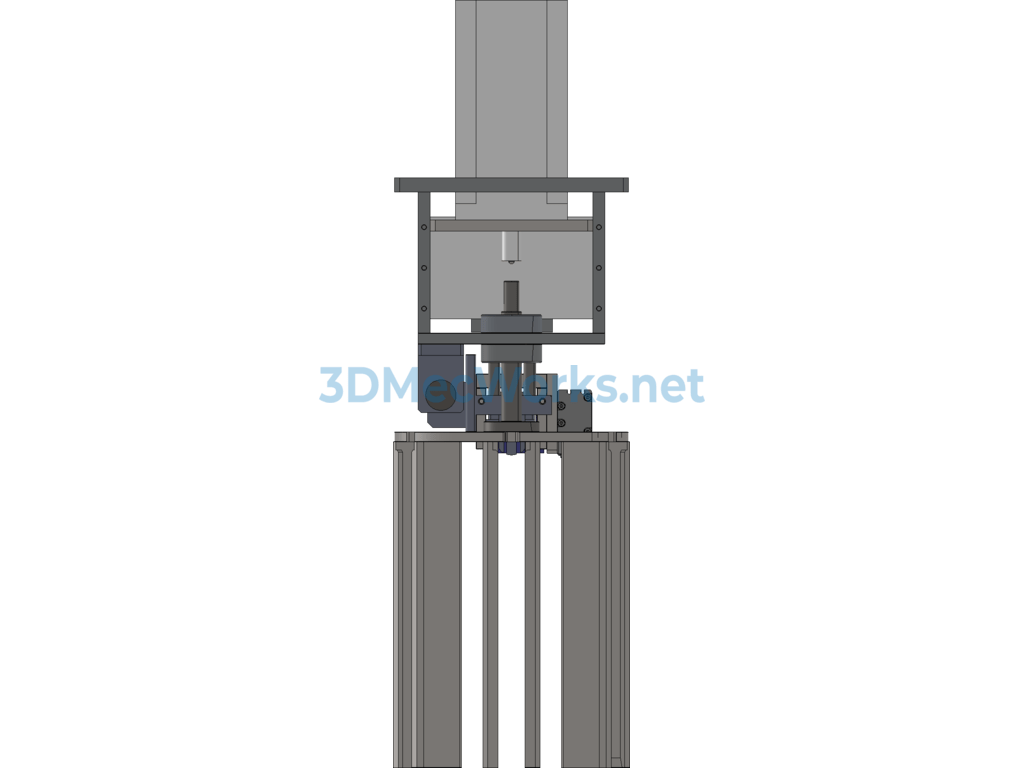

Design Drawings of Rotary Disc Stacking Loading and Unloading Mechanism with SolidWorks2013 (Magnetic Tile Storage Component) This is a set of drawings for a rotary disc stacking, loading, rotating, distributing, and unloading mechanism. The structure mainly embodies the method of loading using a rotating image to process and fixture the products needing machining, feeding them in the form of rotary disc rotation. When one stack is depleted, the rotary disc will rotate again to bring another stack over. It is worth mentioning that after distribution, the products come out from the rotary disc, and through an external rotating cylinder, the products are reoriented, enabling the manipulator to better grasp the products and move them to another assembly location. Welcome everyone to download and learn.
