Double-sided Tape Applicator Machine, Automatic High-temperature Adhesive Tape Machine Equipment

Double-sided Tape Applicator Machine, Automatic High-Temperature Tape Applicator Equipment, 3D Model of High-Temperature Tape and Double-sided Tape Universal Machine Designed in SW with Editable Parameters.

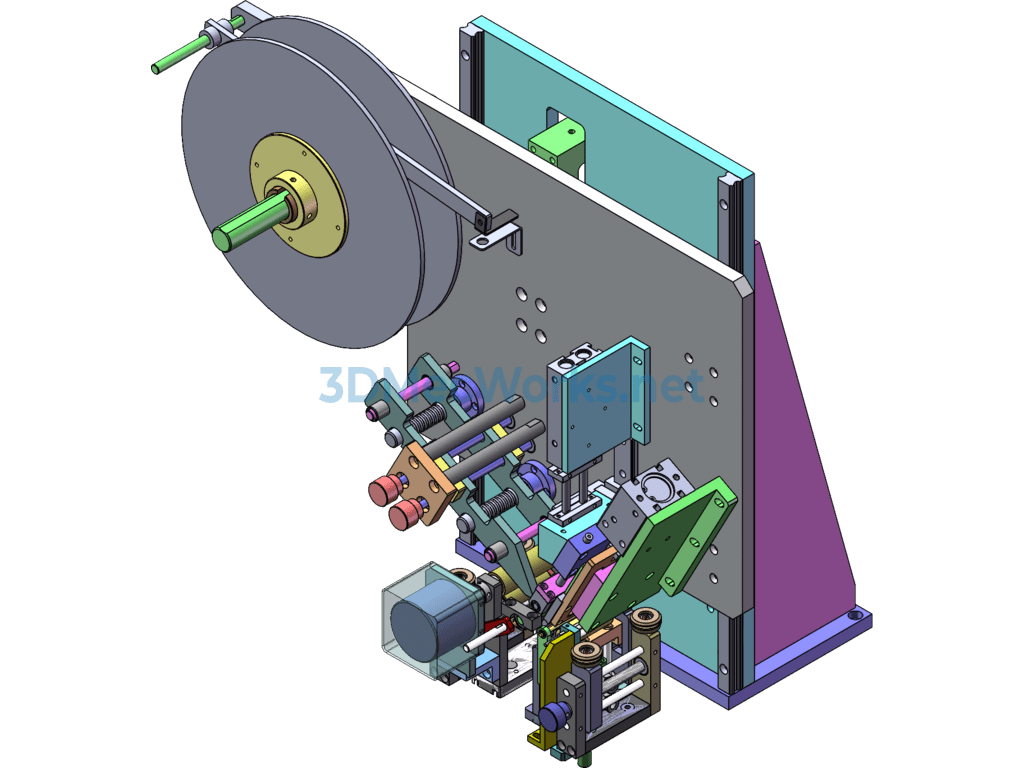

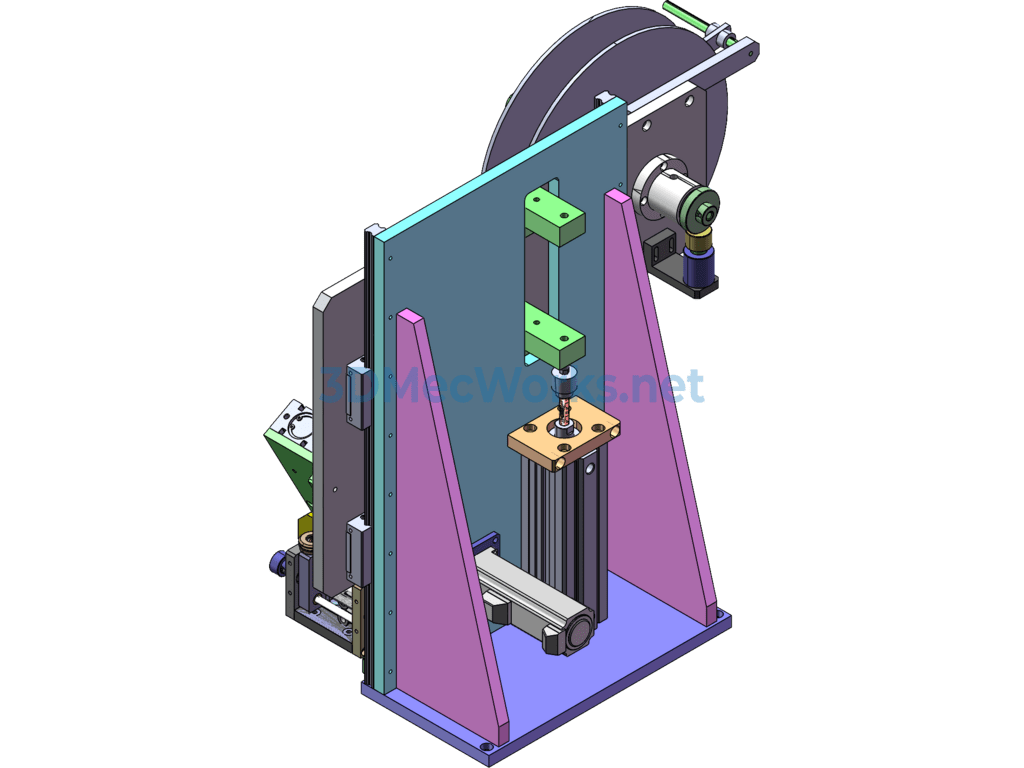

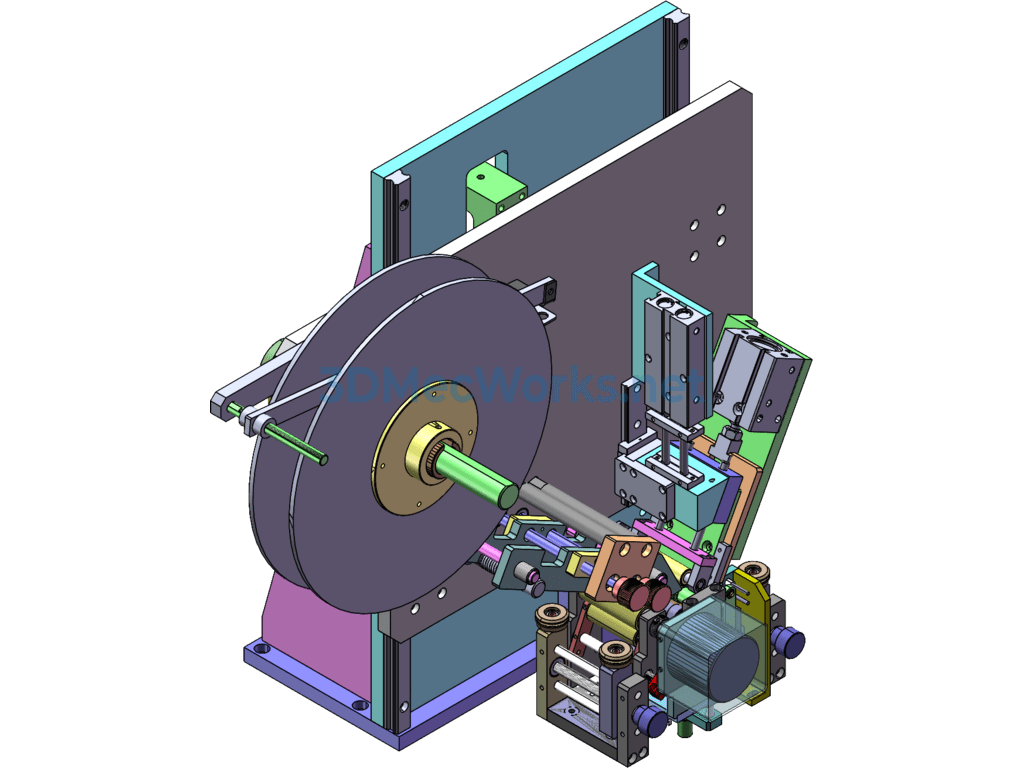

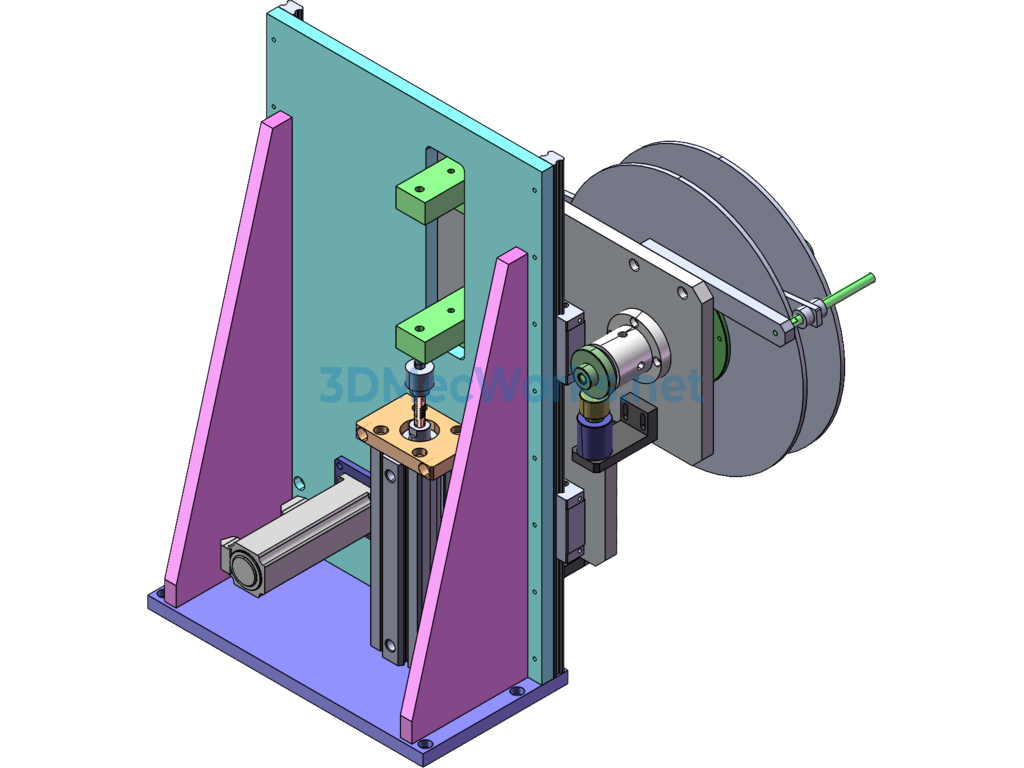

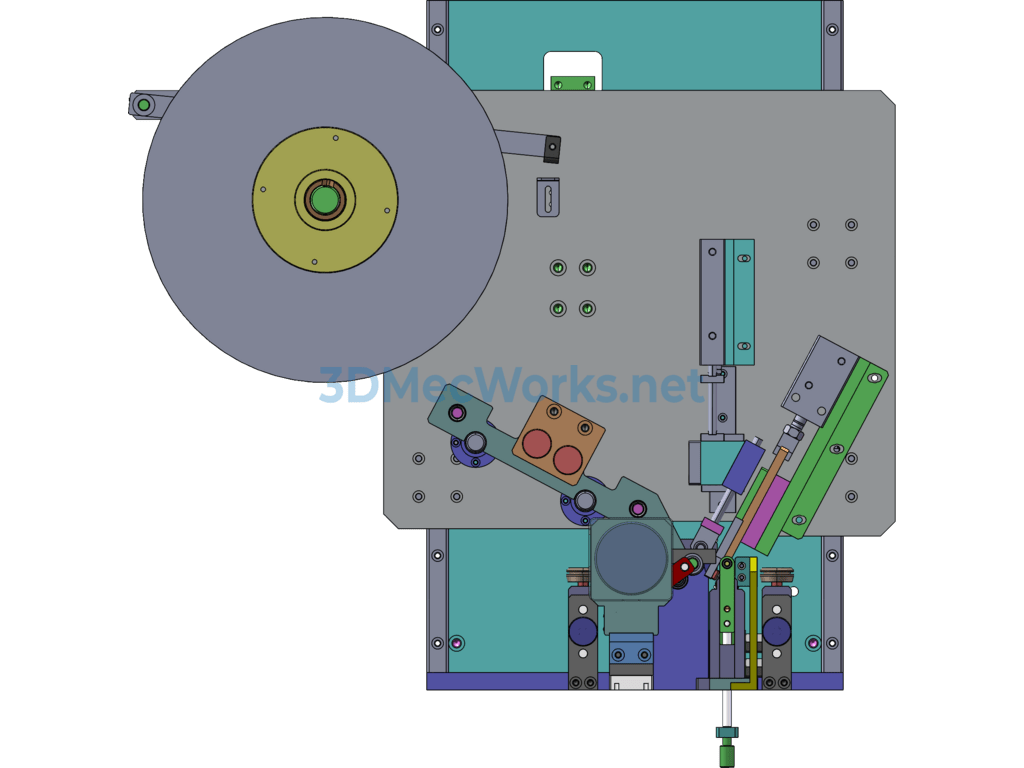

Double-sided Tape Machine Structural Diagram – A complete set of automatic double-sided high-temperature tape applicator structure diagram, featuring the application of tape, tape feeding, adhesive application, and cutter components. This equipment is primarily mounted on a machine base for the automation of applying double-sided or other transparent and high-temperature tapes. The circular chuck at the front is designed to hold the tape, accommodating tapes of varying sizes. This set of structures is currently used for applying double-sided tape to FFC and FPC flexible circuits. After application, the tape is automatically cut to achieve unmanned operation. We welcome those interested in this structure to download and study it. Thank you.
