Double-Layer Loading and Unloading Device

0
Sold by
MrBlue
@ MrBlue
[mecworks-btn]

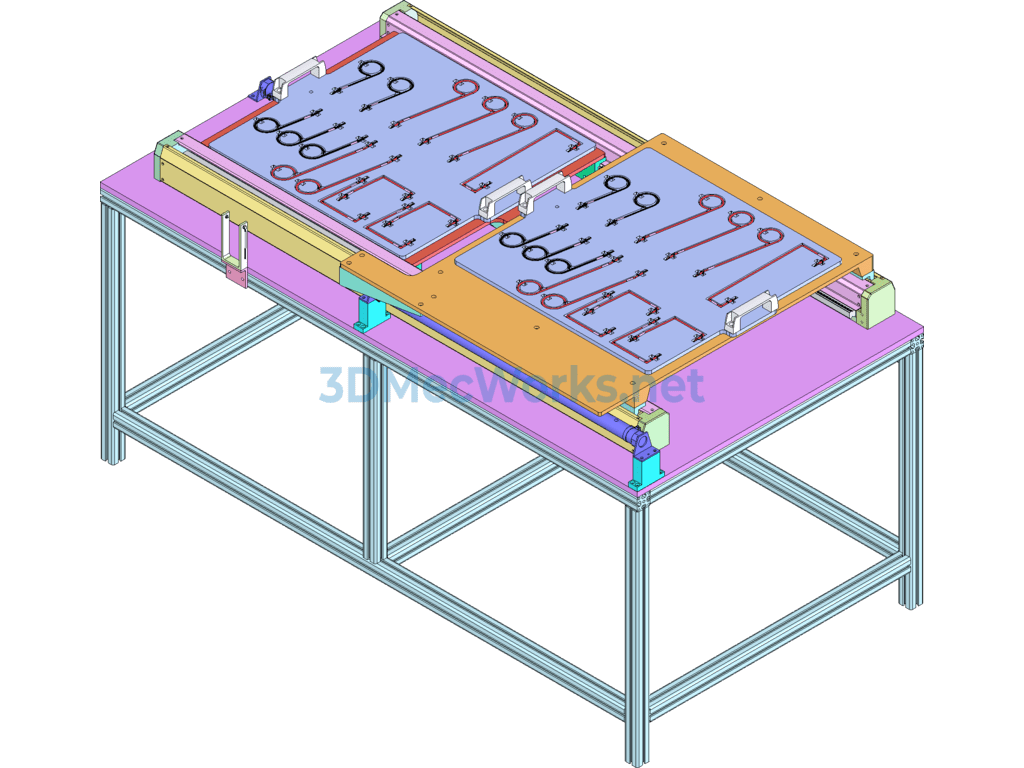

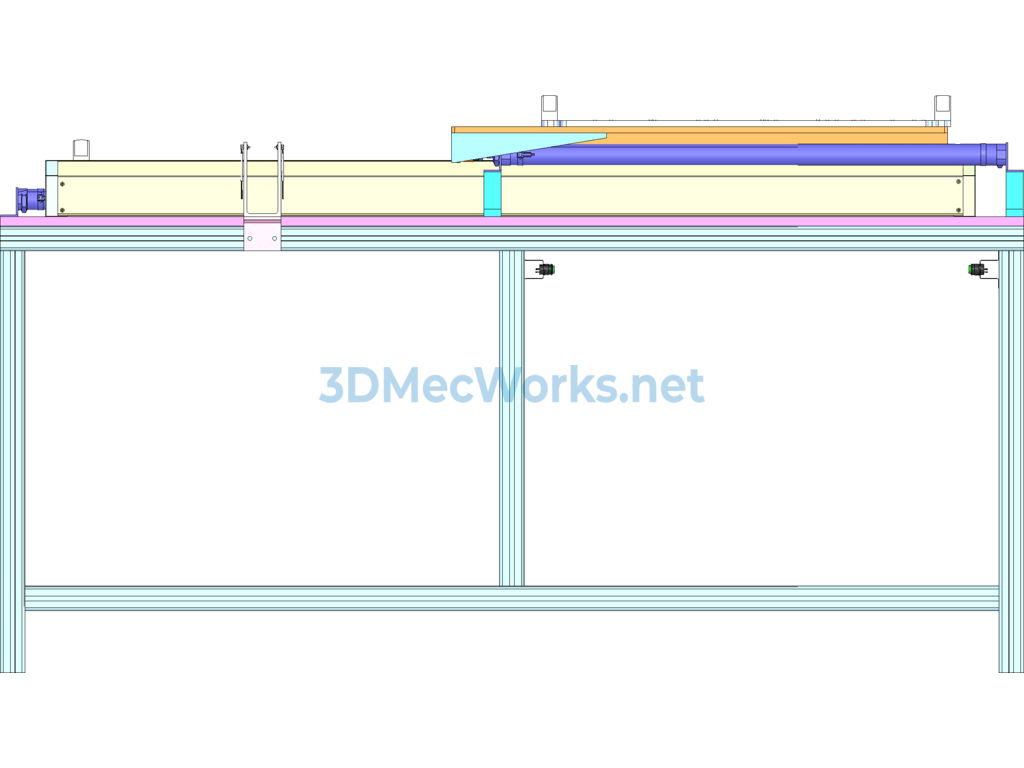

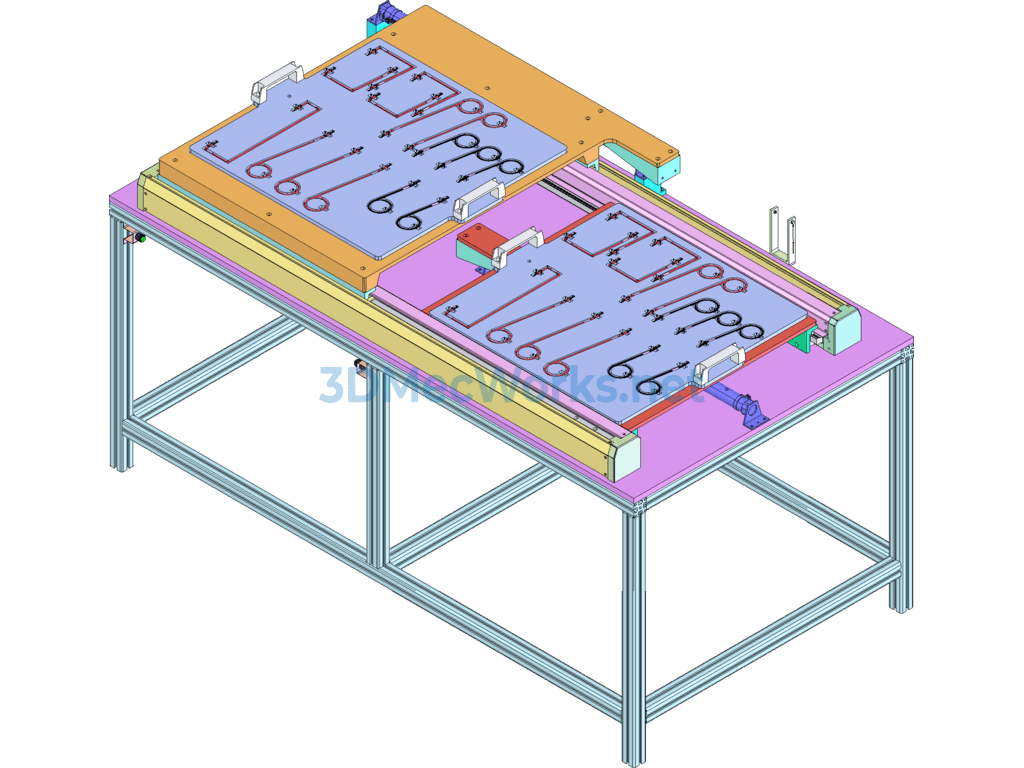

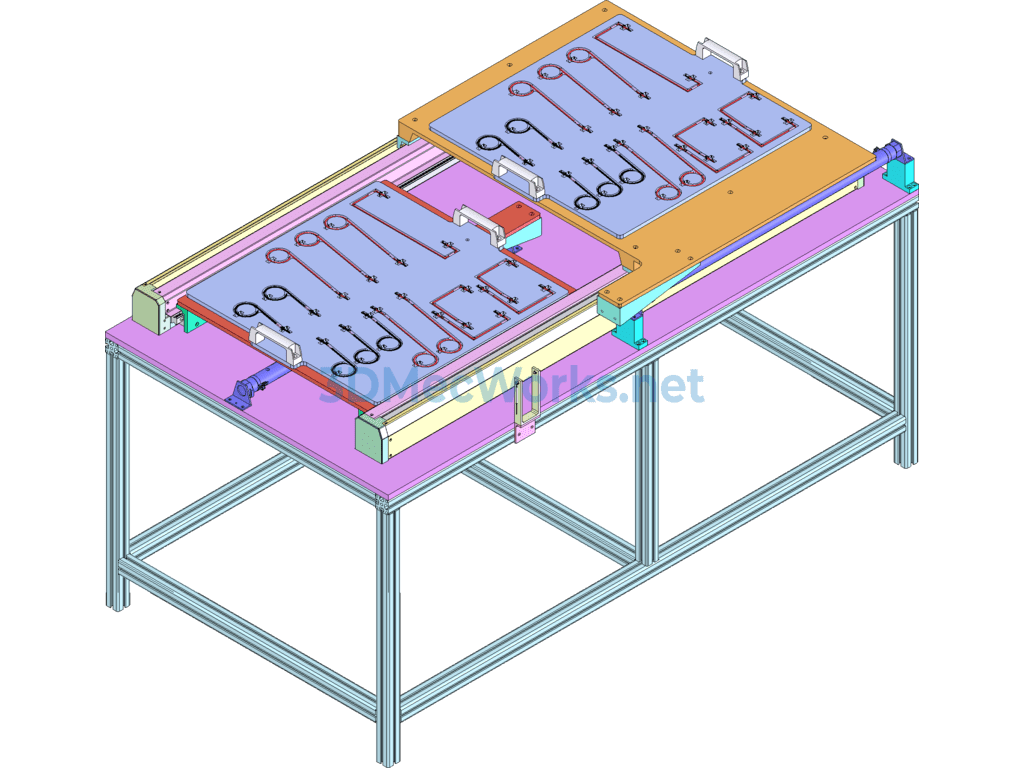

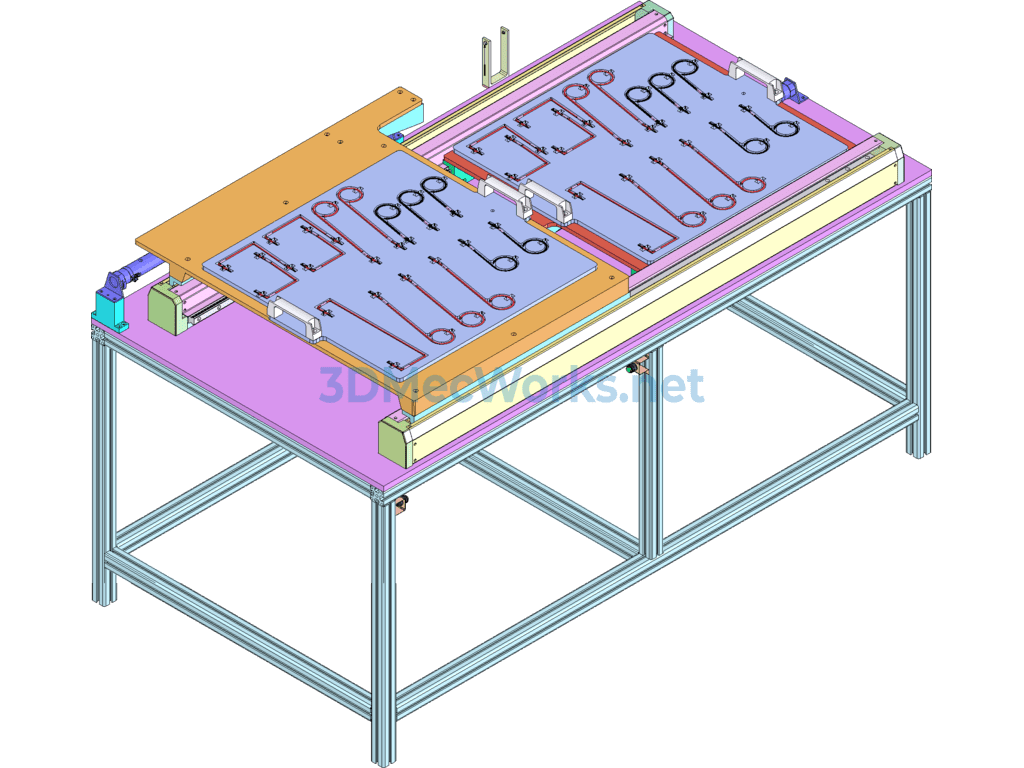

The device mainly consists of a main table, pushing cylinder assembly, double-layer sliding table assembly, and loading tooling assembly. The guide rails are placed on the top and side of the guide seat, and the two cylinders respectively push the loading and unloading assemblies. This enables a double-layer opposite motion, meaning that while one side is loading, the other side is unloading, thus improving production efficiency. It includes STEP and IGS formats, and the drawings can be edited and modified.

Specification: Double-Layer Loading and Unloading Device
