Double-Layer Chain Conveyor Line

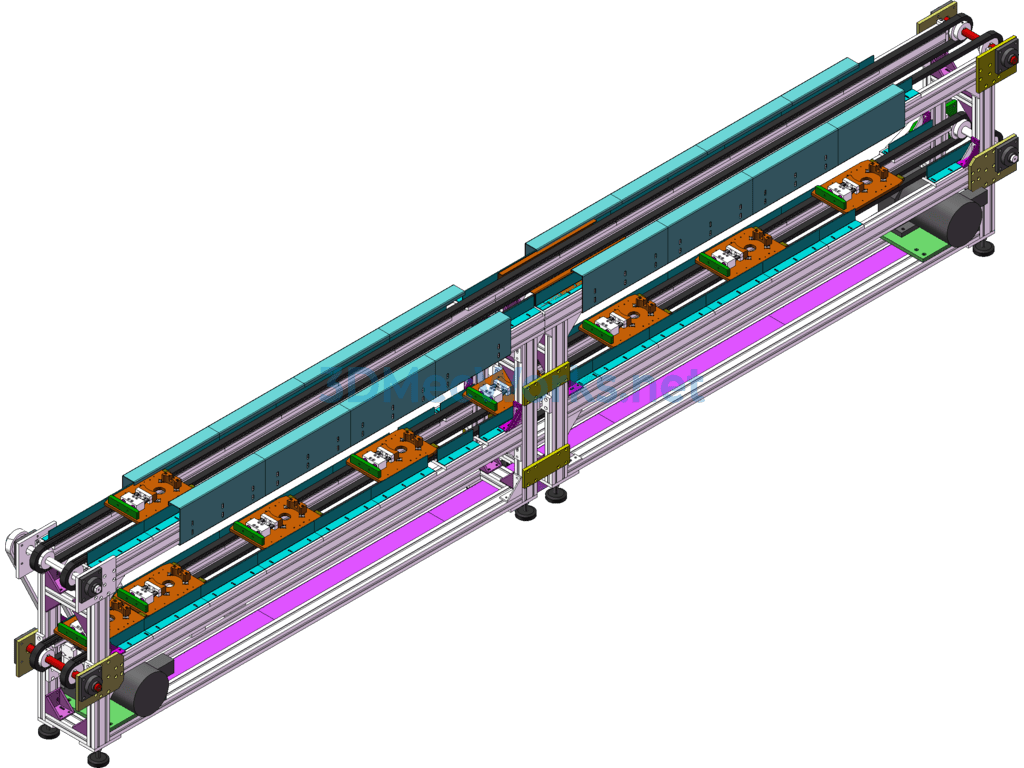

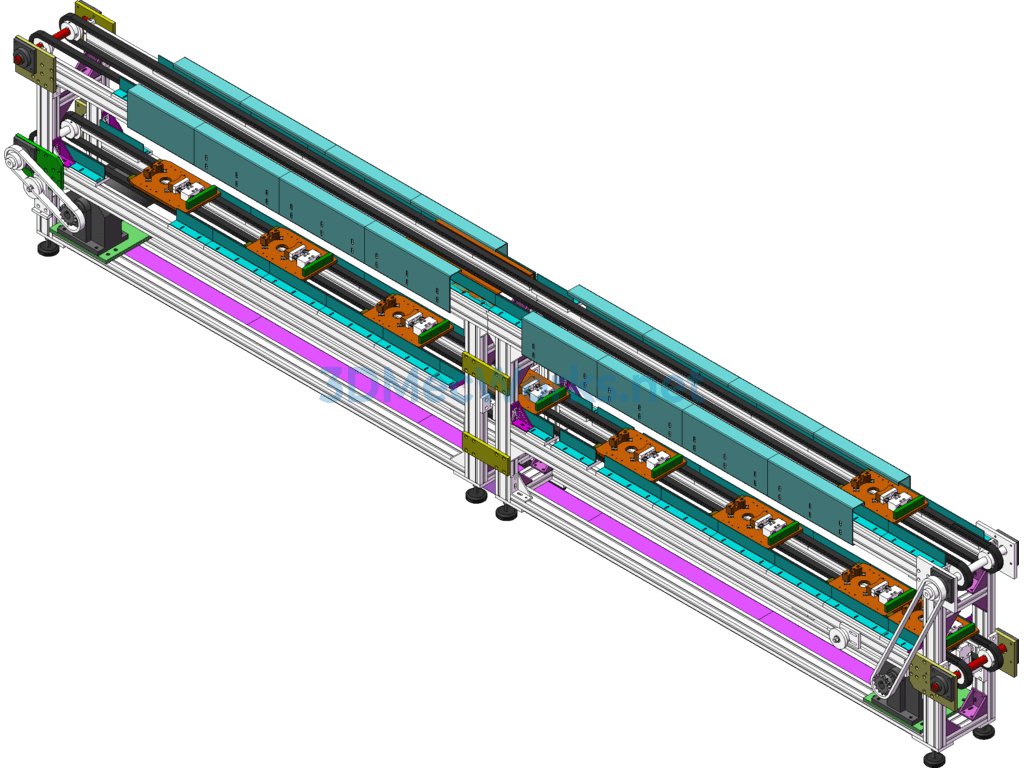

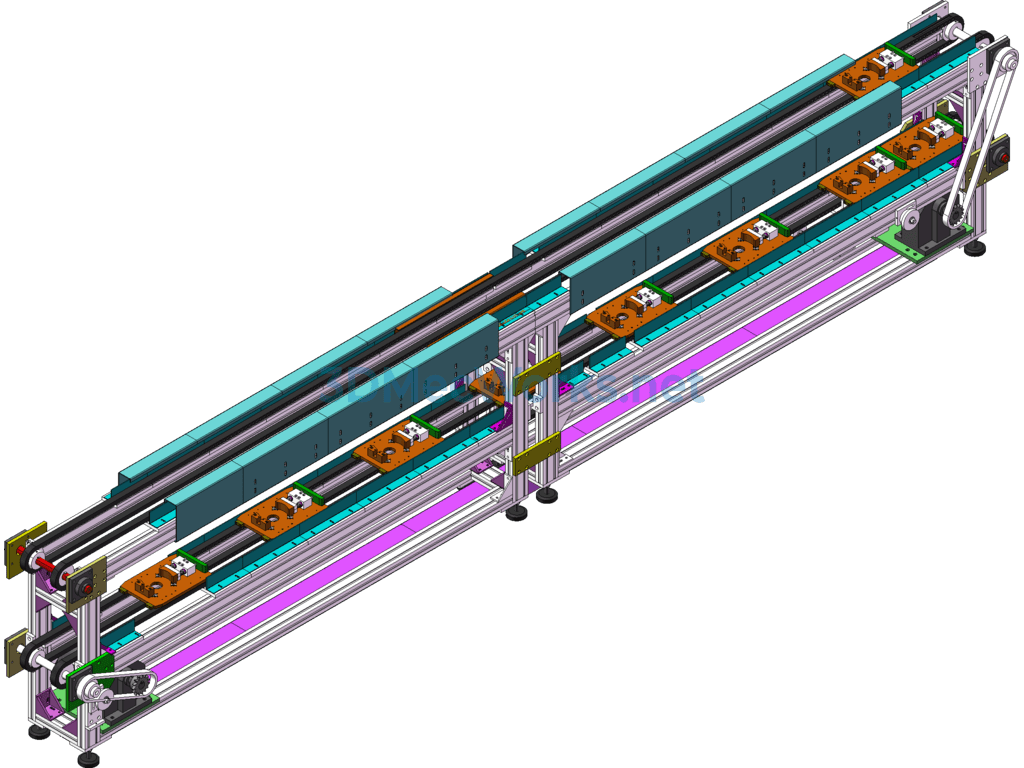

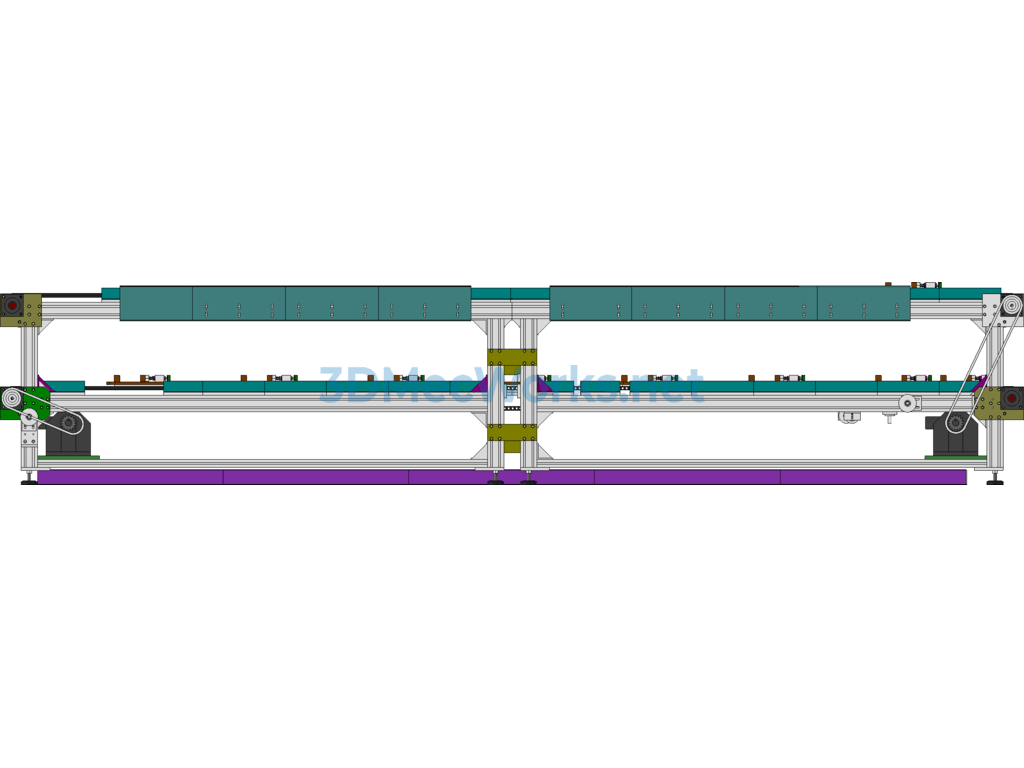

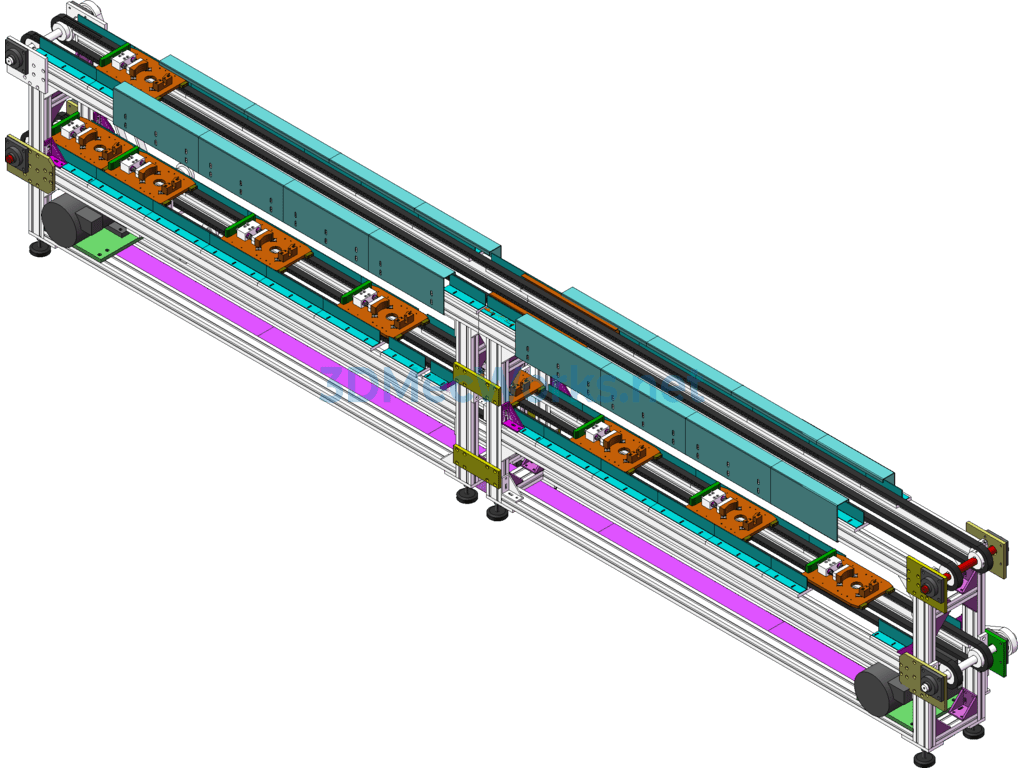

A set of double-layer conveyor belt drawings, double-layer carrier flow board circulating conveyor. This production line is an automatic carrier conveying line for non-standard equipment. Each end is driven by a 1.0KW motor to transmit the line body. The carrier board is continuously cycled on the production line. The frame is an aluminum profile structure for easy assembly. The overall design is compact, with a total length of nearly 10 meters. It can be used to create an unmanned automated production line at the back end of the production line. Friends who like this set of double-chain carrier conveyor line drawings can download it for study.
