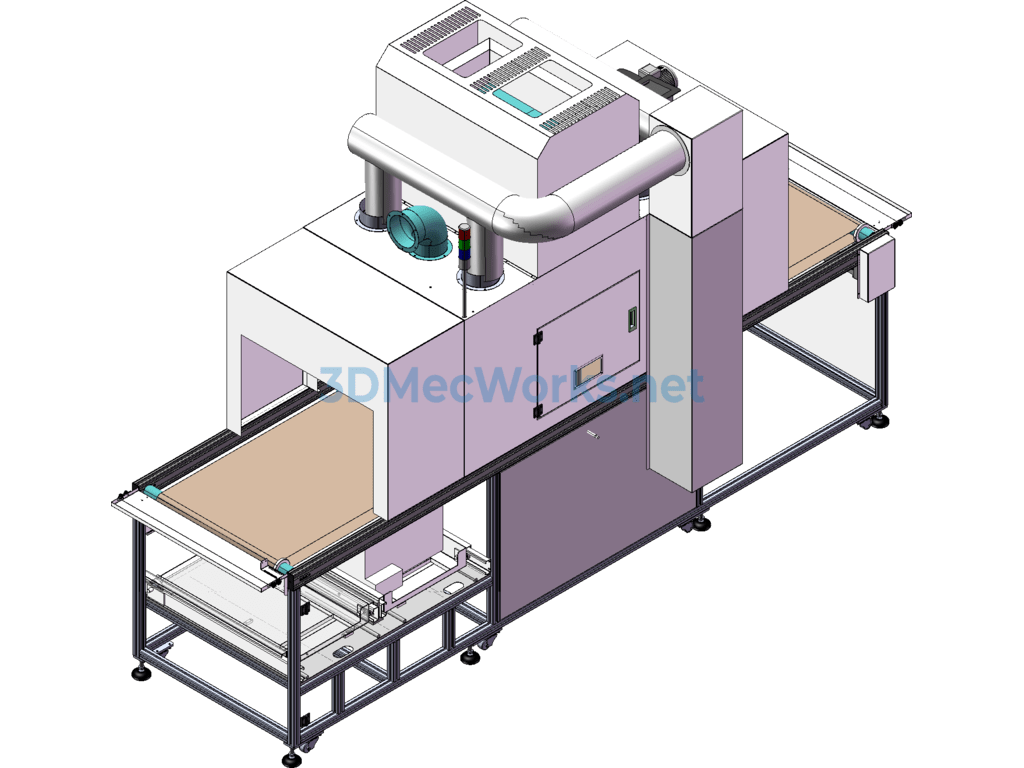

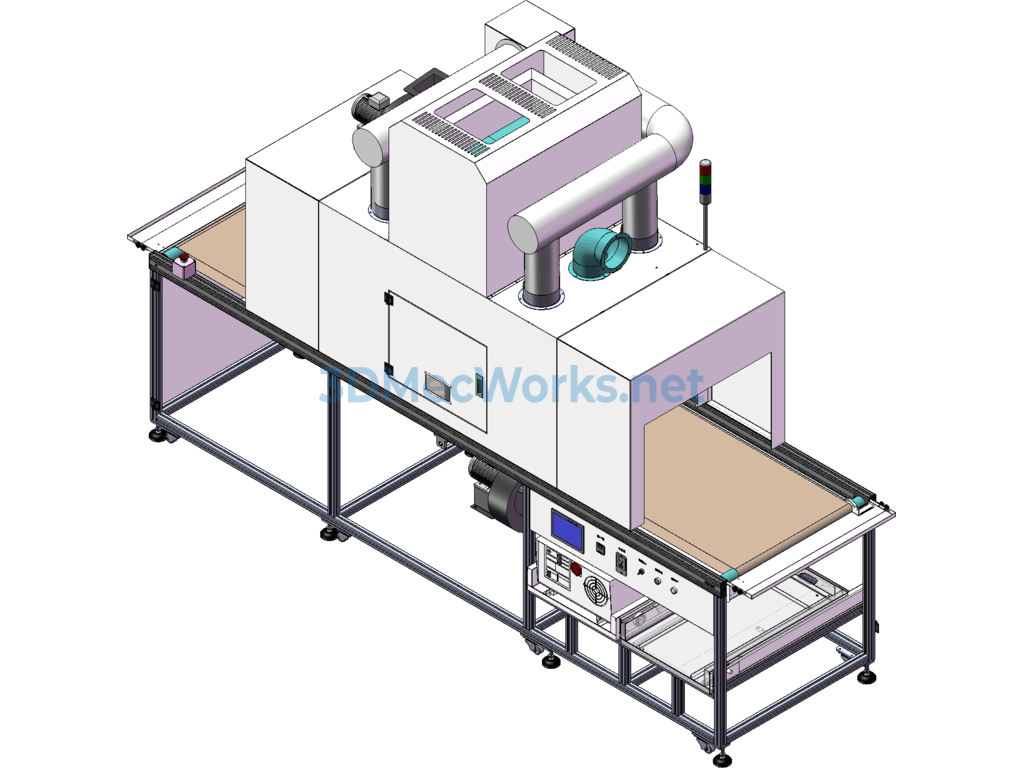

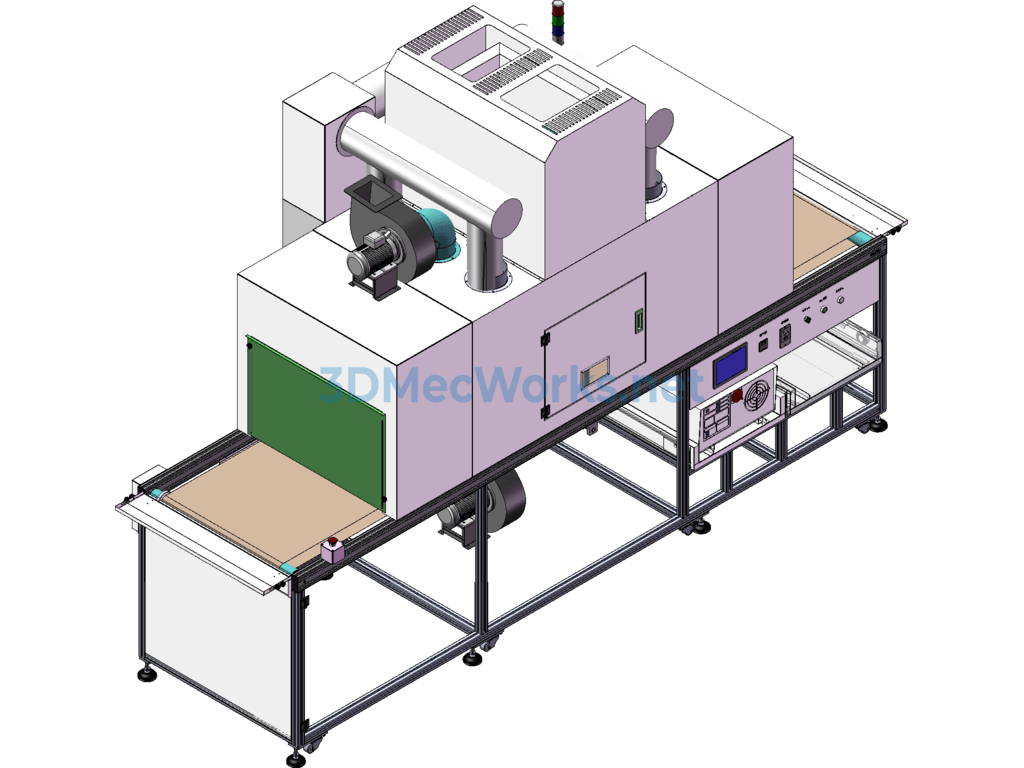

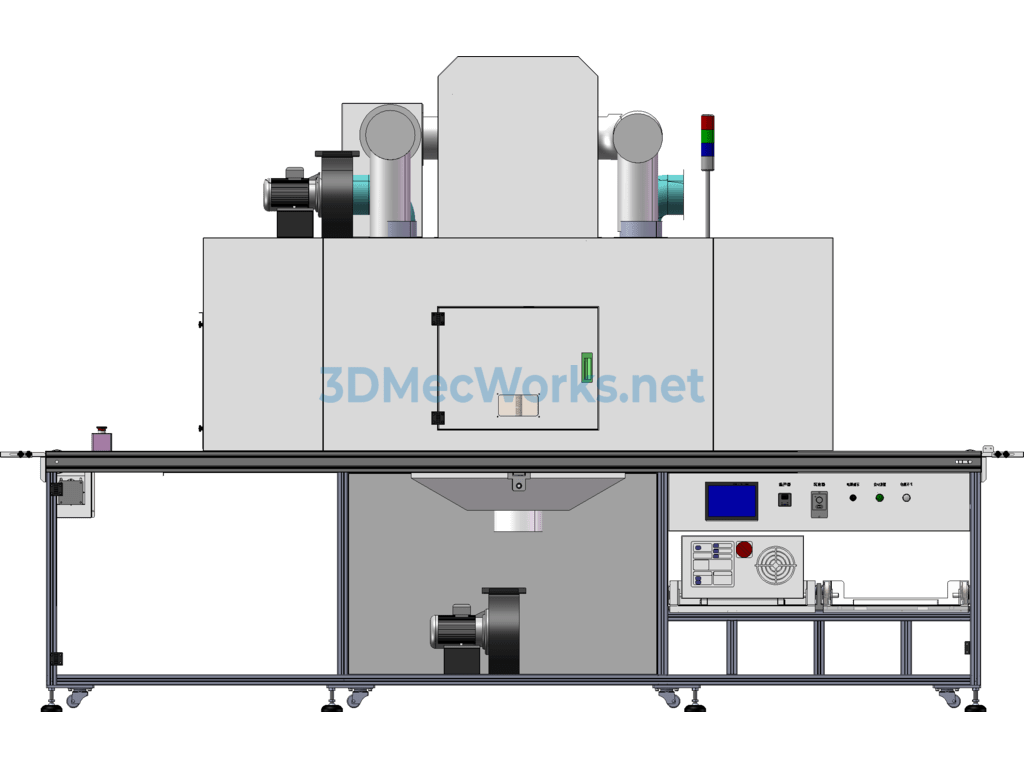

Double-Lamp Uv Machine, Uv Curing Machine – Built-In Air Cooling Model (including Complete Set of Engineering Drawings)

This UV curing machine is specifically designed for processes like UV irradiation curing on surfaces such as mobile phone screen glass, which converts ordinary glass into the screens of mobile phones, tablets, and touch panels used in daily life. Therefore, this equipment is a UV exposure machine model. Equipment Features: Composed of a conveyor belt, UV exposure area, UV curing components, and automatic cooling. The adjustment frame quickly positions the workpiece. The conveyor belt delivers the workpiece to the UV lamp exposure area to start the UV curing process; 2 groups of UV lamps work simultaneously to quickly complete the UV curing operation; The UV components carry out the final curing on the positioned glass; An automatic conveyor chain delivers it out. ［Checkmark icon］ Equipment is composed of a conveyor belt, UV curing furnace, UV lamp group, lamp cover, etc. ［Checkmark icon］ The adjustment frame quickly positions the workpiece. ［Checkmark icon］ The conveyor belt sends glass workpieces into the furnace for curing. The UV lamp group conducts the final curing on the glass to be cured. External dimensions: 6600x800x1850 (LxWxH) ［Checkmark icon］ Voltage: 380V 50HZ Logistics speed: 0 ~ 200MM/S (Stepless speed adjustable, recommended 120MM/S) Equipment Advantages: ［Diamond icon］ Wide product adaptability. ［Diamond icon］ Simple equipment structure, easy maintenance. ［Diamond icon］ User-friendly interface, easy pad adjustment. ［Diamond icon］ Can store 0-99 different programs, allowing easy selection for different products. UV curing machine, mobile glass processing equipment, dual-lamp UV machine. Embedded cooling model containing a complete set of engineering drawings. Please open using SW2013 or later.
