Double Drill Bit Wood Boring Machine

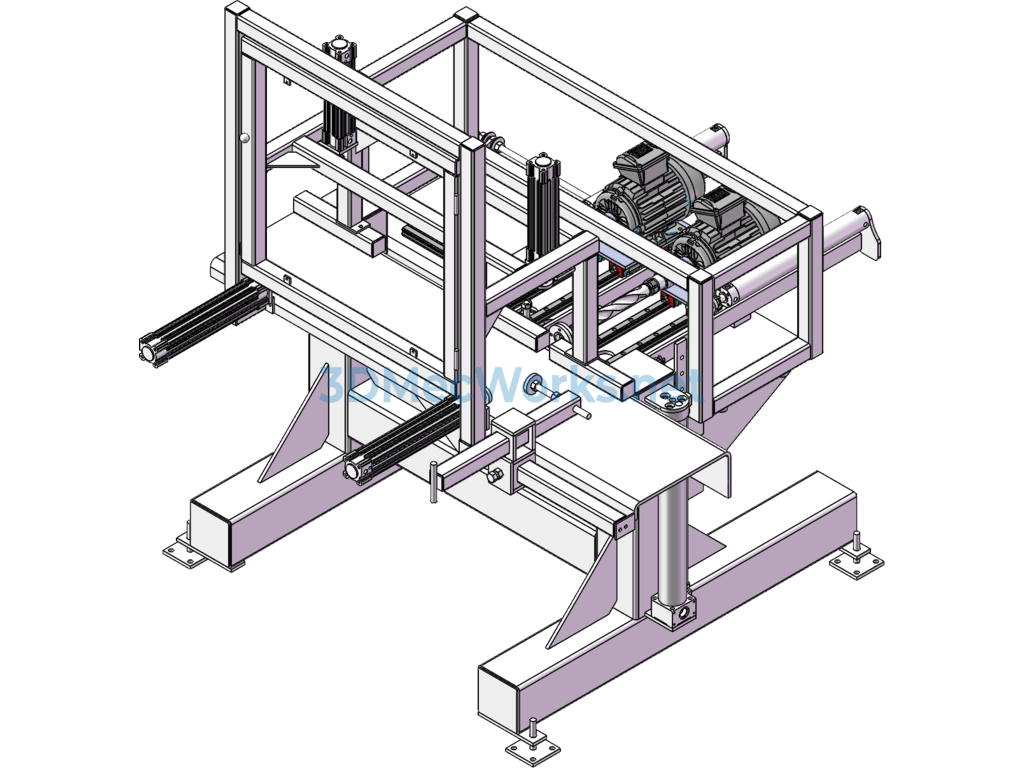

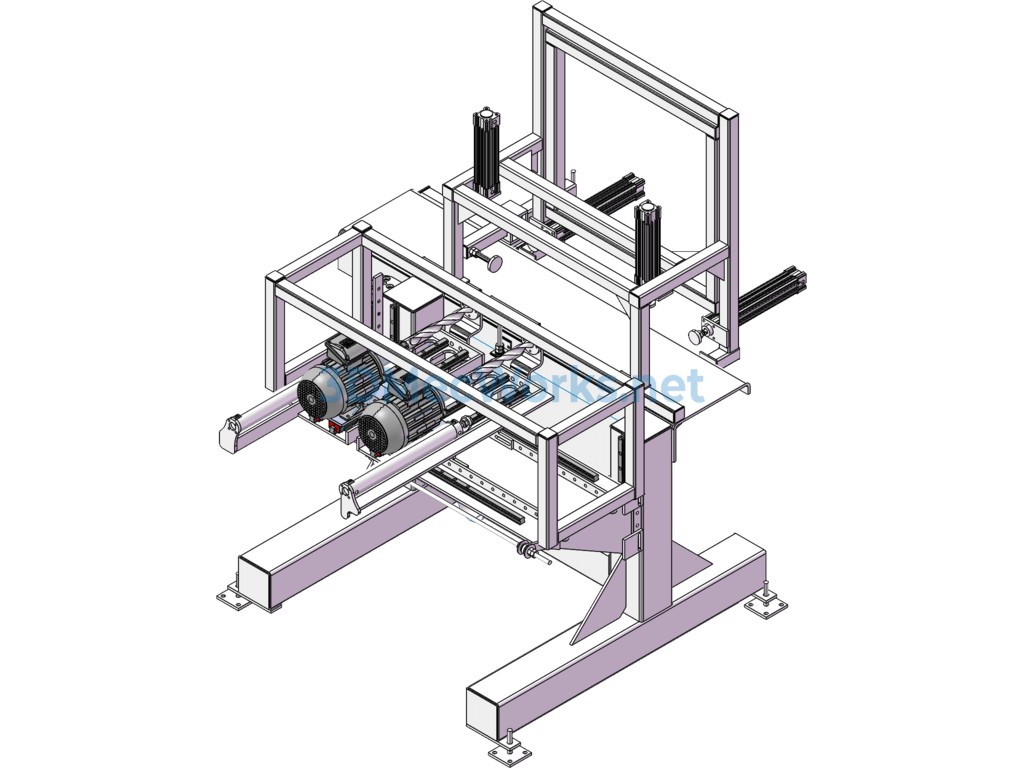

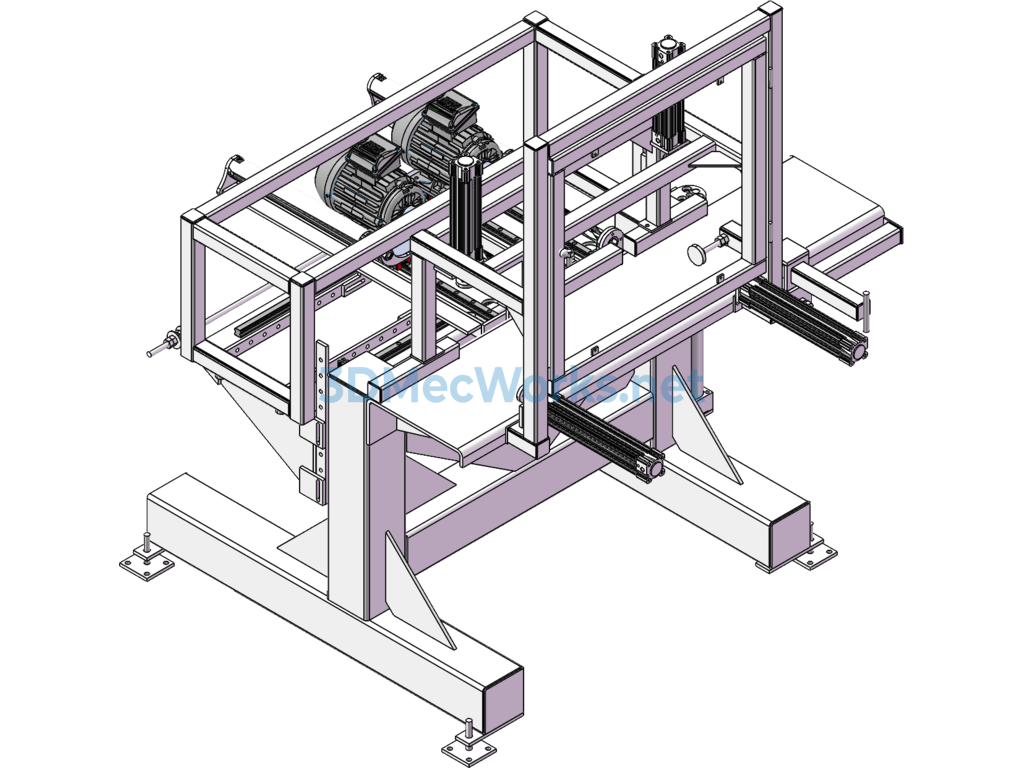

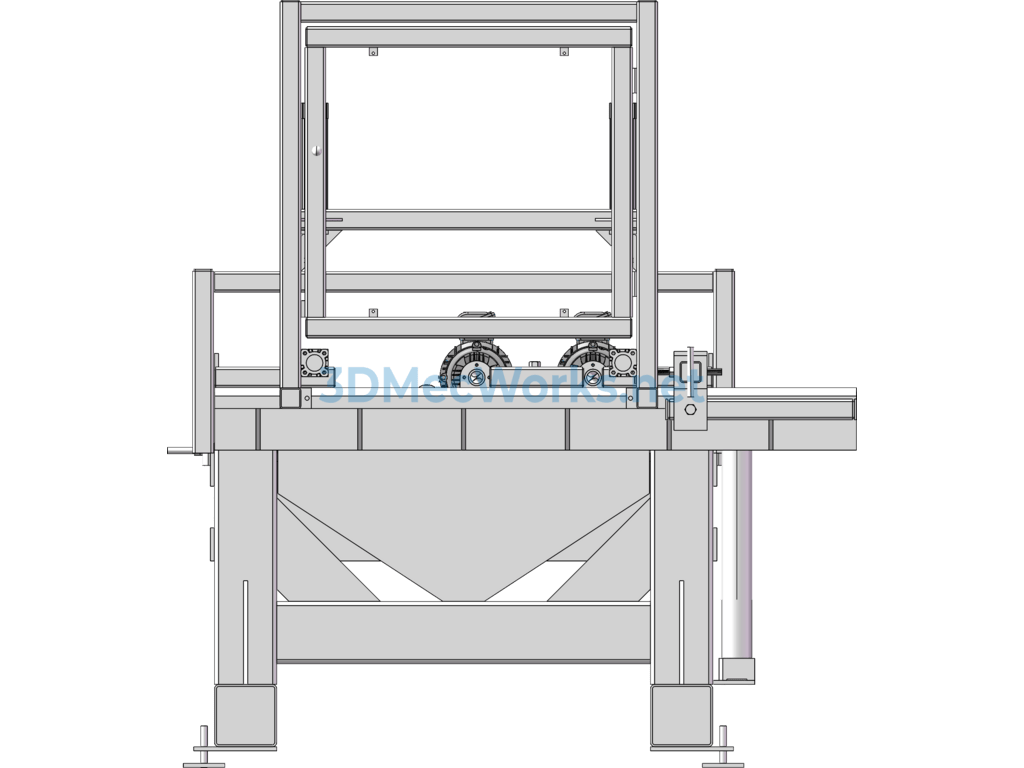

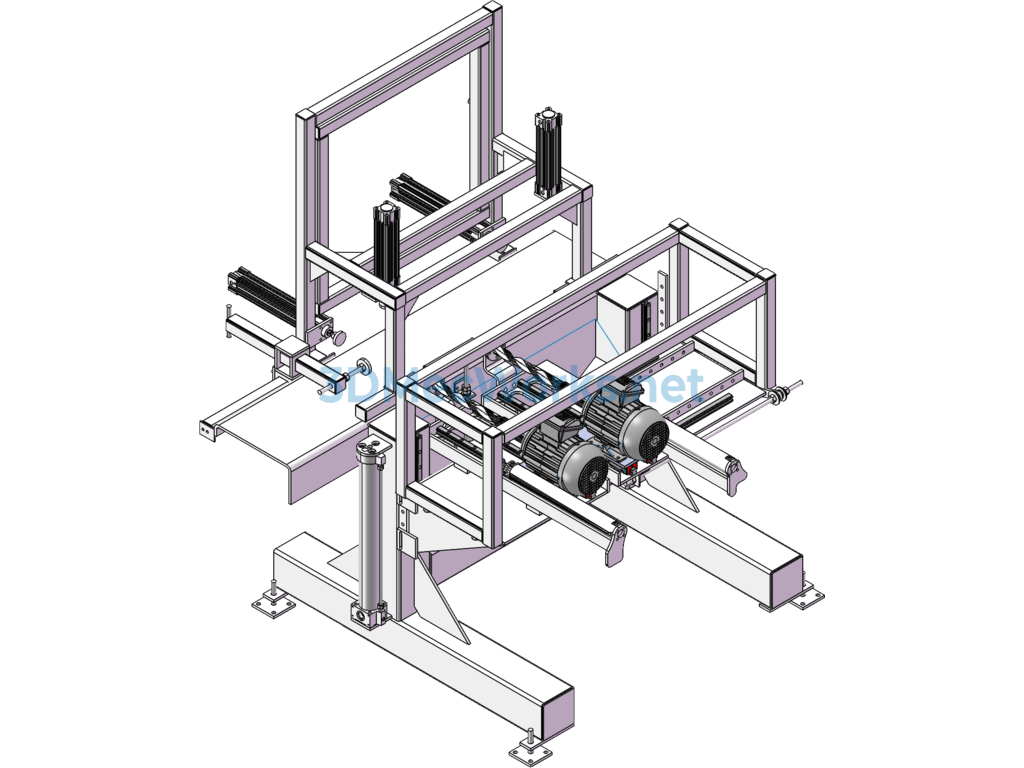

SW-designed double-drill head wood drilling machine 3D model sharing.

This wood drilling machine includes a frame, which is equipped with a workbench, a drilling punch, and a longitudinal driving device. The drilling punch is connected to the frame through a punch fixing device, which includes a hoop structure, bolts, and nuts. The hoop structure consists of an upper hoop plate and a lower hoop plate. These two hoop plates form a semicylindrical shape on the hoop surface, with the punch positioned between them. One end of the two hoop plates is fixed with a hinge, and a fixing piece is set on the other end. Bolts pass sequentially through the two fixing pieces and cooperate with nuts to secure the punch between the hoop plates. A rubber layer is fixed on the clamping surfaces of the upper and lower hoop plates. Longitudinal guides are installed on the frame, and the longitudinal driving device controls the lower hoop plate to slide on the longitudinal guides. The punch fixing device can firmly fix the drilling punch and allows precise longitudinal movement along the frame, eliminating wobbling or deviation of the drilling punch during the wood drilling process, thus ensuring the machining accuracy of wood drilling.
