Door Seal Guide Rail End Punching Machine

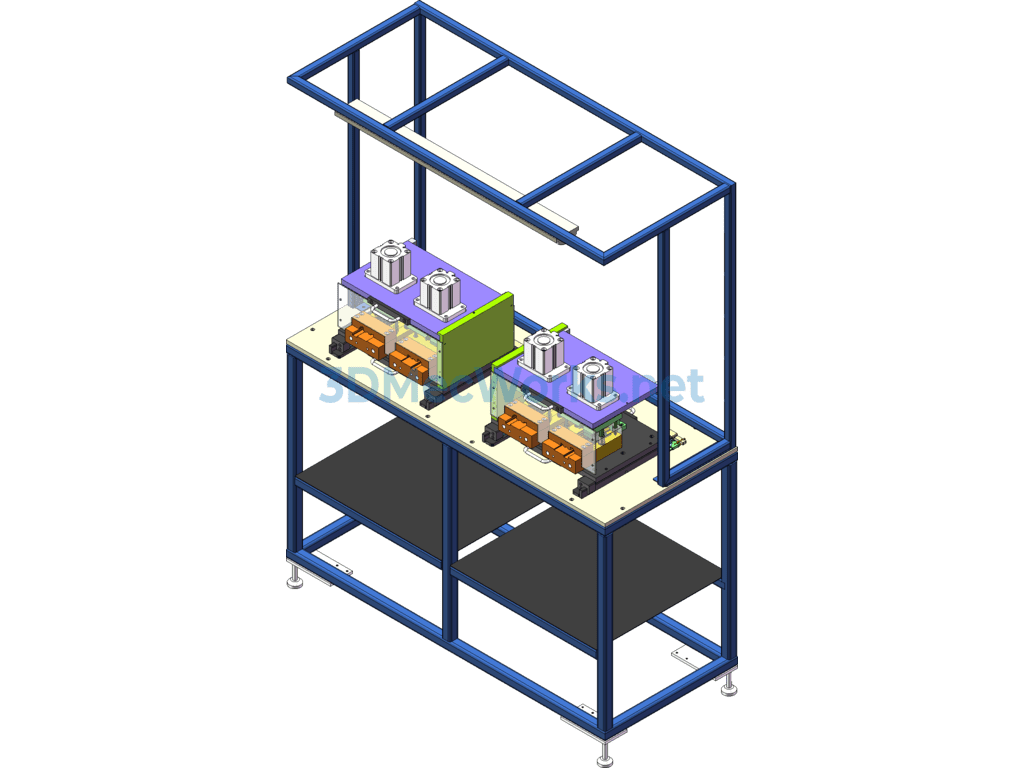

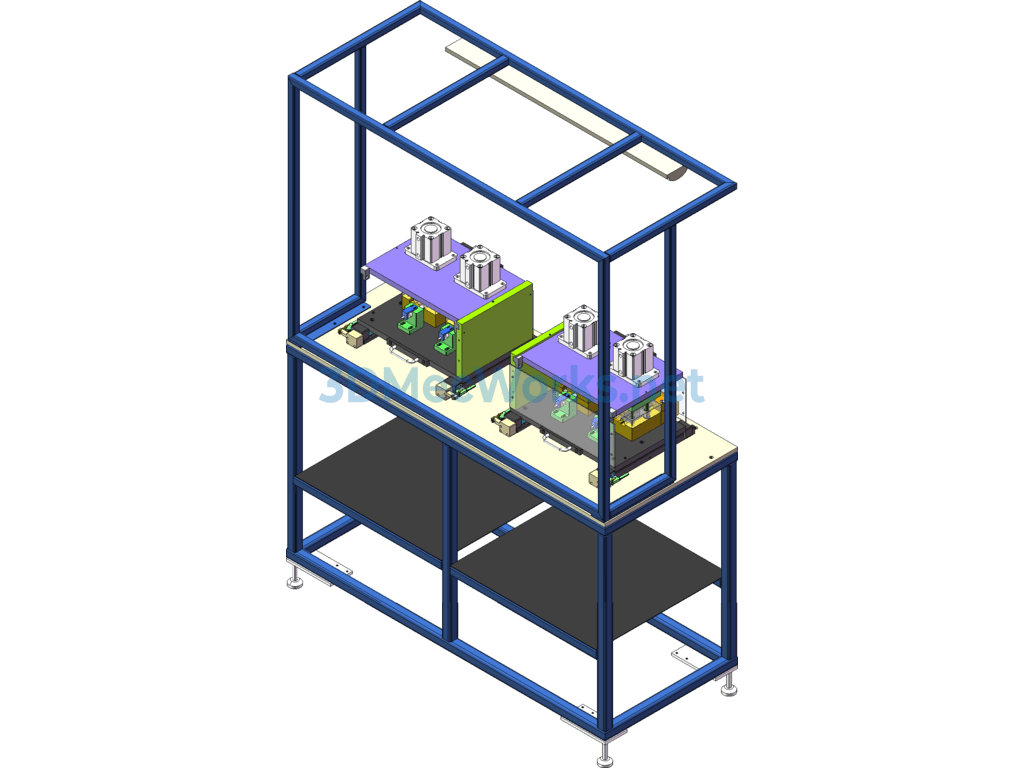

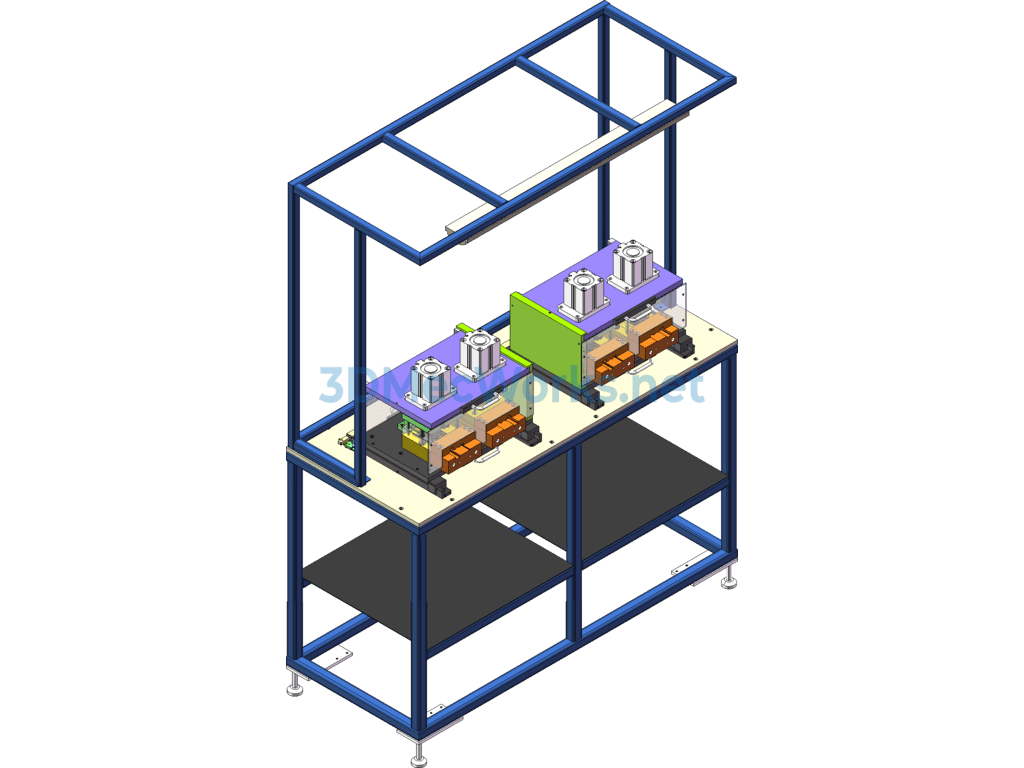

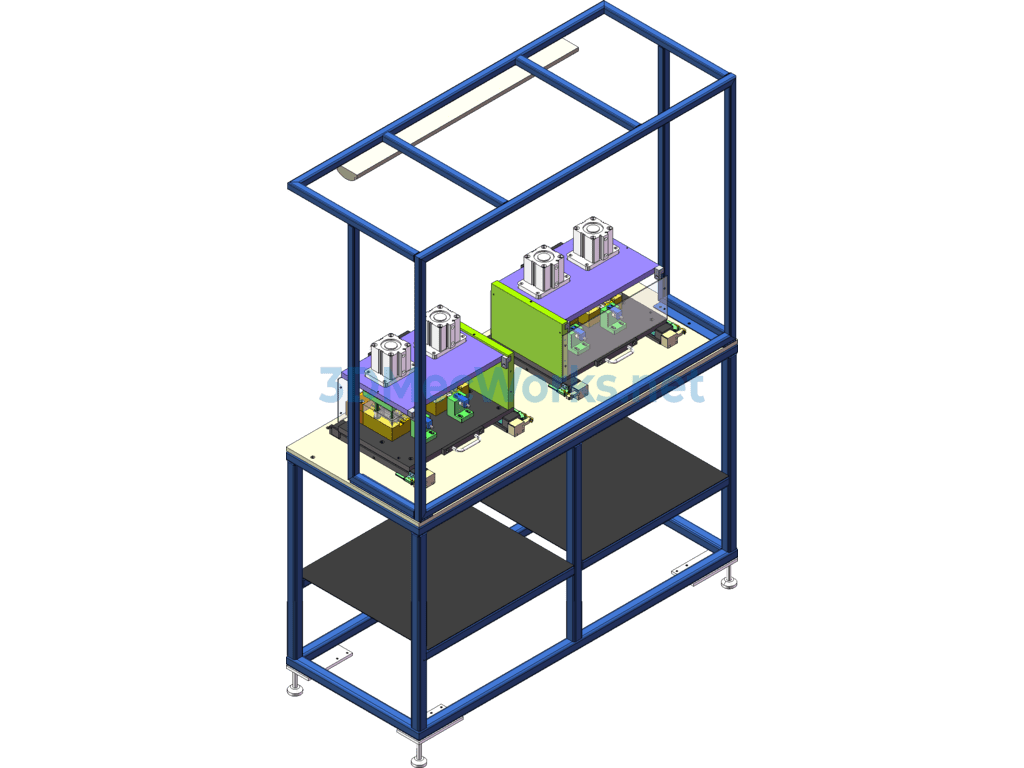

This is a complete 3D model of a car door weatherstrip guide groove end punching machine, including engineering drawings. The product is relatively soft, and the drawings have been used for actual production. The drawings feature many classic structures, with many structures that can be referenced. The tooling principle is relatively simple: achieving the purpose of punching through the principle of forming a blade with the upper and lower molds. The drawings are very detailed, in SolidWorks 2018 format, and everyone is welcome to download.
