Domestic Classic Abrasive Belt Brushing Machine

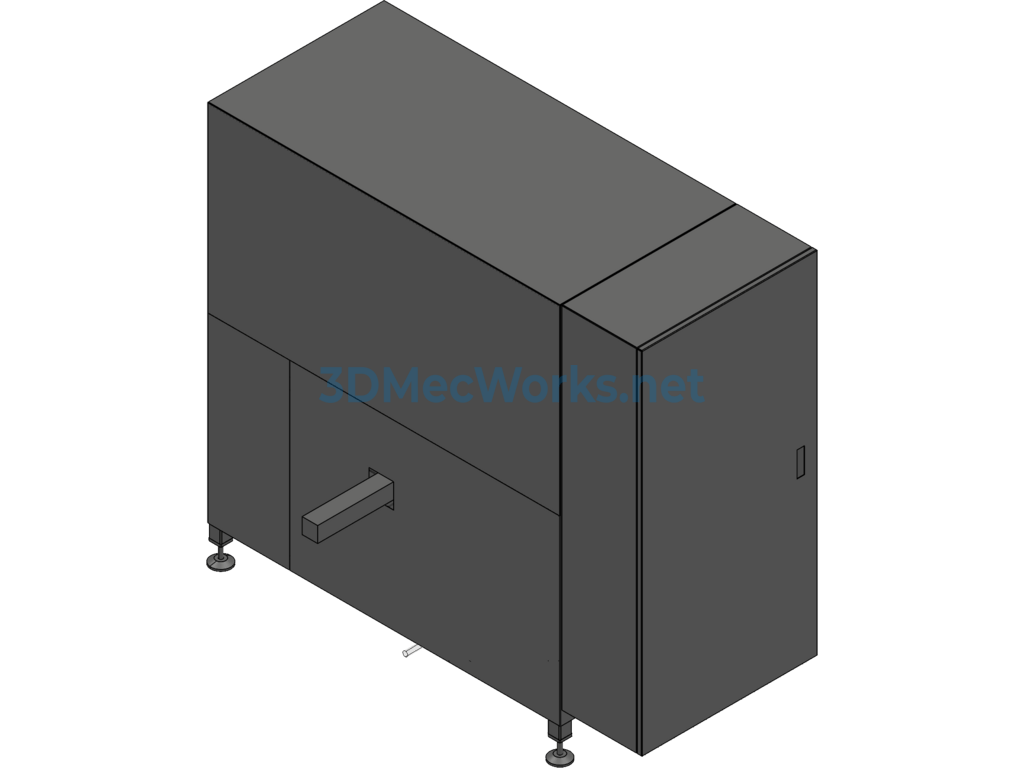

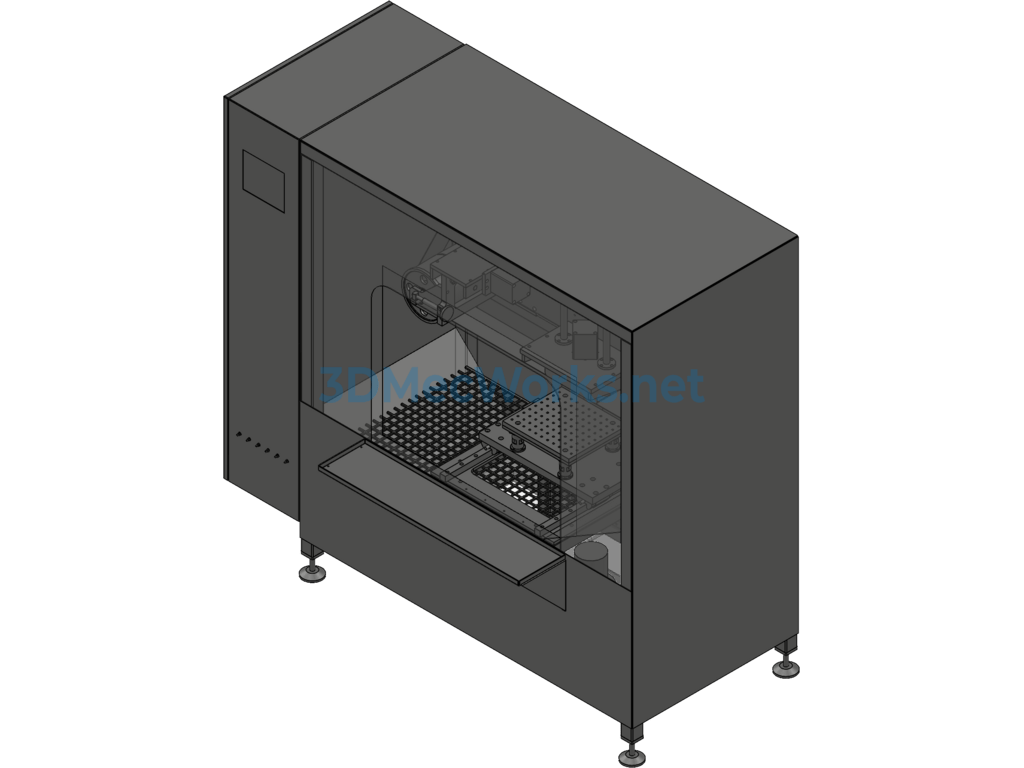

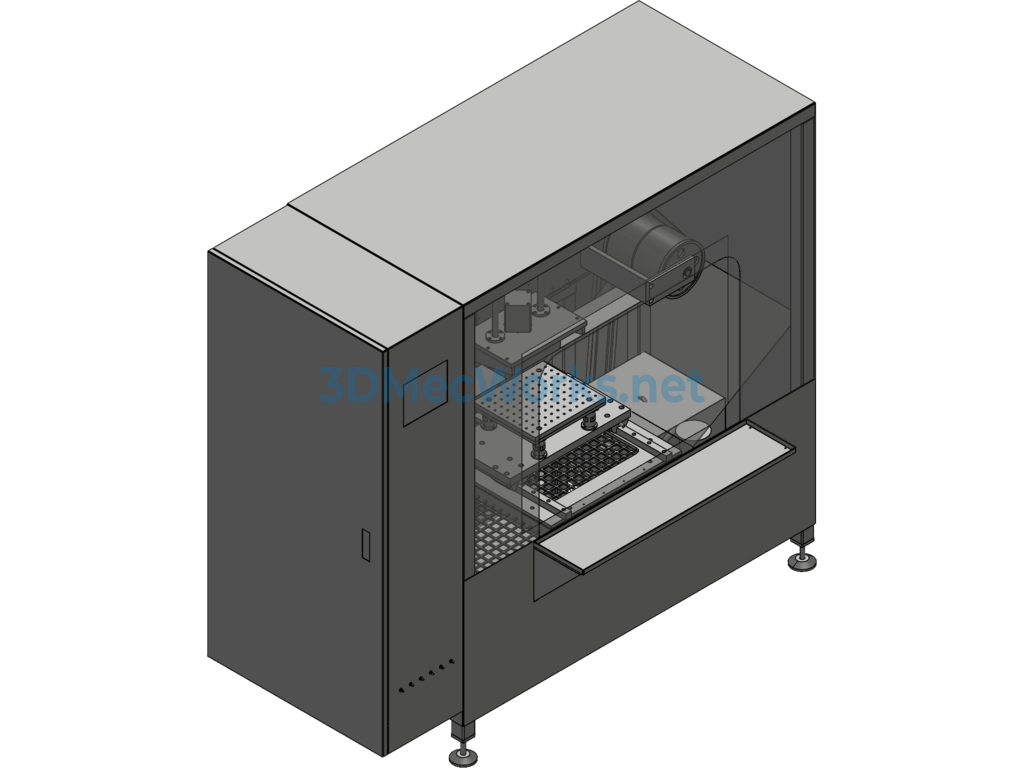

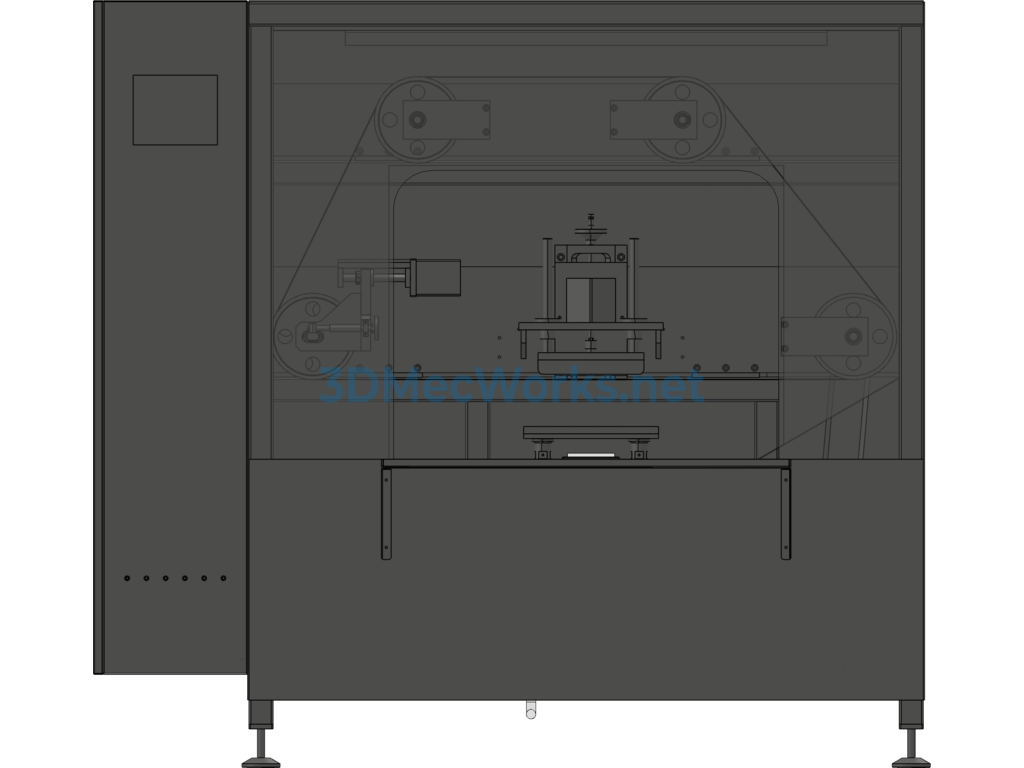

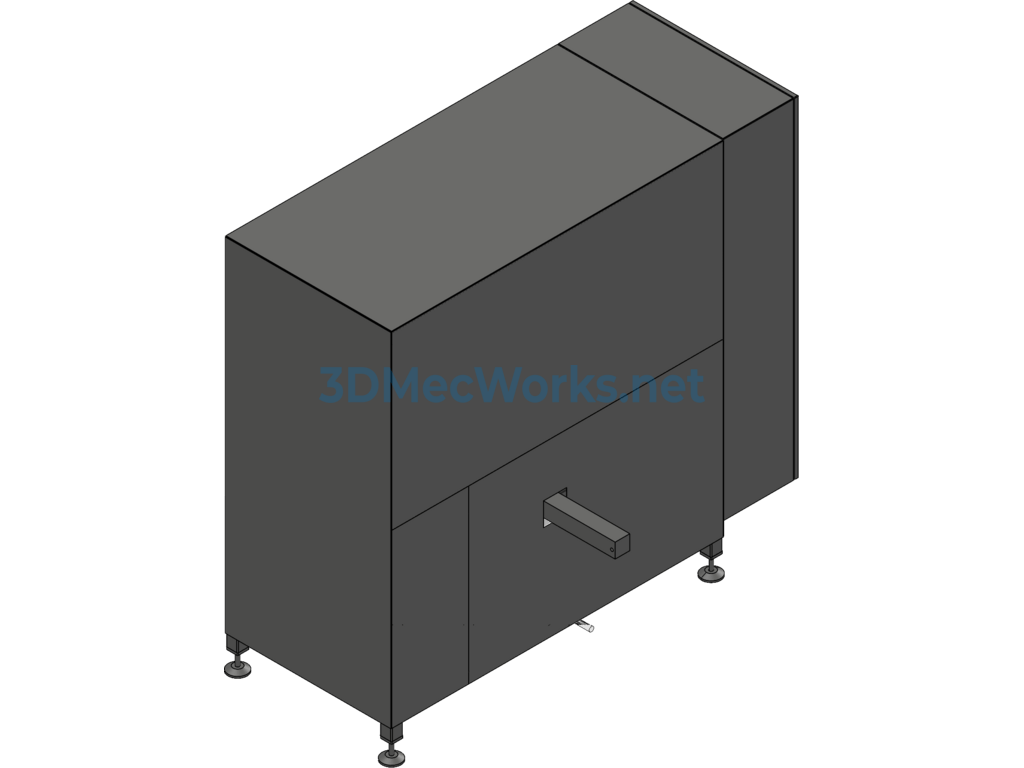

A type of abrasive belt polishing machine utilizes servo drive and is designed for brushing and polishing large, medium, and small parts. It features an enclosed mechanism, making it environmentally friendly and hygienic. The design was completed using SolidWorks 2010, and both SolidWorks source files and STP files are provided.

This non-standard equipment (abrasive belt polishing machine) is a complex custom machine that alters the diameter or shape of wire materials using a drawing die from spool to spool to achieve the desired diameter or shape. The wire needs lubrication when entering the drawing die, and the die has specialized cooling (usually a water-cooled jacket). The take-up machine provides power. The mechanical structure of this machine is well-designed and serves as a great reference for designers. For designers interested in creating polishing machines, this is absolutely excellent material and is available for download.
