Differential Motion Robot Chassis Frame

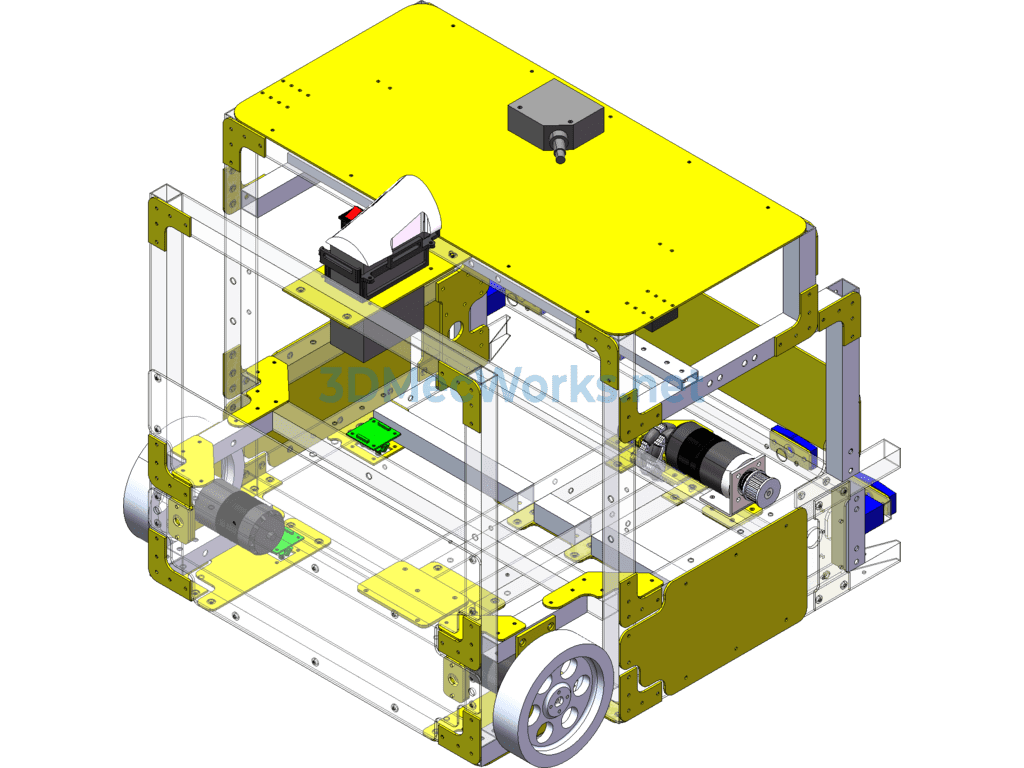

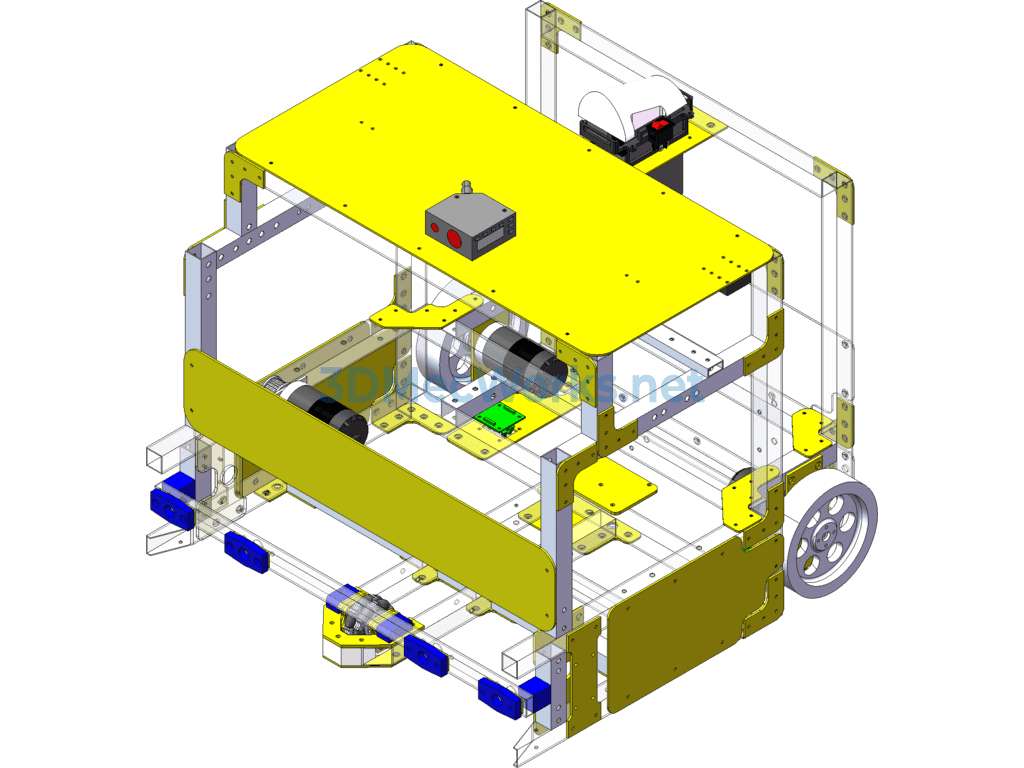

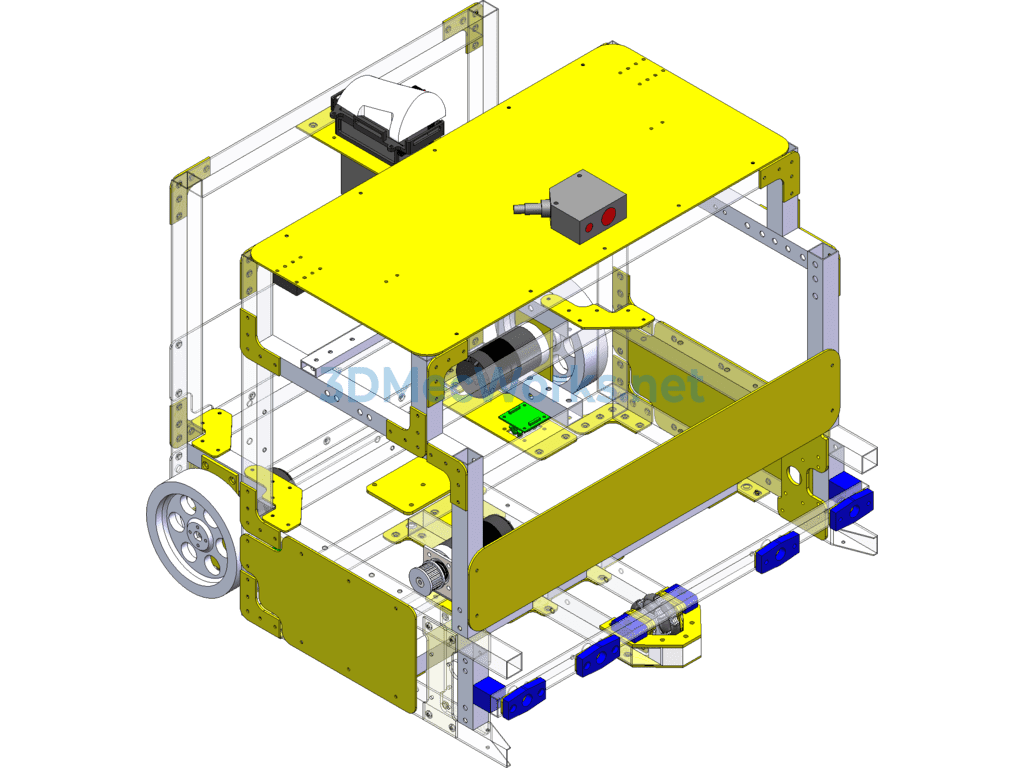

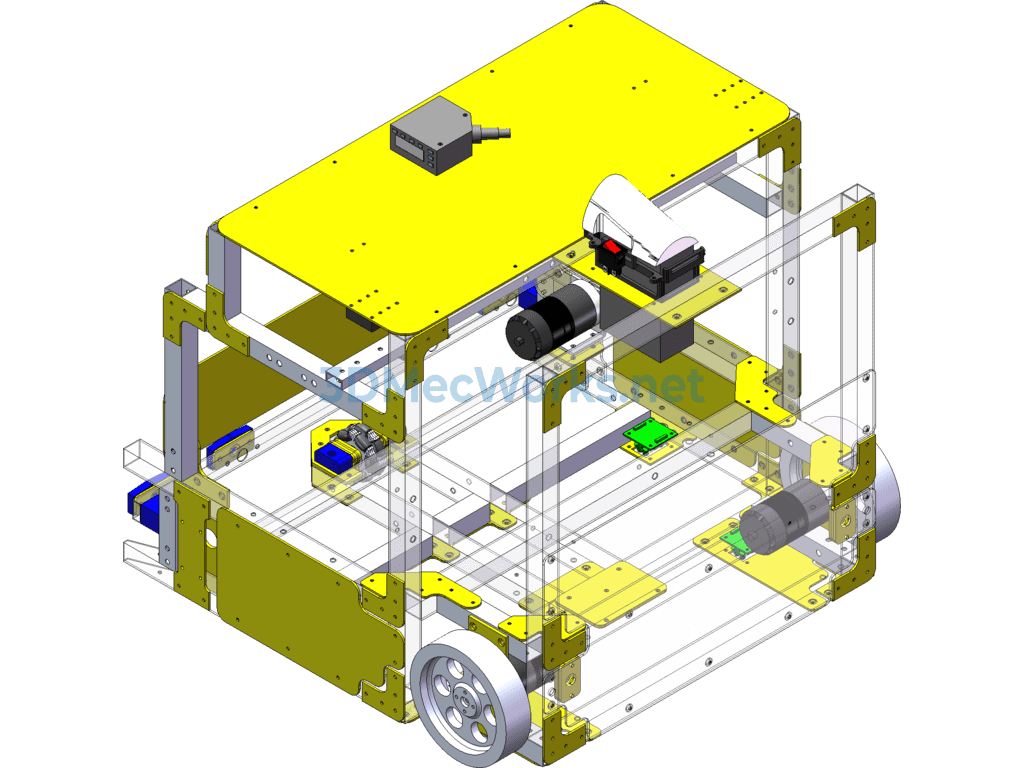

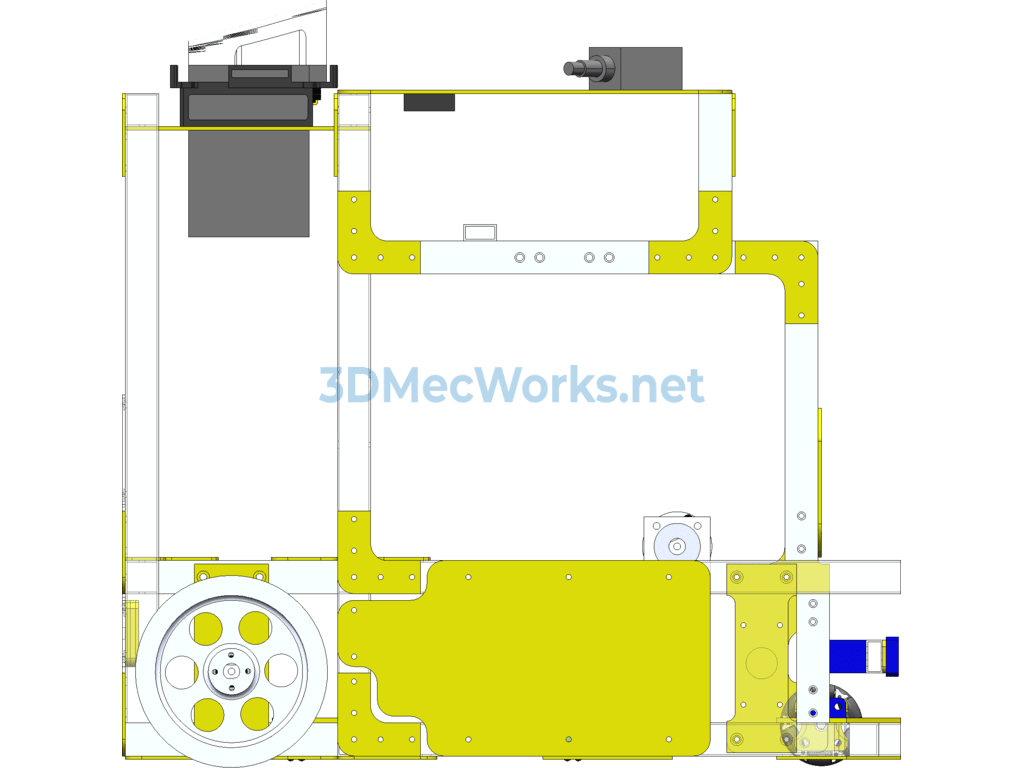

This is a chassis and framework for a robot based on the principle of differential motion. It is constructed using aluminum square tubes and epoxy resin boards. On top of the robot is a laser sensor for testing distance, and at the bottom of the robot, there are several color sensors to determine the color of the ground. The compressed package includes part drawings and assembly drawings of the mentioned model, and the illustrations shown are also included within the package. The drawing format is correct, includes characteristic parameters, and is editable. Welcome to download.
